Modern Indoor Decoration Lighting LED Spot Down Light 5W-80W Square Circle Trim Hotel Room Corridor
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 8pcs (13kg/CTN) 45.5*45.5*32cm | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, Paypal, L/C | Supply Ability : | 10,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CCC, CE, CQC, ETL, RoHS, SAA | Model Number: | MF-TH229-20W |
Detail Information |
|||
Power: | 10W / 12W / 15W / 20W / 30W / 40W | Luminous Flux: | 100lm/W |
---|---|---|---|
Beam Angle: | 24° 36 °45 °50 °60 ° | CRI: | >80Ra Or 90Ra |
Warranty: | 3 Years Optional | LED Brand: | Cree Or Epistar COB LED |
Application: | Engineering, Home Furnishing, Residential Gardens, Commercial Buildings, And Pub | Nominal Current: | 350,000mA |
Protection Class: | II | Operating Mode: | Electronic Control Gear |
Luminous Flux (Lm): | 640-800lm | Lifespan: | ≥35000hrs |
High Light: | Anti Glare Recessed Light,IP40 Ceiling Mounted Down Light,640lm Ceiling Mounted Down Light |
Product Description
Factory Price 2in3in4in5in6in Alu. PC anti glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
108 processes
Each layer is carefully design
Len
Reflective cup
Aluminum structure with strong heat dissipation
High quality Hardware Spring
Beam angle:

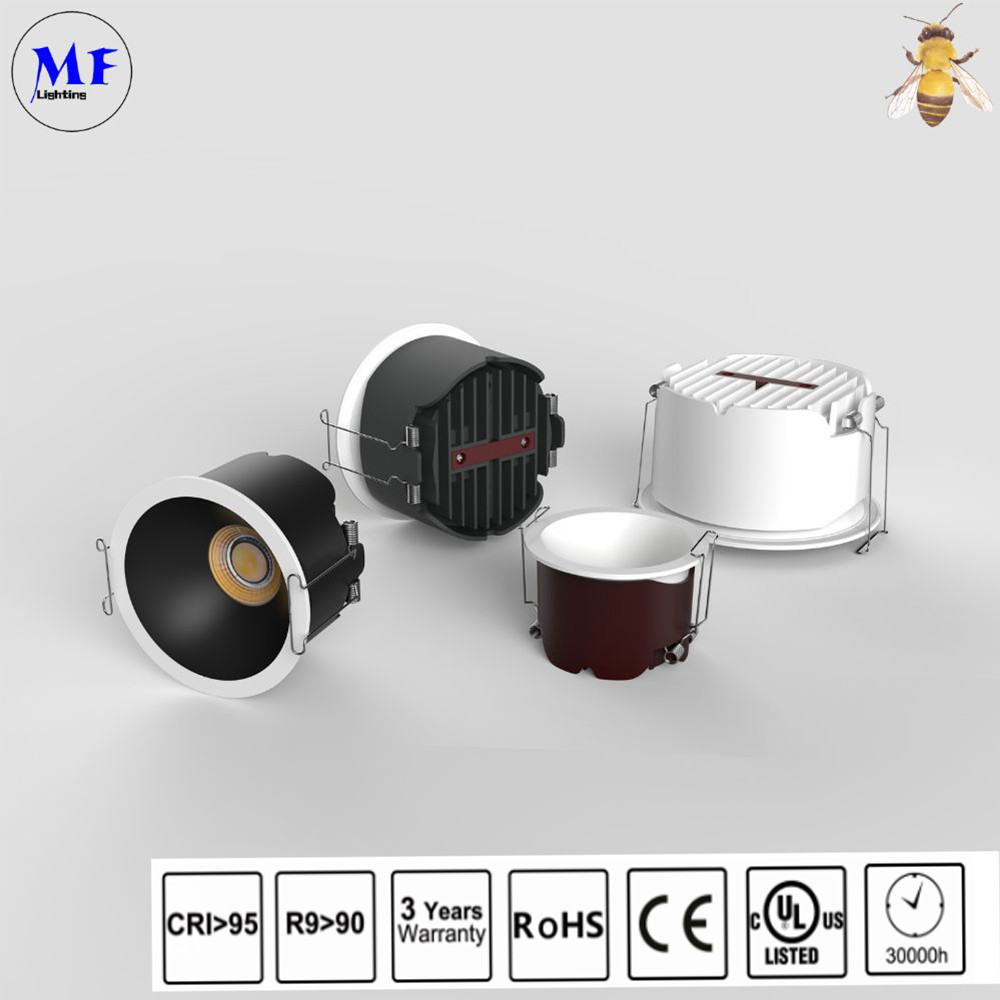

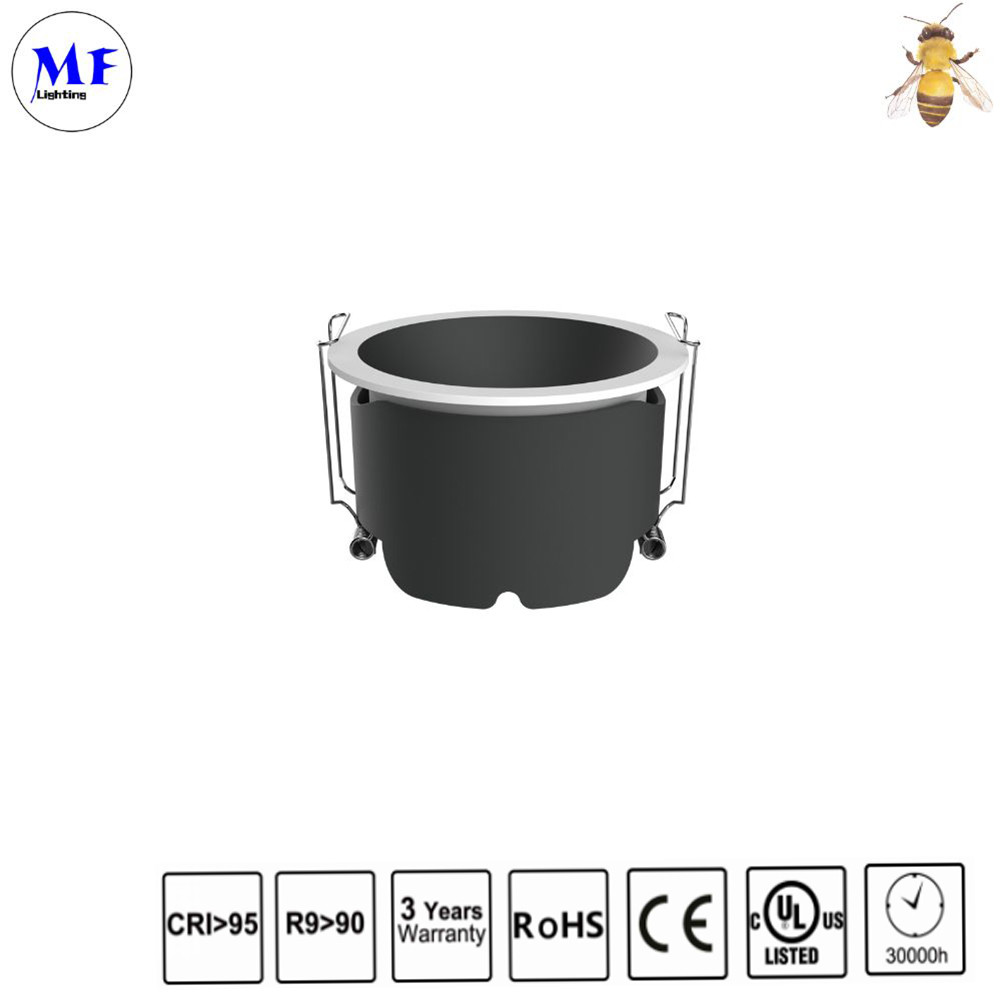

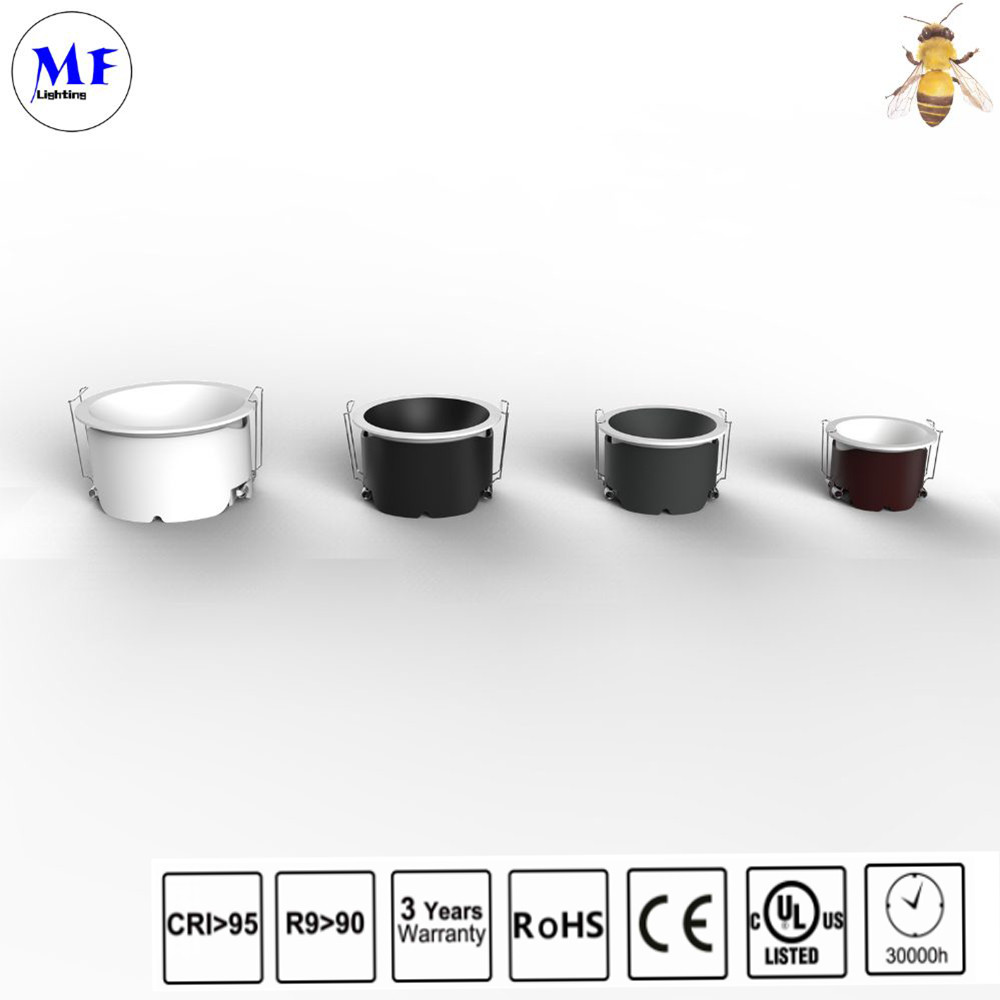

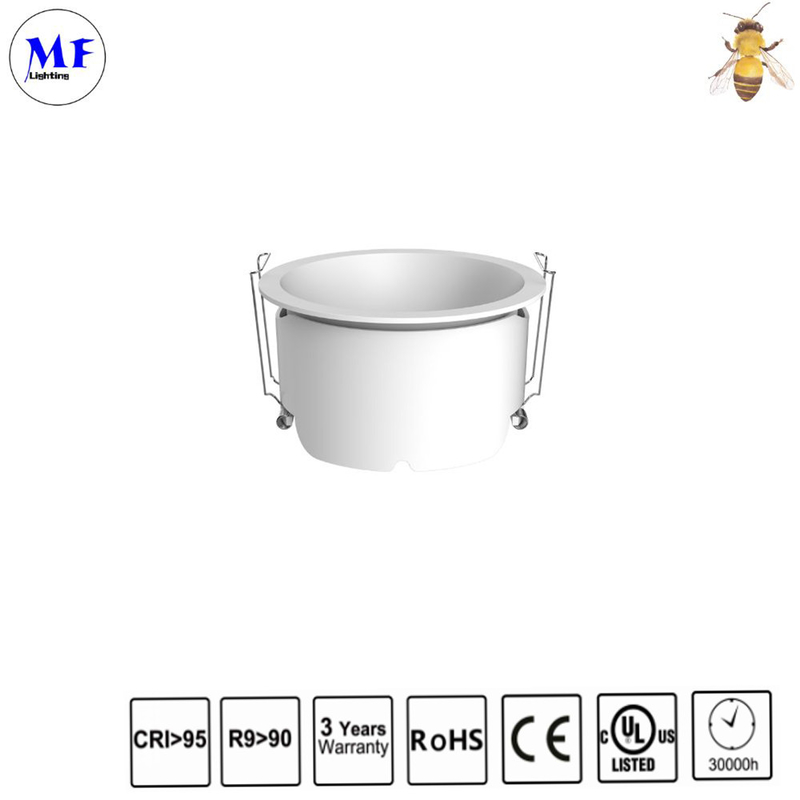

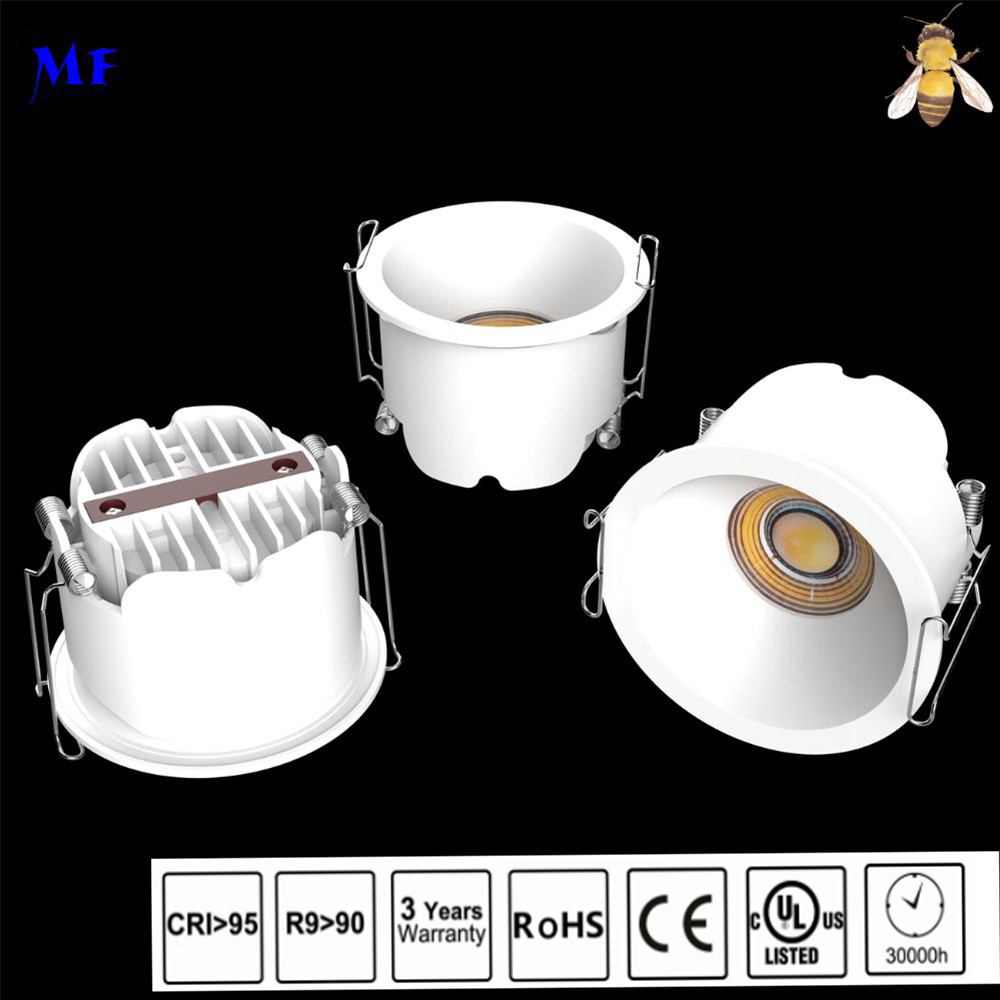

Product pictures:
Parameters
Electrical Data:
Nominal Wattage | 10W/12W/15W/20W/30W/40W |
Nominal Voltage | 100-240V |
Mains Frequency | 50-60Hz |
Nominal Current | 350,000mA |
Power Factor λ | 0.9 |
Protection Class | II |
Operating Mode | Electronic Control Gear (ECG) |
Application & Mounting:
Ambient Temperature Range | -20 °C~ 40°C |
Type of Connection | Terminal, 2-pin |
Type of Protection | IP40 |
Dimmable | No |
Mounting Type | Recessed |
Mounting Location | Ceiling |
Application Environment | Indoor |
Mounting Diameter | 10W 75mm,12W 90mm,15W 100mm,20W 115mm,30W 145mm,40W 170mm |
LED module Replaceable | Not replaceable |
Lifespan L70/B50 at 25 °C | 30000 h1) |
Number of Switching Cycles | 15000 |
Material & Color:
Product Color | White Black |
Housing Color | White Black Grey Red |
Body Material | Aluminum |
Mercury Content | 0.0mg |
Diameter | 10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
Length | 10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
Height | 60.00 mm |
Product Weight | 610.00g |
Power | D(mm) | H(mm) | C(mm) |
10W | 82 | 53 | 75 |
12W | 96 | 58 | 90 |
15W | 106 | 63 | 100 |
20W | 123 | 68 | 115 |
30W | 155 | 76 | 145 |
40W | 185 | 83 | 170 |
Luminous Flux | 10W 1000lm/12W 1200lm/15W 1500lm/20W 2000lm/30W 3000lm/40W 4000lm |
Luminous Efficacy | 100 lm/W |
Color Temperature | 3000K 4000K 6000K |
Light Color (designation) | Warm White |
CRI | ≥80 |
Beam Angle | 24°36 °45 °50 °60 ° |
