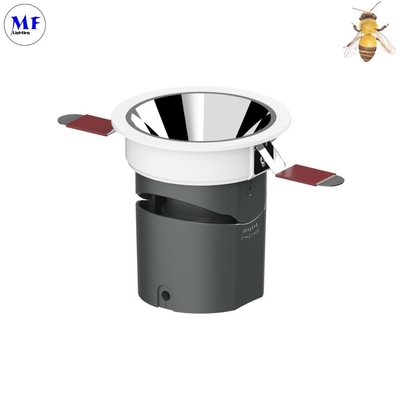

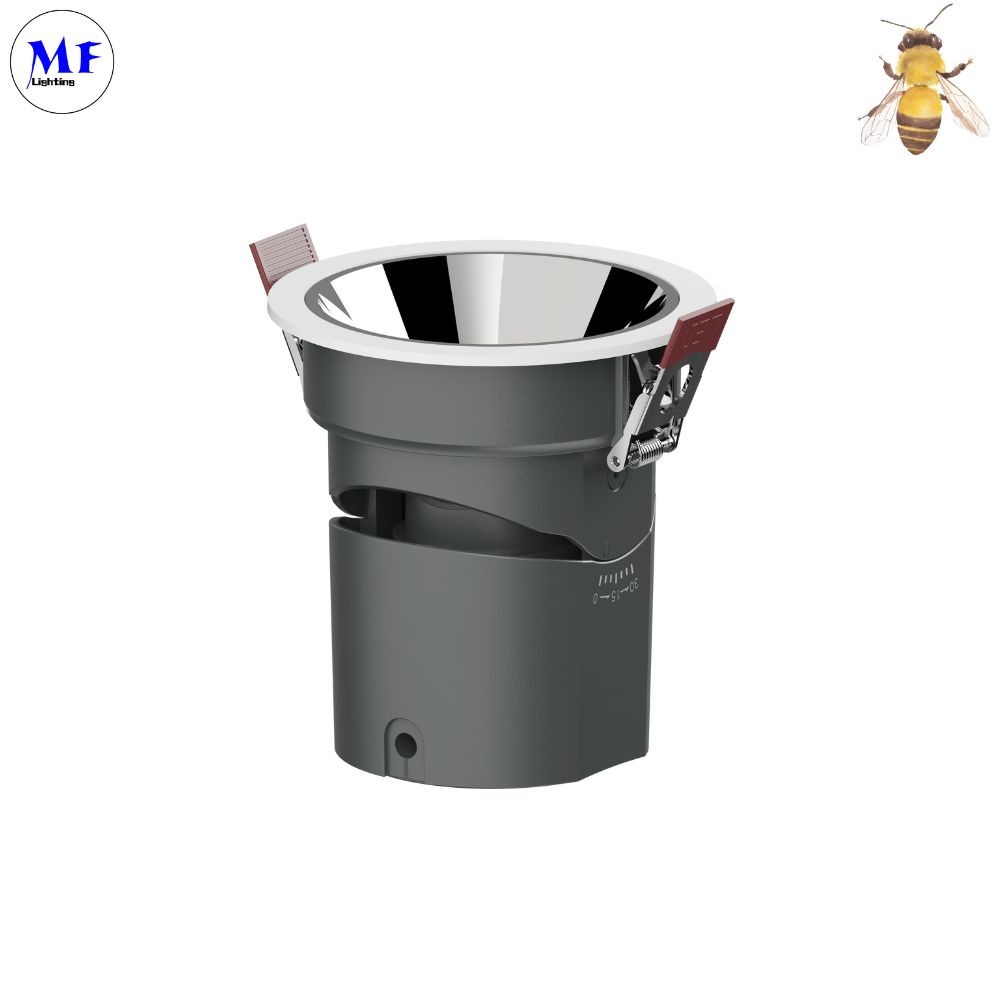

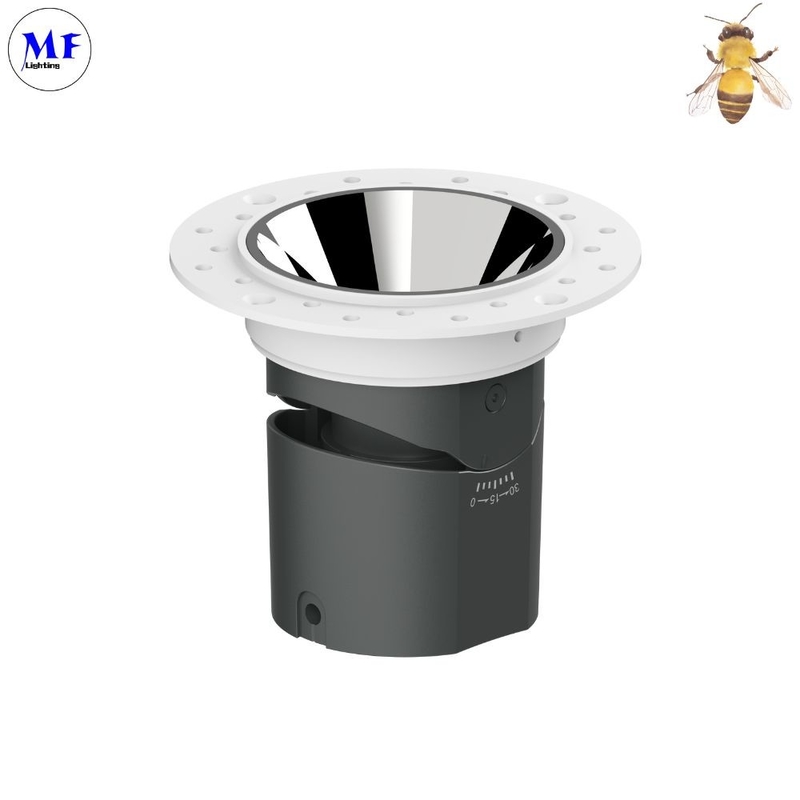

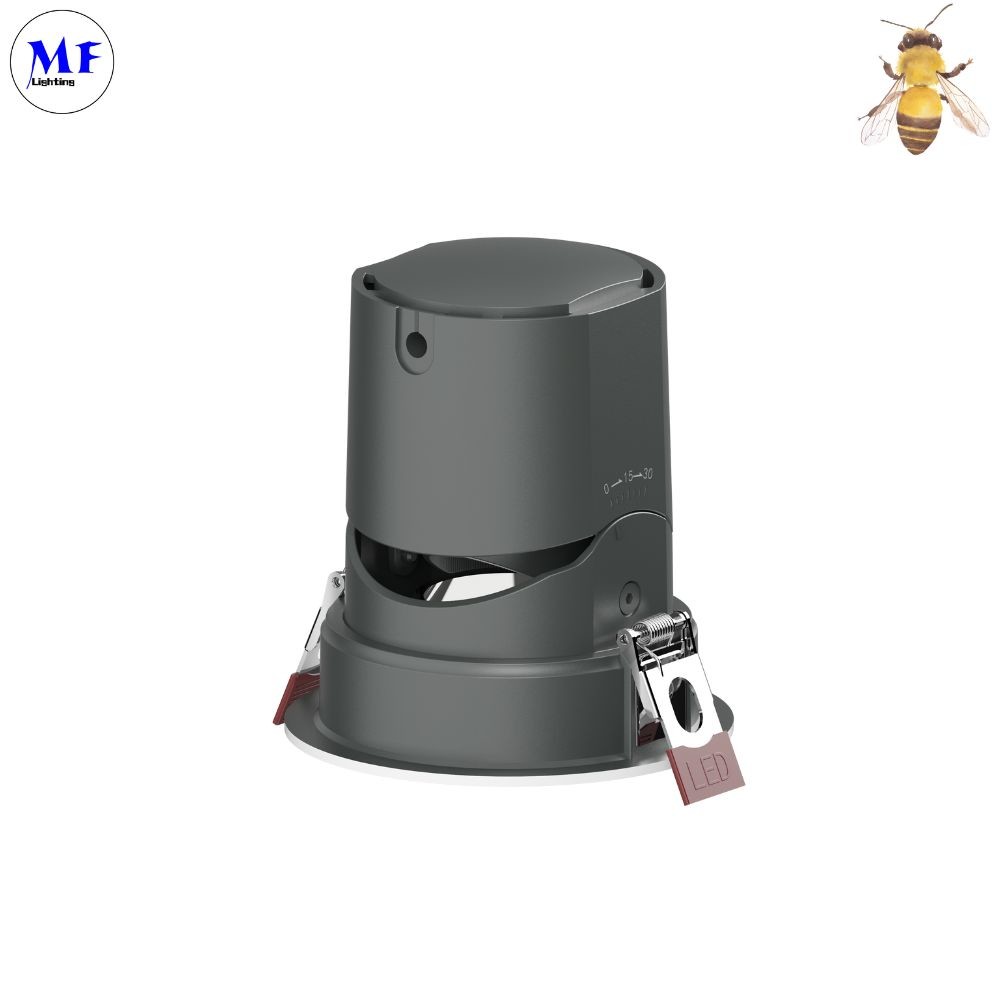

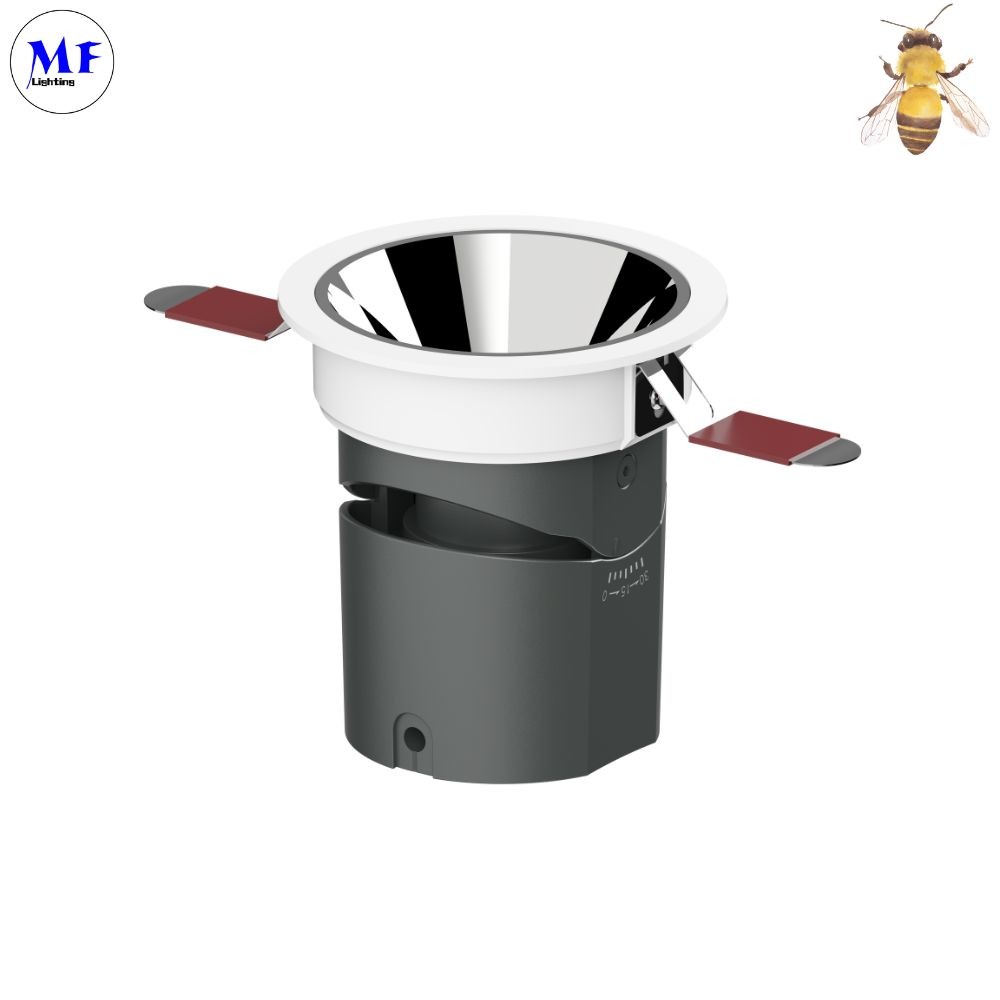

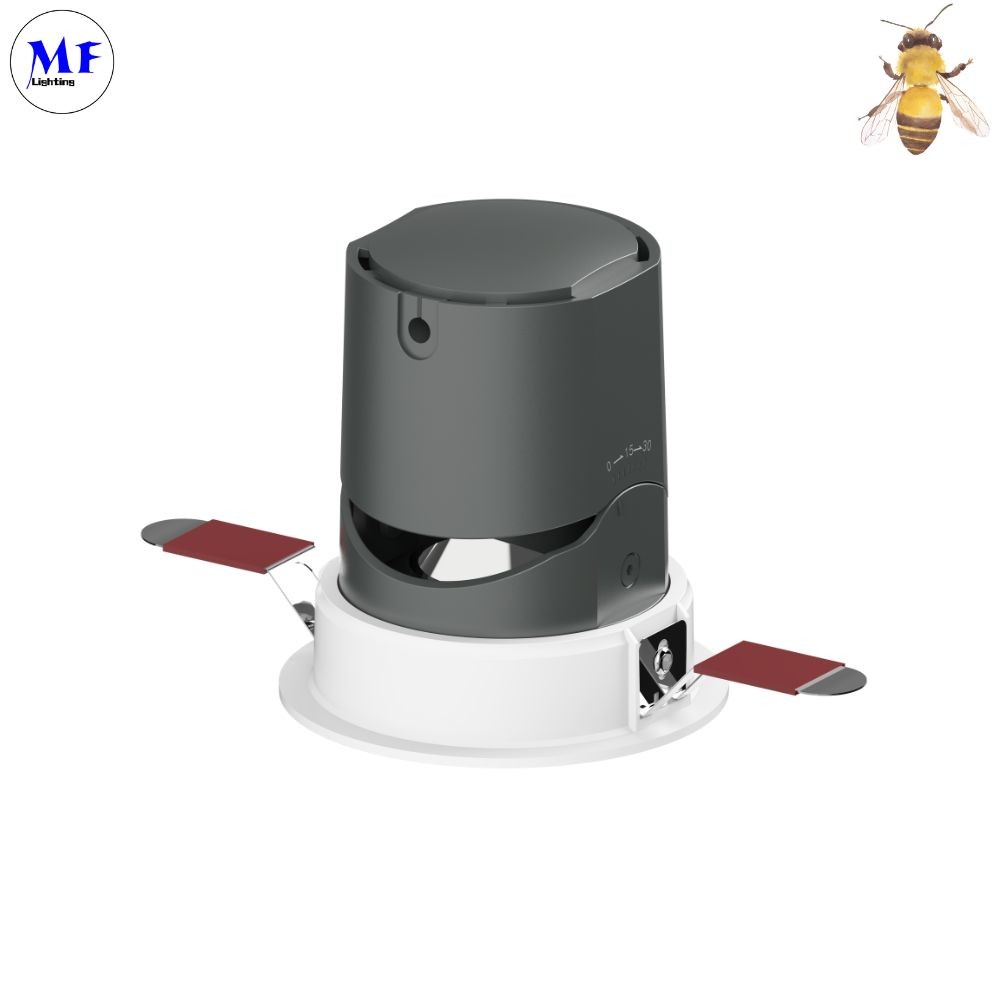

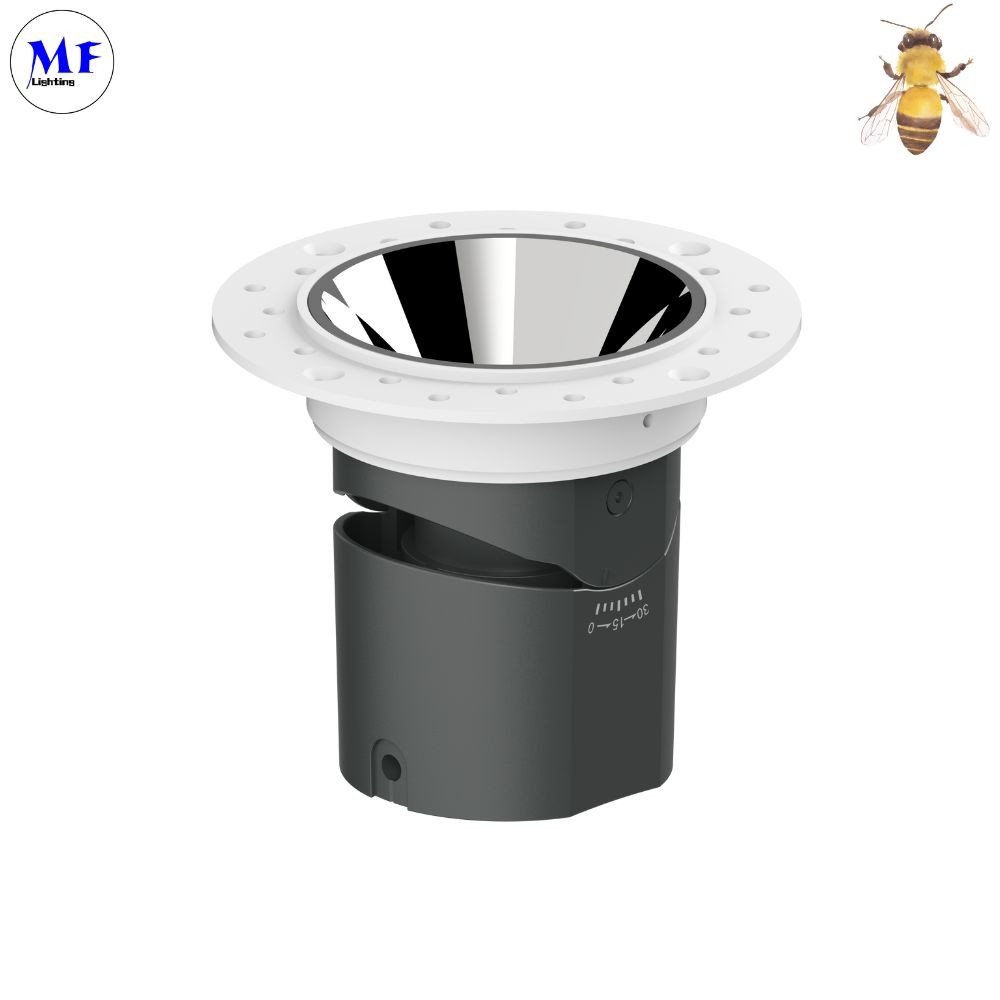

Modern Indoor Decoration Lighting LED Spot Down Light 5W-80W Square Circle Trim Hotel Room Corridor
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 10pcs | Price : | negotiable |
|---|---|---|---|
| Delivery Time : | 1 week for sample order; 2 weeks for bulk order. | Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 10, 000PCS/Months |
| Place of Origin: | China | Brand Name: | MF |
|---|---|---|---|
| Certification: | CE, RoHS | Model Number: | MF-TH201-CWS20W/2x20W/3x20W/4x20W |
|
Detail Information |
|||
| Power: | 5W / 10W / 18W | Voltage: | 100-240V |
|---|---|---|---|
| Color Temperature: | 3000K 4500K 6000K | IP Rating: | IP40 |
| Light Color: | Warm White | Color Options: | White |
| Lumen Efficacy: | 100lm/W | Mounted: | Recessed |
| Lamp Body Material: | Aluminum | Housing Color: | Grey |
| Beam Angle: | 8°/15°/24°/36°/60° | PF: | 0.9 |
| High Light: | 100lm/W Spotlight Down Light,LED Indoor Spotlight Down Light,3CCT LED Down Light |
||
Product Description
Technical Specification
Electrical Data:
| Nominal Wattage |
5W / 10W / 18W
|
| Nominal Voltage | 100-240V |
| Mains Frequency | 50-60Hz |
| Nominal Current | 350,000mA |
| Power Factor λ | 0.9 |
| Protection Class | II |
| Operating Mode |
Electronic Control Gear (ECG) |
Application & Mounting:
| Ambient Temperature Range | -20 °C~ 40°C |
| Type of Connection | Terminal, 2-pin |
| Type of Protection | IP40 |
| Dimmable | No |
| Mounting Type | Recessed |
| Mounting Location | Ceiling |
| Application Environment | Indoor |
| LED module Replaceable | Not replaceable |
| Mounting Diameter |
7W,55mm/60mm, 12W 75mm/80mm,20W 95mm/100mm
|
| Lifespan L70/B50 at 25 °C | 30000 h1) |
| Number of Switching Cycles | 15000 |
Material & Color:
| Product Color | White |
| Housing Color | Grey |
| Body Material | Aluminum |
| Mercury Content | 0.0mg |
Description
Ming Feng Lighting's LED Down Light offers customizable lighting options for a variety of settings. This down light can provide ample illumination while remaining energy efficient.
The beam angle is 15°/24°/36°/55° optional, allowing users to direct the light where it is needed most. The down light features an Epistar COB brand chip, ensuring high-quality performance and longevity.
With an IP40 rating, this down light is suitable for indoor use and can provide versatile lighting options with its adjustable color temperature. Users can choose from three different color temperature options, making it easy to create the desired ambiance in any room.
The down light is also dimmable, allowing for even greater control over the lighting level and creating a comfortable and inviting atmosphere. Overall, Ming Feng Lighting's LED Down Light provides a reliable and customizable lighting solution for a variety of indoor settings.
Photometry
| Luminous Flux |
5W 500lm / 10W 1000lm/ 18W 1800lm
|
| Luminous Efficacy | 100 lm/W |
| Color Temperature | 3000K 4000K 6000K |
| Light Color (designation) | Warm White |
| CRI | ≥80 |
| Beam Angle |
8°/15°/24°/36°/60°
|
Dimension
| Diameter |
Refer to below table
|
| Length |
Refer to below table
|
| Height |
Refer to below table
|
| Product Weight | 610.00g |
| Code | Size(D) | Cutting(C) |
|
MF-TH217-5W
|
63xH75mm
|
55mm
|
|
MF-TH217-10W
|
85xH93mm
|
75mm
|
|
MF-TH217-18W
|
110xH123mm
|
100mm
|
|
MF-TH217-W5W
|
83xH75mm
|
55mm
|
|
MF-TH217-W10W
|
105xH93mm
|
75mm
|
|
MF-TH217-W18W
|
130xH123mm
|
100mm
|
Packing
| Product Code | Packing Unit | Dimensions(LxWxH) | G.W | Volume |
| 4058075800342 | Folding Box 1 | 175 mm x 175 mm x 105 mm | 730.00g | 3.22 dm³ |
| 4058075800359 | Shipping Box 18 | 545 mm x 370 mm x 345 mm | 14000.00g | 69.57 dm³ |
Applications
Downlights are commonly used for focused lighting in residential homes, commercial buildings, hospitality industry, art galleries, museums, outdoor lighting, and theater/entertainment venues.
Company Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
FAQ
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
