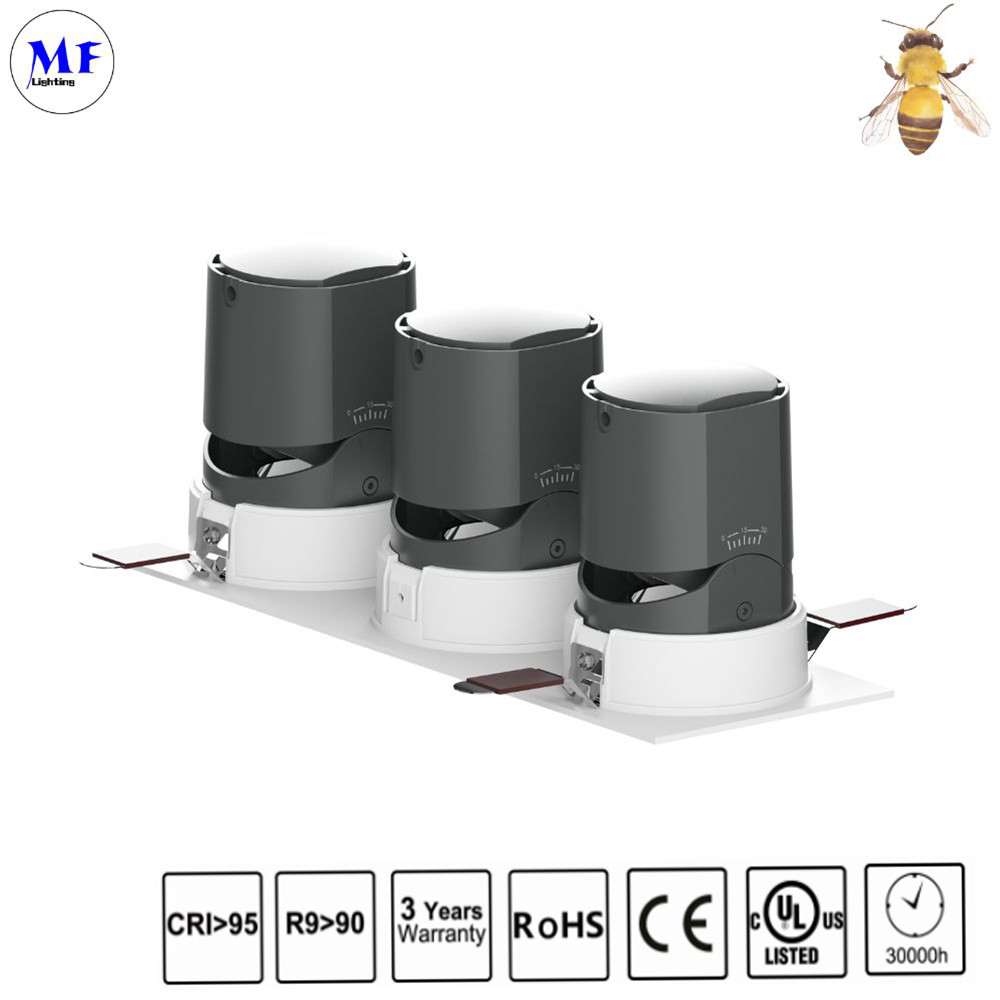

Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light With Epistar COB 5W CE RoHS

Product Description

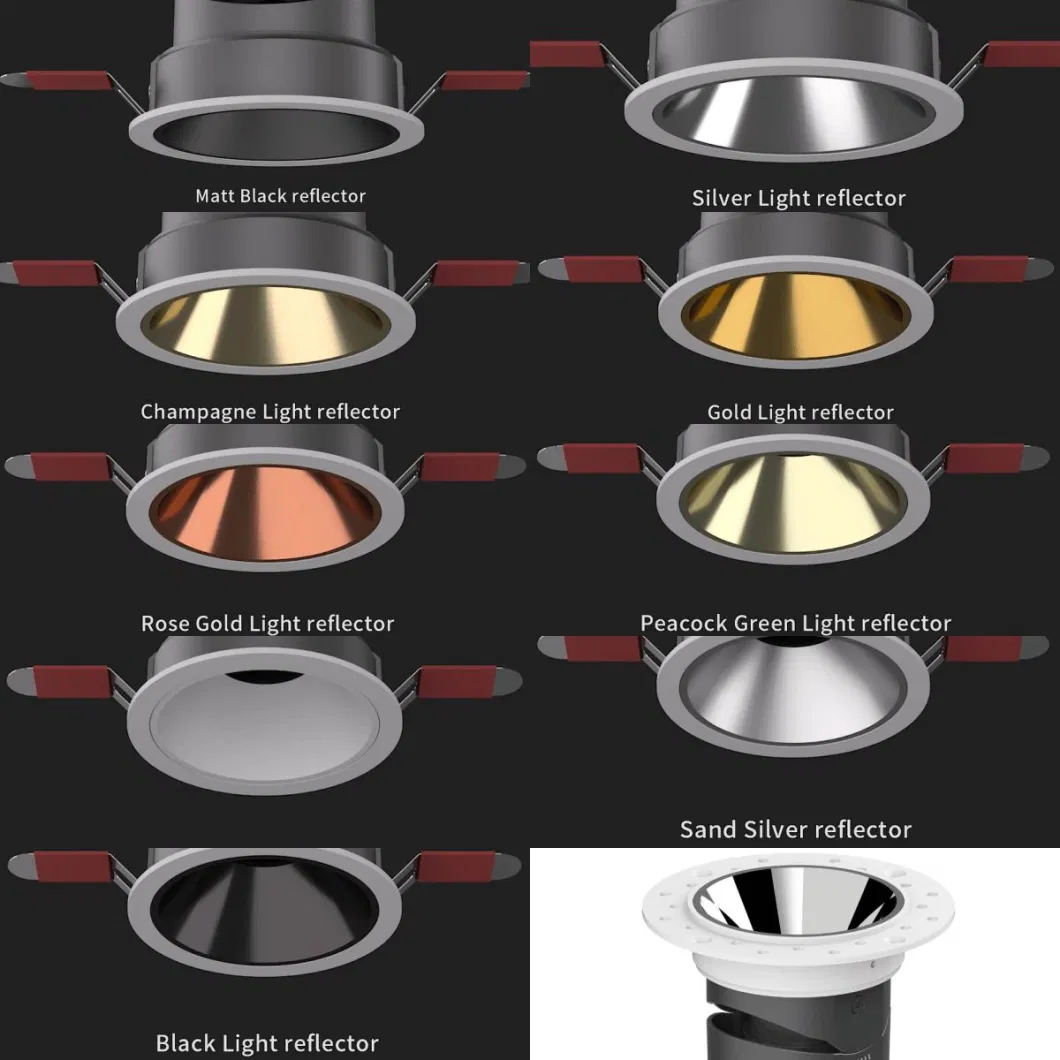

Reflector Color



Specifications

Electrical data

Nominal wattage			5W / 10W / 18W
Nominal voltage			100.…240 v
Mains frequency			50…60 Hz
Nominal current			350.000 mA
Power factor λ			0.90
Protection class			II
Operating mode			Electronic control gear (ECG)

Photometrical data

Luminous flux		5W 500lm / 10W 1000lm/ 18W 1800lm
Luminous efficacy		100 lm/W
Color temperature		3000 K 4500K 6000 K
Light color (designation)		Warm White
Color rendering index Ra		≥80

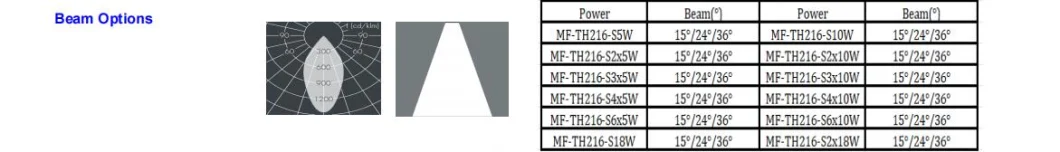

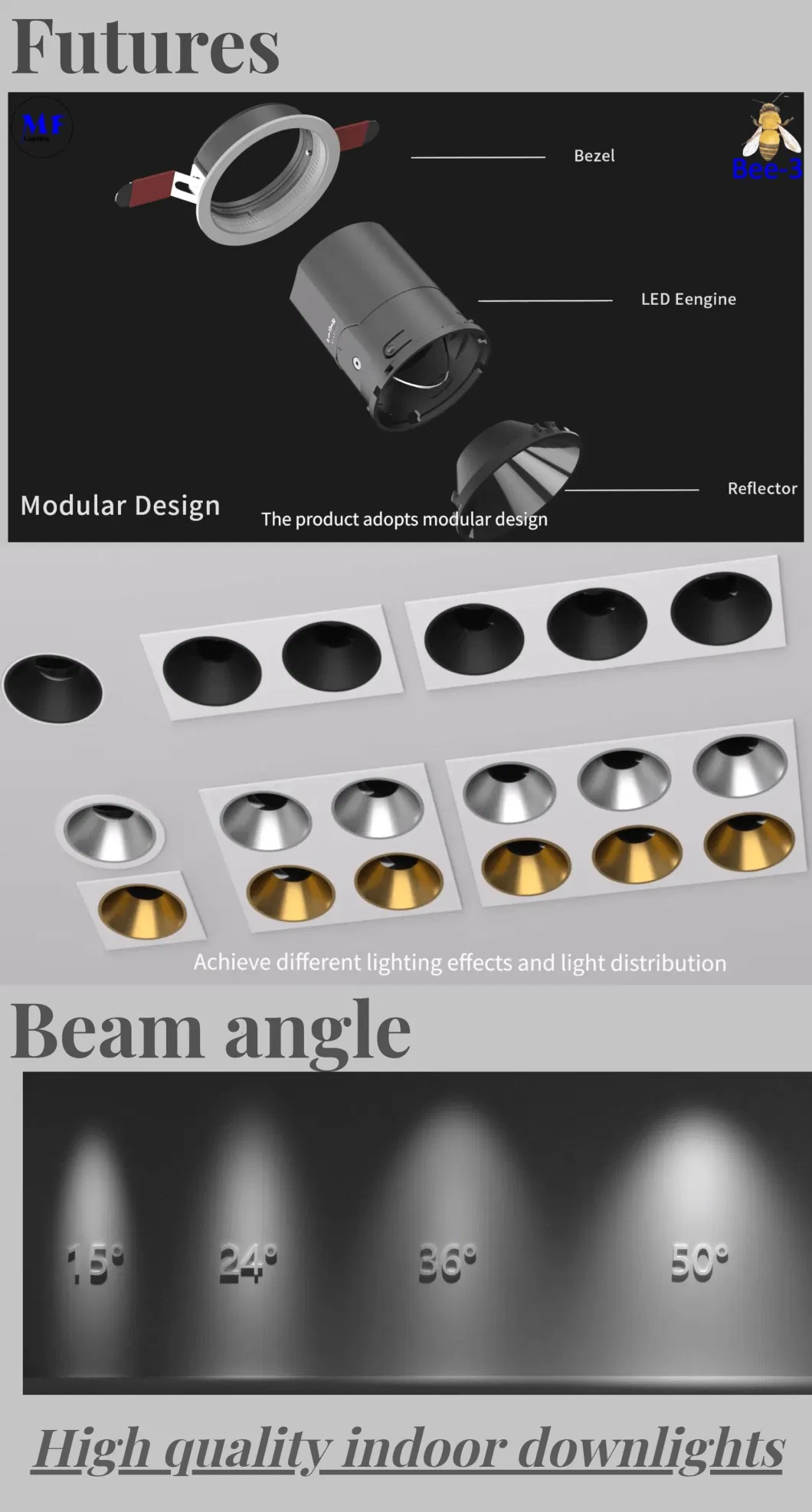

Beam angle		8°/15°/24°/36°/60°

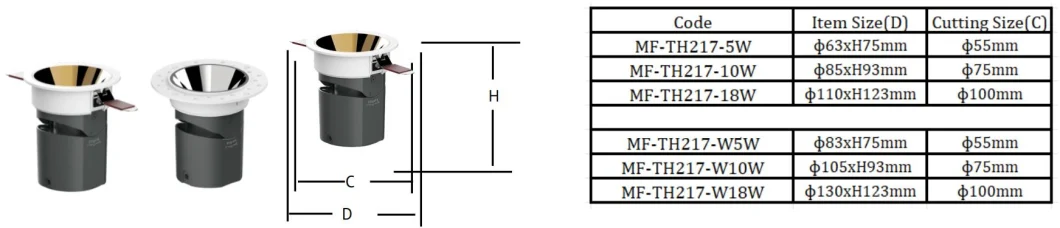

Dimensions & Weight


Materials & Colors

Product color(Ring)	White
Housing color	Grey
Body material	Aluminum
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 ºC
Type of connection	Terminal,2-pin
Type of protection	IP40
Dimmable	No
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting diameter	Refer to Dimensions & Weight
LED module replaceable	Not replaceable

Lifespan

Lifespan L70/B50 at 25ºC	30000 hr
Number of switching cycle	15000

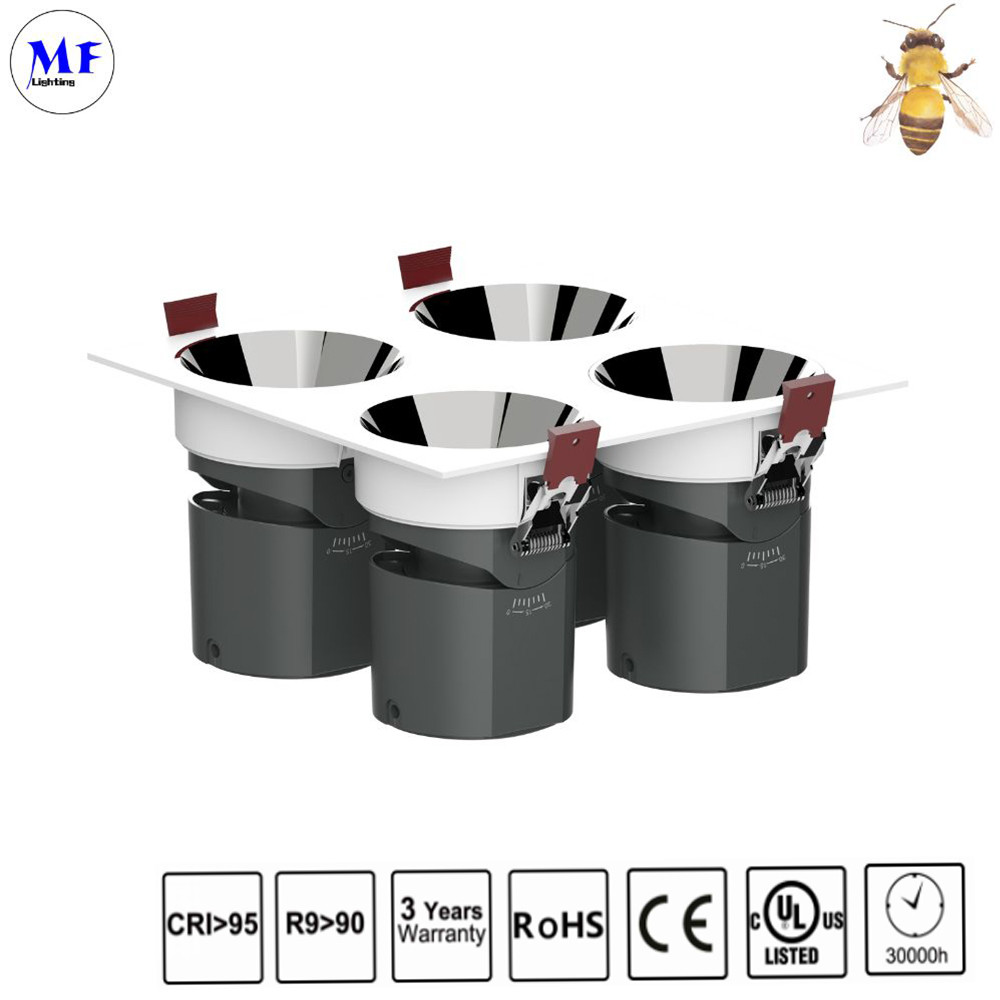

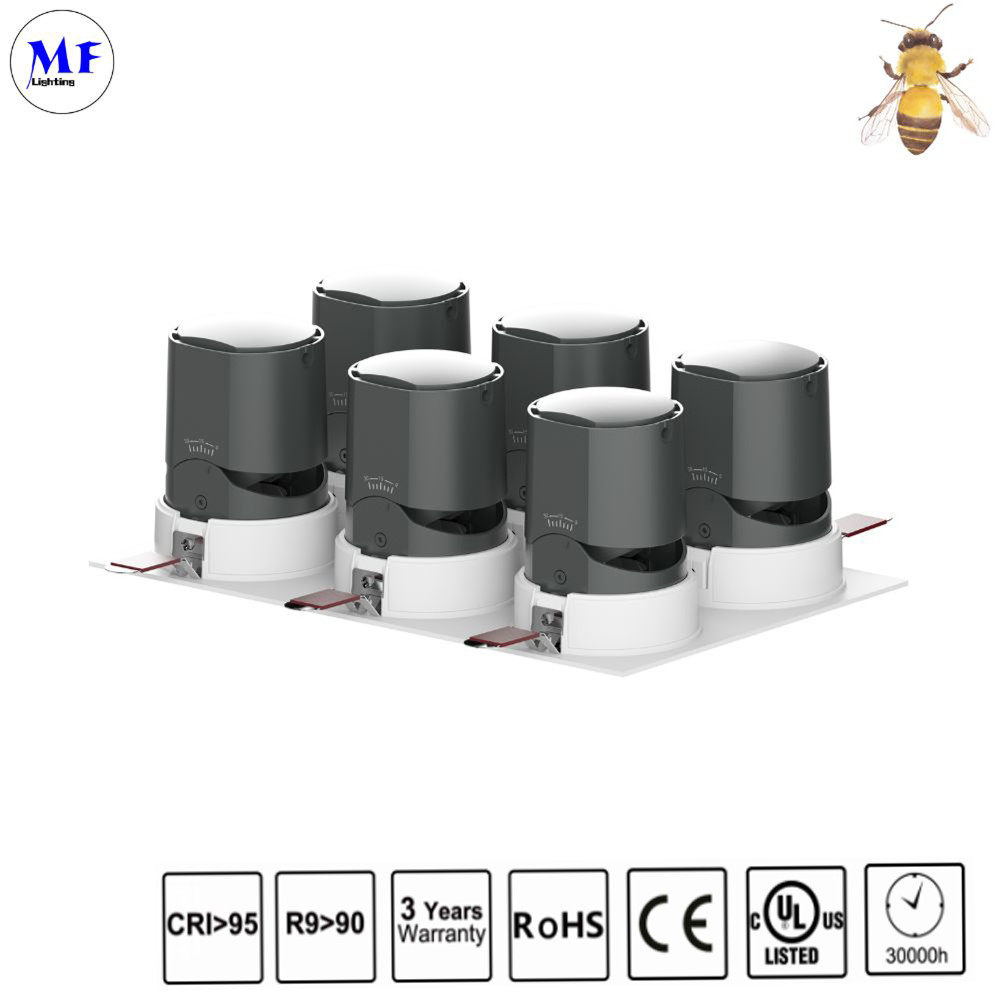

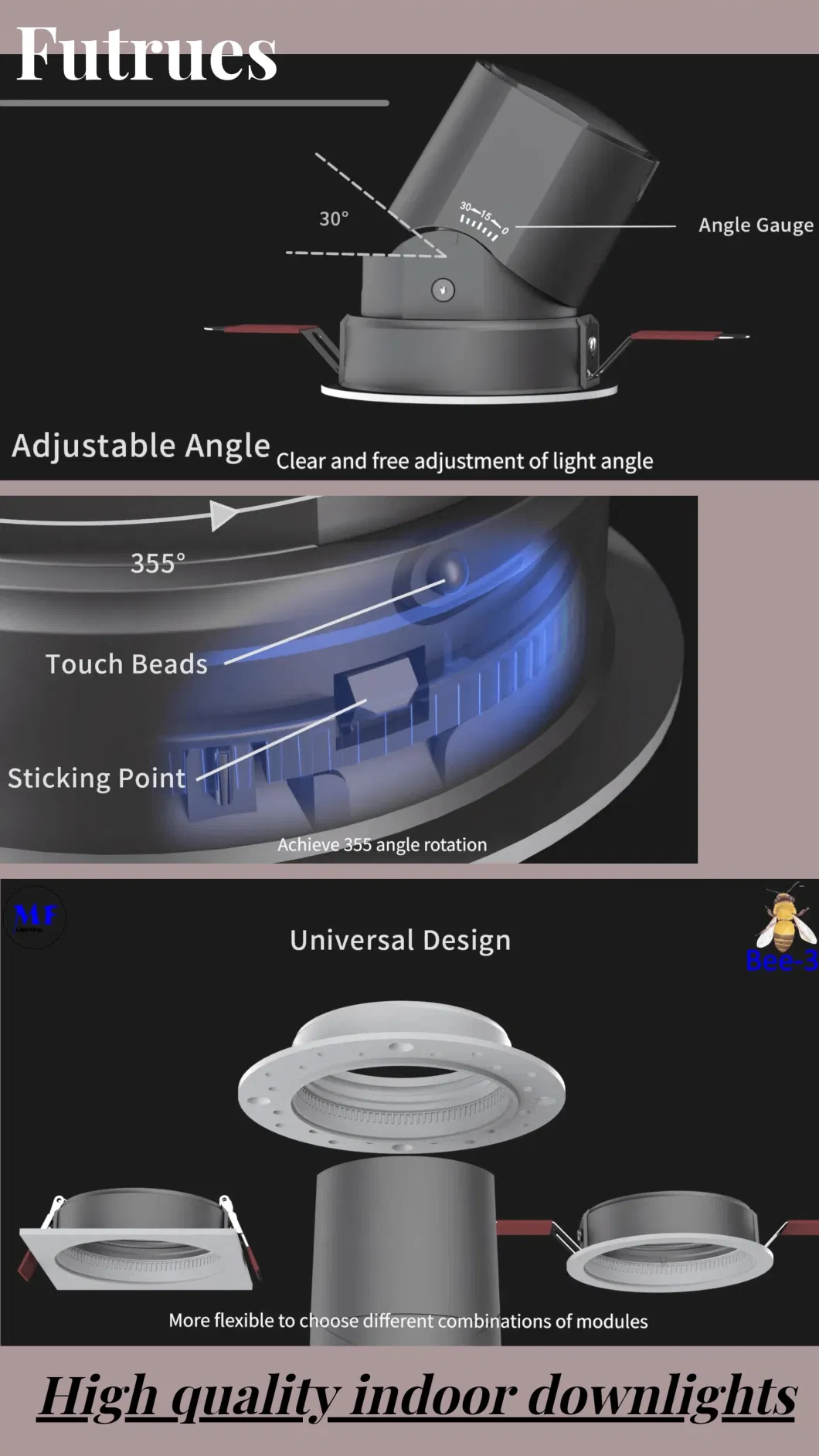

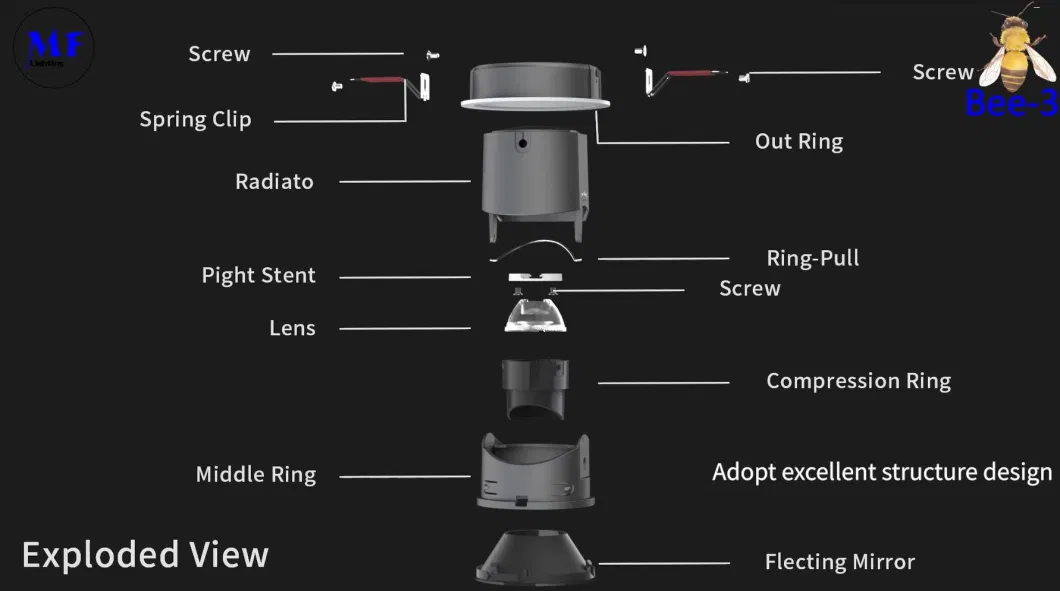

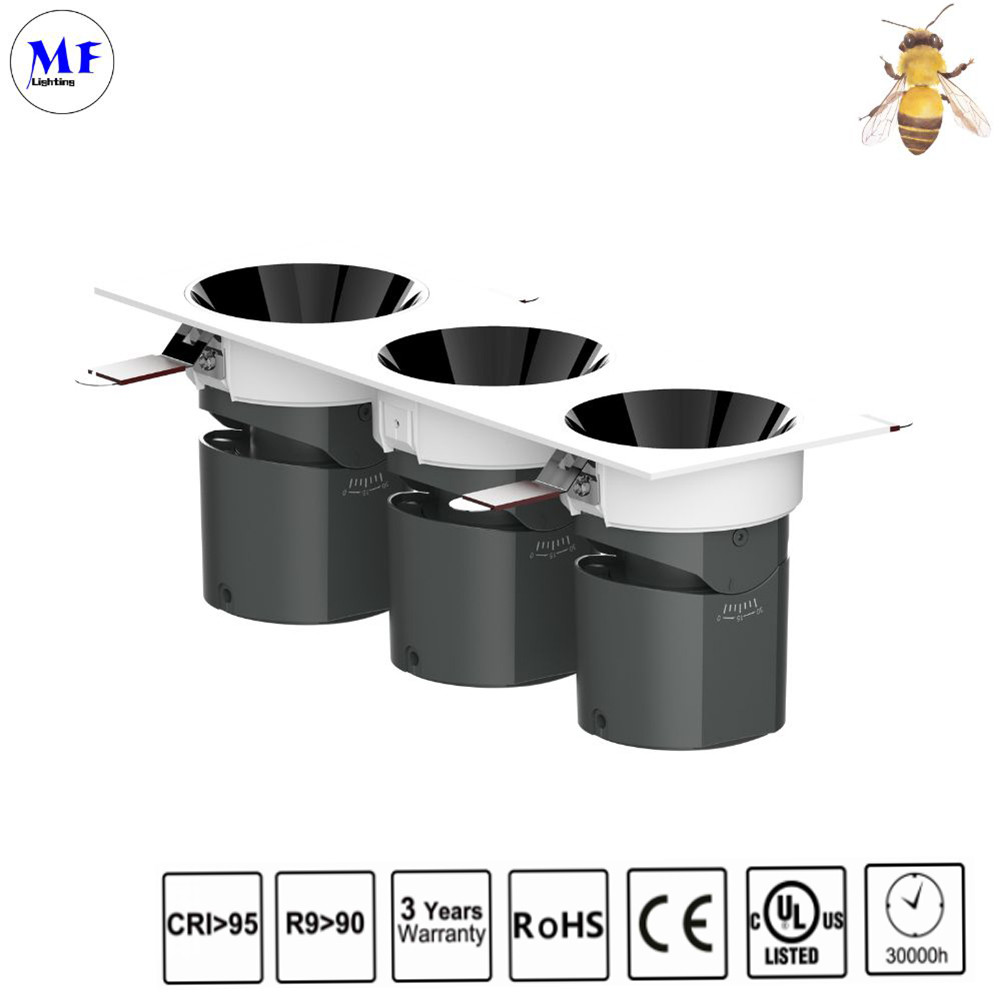

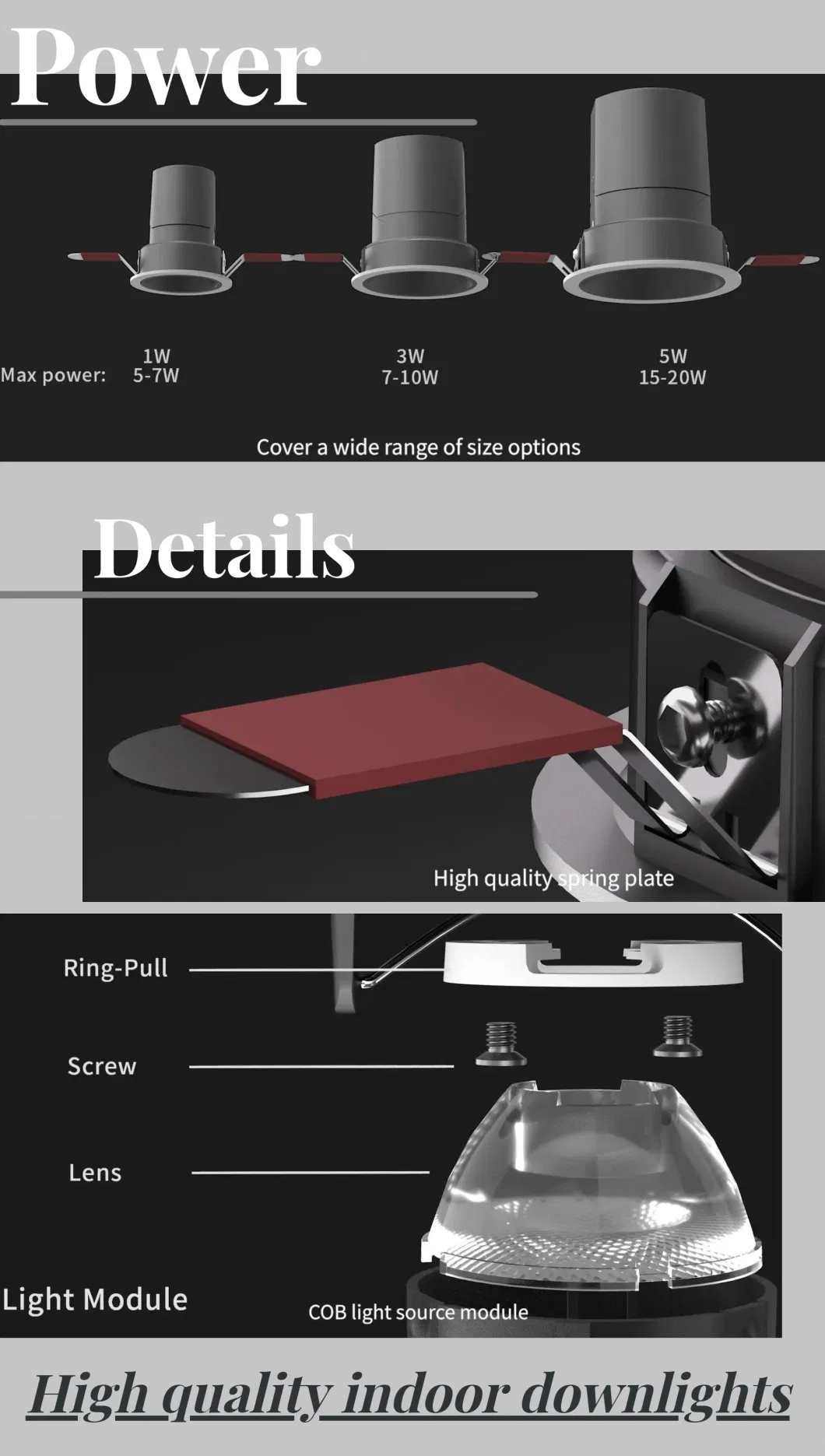

Detailed Photos

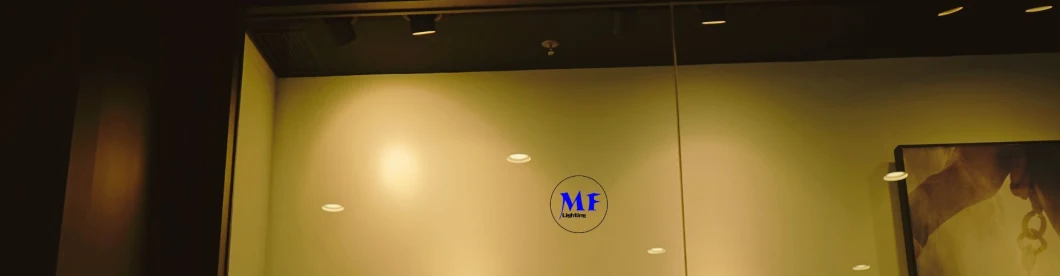

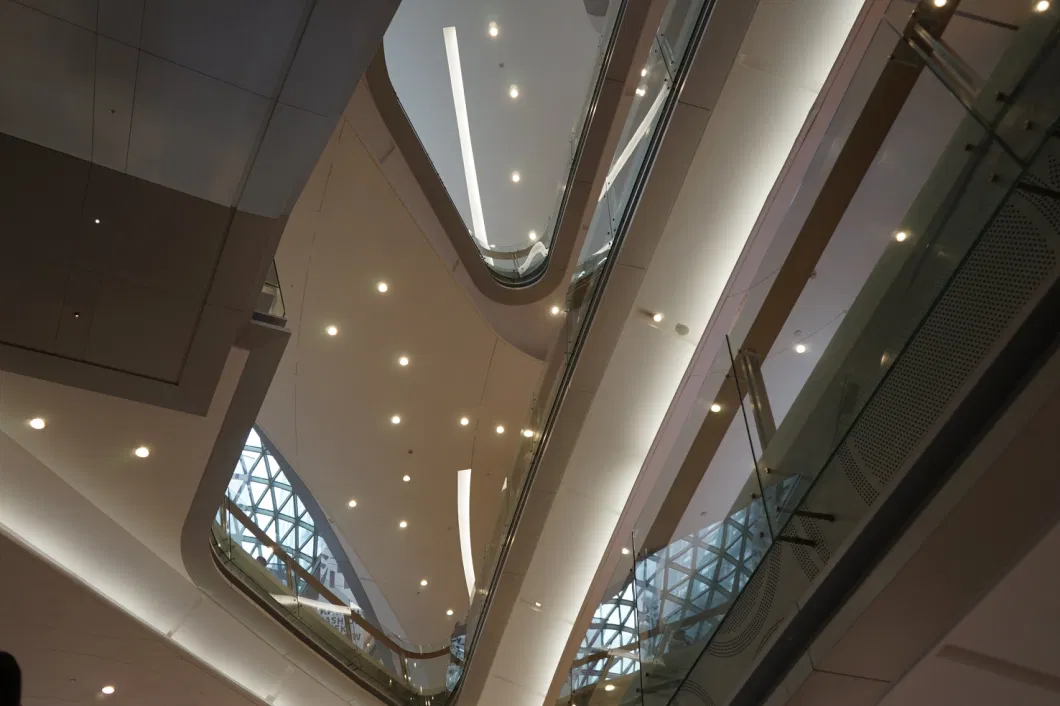

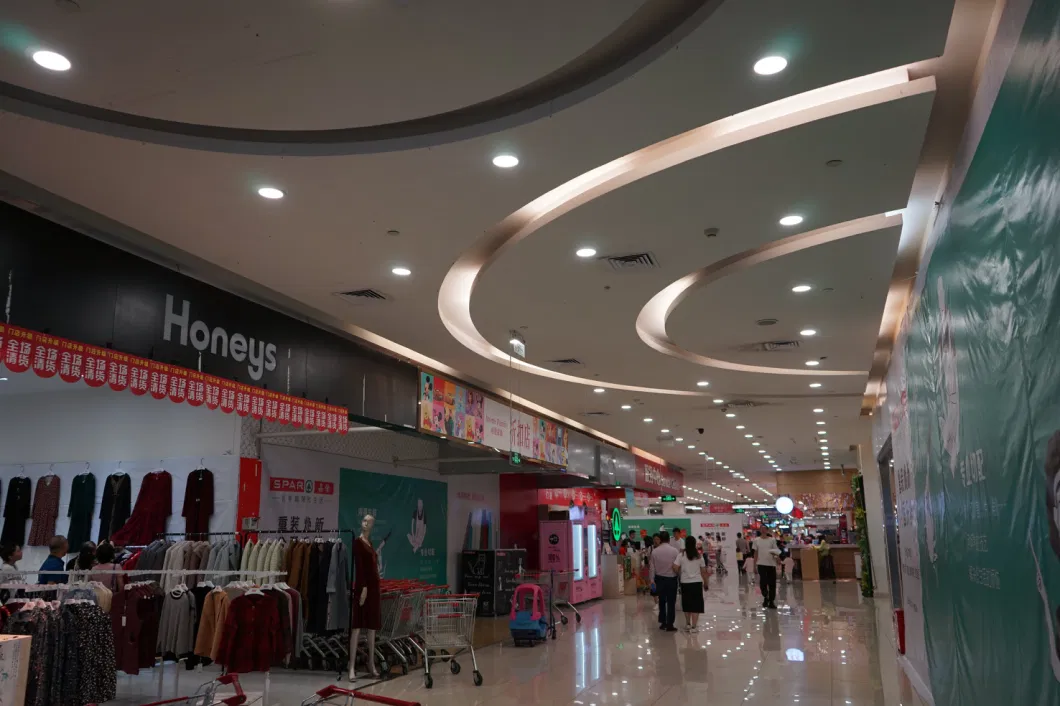

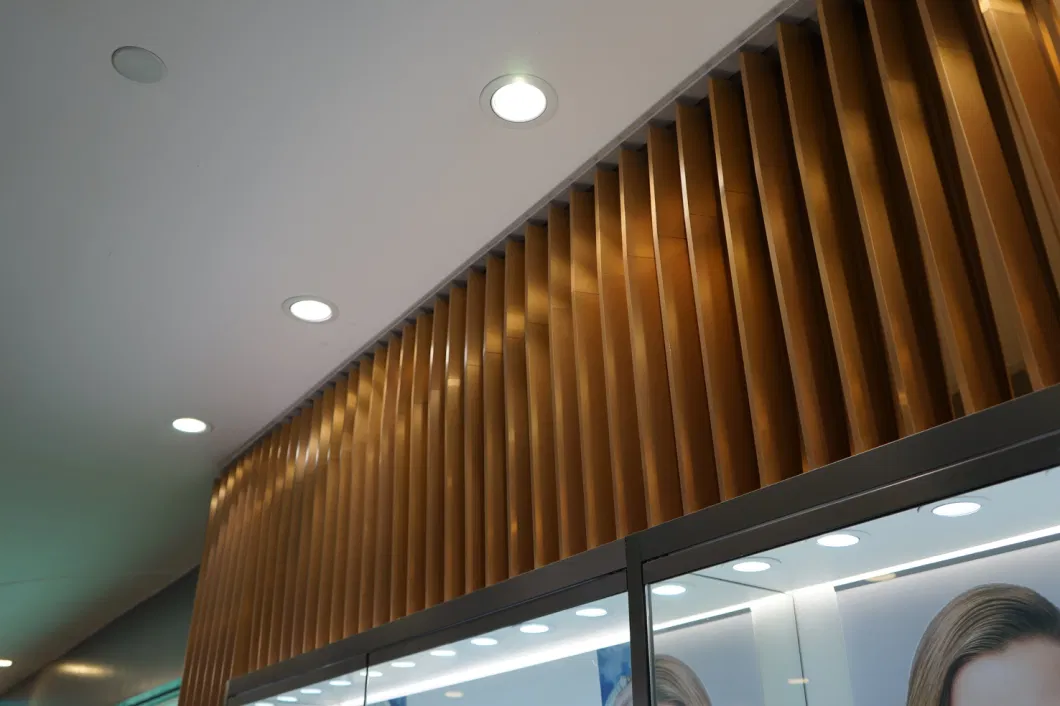

LED downlights are commonly used indoors in residential, commercial, public, and industrial spaces. They provide efficient and effective lighting for living areas, bedrooms, kitchens, offices, retail stores, restaurants, hotels, schools, libraries, hospitals, warehouses, and factories. LED downlights are popular due to their energy efficiency, long lifespan, and versatility, and can be customized to provide different light color, brightness, and beam angles to meet different needs.

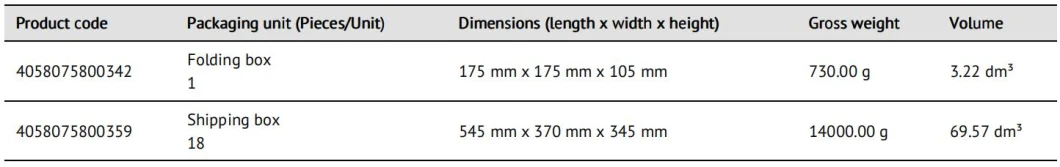

The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products.

FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
