5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Contact Now

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Minimum Order Quantity :	100PCS	Price :	Negotiable
Packaging Details :	16.51522cm/1pcs, G.W: 1.2Kg	Delivery Time :	Depends on orders
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS,SAA,TUV,CB,ETL,UL	Model Number:	MF-BEE3

Detail Information
Beam Angle:	8°/15°/24°/36°/60°	Input Voltage:	AC 100-240V
Power:	5W / 10W / 18W X1 X2 X3 X 4X6	CCT:	3000K/4500K/6000K
Material:	Aluminum	Installation:	Recessed
Switch:	Turn On/Off	Warranty:	3 Years
Application:	Shopping Mall,warehouse,Office,hotel,bedroom,restaurant	IP Rate:	IP40
Mounting Location:	Ceiling	Lifespan L70/B50 At 25°C:	30000 H
Luminous Efficacy:	100 Lm/W/Higher	Nominal Current:	350.000 Ma
Protection Class:	II	Reflector:	Shining Black/Shining White As Options
Angle Adjustable:	360°/20° Horizontal	Type:	Square Trim/Circle Trim/Without
Highlight:	IP40 Round Recessed Light , 18W Ceiling Mounted Down Light , Recessed Ceiling Mounted Down Light

Product Description

Epistar COB 5W CE RoHS Alu. PC Anti Glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light

Key Features:

Offers a high luminous efficacy for optimal brightness.
Serves as a direct replacement for compact fluorescent lamp downlights, making upgrading hassle-free.
Provides energy savings of up to 60% compared to luminaires that use CFL lamps, resulting in cost-effective operation.
Delivers a very homogeneous light distribution for consistent illumination.
Boasts a functional design that blends well with various aesthetics.
Facilitates easy installation with fast connection options, ensuring a convenient setup process.
Comes with a 3-year guarantee, ensuring long-lasting performance and customer satisfaction.
Additional Specifications:

Available in different diameters for required ceiling cut-outs: 55mm, 75mm, 95mm, 60mm, 80mm, 100mm.
Features IP40 protection on the backside for enhanced safety.
Provides IP44 protection on the front side, ensuring resistance to dust and water ingress.

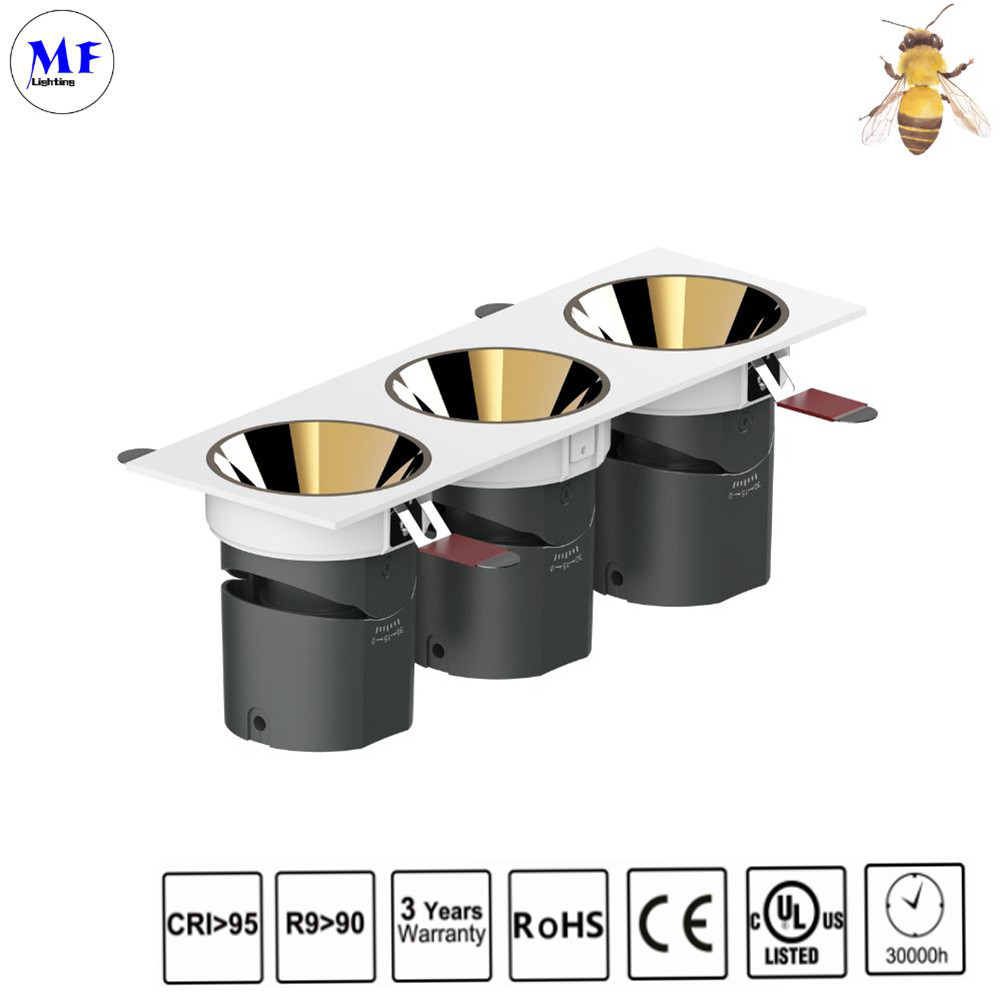

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 0

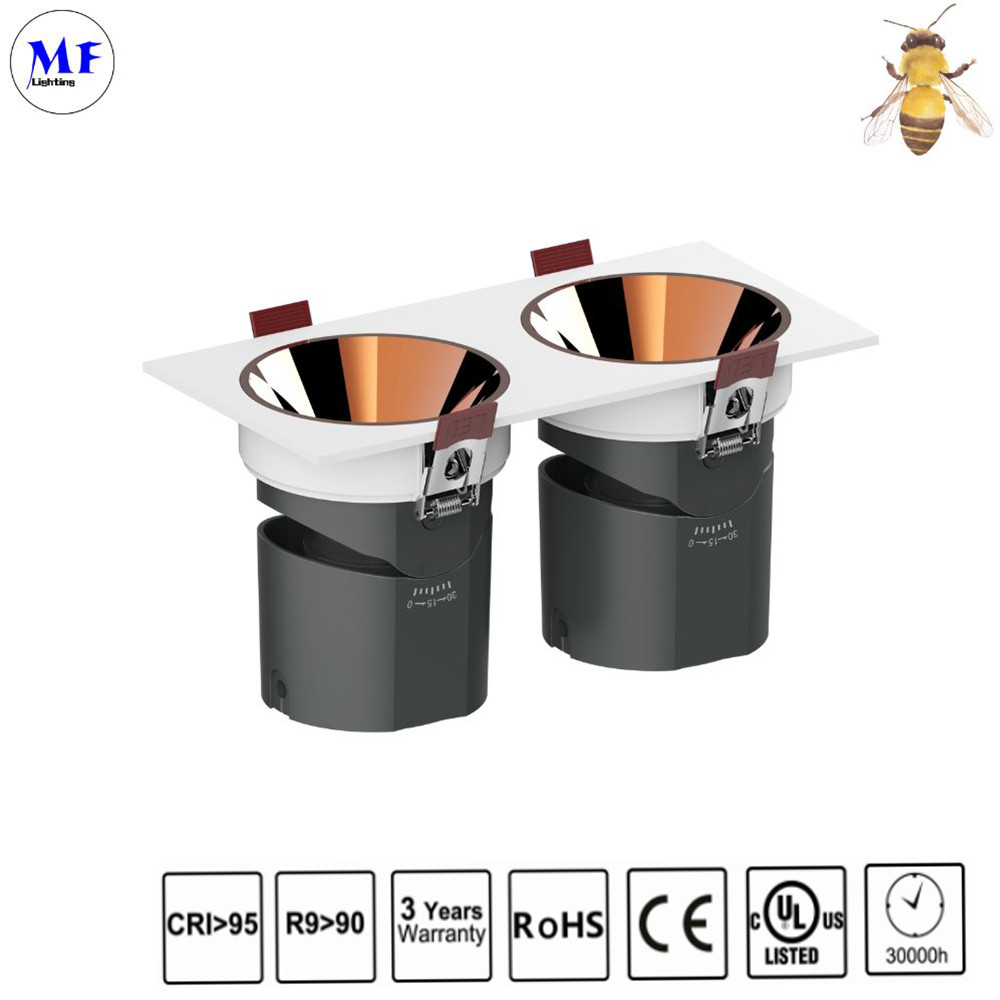

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 1

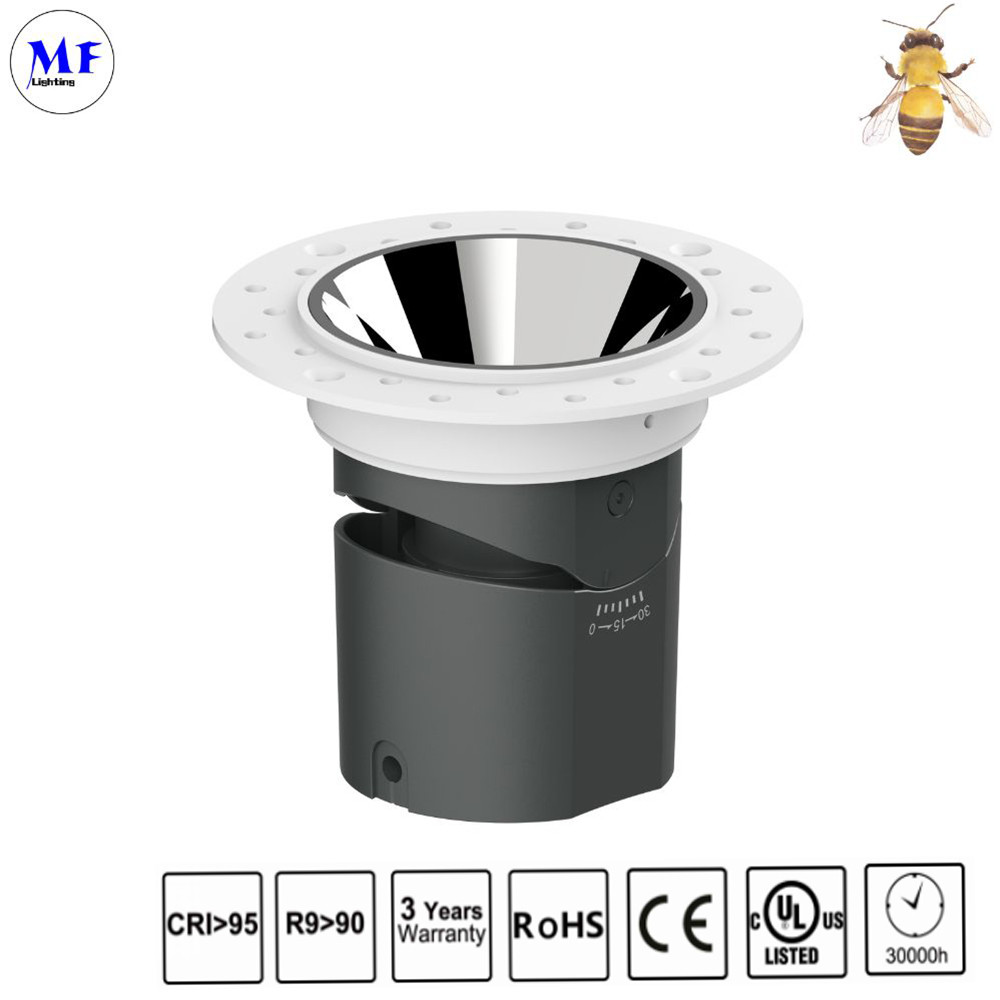

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 2

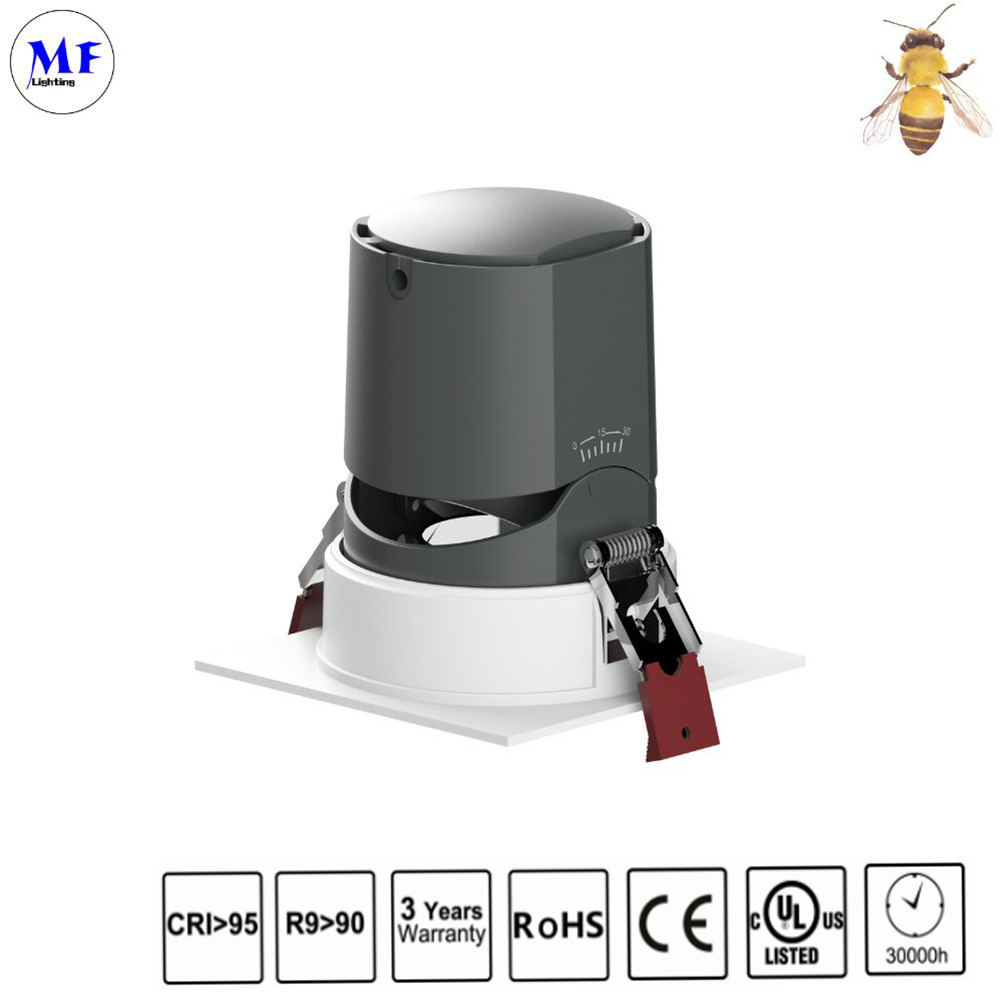

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 3

Reflector Color

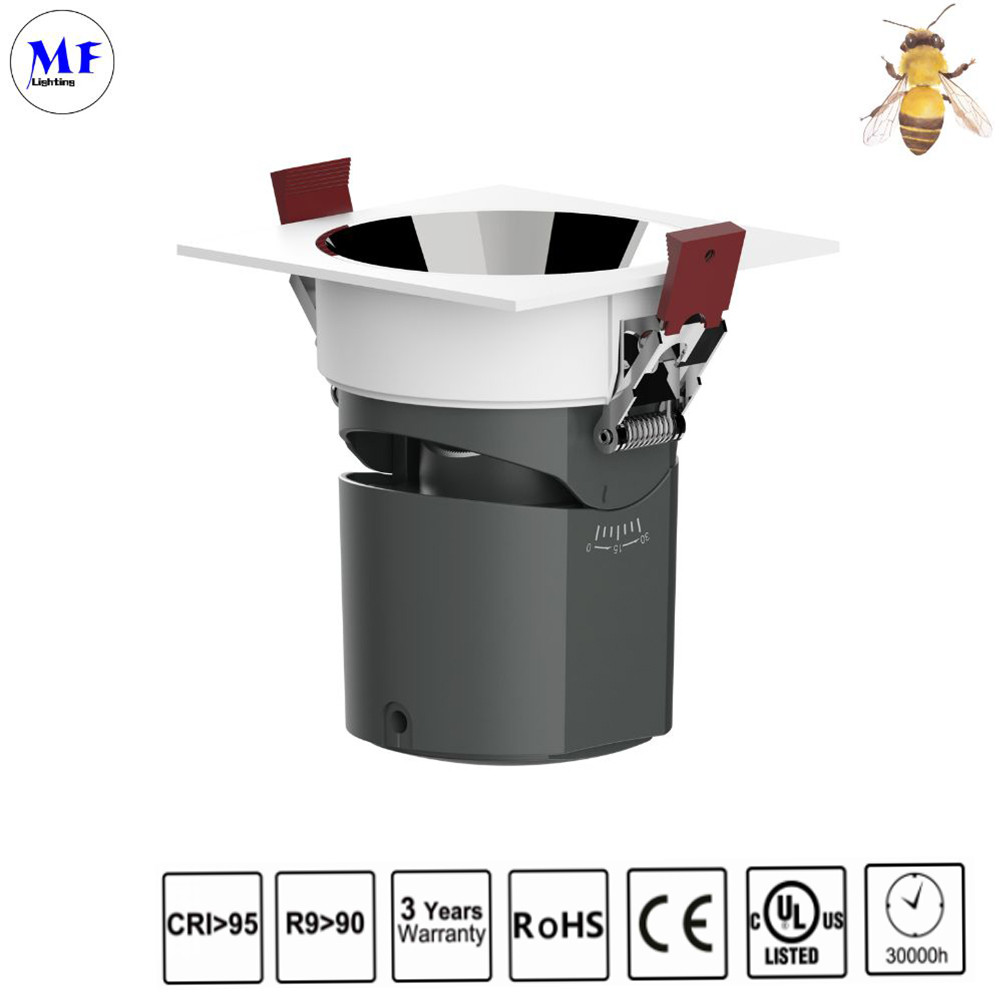

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 4

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 5

Electrical data

Nominal wattage			5W / 10W / 18W
Nominal voltage			100.…240 v
Mains frequency			50…60 Hz
Nominal current			350.000 mA
Power factor λ			0.90
Protection class			II
Operating mode			Electronic control gear (ECG)

Photometrical data

Luminous flux		5W 500lm / 10W 1000lm/ 18W 1800lm
Luminous efficacy		100 lm/W
Color temperature		3000 K 4500K 6000 K
Light color (designation)		Warm White
Color rendering index Ra		≥80
Beam angle		8°/15°/24°/36°/60°

Dimensions & Weight

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 6

Materials & Colors

Product color(Ring)	White
Housing color	Grey
Body material	Aluminum
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 ºC
Type of connection	Terminal,2-pin
Type of protection	IP40
Dimmable	No
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting diameter	Refer to Dimensions & Weight
LED module replaceable	Not replaceable

Lifespan

Lifespan L70/B50 at 25ºC	30000 hr
Number of switching cycle	15000

Beam Options

Luminous Flux	5W 7500lm / 10W 1000lm/ 18W 1800lm x1x2x3x4x6
Luminous Efficacy	100 lm/W
Color Temperature	3000K 4000K 6000K
Light Color (designation)	Warm White
CRI	≥80
Beam Angle	15°/24°/36°

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 7

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 8

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 9

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 10

The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products.

When placing an order, for the quantity please enter single or multiples of a shipping unit.

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 12

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 13

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 14

5W / 10W / 18W X1/ X2/ X3/X4 / X6 IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light 15
