Modern Indoor Decoration Lighting LED Spot Down Light 5W-80W Square Circle Trim Hotel Room Corridor
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 10pcs | Price : | negotiable |
|---|---|---|---|
| Delivery Time : | 1 week for sample order; 2 weeks for bulk order. | Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 10, 000PCS/Months |
| Place of Origin: | China | Brand Name: | MF |
|---|---|---|---|
| Certification: | CE, RoHS | Model Number: | MF-TH201-CWS20W/2x20W/3x20W/4x20W |
|
Detail Information |
|||
| Power: | 5W / 10W / 18W X1 X2 X3 X 4X6 | Voltage: | 100-240V |
|---|---|---|---|
| Color Temperature: | 3000K 4500K 6000K | IP Rating: | IP40 |
| Light Color: | Warm White | Color Options: | White |
| Lumen Efficacy: | 100lm/W | Mounted: | Recessed |
| Beam Angle: | 15°/24°/36° | PF: | 0.9 |
| High Light: | 4inch Ceiling Recessed Spot Lamp,Ceiling Recessed LED Down Light,LED Down Light 30W |
||
Product Description

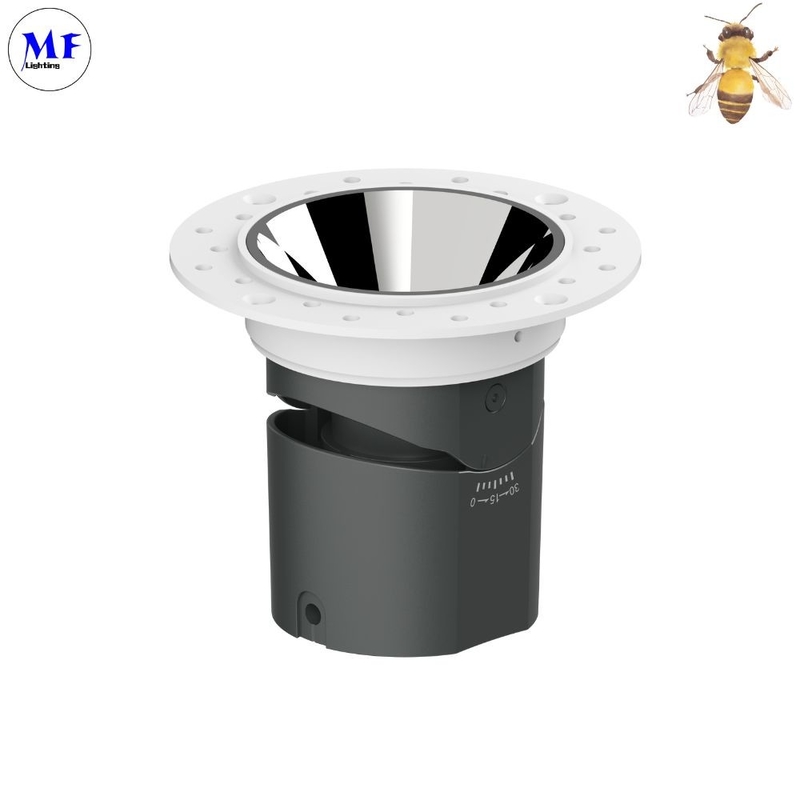

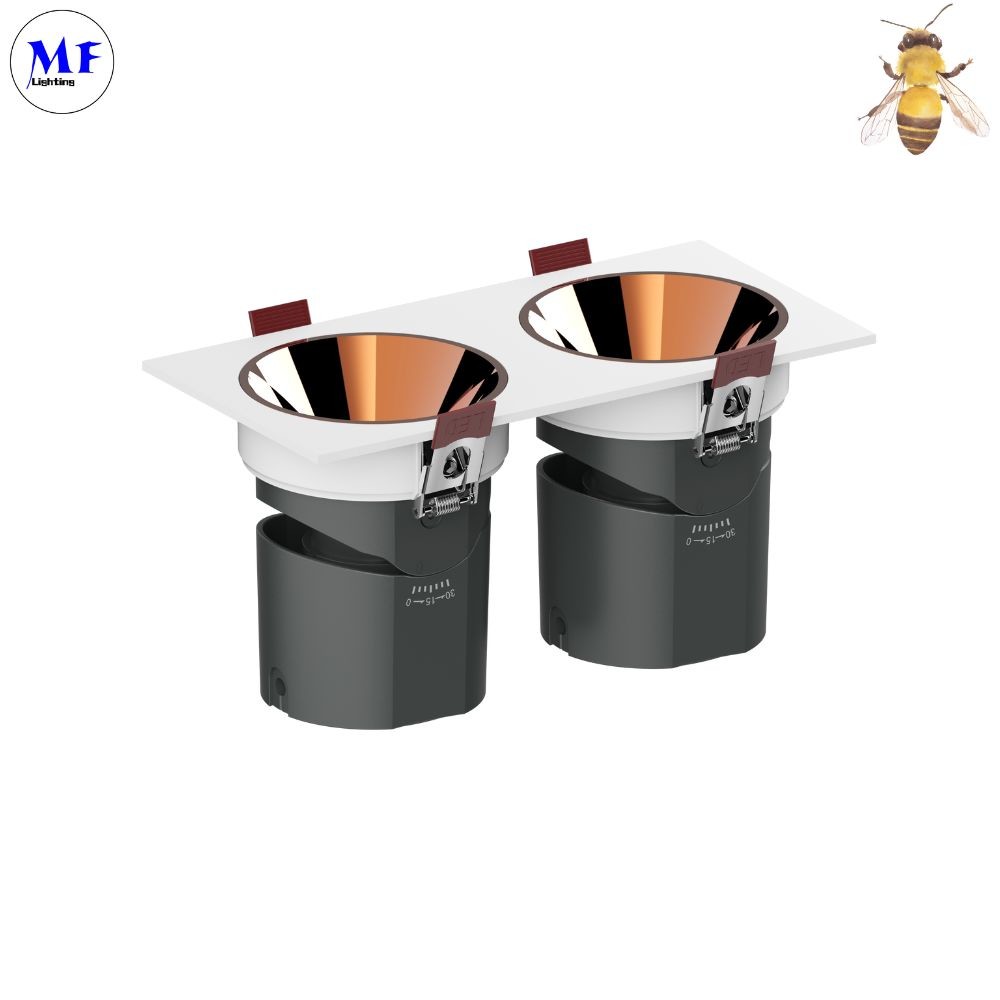

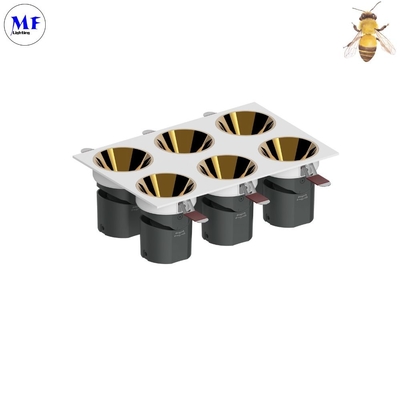

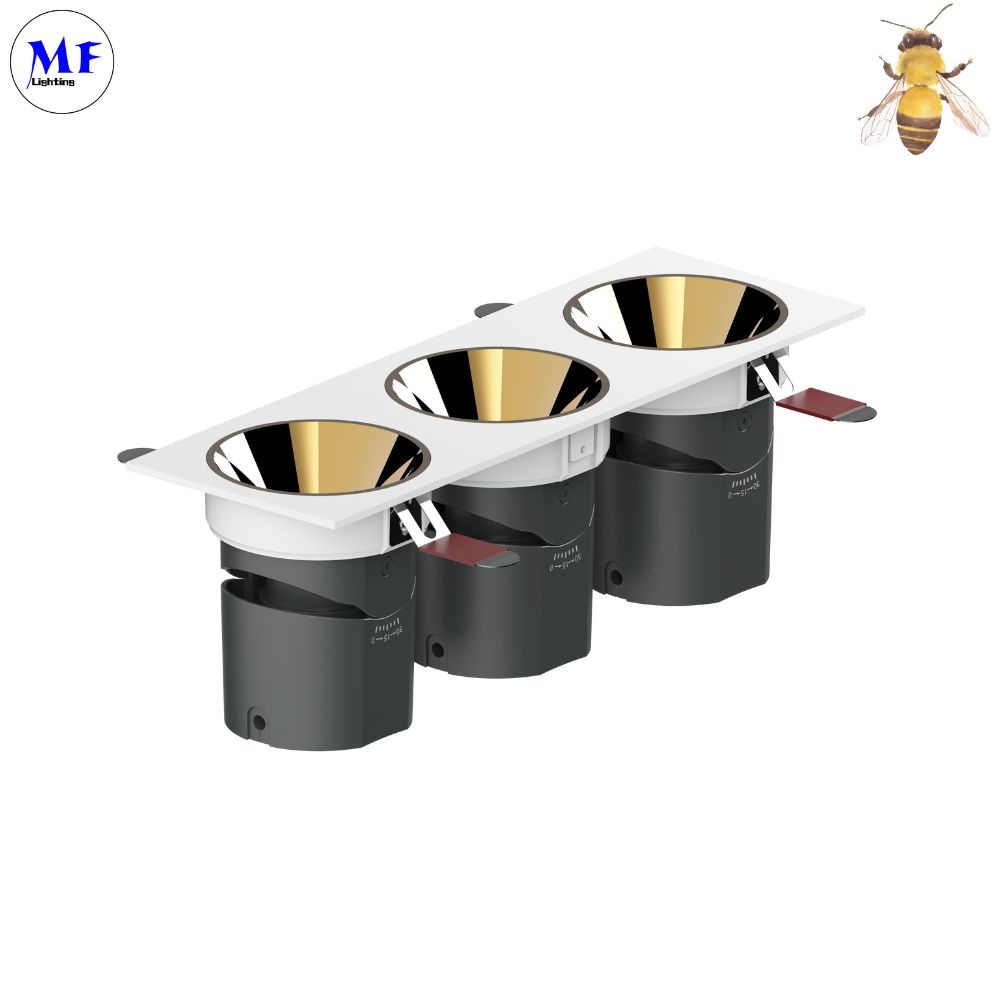

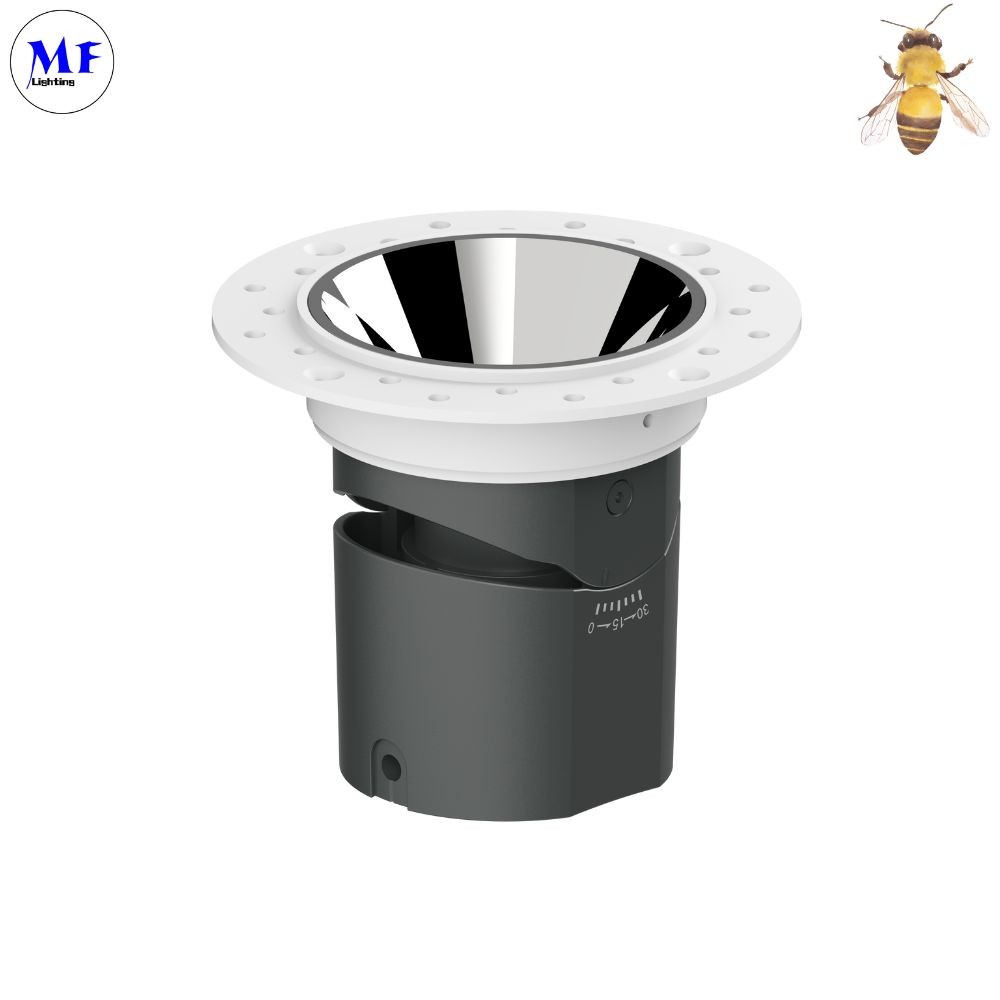

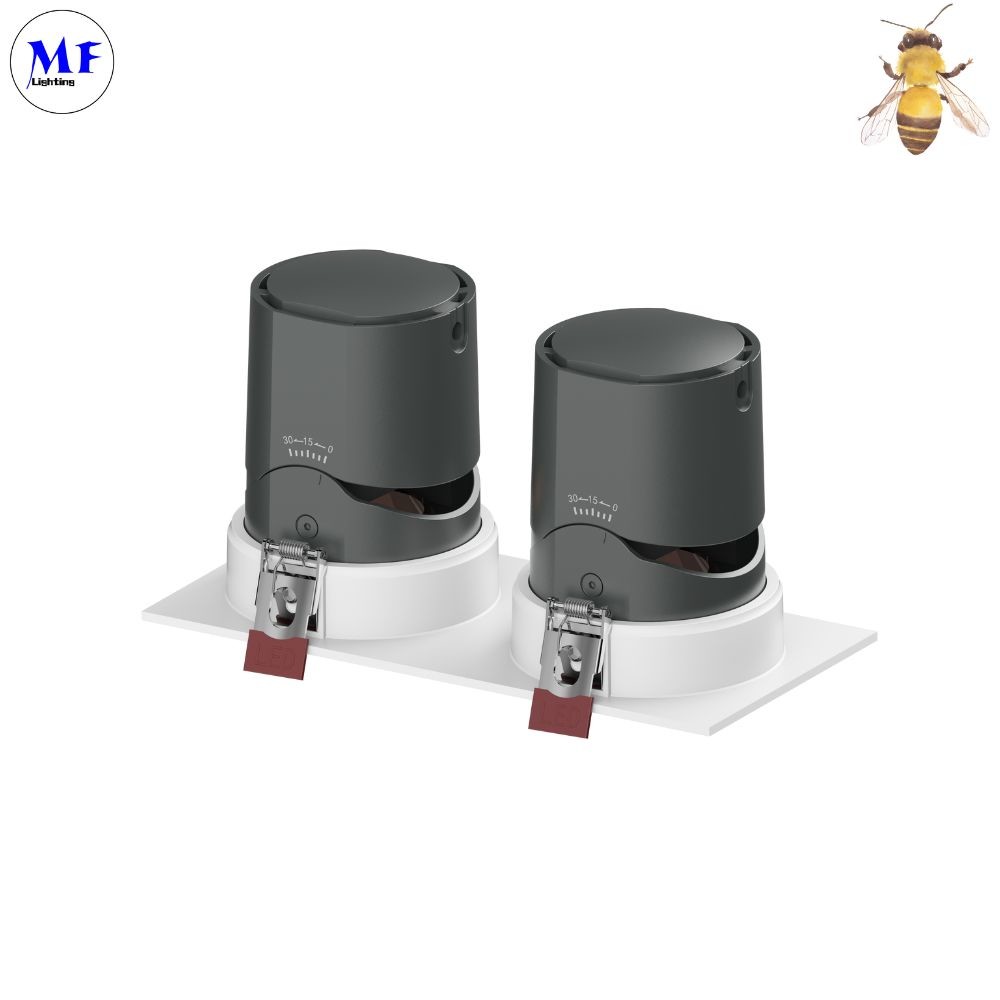

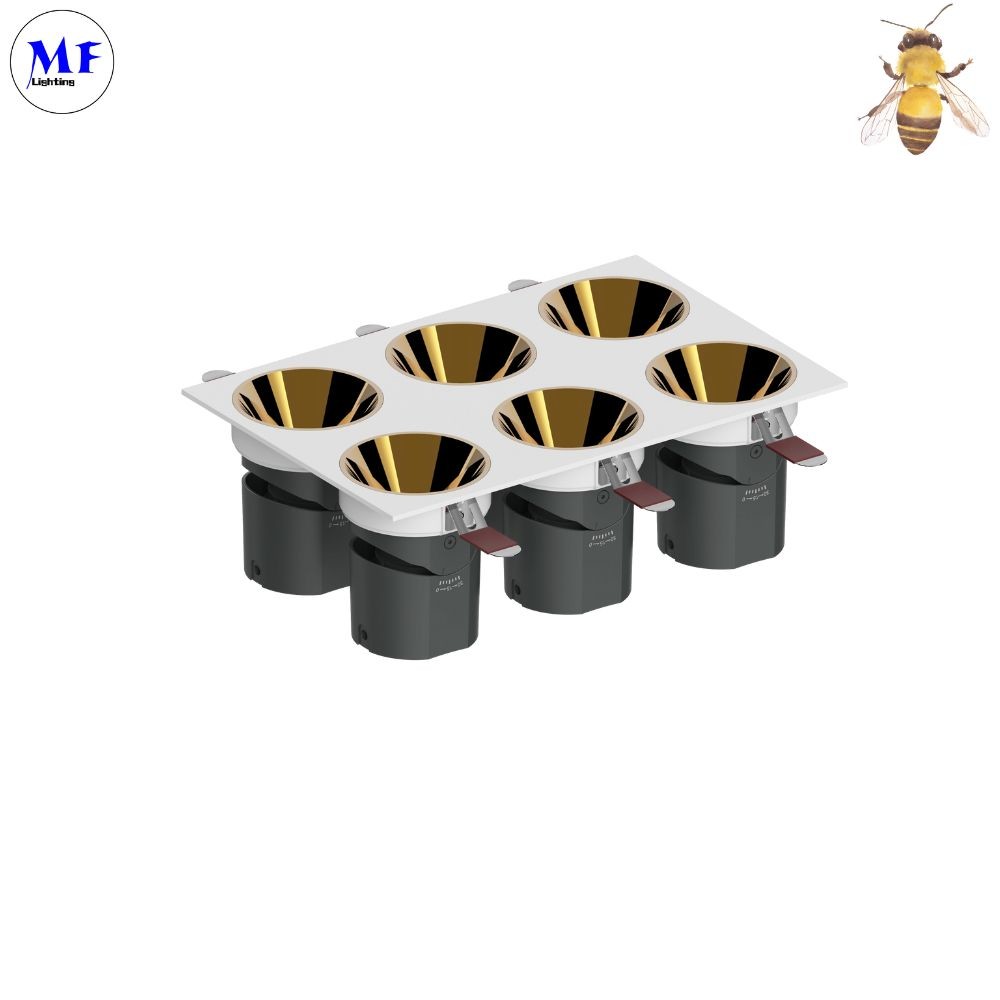

Recessed COB Spot Lamp LED Down Light Multiple Beam Angle 2inch 3inch 4inch 30W 5wx6
Electrical Data:
| Nominal Wattage |
5W / 10W / 18W X1 X2 X3 X 4X6
|
| Nominal Voltage | 100-240V |
| Mains Frequency | 50-60Hz |
| Nominal Current | 350,000mA |
| Power Factor λ | 0.9 |
| Protection Class | II |
| Operating Mode |
Electronic Control Gear (ECG) |
Application & Mounting:
| Ambient Temperature Range | -20 °C~ 40°C |
| Type of Connection | Terminal, 2-pin |
| Type of Protection | IP40 |
| Dimmable | No |
| Mounting Type | Recessed |
| Mounting Location | Ceiling |
| Application Environment | Indoor |
| LED module Replaceable | Not replaceable |
| Mounting Diameter |
7W,55mm/60mm, 12W 75mm/80mm,20W 95mm/100mm
|
| Lifespan L70/B50 at 25 °C | 30000 h1) |
| Number of Switching Cycles | 15000 |
Material & Color:
| Product Color | White |
| Housing Color | Grey |
| Body Material | Aluminum |
| Mercury Content | 0.0mg |
| Luminous Flux |
5W 7500lm / 10W 1000lm/ 18W 1800lm x1x2x3x4x6
|
| Luminous Efficacy | 100 lm/W |
| Color Temperature | 3000K 4000K 6000K |
| Light Color (designation) | Warm White |
| CRI | ≥80 |
| Beam Angle |
8°/15°/24°/36°/60°
|
| Diameter |
Refer to below table
|
| Length |
Refer to below table
|
| Height |
Refer to below table
|
| Product Weight | 610.00g |
| Code | Size(D) | Cutting(C) |
| MF-TH216-S5W | 65x65xH75mm | 55x55mm |
| MF-TH216-S2X5W | 65x129xH75mm | 55x120mm |
| MF-TH216-S3X5W | 65x195xH75mm | 55x185mm |
| MF-TH216-S4X5W | 129x129xH75mm | 120x120mm |
| MF-TH216-S6X5W | 129x195xH75mm | 120x185mm |
| MF-TH216-S10W | 87x87xH93mm | 75x75mm |
| MF-TH216-S2X10W | 87x173xH93mm | 75x160mm |
| MF-TH216-S3X10W | 87x260xH93mm | 75x250mm |
| MF-TH216-S4X10W | 173x173xH75mm | 160x160mm |
| MF-TH216-S6X10W | 173x260xH93mm | 160x250mm |
| MF-TH216-CS18W | 110x110xH123mm | 100x100mm |
| MF-TH216-CS2X18W | 110x223xH123mm | 110x210mm |
Packing
| Product Code | Packing Unit | Dimensions(LxWxH) | G.W | Volume |
| 4058075800342 | Folding Box 1 | 175 mm x 175 mm x 105 mm | 730.00g | 3.22 dm³ |
| 4058075800359 | Shipping Box 18 | 545 mm x 370 mm x 345 mm | 14000.00g | 69.57 dm³ |
Downlights are commonly used for focused lighting in residential homes, commercial buildings, hospitality industry, art galleries, museums, outdoor lighting, and theater/entertainment venues.
