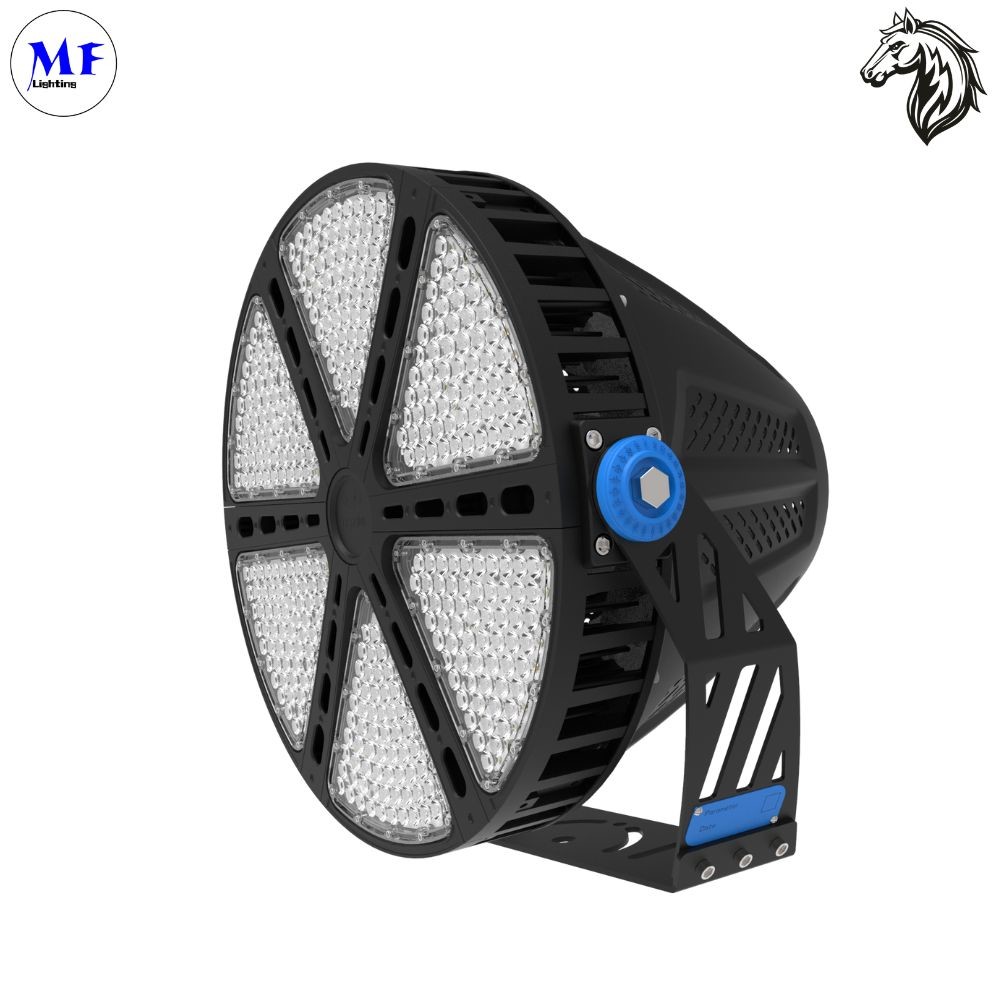

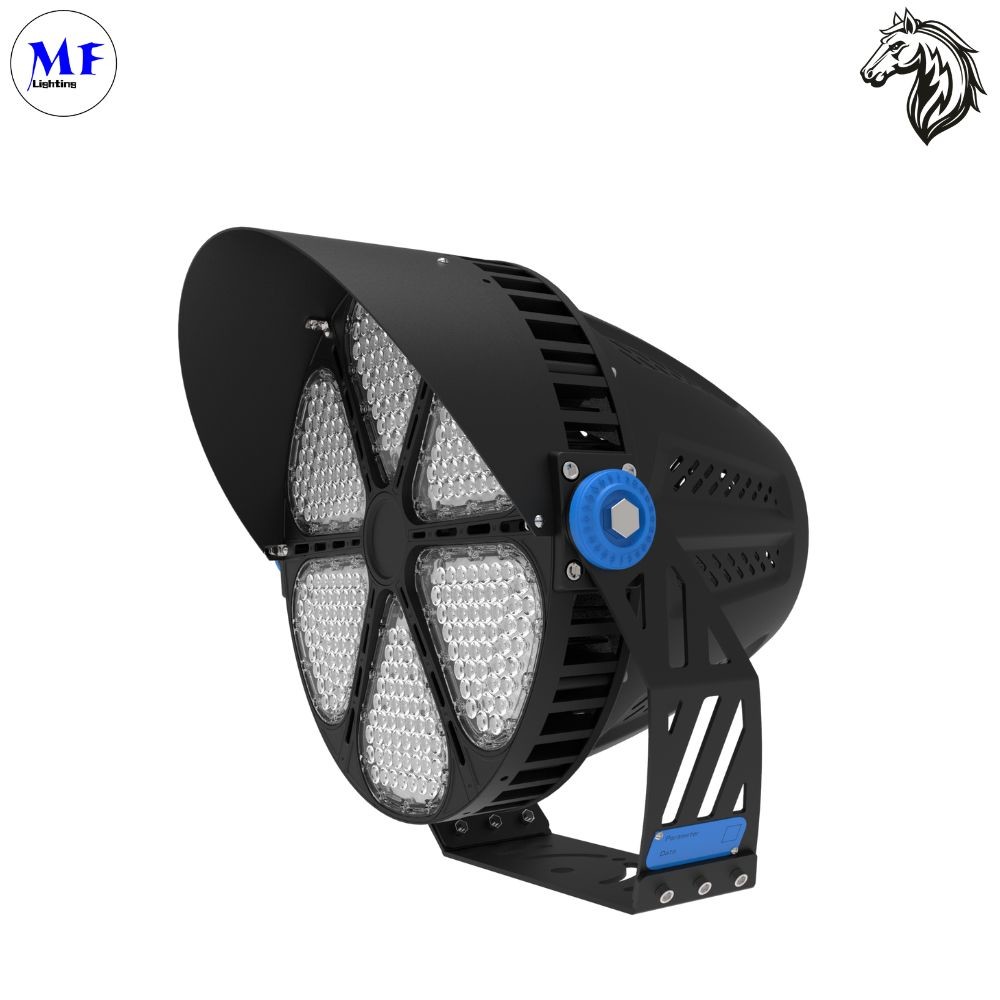

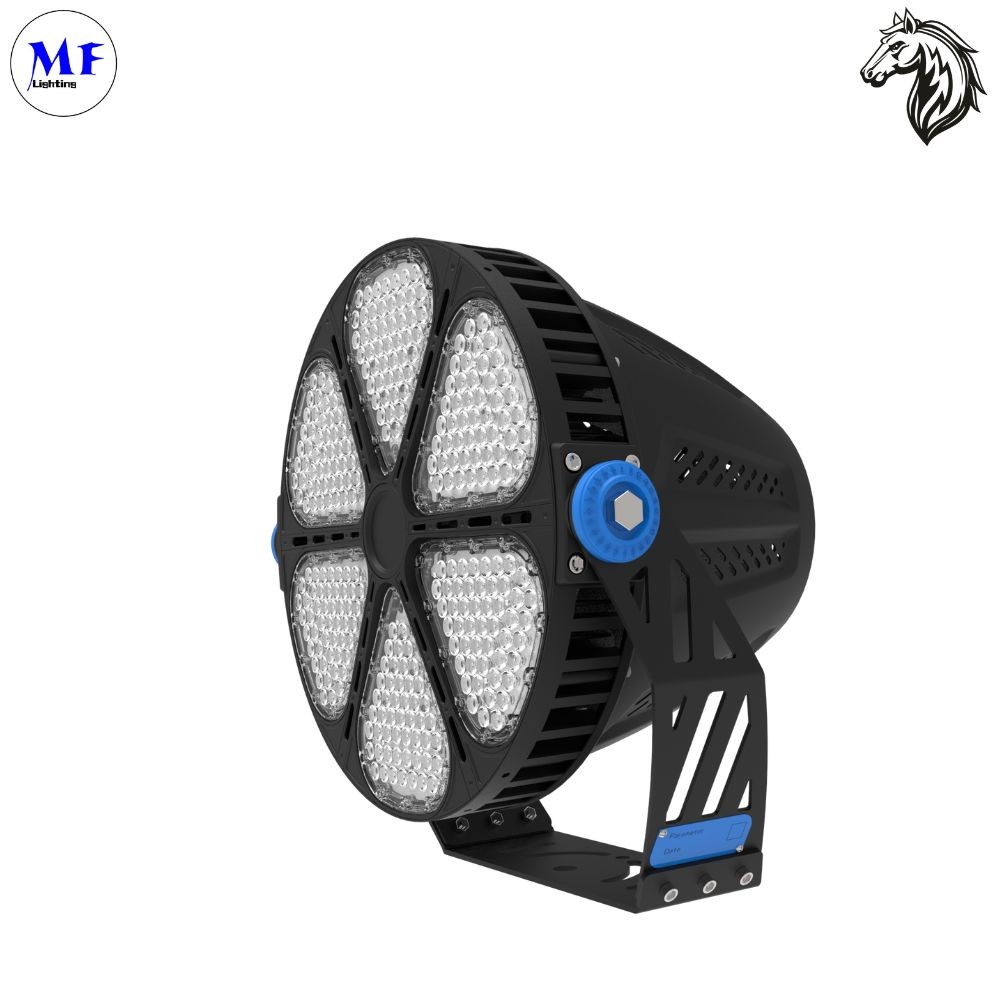

Dimmable Outdoor LED Flood Light 500W IP65 5 Years Warranty 3000K/40000/5000K/6000K High Lumen

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF Stadium Light Horse-11

Detail Information

CCT: 3000K,4000K,5000K,6000K, CCT Etc Material: PC, Aluminum Alloy, Tempered Glass
Power: 500W/750W/1000W/1200W IP Rate: IP66
Driver: Sosen/MeanWell/Inventronics Luminous Efficacy: 150LM/W-155LM/W
CRI(Ra): 70+/80+ Beam Angle: NEMA2/NEMA3/Mema4/NEMA5/NEMA6
Ik Rate: Ik10 Installation: Bracket Installation/Wall Installation/Pole Instal
Surge Voltage: 10kv Life Span: >50, 000hrs
Operation Temperature: Ta=40
High Light:

High Lumen LED Flood Light

,

6000K LED Flood Light

,

500W LED Flood Light

Product Description

Dimmable Outdoor LED Flood Light 500W IP65 5 Years Warranty 3000K/40000/5000K/6000K High Lumen



Features:



• High conductive thermal management aluminum cold forging.

• Anodize oxidation process, anti-corrosion.

• Professional light distribution design, various LENs beam, multiple choice, can be used for the different application.

• Low EPA, withstand high level wind.

• Waterproof IP66, Suit for wet locations.

• Constant current LED Driver, more stable



Items
MF-S11A
500BT
MF-S11A
750BT
MF-S11A
1000BT
MF-S11A
1200BT
Wattage
500W
750W
1000W
1200W
Lumen Output
75000LM
112500LM
150000LM
180000LM
LED Brand
Lumi-leds
LED Driver
SOSEN/MEANWELL/INVENTRONICS
Luminous Efficacy
155LM/W ~ 155LM/W
Beam Angle
NEMA2,NEMA3,MEMA4,NEMA5,MENA6
Color Temperature
3000K,4000K,5000K,6000K, CCT etc
Input Voltage
100-277V
CRI
70/80/90
Life Hours
50000H
Surge Voltage
10KV
Operation Temperature
Ta=40
IP Rating
IP65
Warranty
5years


CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light
CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light

CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light
CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light




CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light
CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast LightCE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light





Characteristic

Free Dialux Lighting Design

Our experienced lighting designers can provide you professional DIAlux simulations and constructive LED lighting solutions. We know lighting standards of all applications well and we care about all of your projects. Not matter your case is big or small, we will always provide you solutions.

1.Free OEM/ODM
2.Free DIALux testing service.
3.8 years of engineering experience, for your project escort.
4.Complete certificate, CE, RoHS, ETL, FCC etc.
5.Provide a complete test report.
6.First sample test, provide complete test report and product picture before delivery
7.5 years warranty, free replacement.


CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light

Dimension



Dimmable Outdoor LED Flood Light 500W IP65 5 Years Warranty 3000K/40000/5000K/6000K High Lumen 8

Dimmable Outdoor LED Flood Light 500W IP65 5 Years Warranty 3000K/40000/5000K/6000K High Lumen 9











Photometry



CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light

Application

Ideal for football pitches, sports fields, airport hangers, Wharfs, Tower Cranes, Golf Course, stadium etc.

CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light
CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast LightCE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast LightCE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast LightCE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light



High mast lights are tall lighting structures typically used in large outdoor areas that require extensive illumination. They are commonly found in various applications, including:



Sports Stadiums: High mast lights are installed in stadiums and sports arenas to provide sufficient lighting for sporting events, allowing players and spectators to have optimal visibility.



Airports: High mast lights are crucial in airport settings to ensure proper lighting for runways, taxiways, and aircraft parking areas, enhancing safety during takeoff, landing, and ground operations.



Ports and Harbors: High mast lights are used in port areas to illuminate docking areas, container yards, and shipping terminals, facilitating efficient loading and unloading operations.



Industrial Facilities: High mast lights are installed in industrial areas such as manufacturing plants, warehouses, and construction sites, providing bright and uniform illumination for improved productivity, safety, and security.



Highways and Interchanges: High mast lights are strategically positioned along highways, interchanges, and major roadways to ensure clear visibility and enhance safety for drivers during nighttime travel.



Public Spaces: High mast lights are utilized in public spaces such as parks, plazas, and parking lots, illuminating large areas and enhancing security for pedestrians and vehicles.



Military Bases: High mast lights play a vital role in military installations, providing enhanced visibility for training exercises, aircraft operations, and general security purposes.



Railway Yards: High mast lights are deployed in railway yards to illuminate tracks, platforms, and maintenance areas, enabling efficient train operations and ensuring the safety of personnel.



These are just a few examples of the applications where high mast lights are commonly used. The specific requirements and configurations of high mast lighting systems can vary depending on the intended purpose and location.

Accessory

0-10V, DMX and DALI dimming modes optional
CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light



Packaging & Shipping






CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast LightCE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light

CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light
CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square Lighting LED Stadium Sport Light LED Tunnel Light LED High Mast Light





Dimmable Outdoor LED Flood Light 500W IP65 5 Years Warranty 3000K/40000/5000K/6000K High Lumen 21

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
