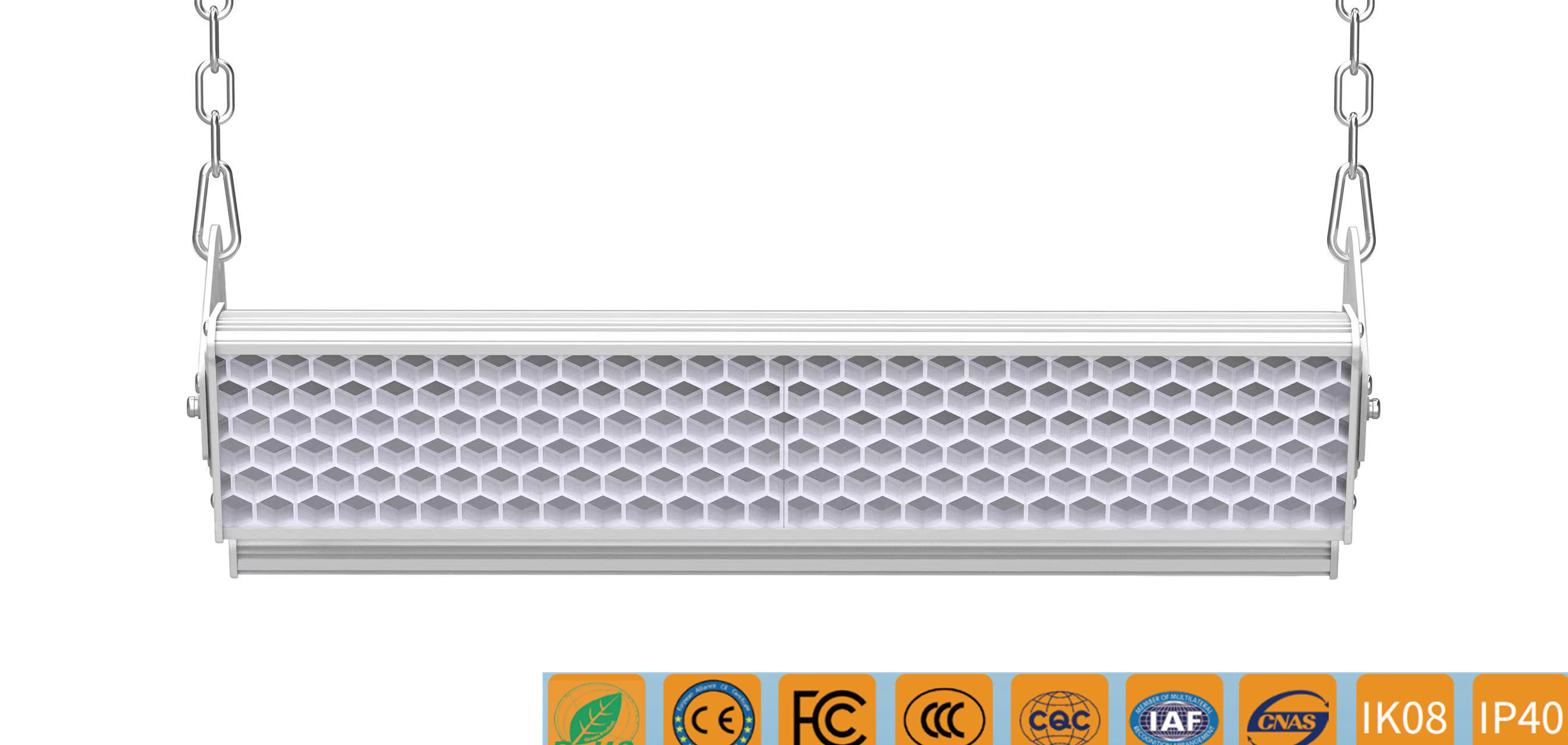

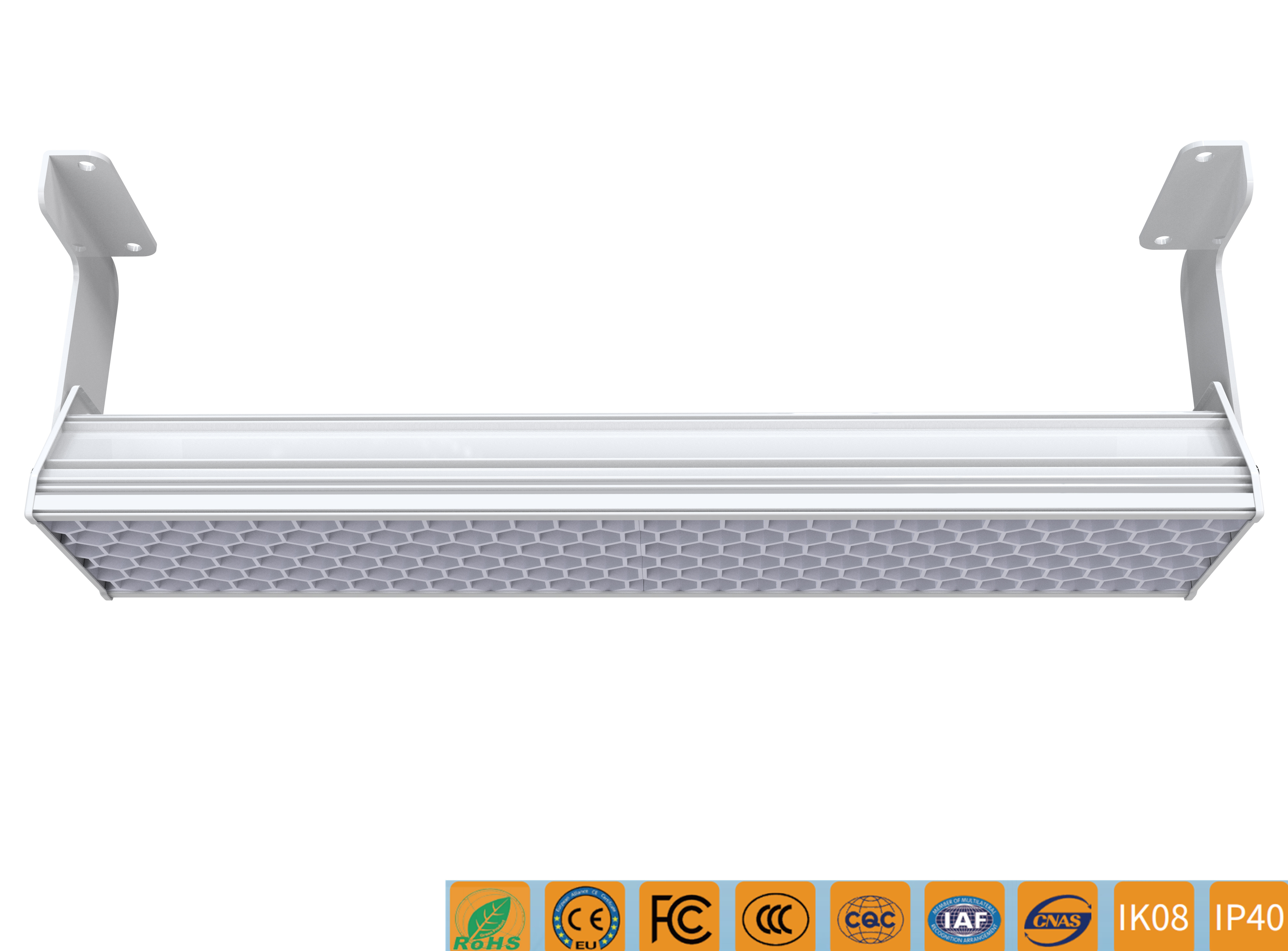

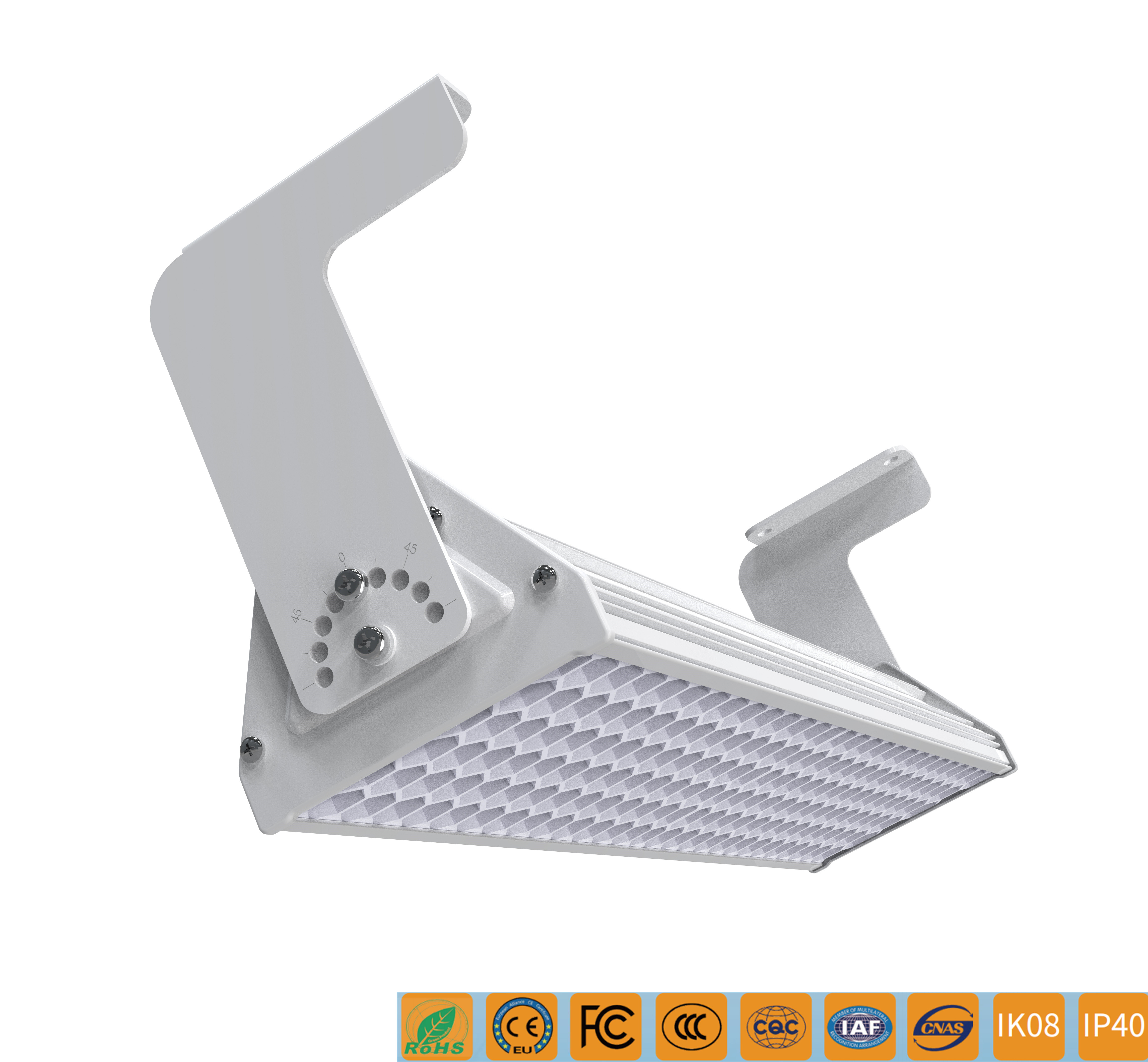

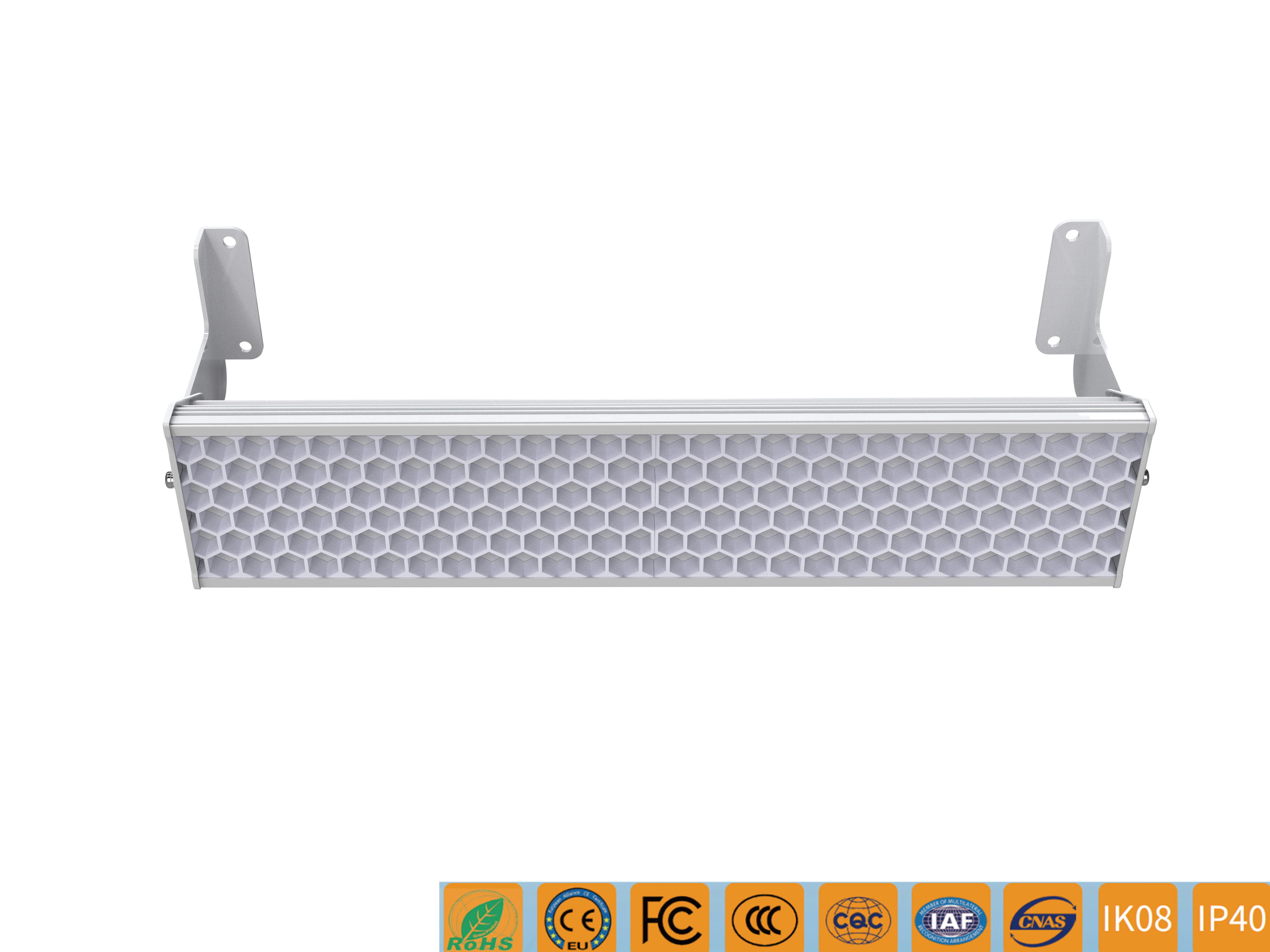

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages

Contact Now

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages

Minimum Order Quantity :	1PCS	Delivery Time :	depends on order
Supply Ability :	5000pcs/months

Place of Origin:	China	Brand Name:	MF
Certification:	CE,RoHs,SAA	Model Number:	MF-LHBxxW-K

Detail Information
POWER:	75-300W	CCT Range:	2700-6500K
Voltage Range:	AC100-277V;50-60Hz	Warranty:	5Years
IP:	IP40	CRI:	>80
Life Hours:	≤100000h	PF:	>0.97
Total Harmonic Distortion:	15%<THD<20%	Beam Angle:	75°
Body Material:	Aluminum+PC	Operation Temperature:	-20°-+40°
Luminous Efficacy:	84Lm/W
Highlight:	75-300W LED high bay light , IK08 IP60 linear LED light , high efficacy LED sports field lighting

Product Description

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 0

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 1

Features
1. Materials: Dia-casting Aluminum.
2. House color: White.
3. 100W,150W One Module; 150-400W Two Modules.
4. UGR<19 Anti-glare design with Honeycomb reflector.

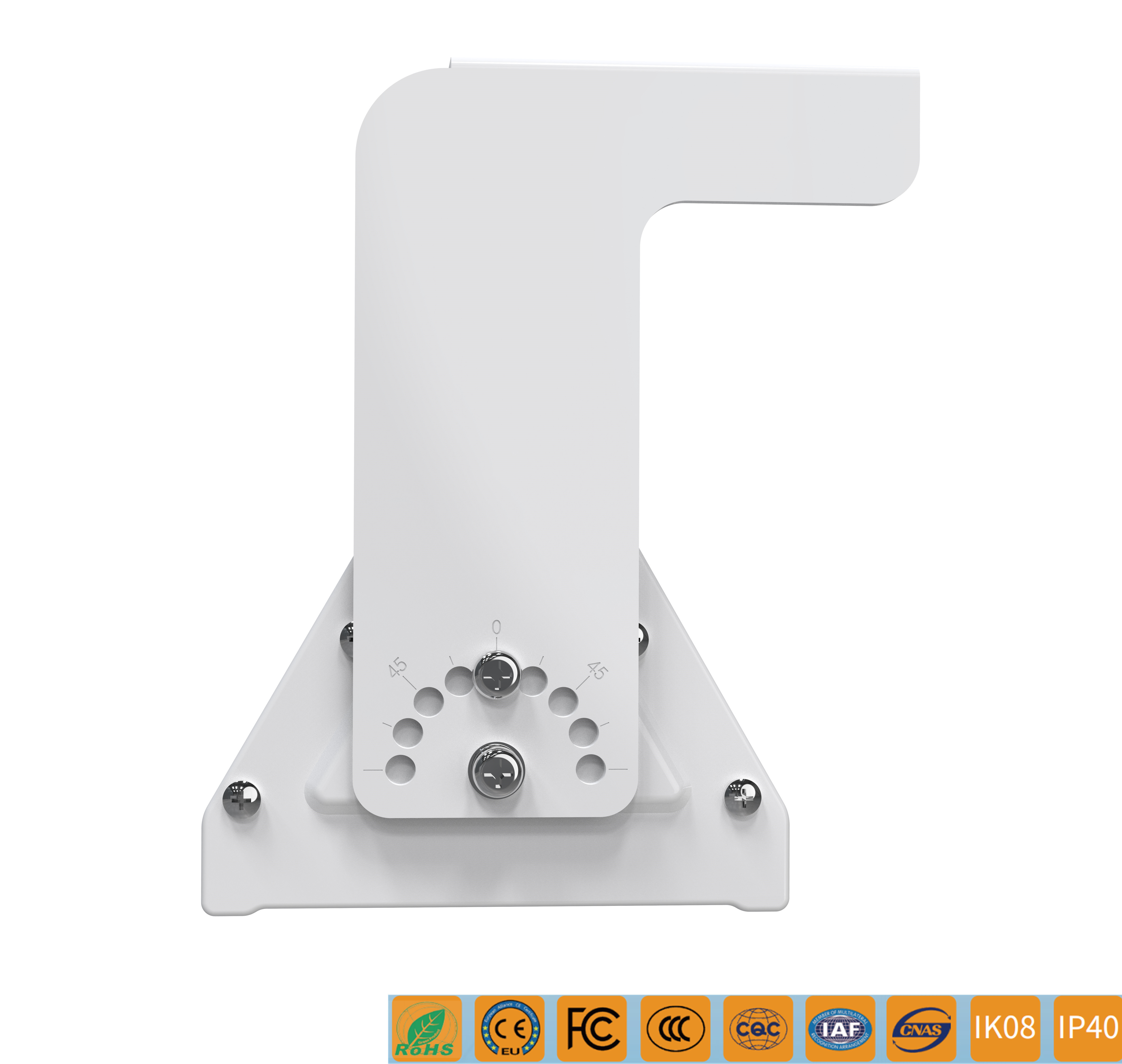

5. Beam angle adjustable

Introduce
1.Use SMD3030 LED,high light efficacy high CRI,the lamp fixture light eficacy is up to 130lm/W.
2.AC85-265V input costant voltage constant current power drive,which has short circuit/overvoltage/over current/over-temperature protection.
3.1060 aluminum,module design,appearance oxidation powder treatment,whole lamp IP65 waterproof and dust proof,corrosion resistance.
4.Multi-module 3D stereo heat dissipation,long strip moduleshaped,Air convection duct design,uniform heat dissipation,forming 3D
stereo heat dissipation to dissipate heat to the maximum.

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 2

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 3

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 4

No video flash,
energy saving eye protection

Anti dizziness design, soft light

irradiation, no eye injury or glare

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 5

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 6

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 7

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 8

Item	One module	One module	One module	Two module	Two module	Two module
Item	75W	100W	150W	150W	200W	300W
Power	75W	100W	150W	150W	200W	300W
Lumen	6300lm	8400lm	12600lm	12600lm	16800lm	25200lm
Efficacy	84lm/W
CCT	2700-6500K
CRI	≥80Ra
LED	San'an/Lumileds/SMD 3030
PF	>0.97
Input voltage	AC100-277V
THD	15%<THD<20%
N.G.	2.4KG	3.1KG	3.8KG	4.8KG	6.2KG	7.6KG
Size(mm)	581181.5152	864181.5152	1147181.5152	581303138	864303138	1147303138
Beam Angle	75°
Work Temp	-20~+40ºC
Humidity	15%~90%RH,nocondensing
Surface	Sprayed with outdoor special powder
Life span	≥50000 Hrs
IP	IP40
IK	IK08

Product Material
Power Wire	Body material	Electronic security level
Cable(3*0.75mm²) L=1.5m	Aluminum+PC	Class I

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 9

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 10

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 11

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 12

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 13

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 14

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 15

75-300W 5years Warranty IK08 IP60 Linear LED High Bay Light With High Efficacy For Sport Field Parking Garages 16

Warehouses and Distribution Centers: Linear LED high bay lights are optimal for illuminating vast storage areas and ensuring consistent lighting throughout the space. They deliver luminous and uniform illumination, facilitating easy identification and retrieval of items by workers.
Manufacturing Facilities: In manufacturing plants, where precision and safety are paramount, linear LED high bay lights offer exceptional lighting conditions. They diminish shadows and glare, enabling workers to execute intricate tasks with precision and accuracy. The superior quality of light enhances productivity among workers while minimizing the risk of accidents.
Gymnasiums and Sports Facilities: Linear LED high bay lights are extensively deployed in sports arenas, gymnasiums, and indoor stadiums. They provide bright and even illumination across the playing area, ensuring optimal visibility for athletes and spectators alike. The instant-on capability of LED lights proves advantageous during sports events and competitions.
Retail Stores and Supermarkets: Linear LED high bay lights are increasingly embraced in retail settings to create an inviting and well-illuminated shopping experience. They accentuate merchandise displays, improve color rendition, and foster a pleasant ambiance, enhancing the overall customer experience.
Exhibition Halls and Convention Centers: Linear LED high bay lights are commonly employed in large exhibition halls and convention centers to deliver adequate lighting for trade shows, conferences, and events. They provide uniform and consistent illumination, guaranteeing effective showcasing of exhibits and presentations.
Parking Garages: LED high bay lights find utility in parking garages and car parks, enhancing visibility and ensuring the safety of drivers and pedestrians. They provide bright and uniform lighting, substantially reducing the risk of accidents and improving overall security.
Indoor Agricultural Facilities: Linear LED high bay lights are extensively used in indoor farming operations, such as vertical farms or greenhouses, to provide the necessary light spectrum for optimal plant growth. LED lights can be customized to emit specific wavelengths of light, effectively optimizing photosynthesis and increasing productivity.
