IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments

Minimum Order Quantity : 1 Price : Negotiable
Delivery Time : Depends on orders Payment Terms : T/T, Western Union, Paypal
Supply Ability : 20,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-QCG

Detail Information

CCT: 3000K-6000K Luminous: 150lm/w
IP Rate: IP66 CRI: >70/80/90
Warranty: 5 Years Lifespan: 60000hrs
THD: <15% Input Voltage: 85-240VAC

Product Description

Factory Price IP66 Waterproof Aluminum 160lm/W 400W500W800W1000W High PF&Surge Protection Beam Angle Stadium Pitches Sport Airport LED High Mast Sport LightIP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 0




IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 1

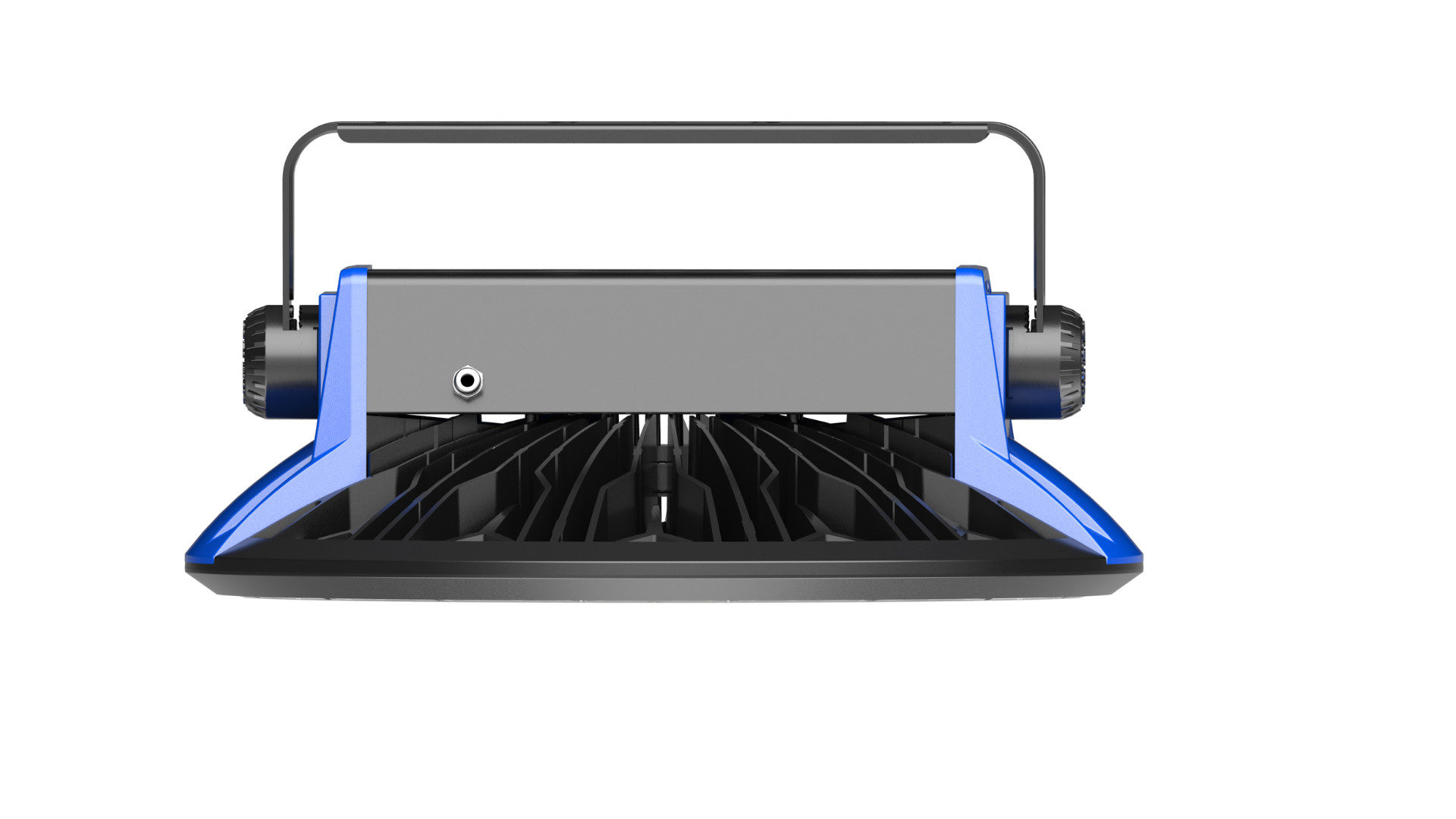

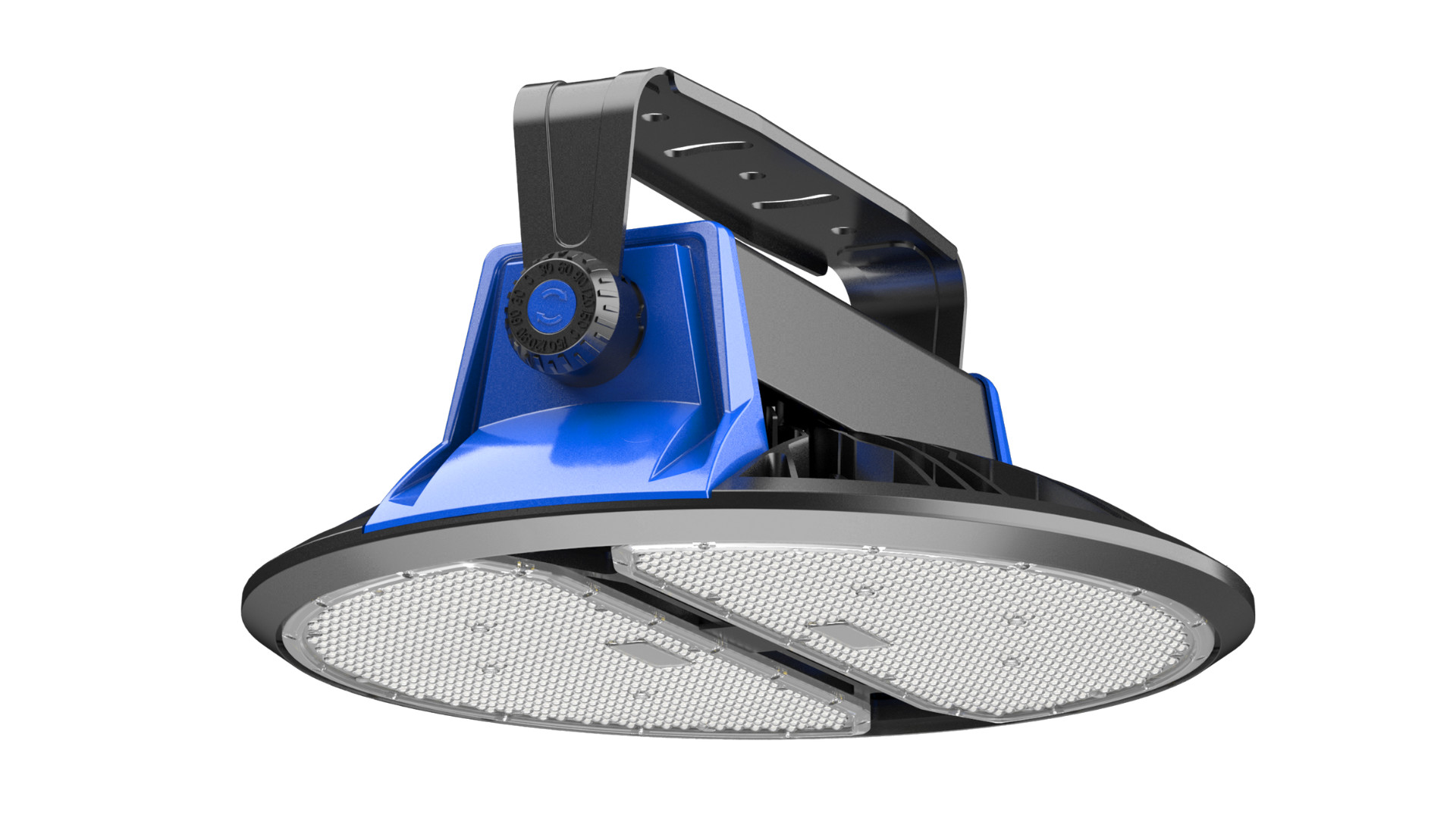

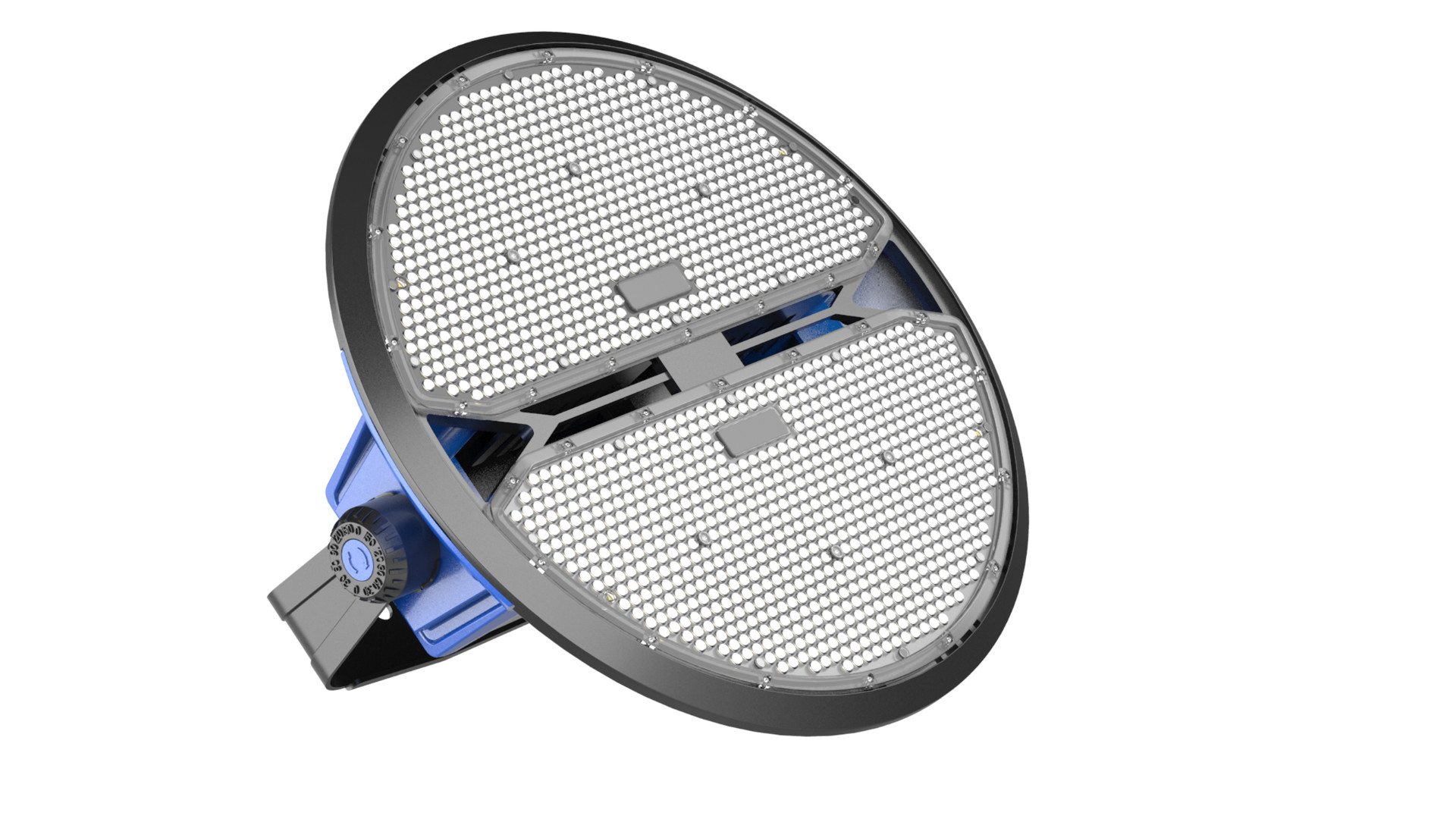

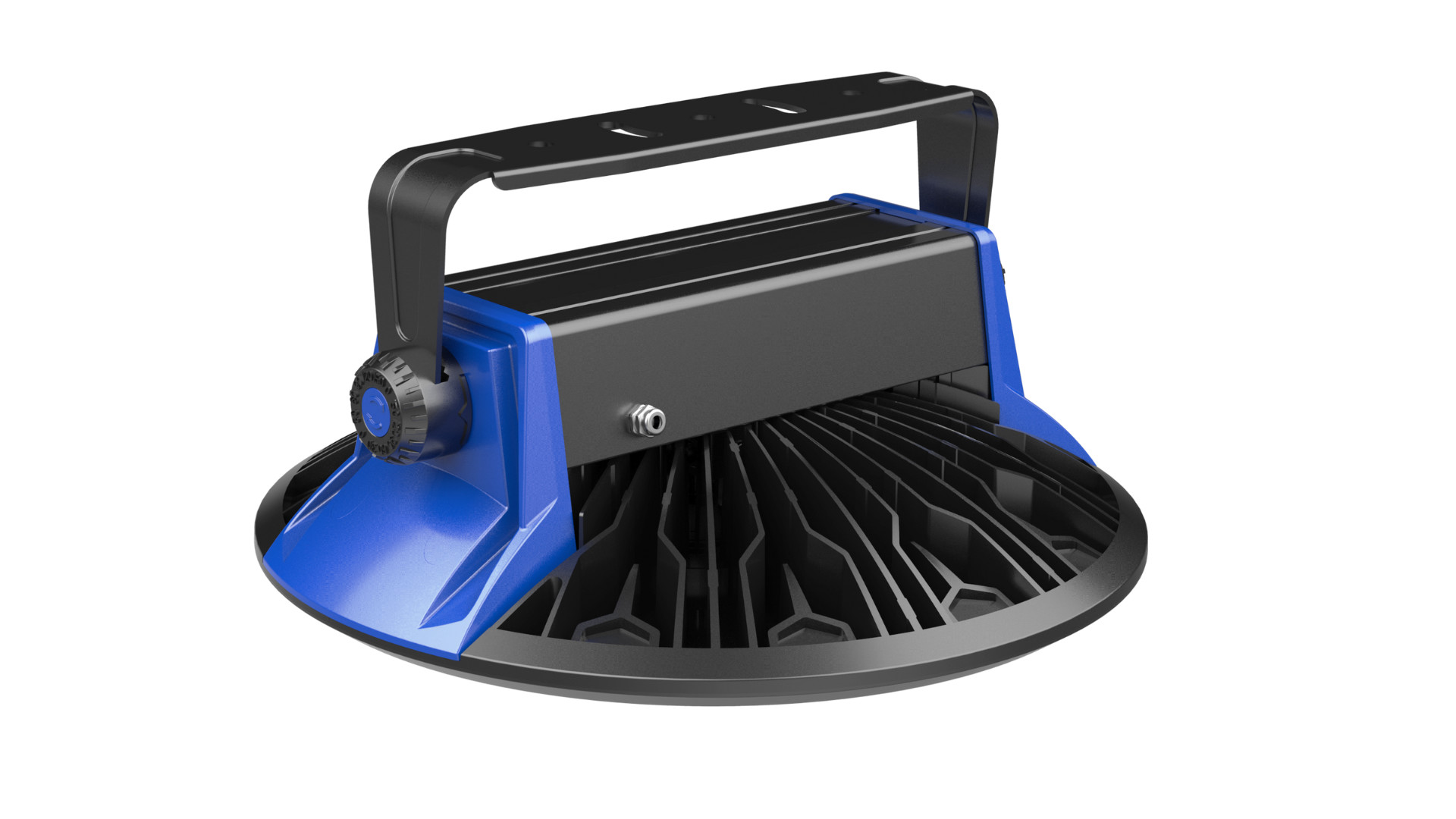

The MF Sportman Stadium Light High Mast is a premium outdoor lighting system, fabricated from robust aluminum alloy via precision die-casting, and boasts an IP66 rating for dust and water resistance. Ideal for outdoor athletic complexes, sprawling parking areas, shipping ports, and other expansive spaces demanding comprehensive illumination, this high mast lighting solution delivers not only substantial lighting output but also adapts to the diverse requirements of multiple lighting scenarios.

IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 2



IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 3




IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 4

1. Advanced Efficiency: Featuring Lumiled/OSRA LED chips, this lighting system boasts an exceptional luminous efficacy of 140-150lm/W, ensuring bright illumination while promoting energy conservation.
2. High-Quality Light Source: Offering a color temperature range from 2700K to 6500K and a color rendering index (CRI) of Ra>70, it provides uniform and comfortable lighting, fulfilling the diverse needs of various lighting applications.
3. Robust Protection: With an IP66 rating for dust and water resistance, this lighting is suitable for a wide range of demanding environments, ensuring reliable performance even in outdoor conditions.
4. Extended Lifespan: With a longevity of up to 60,000 hours and low maintenance requirements, this lighting solution significantly reduces long-term operational expenses.
5. Wind-Resistant Construction: Designed to withstand typhoon-force winds up to level 17, it is ideal for coastal regions, ensuring stability during severe weather conditions.
6. Easy Installation: The fixture allows for an adjustable installation angle of up to 270°, providing precise lighting direction to suit various scenarios.
7. Modular Design: Engineered to minimize wind resistance and enhance heat dissipation, this design ensures stability and efficiency during prolonged use.



IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 5



IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 6



IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 7


1. Sports Complexes: Tailored for professional illumination of diverse athletic fields, catering to the demands of evening competitions and training sessions, ensuring athletes benefit from clear and consistent lighting.
2. Parking Structures: Supplies broad and uniform illumination across parking areas, guaranteeing vehicle safety after dark, and offering drivers well-lit pathways for ease of navigation.
3. Harbors and Marinas: Delivers extensive lighting to港口, facilitating smooth operations during evening hours, and creating a well-lit environment for maritime personnel.
4. Aviation Facilities: Provides intense runway lighting for airports, securing the safety of flight operations during takeoffs and landings, and affording pilots unobstructed visibility.
5. Building Sites: Offers ample illumination for round-the-clock construction activities, prioritizing worker safety and enhancing productivity during nighttime shifts.
6. Golfing Greens: Tailored to fulfill the lighting requirements of evening golfing, delivering precision lighting that ensures golfers enjoy optimal visibility throughout their game.



IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 8

Model MF-QCD-S400W MF-QCD-S500W MF-QCD-800W MF-QCD-1000W
Power
consumption
400W 500W 800W 1000W
Input Voltage AC 100-277V
LED Chif Lumiled'/OSRA'
Chip QTY 770 pcs 770 pcs 1540 pcs 1540 pcs
CRI Ra>70,Ra>80
Power Factor >0.95
Light Efficacy 140~150Im/W
IP Rating IP66
Working Temp -35°ºC~+50ºC
Beam Angel 8°/25°/45°/60°/90°
Warranty 5 Years/7 Years
Product Size
Carton Size(mm)
L493xW439xH520
L550xW500xH500
L493xW439xH520
L550xW500xH500
L651xW586xH511
L700xW650xH600
L651xW586xH511
L700xW650xH600
N.W/G.W 15KG/16KG 15KG/16KG 27.5KG/29.3KG 27.5KG/29.3KG

IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 9
IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 10IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 11




IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 12

IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 13









IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 14

IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 15

IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 16  IP66 Waterproof LED High Mast Light Warranty 5 For Dust And Waterproof Capabilities For Harsh Environments 17
