Home ProductsLED Stadium Lights300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights

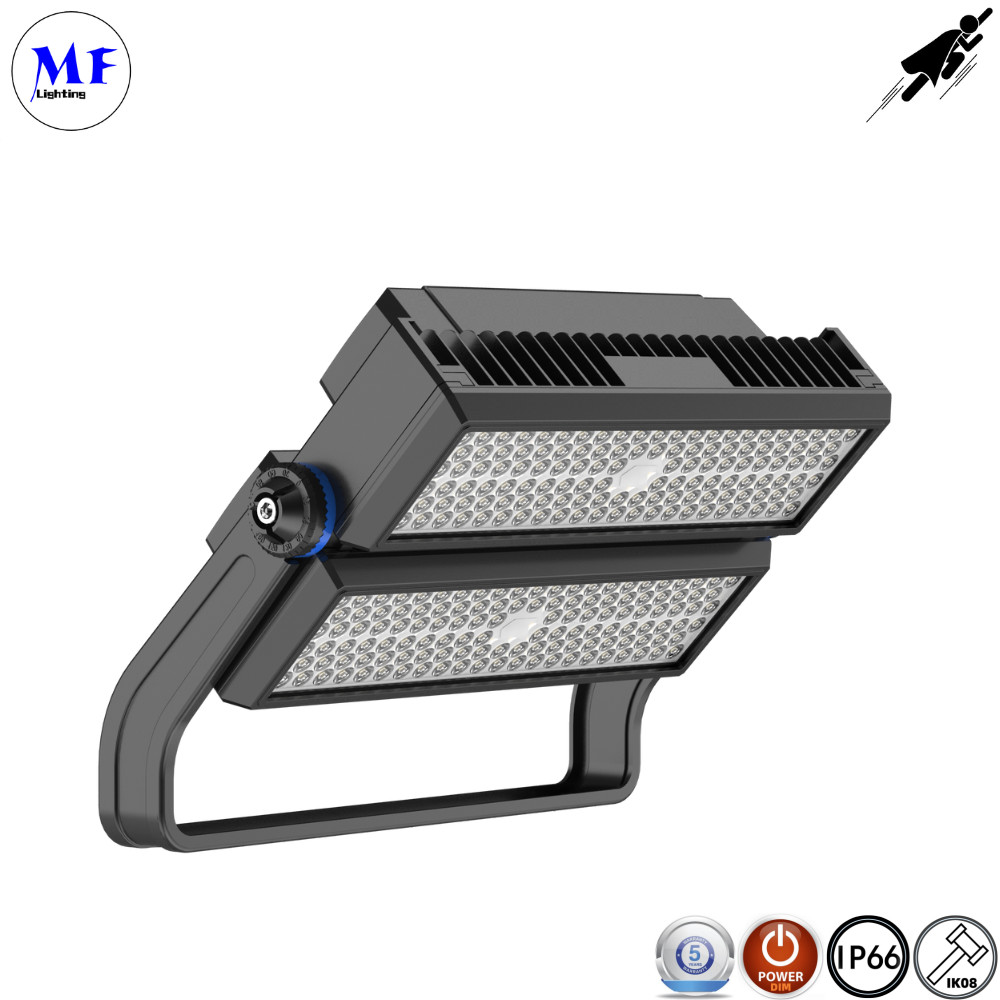

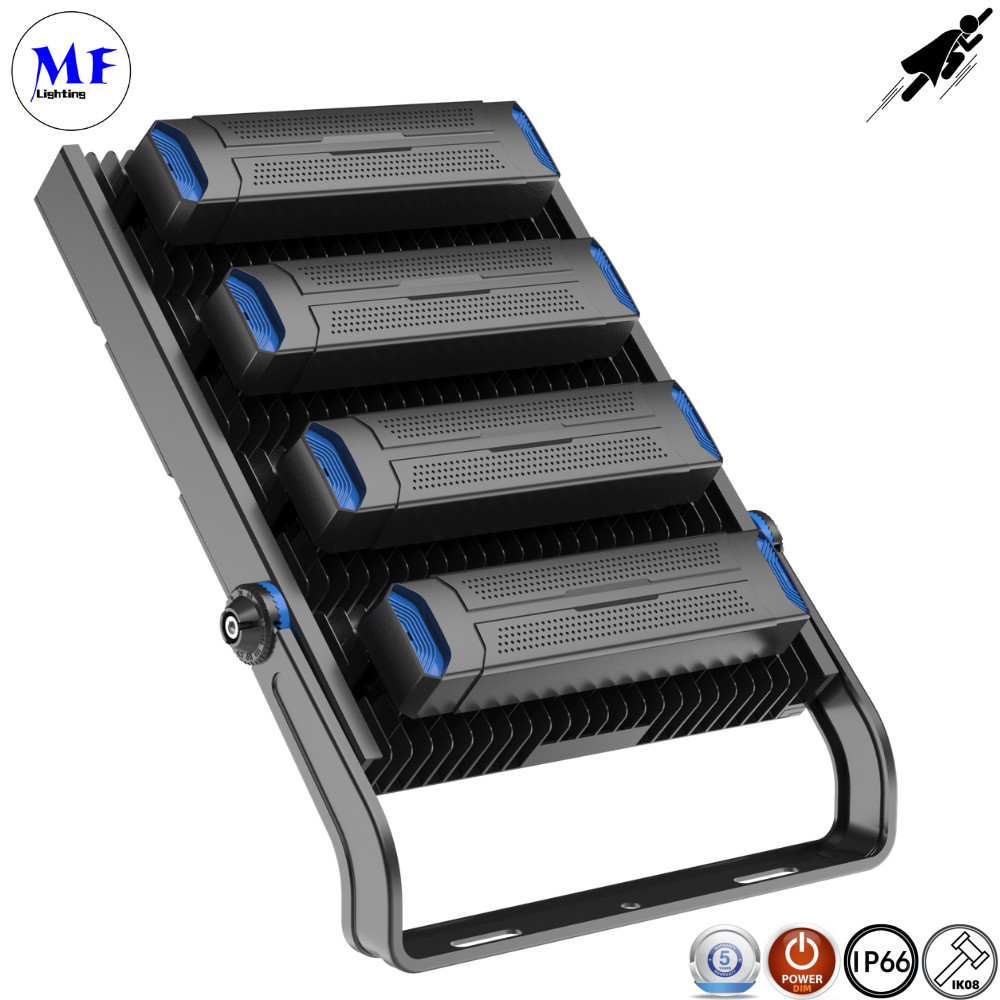

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights
300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights
300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights
Contact Now

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights

Minimum Order Quantity : 50pcs Price : Negotiable
Packaging Details : 630*330*230mm Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C,Paypal Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE /CB/RoHS /FCC Model Number: MF-QCD-H300W

Detail Information
Item :: MF-QCD-H300W Power:: 300W - 1500W
Input Voltage:: AC100-240V 50/60Hz LED Chip:: Lumileds
LED Driver:: MeanWell Luminous Flux(lm):: 170lm/w
CRI:: >80Ra Warranty: 5 Years
Certifcated: CE /RoHS /FCC /CB IP Rate: IP65
Beam Angle: 10°/25°/45°/60°/90°/65°/25°

Product Description

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 0


All-In-One Design to Perform

The new generation in LED sports & area lighting, create an unbelievable combination of world-class performance, energy saving, cutting-edge optical & thermal management technology and ongoing low maintenance cost in one sleek package solution.


FLICKER-FREE/SLOW MOTION REPLAY


Slow Motion Replay can record exciting moments of the contestants. As the advantage of hi-definition camera technology, conventional 4K

camera can reach 2000fps, adopt MW/Inventronic power supply, completely achieve the effect of flicker-free and meet the need of Slow Motion Replay.

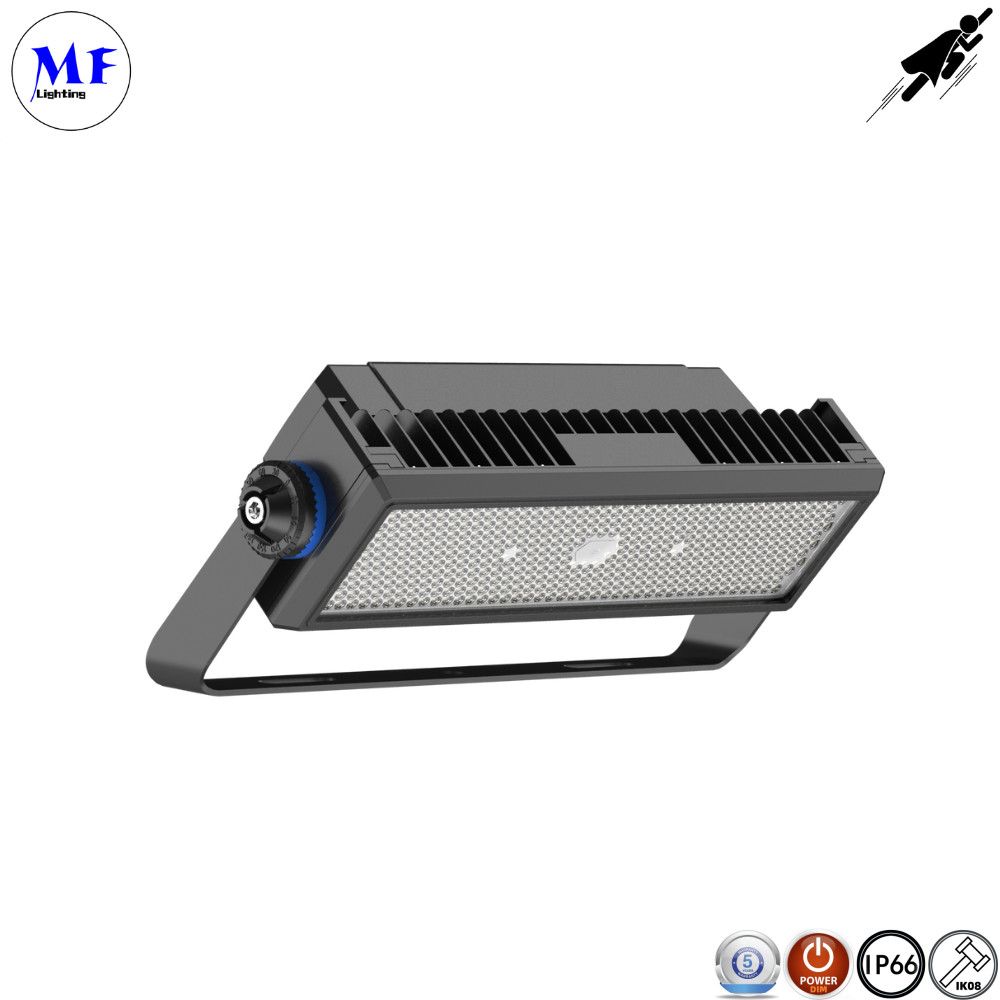

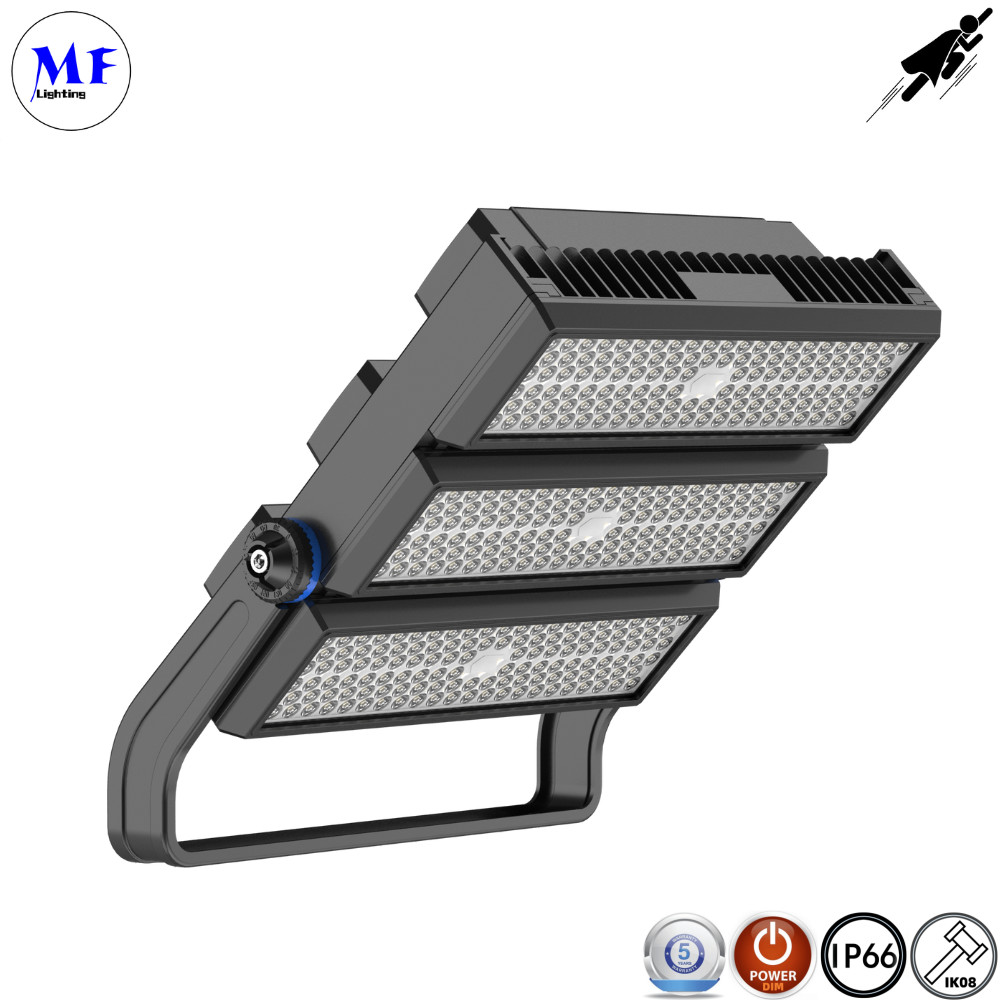

MODULAR DESIGN CONCEPT


SuperMan Ⅱ adopt modular design concept based on 250- 300W per module, and maximum to 1500W with five modules.

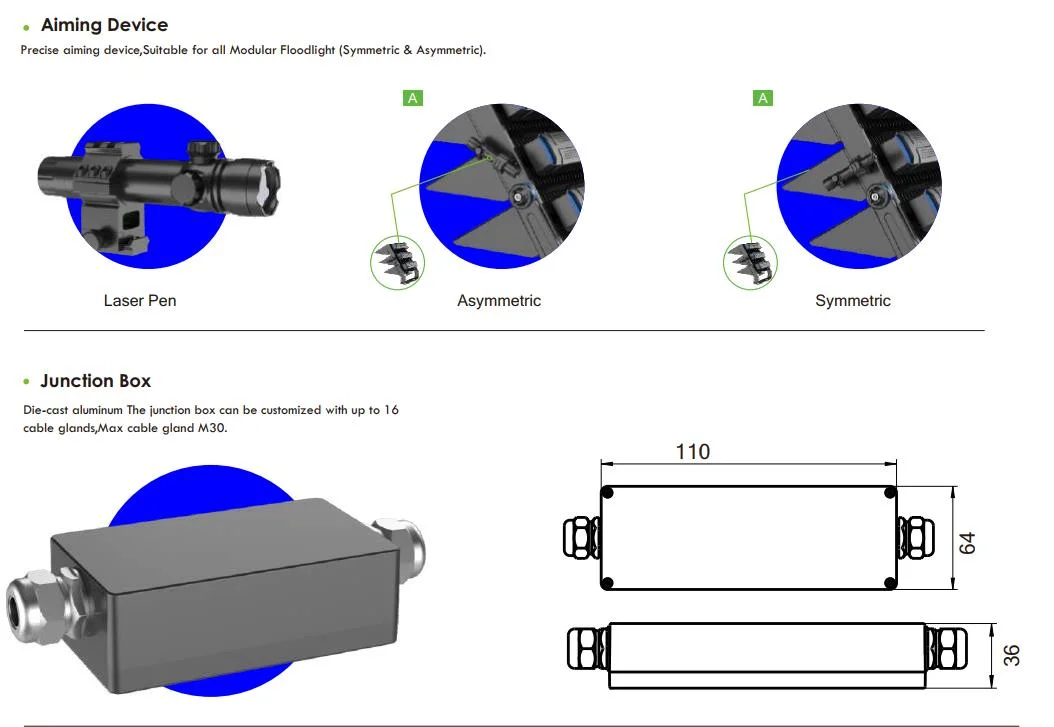

Racked angle make the light fixture can be adjusted to flexibly control the light, equipped with laser aimer for precise aiming at
the field.
Thanks to the modular design, applies to all kinds of stadiums, sports venues, airport, ports etc.



LOW WIND RESISTANCE, HIGH PROTECTION



Thanks to the modular design, the combination between each module is not completely closed, which can reduce the over all EPA,SuperMan Ⅱ is up to IP66 and IK10, meanwhile it is equipped with wire guard to realize ball-proof, safety rope for double protection.



SuperMan Ⅱ integrate built in 10KV surge protection device, alternative for 20KV.

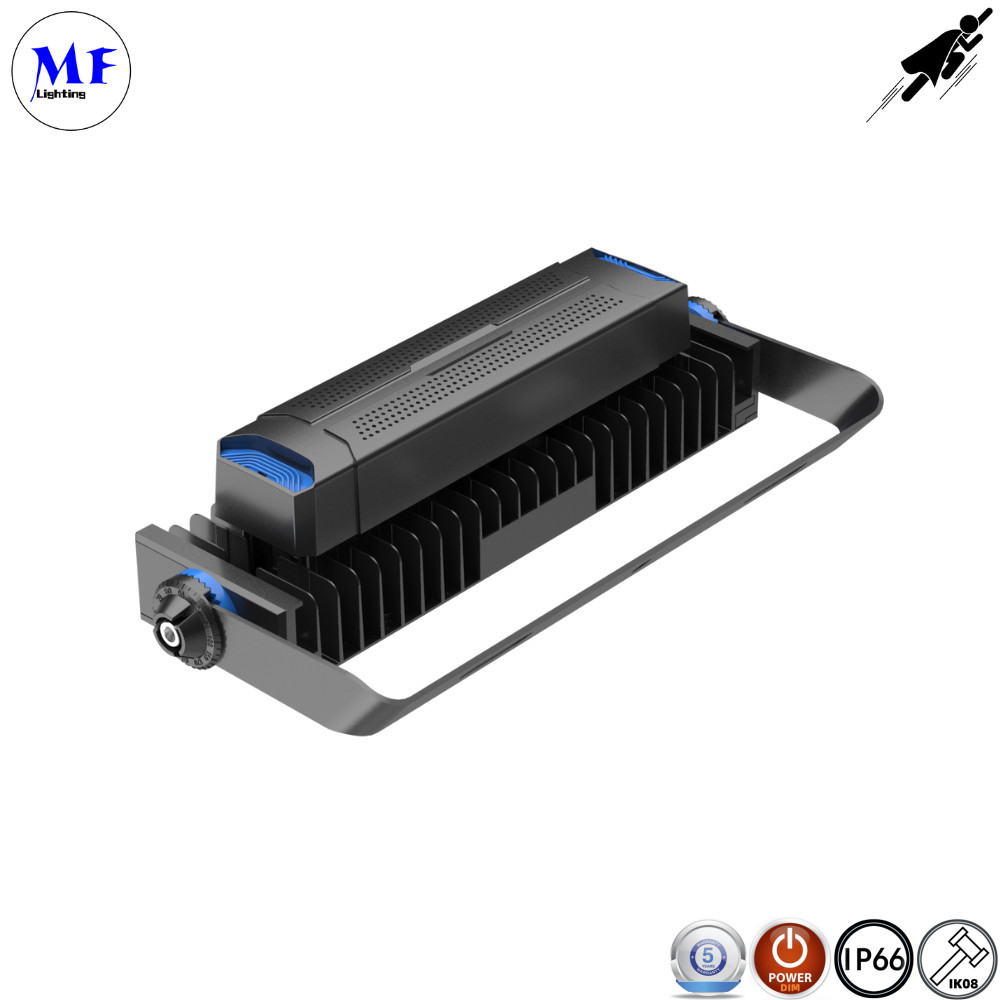

CUTTING-EDGE THERMAL MANAFEMENT SYSTEM



The lifespan and reliability of the light fixture are largely depend on the thermal management system, which include three passive cooling method, conduction, radiation and convection. Fin-design increases the heat dissipation & conduction areas, it is much more conductive to heat dissipation, performance and lifespan.



SuperMan Ⅱ has strict control in LED temperature rise of nodes, to protect its excellent reliability

SPILL LIGHT-FREE

Glare control is an important criterion in contemporary stadium lighting design. Excellent glare control not only allow contestants
to play at a high level, but also facilitate the shooting of camera and enhance the visual experience of on-site audience.

SuperMan Ⅱ equipped with conventional visor and unique designed optical lens achieve a glare-free feeling.



HIGH CORROSION & RUST RESSISTANT

Salt mist is the key cause to rust and corrosion of the light fixture, which will decrease the structure strength, reliability and lifespan or
even lead to security incident, especially for coastal areas, such as port, wharf etc.

SuperMan Ⅱ has multi-ways for high anti-corrosion treatment to meet 1000/2000/3000H neutral salt spray by AkzoNobel powder coating, electrophoresis, triple powder coating etc.

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 1 300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 2
300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 3

SuperMan ll Family Plan A 1501mlw
Model No. MF-QCD-H250W MF-QCD-H500W MF-QCD-H750W MF-QCD-H1000W MF-QCD-H1250W
Light Source 440*PCT2835/ 126*SMD3737 880*PCT2835/ 252*SMD3737 1320*PCT2835/ 378*SMD3737 1760*PCT2835/ 504*SMD3737 2200*PCT2835/ 563*SMD3737
LED Brand Lu-mileds/O-SRAM
Driver Brand MW/SOSEN
Rated Power (W) 240W 480W 720W 960W 1200W
Input Voltage (V) 100-305Vac 50/60Hz
Output Voltage(V) 48
Power Factor >0.95
THD <10
Luminous Flux(Im) 36,000±5% 72,000±5% 108,000±5% 144,000±5% 180,000±5%
CCT (K) 3000/4000/5000/5700
CRI(Ra) >70/>80/>90
Beam Angle 10°/25°/45°/60°/90°/65°*25°
IP Class IP66
IK Class IK08/IK10
Outer Carton (mm) 630*330*230 630*520*230 630*680*230 630*840*230 630*1000*230
Net Weight (kgs) 7 14 20 26 32
Gross Weight (kgs) 7.5 15 22 28 35
SuperMan ll Family PlanB 170lmlw
Model No. MF-QCD-H250W MF-QCD-H500W MF-QCD-H750W MF-QCD-H1000W MF-QCD-H1250W
Light Source 440*SMD3030/ 126*SMD3737 880*SMD3030/ 252*SMD3737 1320*SMD3030/ 378*SMD3737 1760*SMD3030/ 504*SMD3737 2200*SMD3030/ 630*SMD3737
LED Brand Lu-mileds/O-SRAM
Driver Brand MW/SOSEN
Rated Power (W) 240W 480W 720W 960W 1200W
Input Voltage (V) 100-305Vac 50/60Hz
Output Voltage(V) 48
Power Factor >0.95
THD <10
Luminous Flux(Im) 40,800±5% 81,600±5% 122,400±5% 163,200±5% 204,000±5%
CCT (K) 3000/4000/5000/5700
CRI (Ra) >70/>80/>90
BeamAngle 10°/25°/45°/60°/90°/65°*25°
IP Class IP66
IK Class IK08/IK10
Outer Carton (mm) 630*330*230 630*520*230 630*680*230 630*840*230 630*1000*230
Net Weight (kgs) 7 14 20 26 32
Gross Weight (kgs) 7.5 15 22 28 35
SuperMan ll Family Plan C 150Im/w
Model No MF-QCD-H300W MF-QCD-H600W MF-QCD-H900W MF-QCD-H1200W MF-QCD-H1500W
Light Source 440*SMD3030/ 126*SMD3737 880*SMD3030/ 252*SMD3737 1320*SMD3030/ 378*SMD3737 1760*SMD3030/ 504*SMD3737 2200*SMD3030/ 630*SMD3737
LED Brand Lu-mileds/O-SRAM
Driver Brand MW/SOSEN
Rated Power (W) 300W 600W 900W 1200W 1500W
Input Voltage(V) 100-305Vac 50/60Hz
Output Voltage(V) 48
Power Factor >0.95
THD THD<10%
Luminous Flux(Im) 45,000±5% 90,000±5% 135,000±5% 180,000±5% 225,000±5%
CCT (K) 3000/4000/5000/5700
CRI(Ra) >70/>80/>90
BeamAngle 10°/25°/45°/60°/90°/65°*25°
IP Class IP66
IK Class IK08/IK10
Outer Carton(mm) 630*330*230 630*520*230 630*680*230 630*840*230 630*1000*230
Net Weight (kgs) 7 14 20 26 32
Gross Weight (kgs) 7.5 15 22 28 35
300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 4

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 5

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 6

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 7

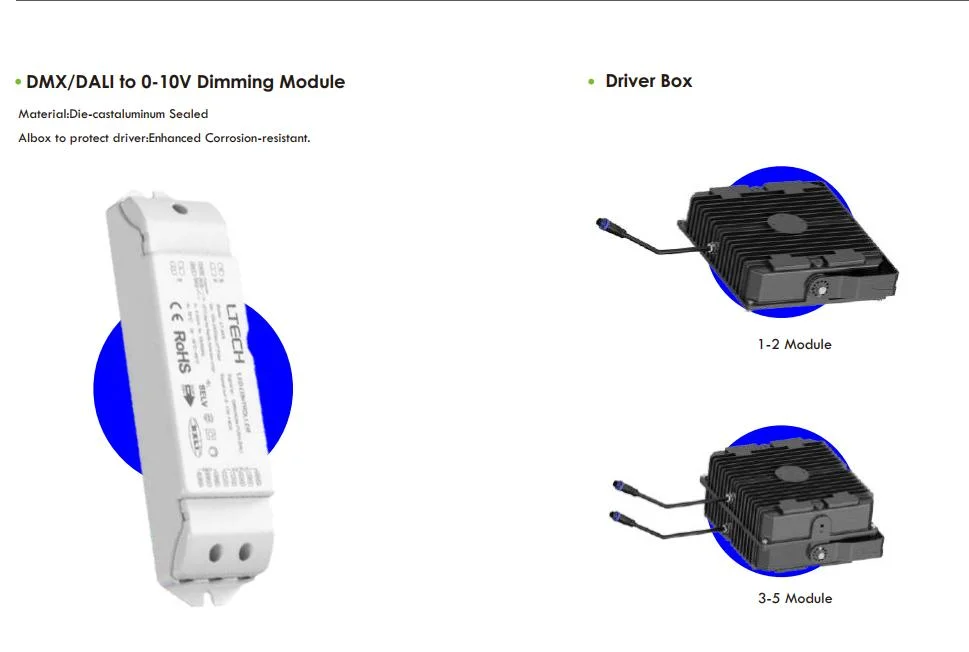

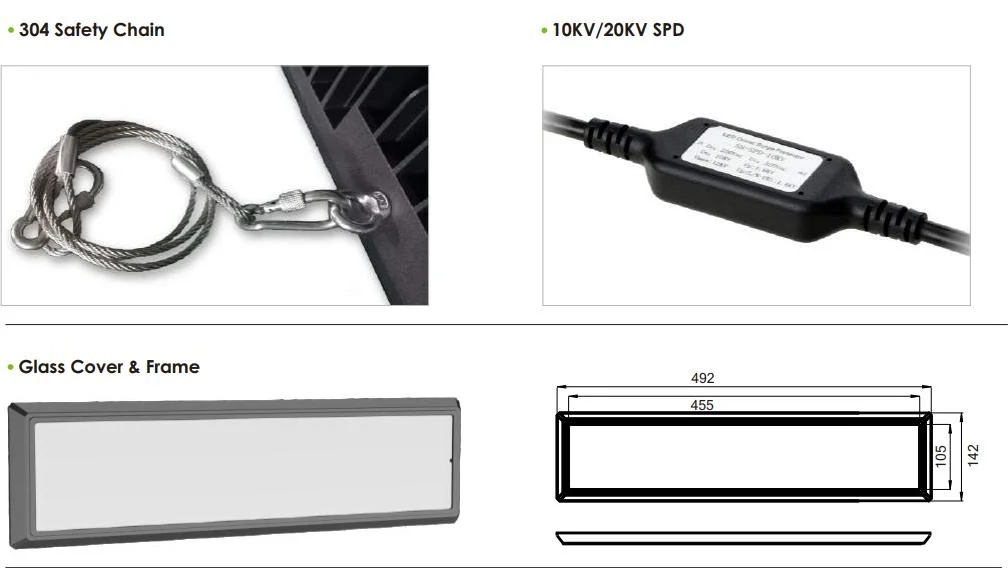

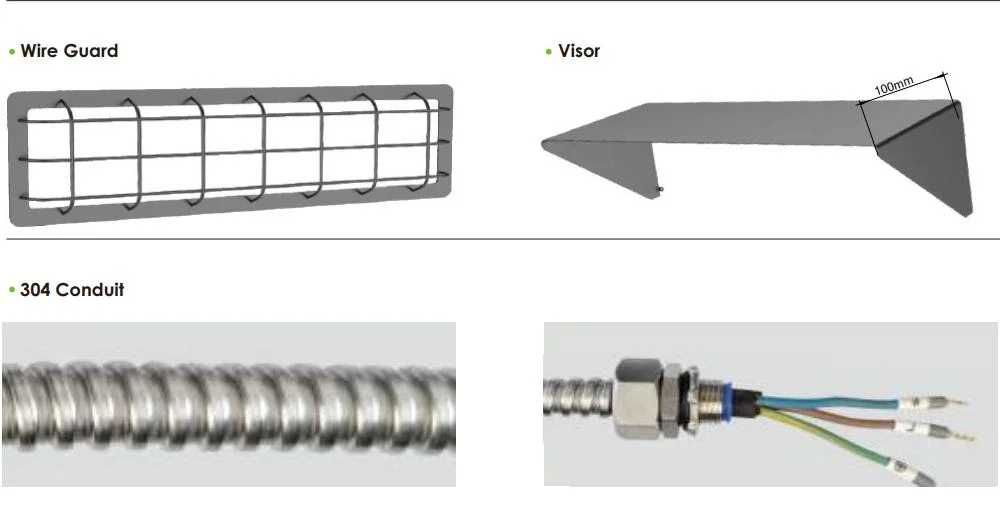

Main Accessories
1500W High Power Modular IP67 Ik10 Outdoor Area LED Spotlight Waterproof Projector LED Flood Light LED Stadium Light1500W High Power Modular IP67 Ik10 Outdoor Area LED Spotlight Waterproof Projector LED Flood Light LED Stadium Light

1500W High Power Modular IP67 Ik10 Outdoor Area LED Spotlight Waterproof Projector LED Flood Light LED Stadium Light1500W High Power Modular IP67 Ik10 Outdoor Area LED Spotlight Waterproof Projector LED Flood Light LED Stadium Light
EXCELLENT HEAT DISSIPATION AND LIFE-SPAN ASSURED

The lifespan and reliability of LED fixtures largely depend on thermal management system which includes three passive cooling methods, conduction, radiation and convection . Die-casting module design increases heat dissipation areas and conduction area. It is much more conductive to heat dissipation, performance and lifespan.

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 12
Conduction:
Thermal conduction refers to a type of heat dissipation method in which the heat of the body is directly transferred to the lower temperature object in contact with it.

Radiation:
Radiation is a heat transfer method in which the heat source is radiated in a straightline in all directions, and at the same time absorbs the energy back reflected by the surrounding objects. The radiation ability of an object (ie, the energy radiated outward from a unit surface per unit time) increases rapidly with increasing temperature. Superman series achieves better heat dissipation capacity by continuously optimizing and increasing the heat dissipation areas, LED heat is transferred to the heat sink through thermally con ductive silicone.

Convection:
Thermal convection means that the air temperature rises due to the radiation, and the volume expands and rises. The cold air is then replenished, and the heat dissipation surface exchanges heat with the newly moved cooler air, thus continuously taking away the heat. As for superman series, each model has an extended fin design to achieve convection.


Beam Spread:

300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 13
Application Fields:
300 - 1500 Watts High Power LED Stadium Lights IP68 170lm/w LED Modular Dimmable Outdoor Flood Lights 14

Delivery

High Power 170 Lm/W 300W -1500W IP66 Ik10 Tlci&gt;90 LED Flood Light LED Outdoor Stadium Light for Tennis Court Soccer Field
High Power 170 Lm/W 300W -1500W IP66 Ik10 Tlci&gt;90 LED Flood Light LED Outdoor Stadium Light for Tennis Court Soccer Field
High Power 170 Lm/W 300W -1500W IP66 Ik10 Tlci&gt;90 LED Flood Light LED Outdoor Stadium Light for Tennis Court Soccer FieldHigh Power 170 Lm/W 300W -1500W IP66 Ik10 Tlci&gt;90 LED Flood Light LED Outdoor Stadium Light for Tennis Court Soccer Field

Tag:

Stadium LED Lights

LED Stadium Lights

LED Sport lights
