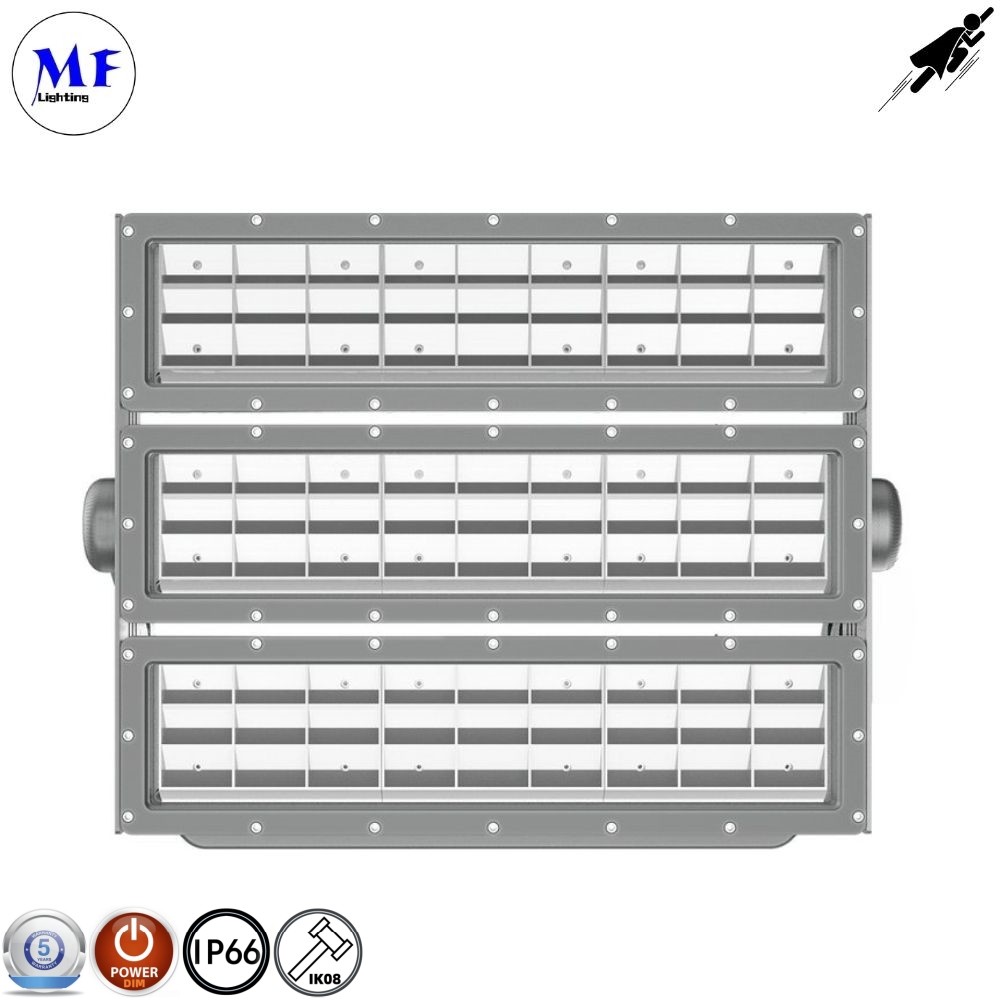

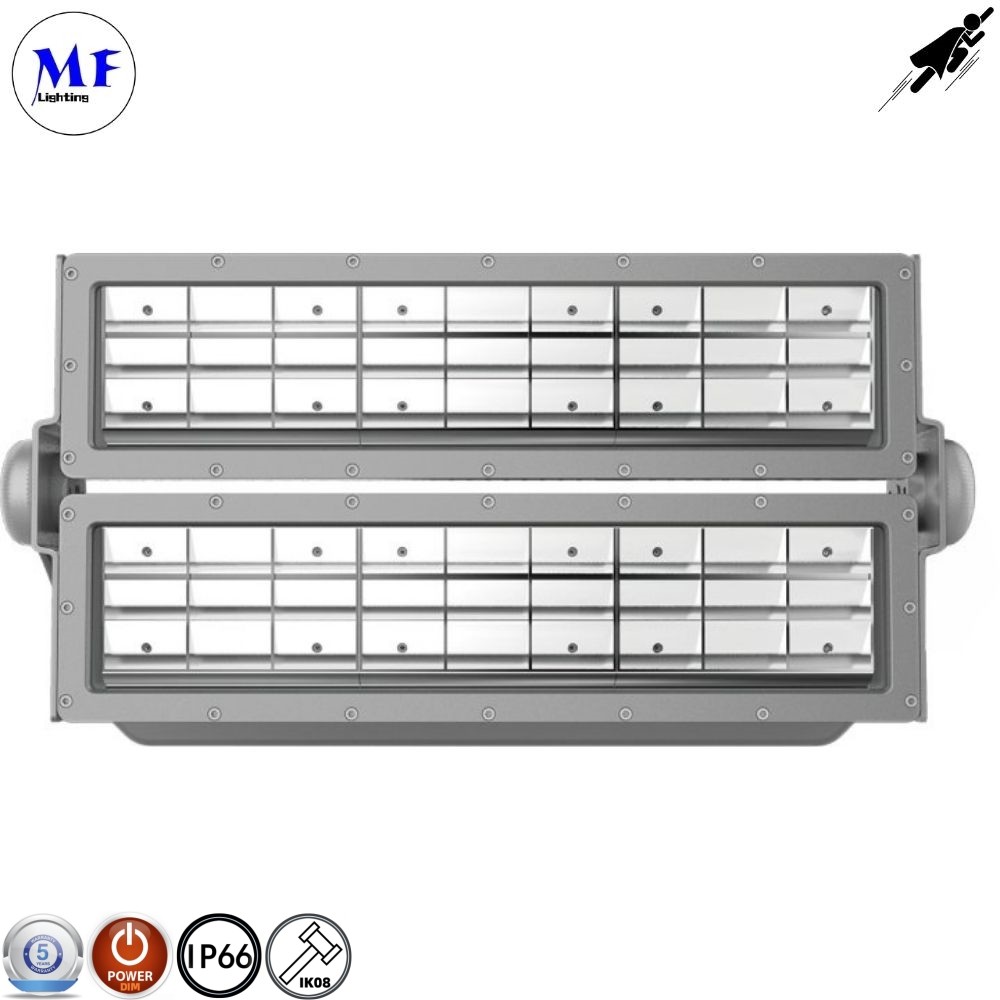

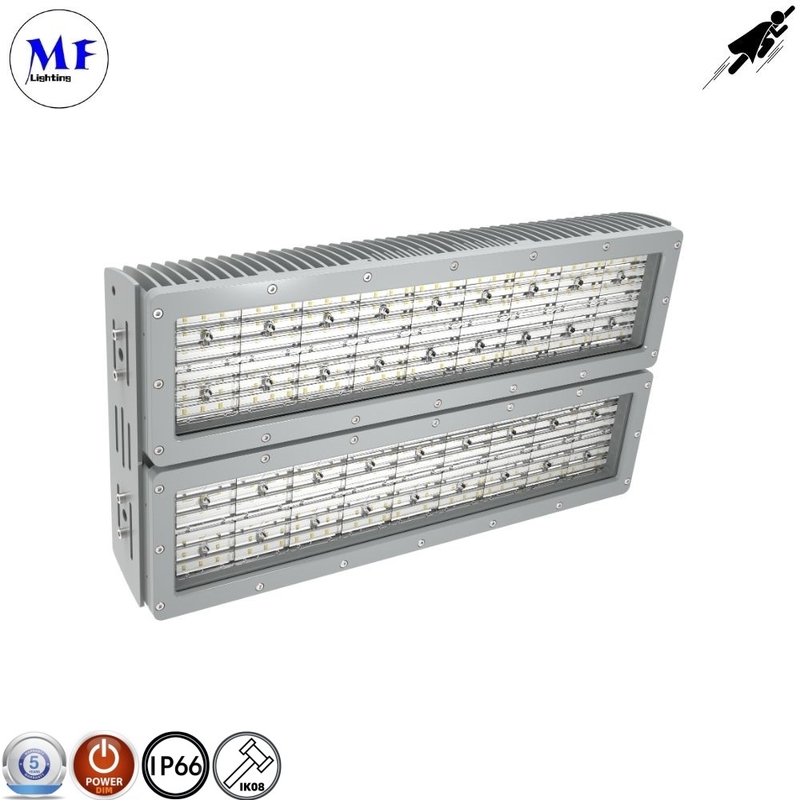

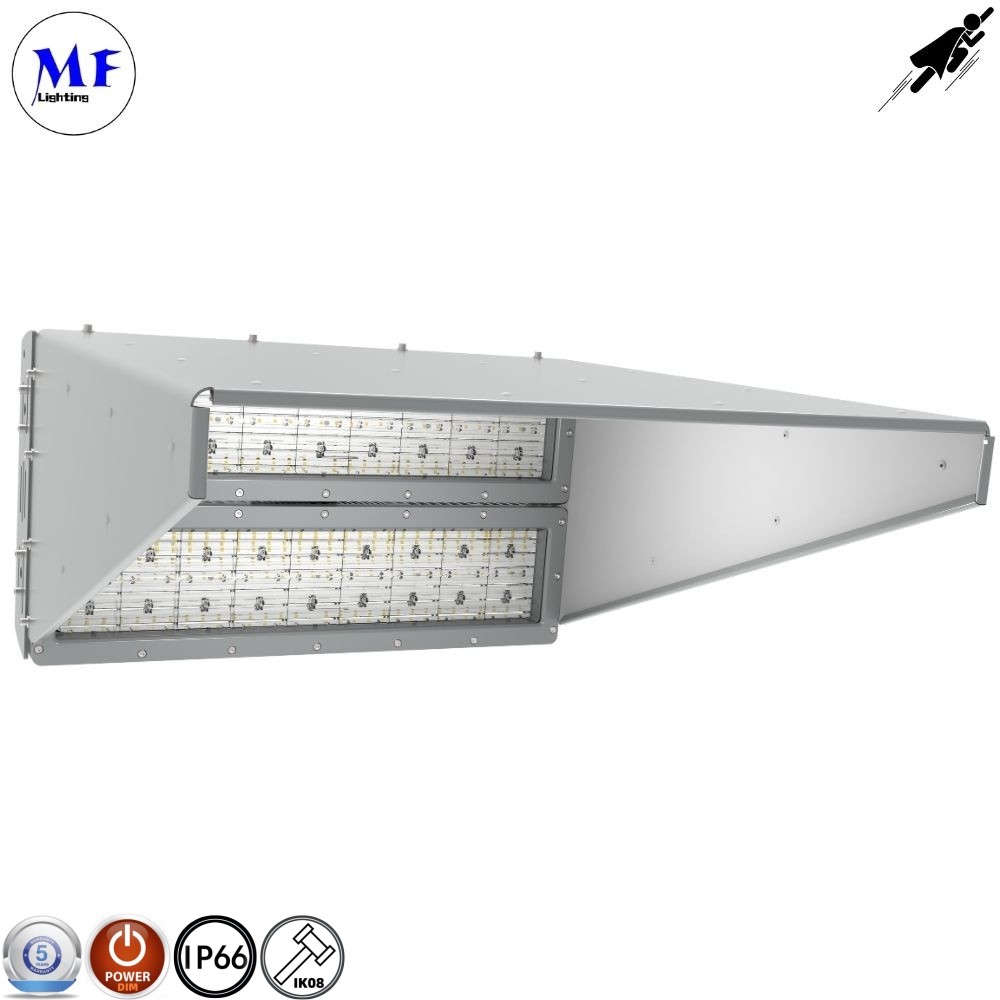

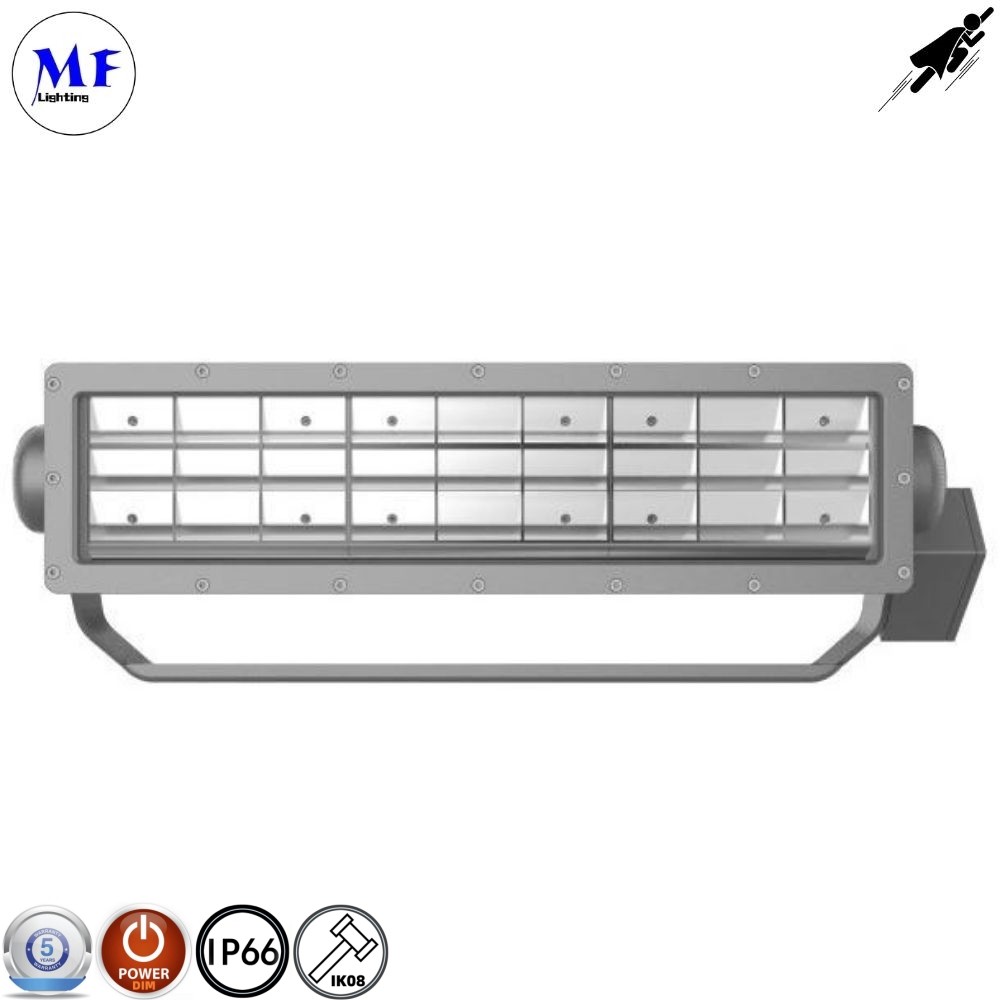

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting TV Broadcast Lighting Flicker Free

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : Depends on models Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF Superman IV Family

Detail Information

CCT: 3000K,4000K,5000K,5700K, CCT Etc Material: Aluminum Alloy
Power: 400W/800W/1200W/1500W/1800W IP Rate: IP66
Driver: Sosen/MeanWell Luminous Efficacy: 140LM/W-170LM/W
CRI(Ra): 70+ Beam Angle: 15°/45° Options
Ik Rate: IK08 Installation: Bracket Installation/Wall Installation/Pole Instal
Surge Voltage: 10kv Life Span: >50, 000hrs
Operation Temperature: Ta=40 Warranty: 5 Years
Highlight:

High Power floodlight in stadium

,

floodlight in stadium 400W

,

floodlight in stadium 1000W

Product Description

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting TV Broadcast Lighting Flicker Free



High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 0



Specifications:



The MF Series Stadium Floodlight represents a new generation of out.standing lighting solutions, boasting easy maintenance, easy installation, versatile light distribution options, and professional-grade fea-tures.

lts exceptionaloptical design ensures outstanding performance,making it the ideal choice for illuminating outdoor large venues andevents, saving maintenance budget and operating costs

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 1

Intelligent Lighting Control

.Up to 150lm/w, power range: 400w-1800w.Modular design, a maximum of 3 modules available.

.UV stabilized polyester powder paint finish for durability and corrosionresistance.

.Die-casting aluminum, excellent heat dissipation design, more condu-cive to prolong the lifespan.

.Excellent lighting system design, better performance.

. Eco-friendly, the lighting around the site is not plagued by light pollu-tion.

.The illumination of the site is significantly improved, with better unifor-mity, and the overflow light is reduced to a minimum.

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 2

The Lora Light wireless system or Zigbee control with strong anti-in teference ability is adopted in the wireless transmission unit of the light controller to realize the
communication between nodes and gateways.

The data of various sensors on the node light controller is sent back to the gateway, and the control com-mand of the gateway is also sent to the node light controller.

Through the controller, the staff can conveniently remote control the status of lamps and lanterns and adjust them, so that the lighting management of the site is more intelligent.



High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 3

ULOR=0%
100% precise-0% light pollution (@0°)
Thanks to its new asymmetric light distribution system, without any spill light or obtrusive light, the night sky remains dark. And nature and residents are undisturbed.

• Our product design focuses on addressing the issues of glare, which can aect both athletes and nearby residents, and light pollution in the night sky. While enhancing lighting for the site, we also aim to minimize disturbances to the environment.
• The MF series incorporates a low glare design to eectively control light direction, improving athlete comfort, spectator experience, and reducing light pollution.
• The MF series, with precise lighting system design and visor, reduces on-site glare by 40%, spillover by over 50%, and saves up to 40% more energy compared to traditional MHL or other lamps.



High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 4





Product Details



High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 5  High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 6

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 7  High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 8





Note: Normal Voltage=100-277VAC, High Voltage=277-480VAc, please evaluate beforechoosing.

For the power supply in the United States and Canada, in case the input volt-age fluctuation 2240V the High Voltage solution is highly recommended for performancestability. lmproper selection will cause damage to the driver or the light.





High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 9





Light distribution curve/isocandela diagram:



Accurate light distribution design to ensure accurate lighting,
Seoul or CREE/LUMI-LEDS LED chips to ensure the best lighting peormance.

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 10



The MF series features a customizable high-peormance optical system designed for professional sports fields.
It includes floodlighting optics for precise pitch illumination, oering flexibili
ty and excellent light distribution. Specialized LEDs ensure high TLCI for television broadcasts.

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 11High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 12

Installation design



High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 13

Application Fields:



Stadium,Wharf,Airport, Dock, Tower Crane, Large Outdoor Parking Lot, Football Field, Basketball Court, Tennis Court, Golf Course etc                                                                                                                                                                                                                  .• Outdoor Sports• Soccer Fields • Stadium • Airport/Seaport • Parking Lots • Exhibition Center • Golf course • High Mast

Stadiums and Arenas Construction Sites Hangars Bridges, Monuments and Facades Rail, Work and Shipping Yards Large Distribution Centers



High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 14

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 15

High Power LED Flood Light Stadium Light 400W 1000W 1800W Sport Filed Lighting  TV Broadcast Lighting Flicker Free 16
