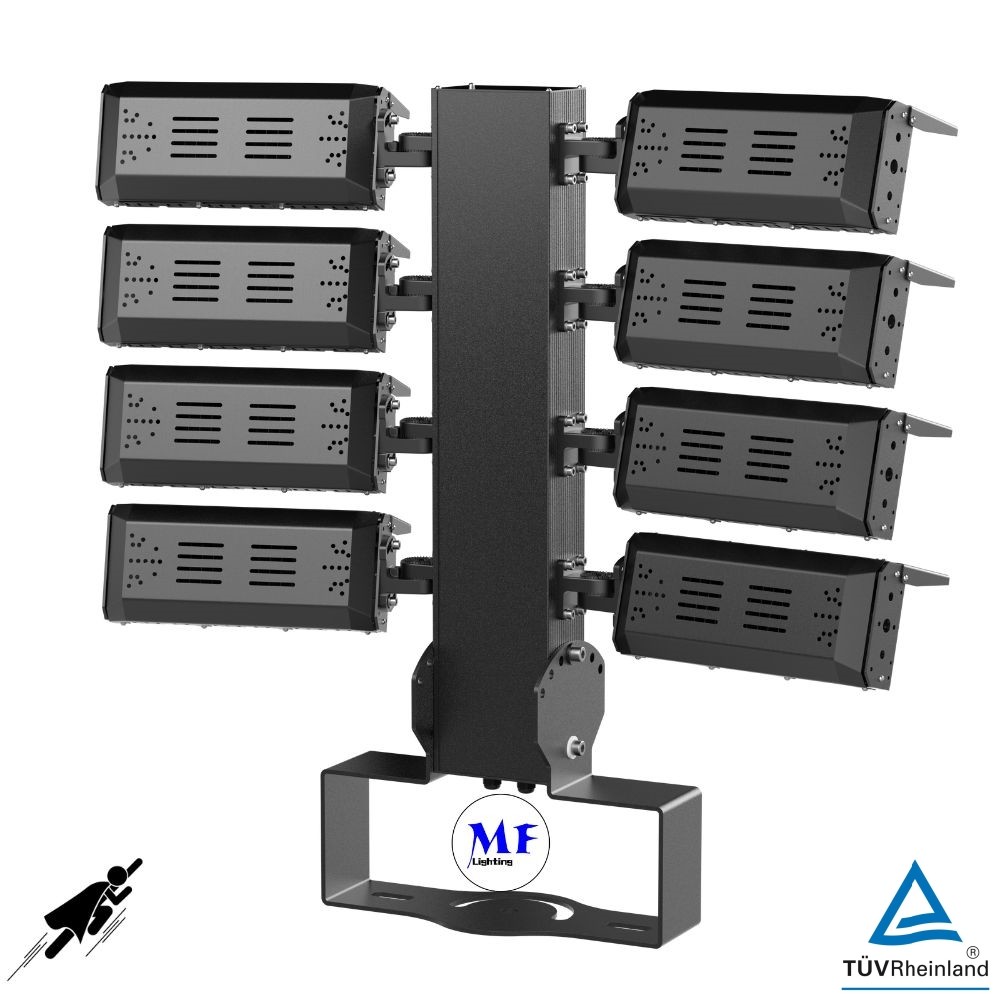

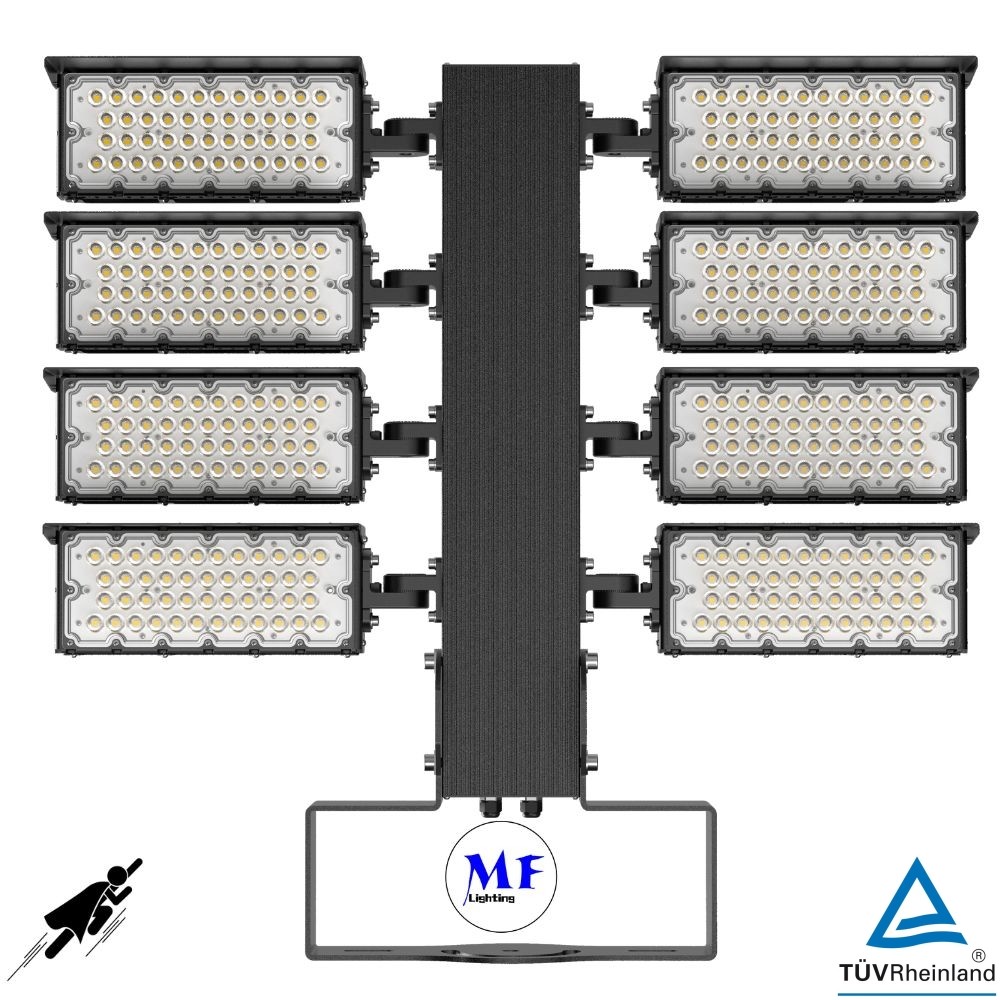

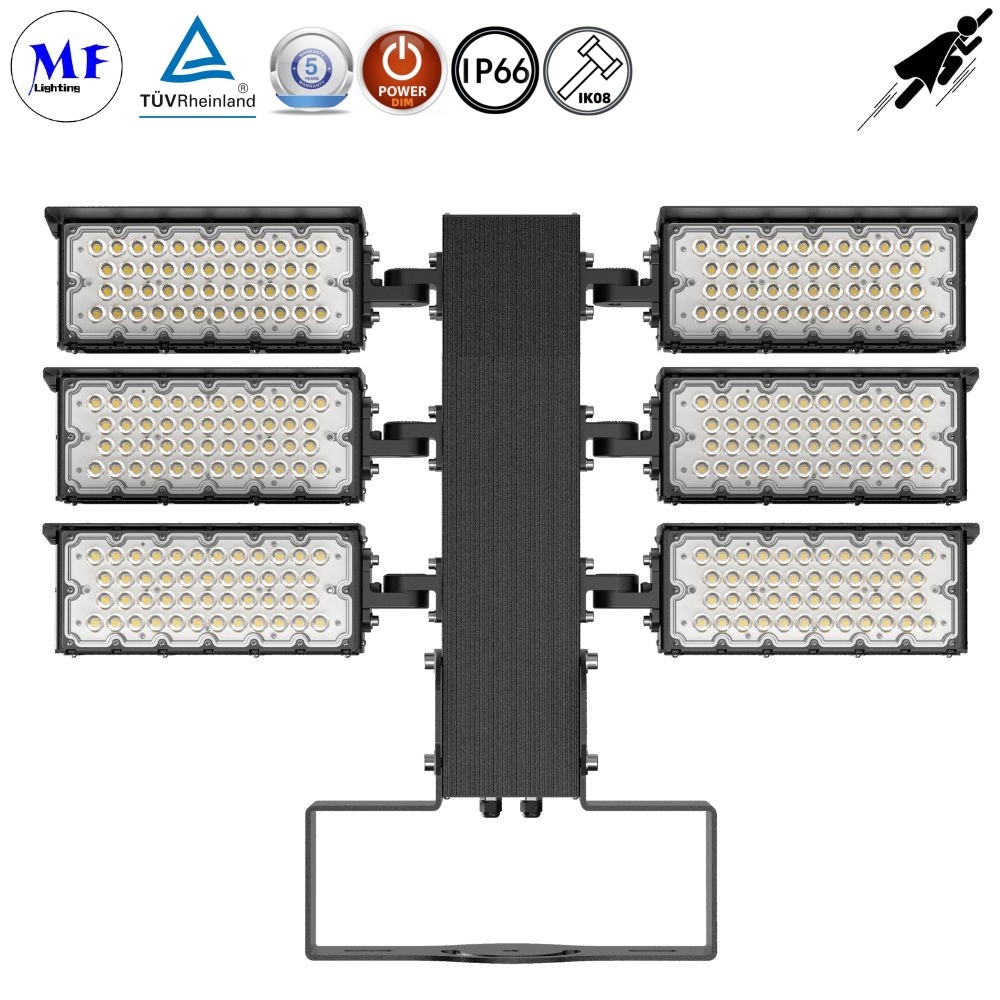

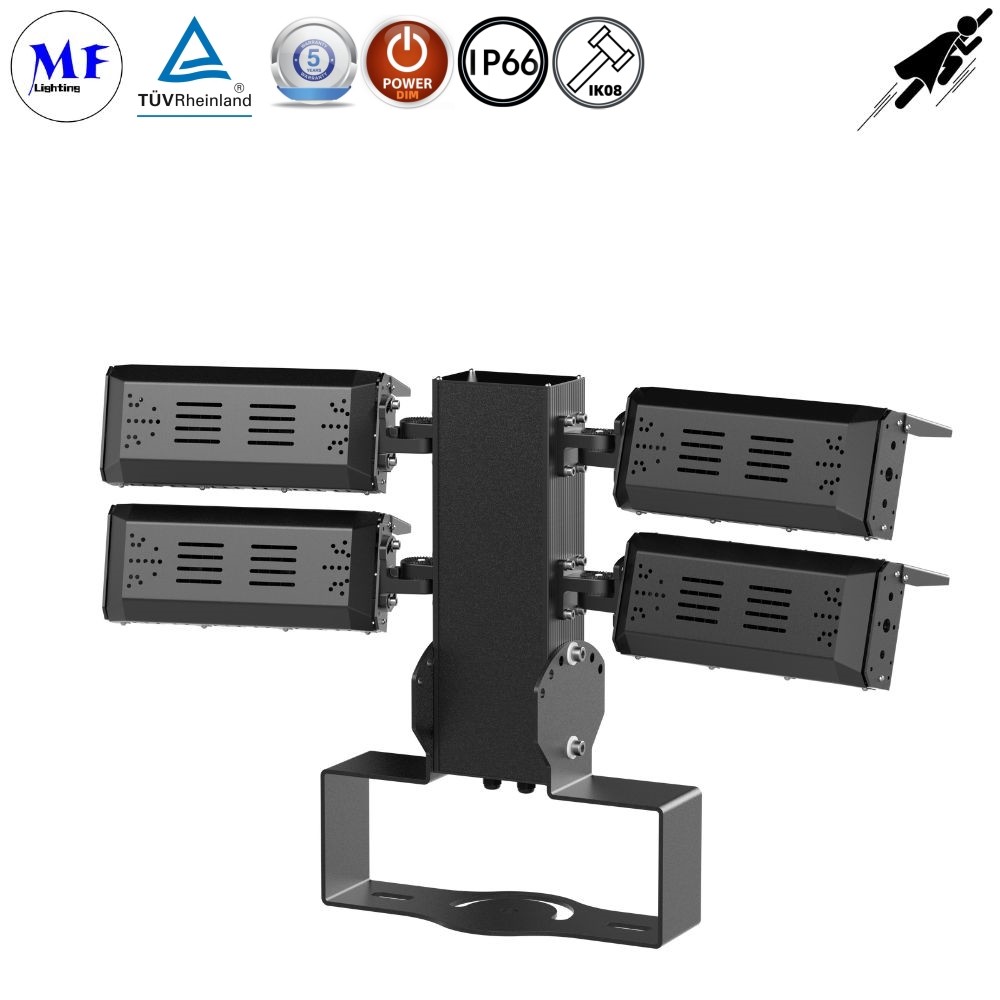

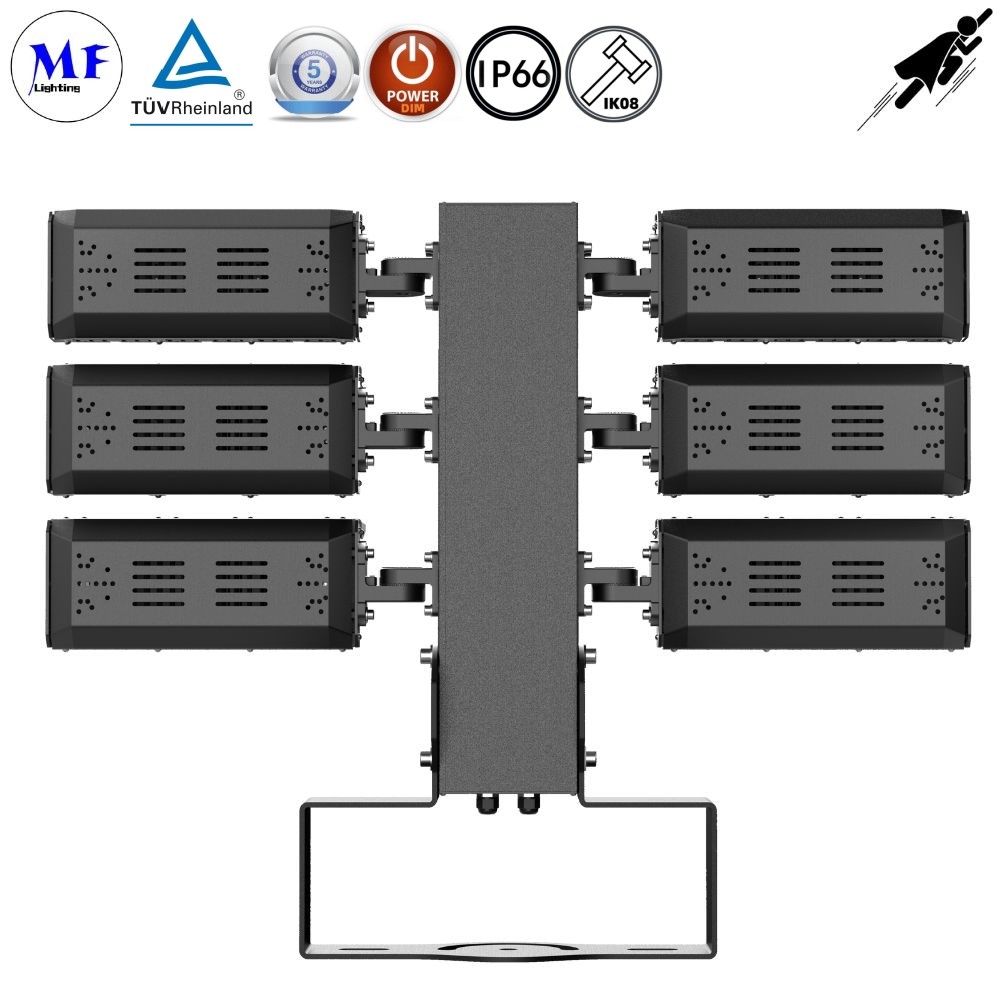

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W

Contact Now

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W

Minimum Order Quantity :	1PCS	Delivery Time :	depends on order
Supply Ability :	5000pcs/months

Place of Origin:	China	Brand Name:	MF
Certification:	CE,RoHs,FCC	Model Number:	MF-QCD-U300/600/900/1200W

Detail Information
POWER:	300/600/900/1200W	IP:	IP66
CRI:	>70	Warranty:	5years
PF:	>0.95	Working Temp:	-40°c- +60°c
BEAM ANGLE:	10°/20°/40°/60°/90°	CCT:	2700-6500K
Light Source:	LUMILEDS 5050	Driver:	Meanwell
RATED VOLTAGE:	AC 90-305V, 50/60Hz
Highlight:	900W LED Stadium Light , Waterproof LED Stadium Light , IP66 LED Stadium Light

Product Description

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 1

The MF Series Stadium Floodlight represents a new generation of out standing lighting solutions, boasting easy maintenance, easy installation, versatile light distribution options, and professional-grade fea-tures.

lts exceptionaloptical design ensures outstanding performance,making it the ideal choice for illuminating outdoor large venues andevents, saving maintenance budget and operating costs

WATTAGE : 300W/600W/900W/1200W
LIGHT SOURCE : LUMI-LEDS 5050
LED QUANTITY : 46PCS LEDS EACH MODULE
DRIVER : MEANWELL
LAMP LUMINOUS FLUX : 165LM/W±5%(60°/90°/120) 155LM/W±5%(30°)
CRI : Ra>70
CCT : 2700-6500K
RATED VOLTAGE : AC90-305V,50/60Hz
POWER FACTOR : >0.95
BEAM ANGLE : 10°120°/40°/60°/90°
IP GRADE : IP66
HEAT SINK : ALUMINUM CO0LING FIN
OPERATING TEMP : -40ºC~60ºC

Housing and Finish

- Aluminum housing.

- Electrophoresis coat, corrosion and rust protection.

- 304 Stainless Steel pipe to well protect the cables.

Optical lens

- 95% Light Transmittance Rate

- Heat-resisting and Anti-UV Material

- Interchangeable

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 2

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 4

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 5

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 6

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 7

Professional Light Distribution

Multiple optical lens choices are available with angles including to meet the

requirements for professional light distribution and an extensive scope of applications.

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 9

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 11

Test Point Time(min)	00:00:00	00:30:00	01:00:00	01:30:00	02:00:00	02:30:00
CH1 LED	32.4	77.7	78.3	79	79.6	80
CH2 LED	32.4	81.9	82.2	82.9	83.5	83.8
CH3 LED	32.4	76.7	77.1	77.8	78.3	78.8
CH4 PCB Board	32.5	77.5	77.9	78.5	79.1	79.5
CH5 Heat sink	32.5	71	71.4	72.1	72.5	73.1
CH6 Heat sink	32.4	63	63.3	64.3	64.6	65.1
CH7 Heat sink	32.5	65.6	65.9	66.8	67.4	67.9
CH8 LED Driver	32.6	47.7	54.8	58.4	60.4	61.6

Package Detail

Model	Size of Carton	Gross Weight of Carton	BoxPCS /Carton
MF-QCD-U300W	480x450x390MM	10.2KG	1
MF-QCD-U600W	480x450x490MM	17.3KG	1
MF-QCD-U900W	630x450x490MM	22.5KG	1
MF-QCD-U1200W	780x460x490MM	27.6KG	1

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 12

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 13

Stadium,Wharf,Airport, Dock, Tower Crane, Large Outdoor Parking Lot, Football Field, Basketball Court, Tennis Court, Golf Course etc.

• Outdoor Sports • Soccer Fields • Stadium • Airport/Seaport • Parking Lots • Exhibition Center • Golf course • High Mast

Stadiums and Arenas Construction Sites Hangars Bridges, Monuments and Facades Rail, Work and Shipping Yards Large Distribution Centers

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 14

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 15

10° /20° /40° /60° /90° Module Rotatable LED Stadium Light LED Flood Light Waterproof IP66 300W 600W 900W 1200W 16
