LED High Bay Light High Mast 400w/500w/ IP66 150lm/W Sports Stadiums Football Basketball Sport Field Court Projector
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 100PCS | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
| Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
| Place of Origin: | China | Brand Name: | MF Superman V |
|---|---|---|---|
| Certification: | CE, RoHS,SAA | Model Number: | MF-QCD-U900W |
|
Detail Information |
|||
| CCT: | 3000K-6500K | Material: | Aluminum Alloy |
|---|---|---|---|
| Power: | 300W/600W/900W/1200W | IP Rate: | IP66 |
| Driver: | Sosen/MeanWell | Luminous Efficacy: | 155lm/W-165lm/W |
| CRI(Ra): | 70 | Beam Angle: | 10°/20°/40°/60°/90° |
| Power Efficiency: | 0.90 | Ik Rate: | IK8 |
| Material: | Die-Cast Aluminum | PF: | >0.95 |
| Life Span: | >50, 000hrs | Warranty: | 5 Years |
| Highlight: | 165lm/W Stadium LED Flood Light,IP66 Stadium LED Flood Light,Waterproof Stadium LED Flood Light |
||
Product Description

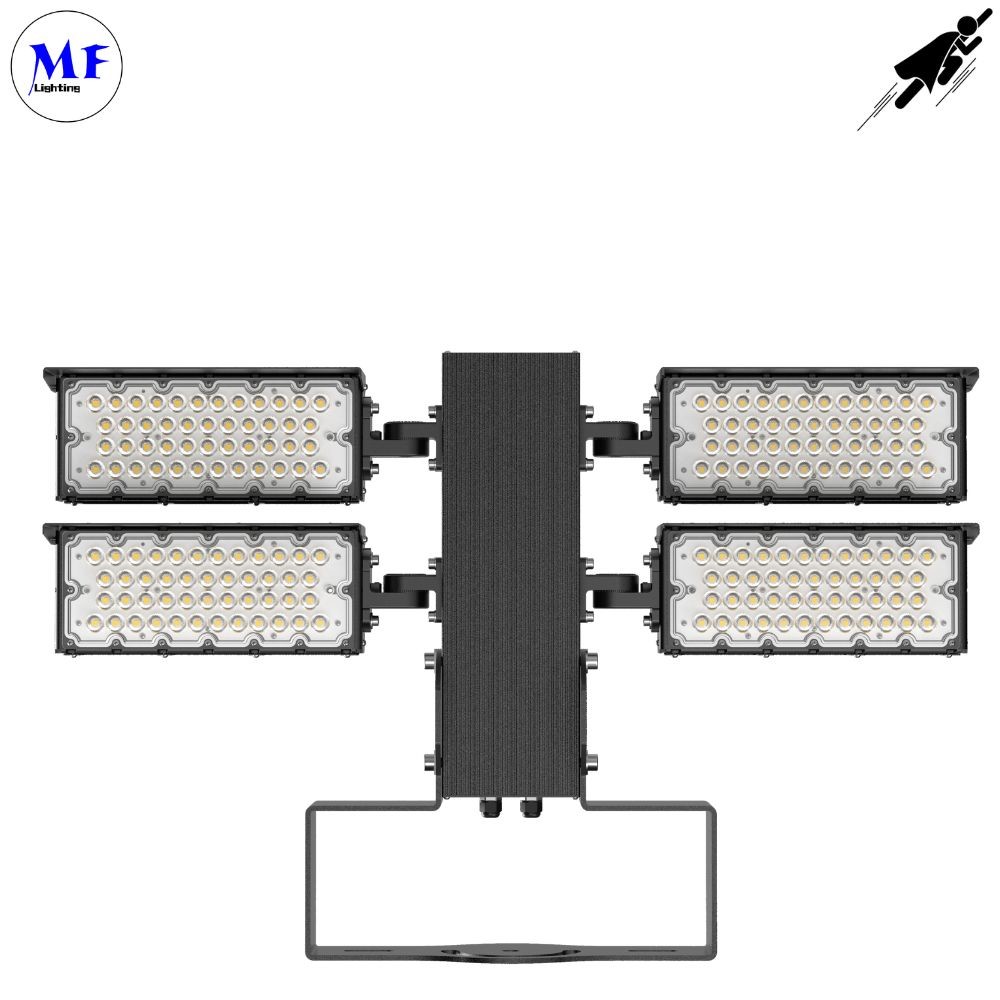

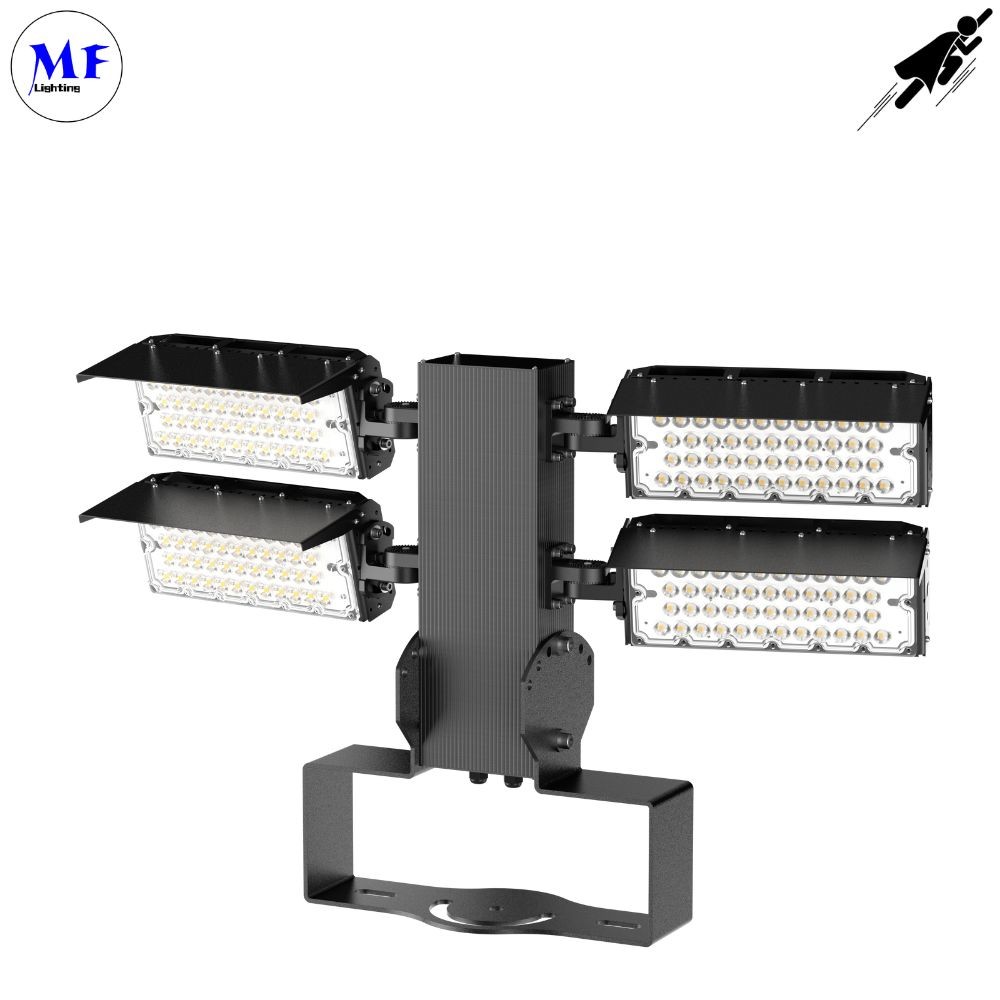

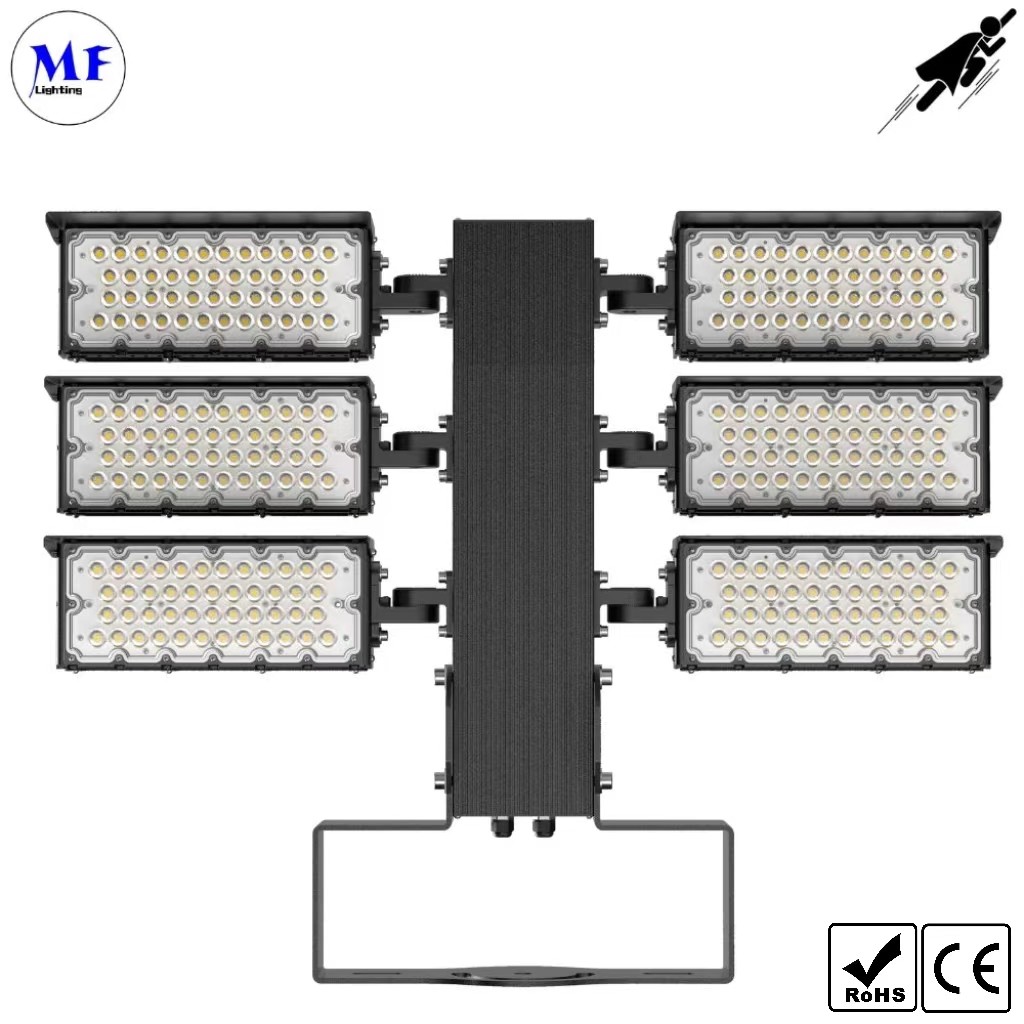

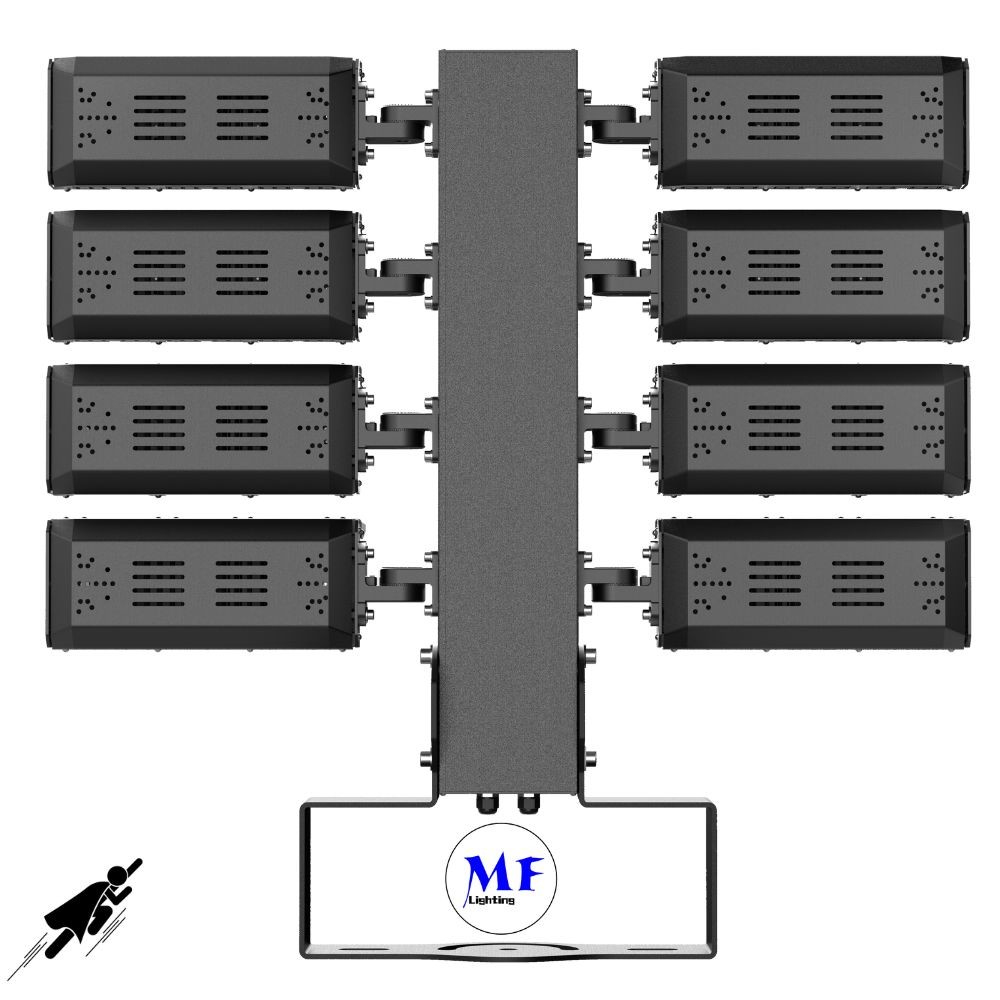

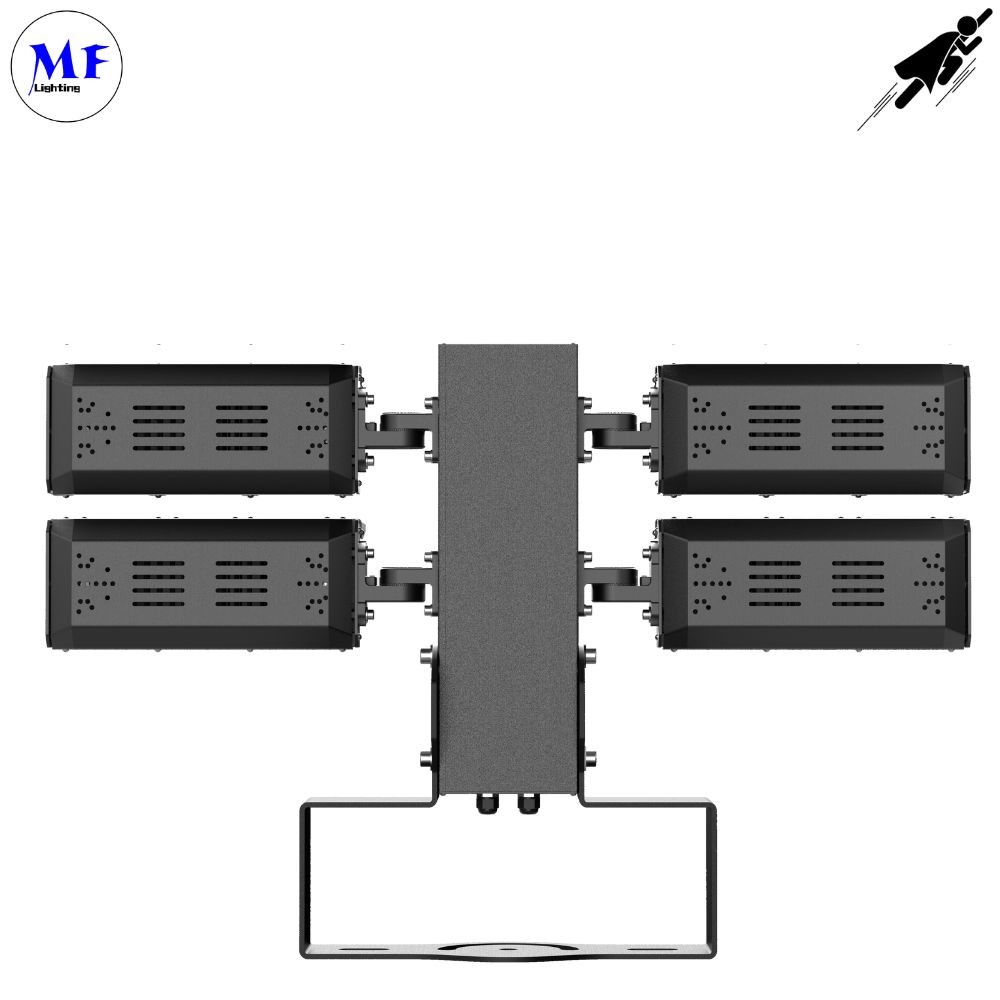

900W Various Beam Angle Aluminum Alloy Ik08 IP66 Stadium LED Flood Light Waterproof Dustproof 165lm/W Ra70 For Airport
| Wattage | 300W/600W/900W/1200W |
| Light Source | 5050 |
| LED Quantity | 46pcs LEDs each module |
| Driver | Meanwell |
| Lamp luminous flux | 165lm/w±5%(60°/90°/120°) |
| 155lm/w±5%(30°) | |
| CRI | Ra>70 |
| CCT | 2700-6500K |
| Rated Voltage | AC 90-305V, 50/60Hz |
| Power Factor | >0.95 |
| Beam Angle | 10°/20°/40°/60°/90° |
| IP Grade | IP66 |
| Heat Sink | Aluminum cooling fan |
| Operating Temp | -40°C~60°C |
Professional Light Distribution:
Multiple optical lens choices are available with angles including 10°/20°/40°/60°/90° to meet the requirements for professional light distribution and an extensive scopr of applications.
| Test Point | 00:00:00 | 00:30:00 | 01:00:00 | 01:30:00 | 02:00:00 | 02:30:00 |
| CH1 LED | 32.4 | 77.7 | 78.3 | 79 | 79.6 | 80 |
| CH2 LED | 32.4 | 81.9 | 82.2 | 82.9 | 83.5 | 83.8 |
| CH3 LED | 32.4 | 76.7 | 77.1 | 77.8 | 78.3 | 78.8 |
| CH4 PCB Board | 32.5 | 77.5 | 77.9 | 78.5 | 79.1 | 79.5 |
| CH5 Heat sink | 32.5 | 71 | 71.4 | 72.1 | 72.5 | 73.1 |
| CH6 Heat sink | 32.4 | 63 | 63.3 | 64.3 | 64.6 | 65.1 |
| CH7 Heat sink | 32.5 | 65.6 | 65.9 | 66.8 | 67.4 | 67.9 |
| CH8 LED Driver | 32.6 | 47.7 | 54.8 | 58.4 | 60.4 | 61.6 |
| Model | Size of Carton | Gross Weight of Carton | Box PCS/Carton |
| MF-QCD-U300W | 480x450x390MM | 10.2KG | 1 |
| MF-QCD-U600W | 480x450x490MM | 17.3KG | 1 |
| MF-QCD-U900W | 630x450x490MM | 22.5KG | 1 |
| MF-QCD-U1200W | 780x460x490MM | 27.6KG | 1 |
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
