LED High Bay Light High Mast 400w/500w/ IP66 150lm/W Sports Stadiums Football Basketball Sport Field Court Projector
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 100PCS | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
| Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
| Place of Origin: | China | Brand Name: | MF Superman VI |
|---|---|---|---|
| Certification: | CE, RoHS,SAA | Model Number: | MF-QCD-P1000W |
|
Detail Information |
|||
| CCT: | 2700K-6000K | Material: | Aluminum Alloy |
|---|---|---|---|
| Power: | 300W/500W/600W/800W/1000W/1200W | IP Rate: | IP66 |
| Driver: | Sosen/MeanWell | Luminous Efficacy: | 160lm/W |
| CRI(Ra): | >70/80/90 | Beam Angle: | 15°/25°/45°/60° |
| Power Efficiency: | 0.90 | Ik Rate: | IK10 |
| Material: | Die-Cast Aluminum | PF: | >0.95 |
| Life Span: | >50, 000hrs | Warranty: | 5 Years |
| Highlight: | Dustproof Stadium LED Flood Light,IP66 Stadium LED Flood Light,Waterproof Stadium LED Flood Light |
||
Product Description

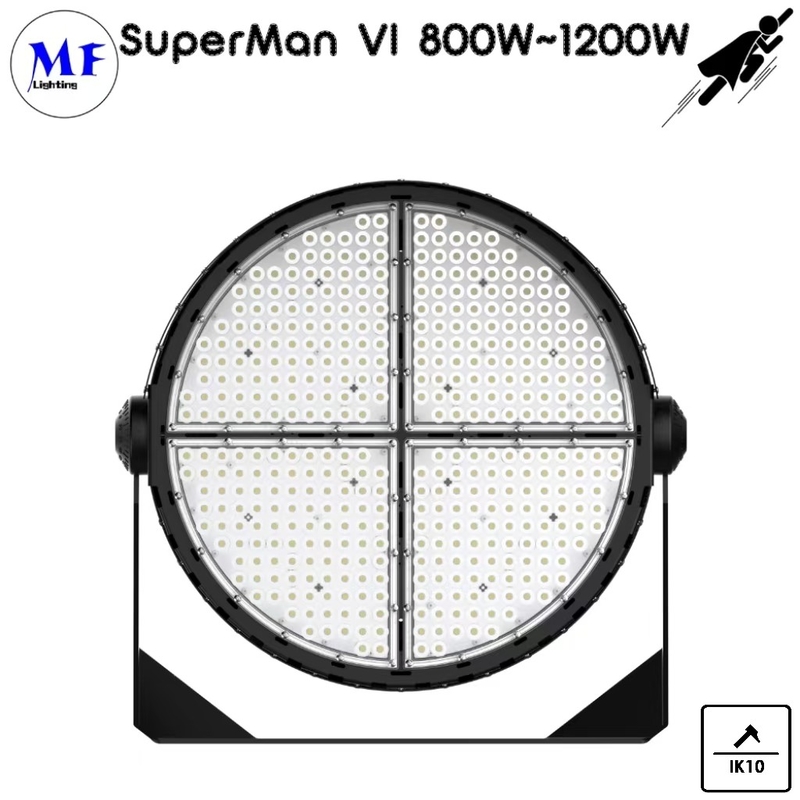

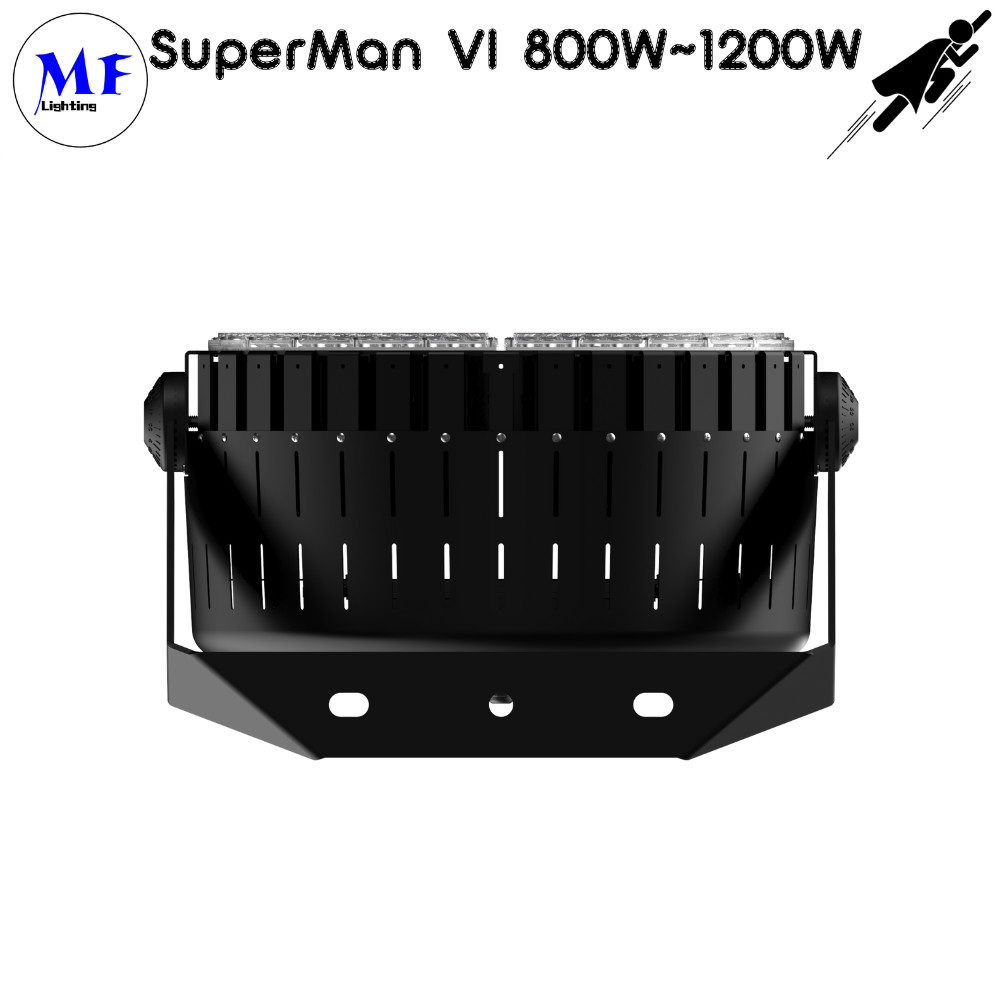

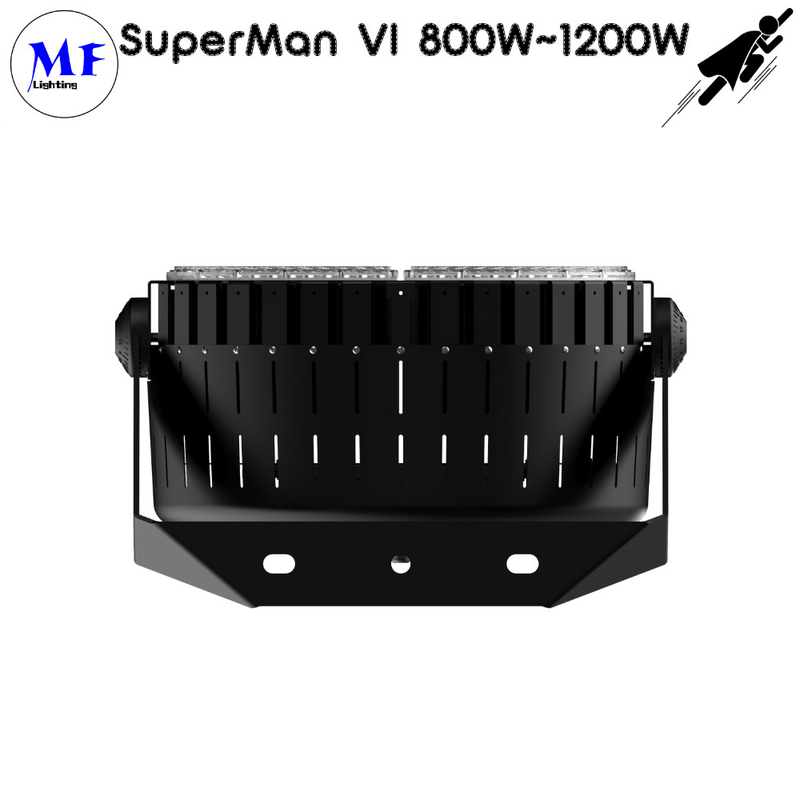

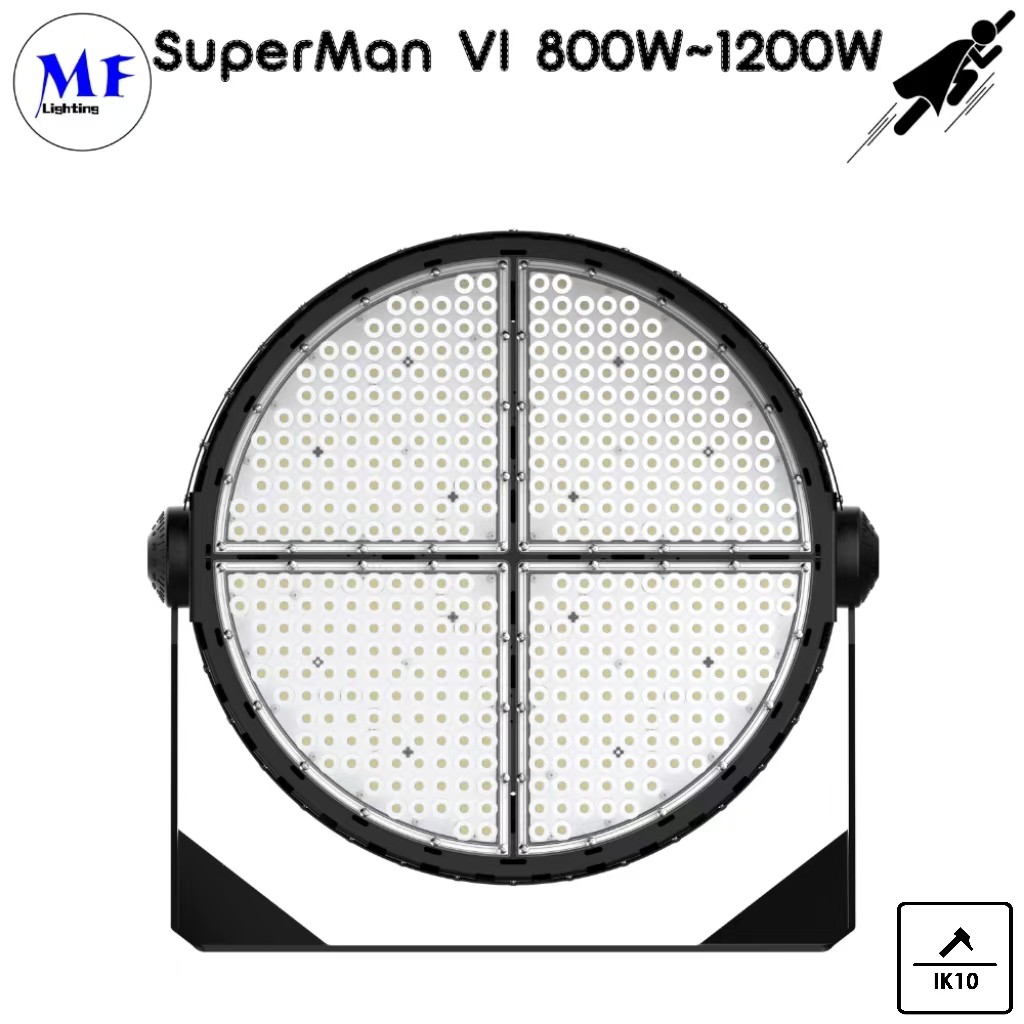

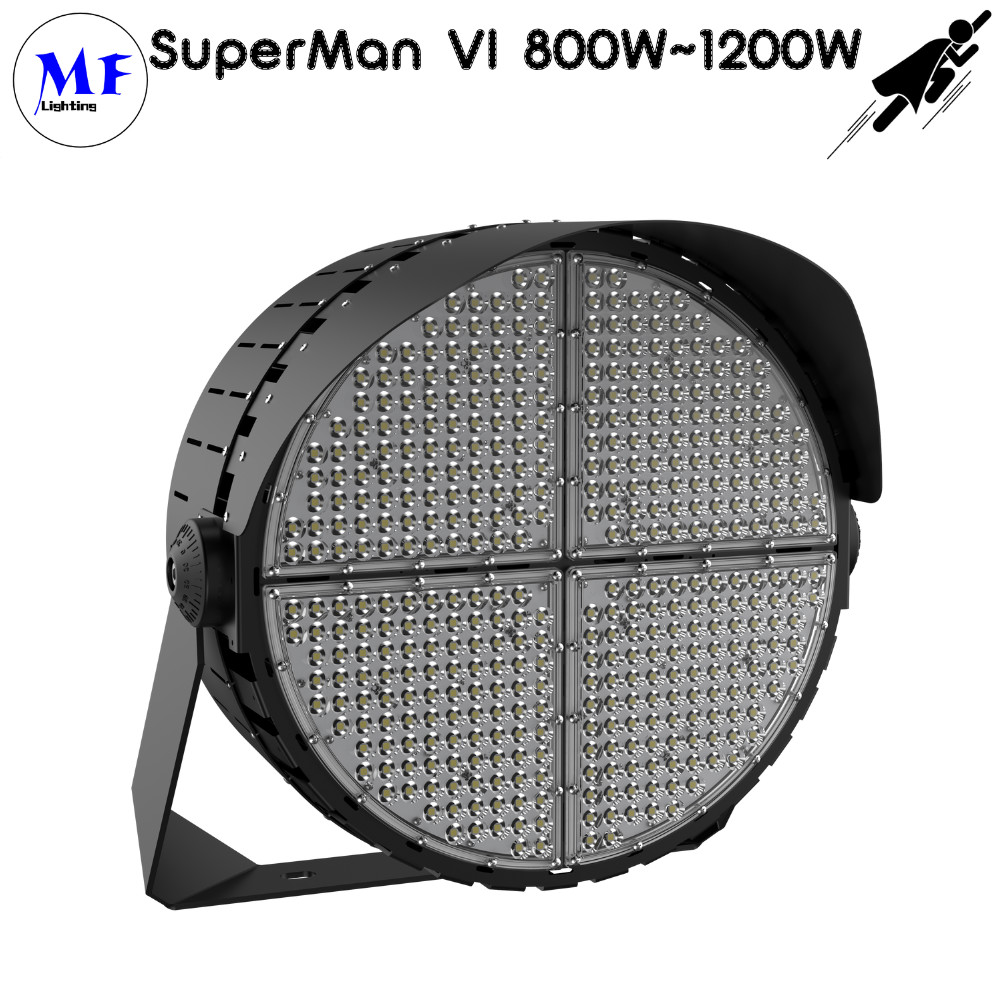

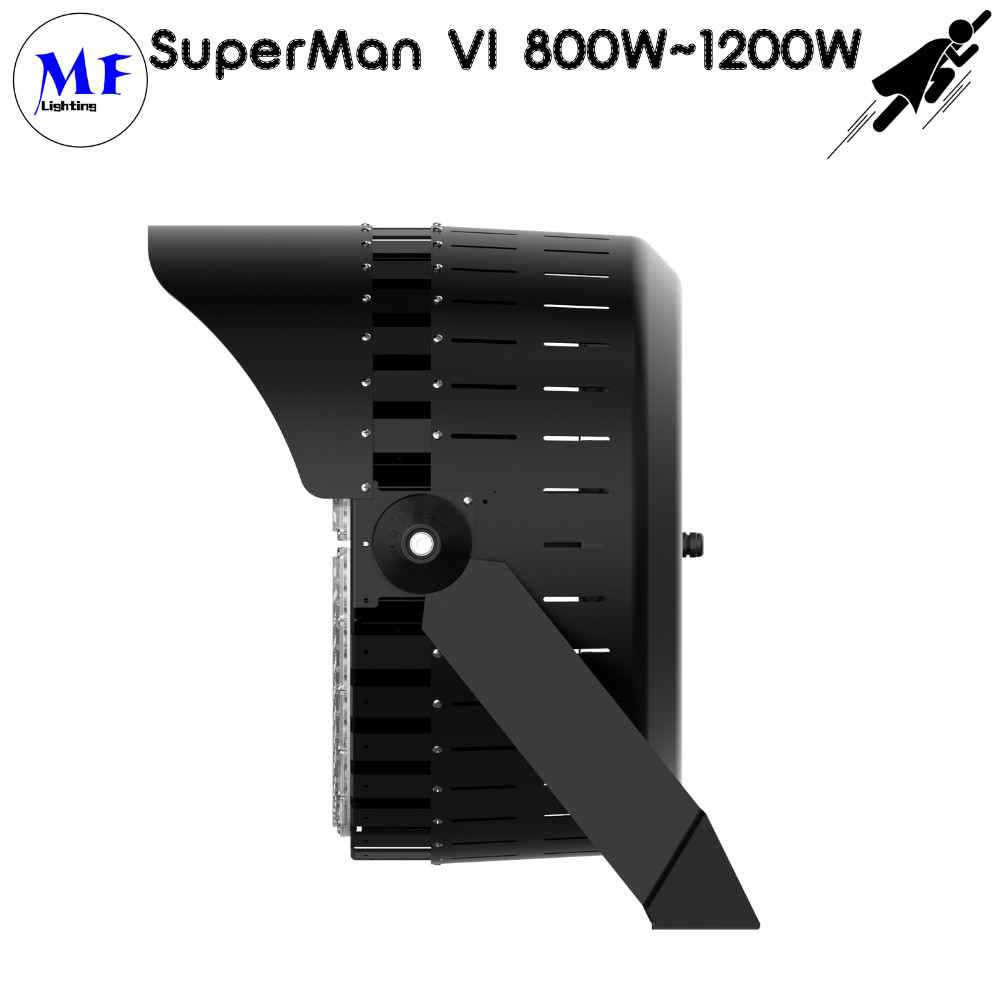

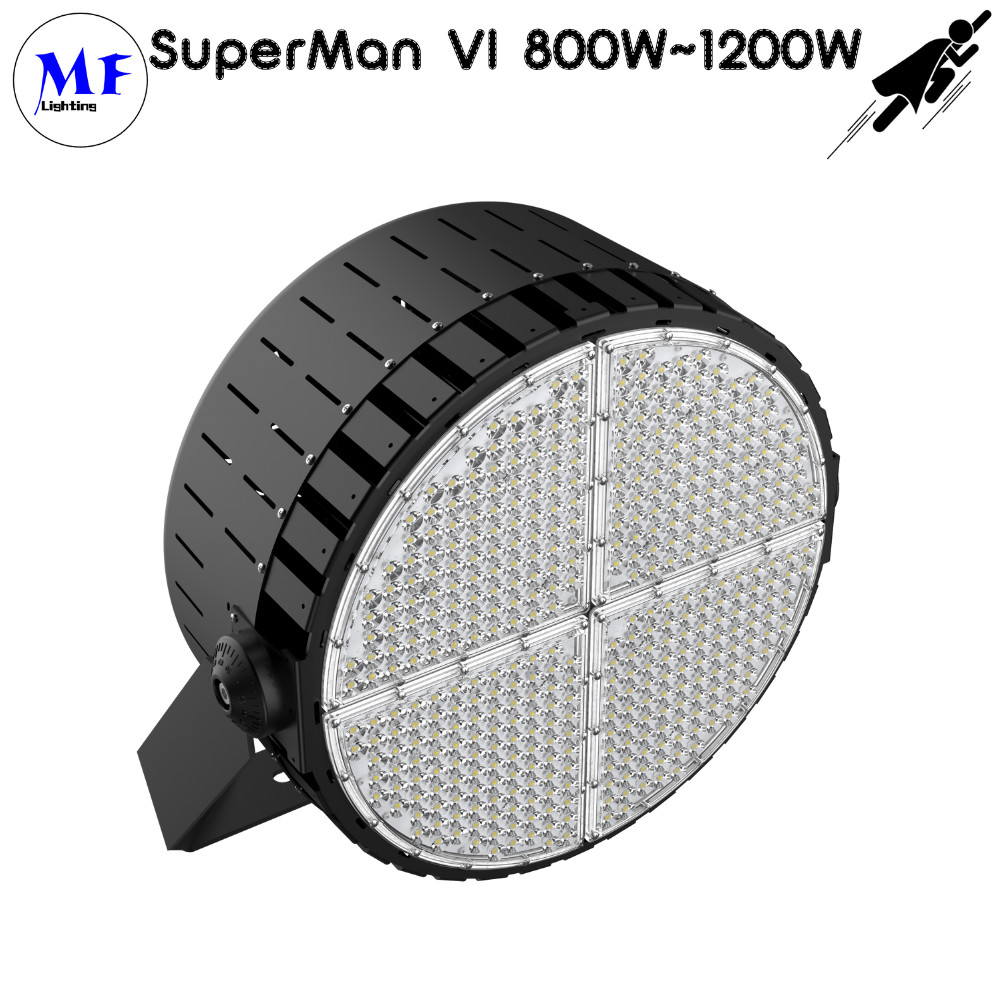

1000W IP66 Stadium LED Flood Light Dustproof Waterproof IK10 20Deg/40Deg/60Deg 160LM/W 2700K-6000K For Airport Wharf
| Light source replaceable | Yes |
| Number of gear units | 4 Max |
| Driver/power unit/transformer | power supply unit |
| Driver included | Yes |
| Optic type | symmetrical |
| Optical cover/lens type | lens |
| Luminaire light beam spread | 15°/25°/45°/60° |
| Sensor socket | Yes |
| Cable length | 50cm as standard |
| Protection class IEC | Class I |
| Certifictaions | CE/ROHS/ENEC/ETL/SAA/PES/SASAO |
| Lifetime (hours) | 50000h |
| EU ROHS compliant | Yes |
| Input Voltage | 100-277V/277-480V |
| Input frequency | 50/60Hz |
| Current | 8.3A (120-277V) 3.6A (277-480A) |
| THD | <20% |
| Power factor (min) | 0.95 |
| Housing Material | Aluminum |
| Reflector material | Aluminum |
| Optical cover/ lens material | Polycarbonate |
| Optical cover/ lens finish | Frosted/ transparent |
| Product dimension mm | 480x480x448mm for 600W 540x540x463mm for 1200W |
| Product dimension inch | 18.89x18.89x17.64 for 600W 21.26x21.26x18.26 for 1200W |
| Product color | Black as standard, white/grey/other colors are customized |
Approval and Application:
| Ingress protection code | IP66 |
| Mech impact protection code | IK10 |
| Order product name | MF-QCD-P300W/MF-QCD-P500W/MF-QCD-P600W/MF-QCD-P800W/MF-QCD-P1000W/MF-QCD-P1200W |
| Net weight (piece) | 16.2KG/600W, 20.8KG/1200W |
| Gross weight (piece) | 18.5KG/600W, 23.9KG/1200W |
| Package dimensions (mm) | 600W CTN:650*490*410MM 1200W CTN: 670*540*485MM |
| Pallet | 16PCS/Pallet |
| Packaging unit (piece) | 1pcs/ctn |
Light Distribution & Spectrum
Dimensional drawing
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
