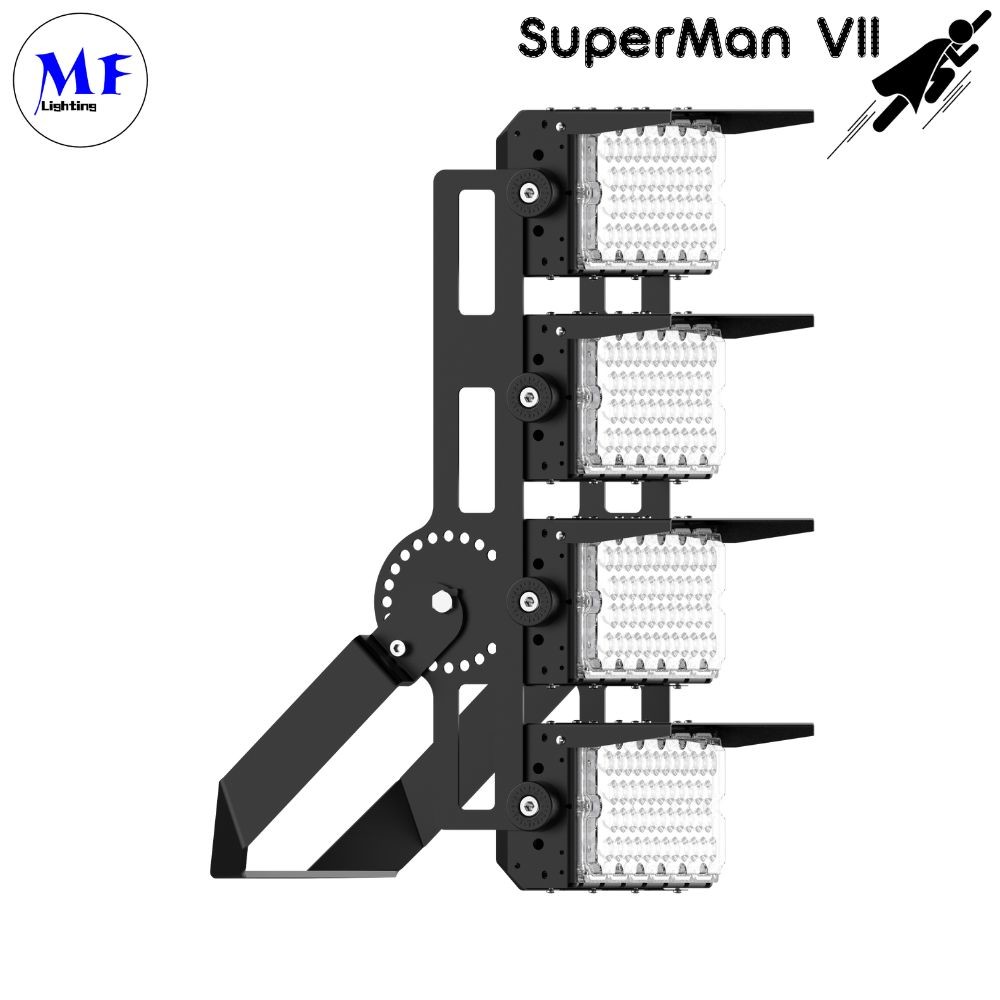

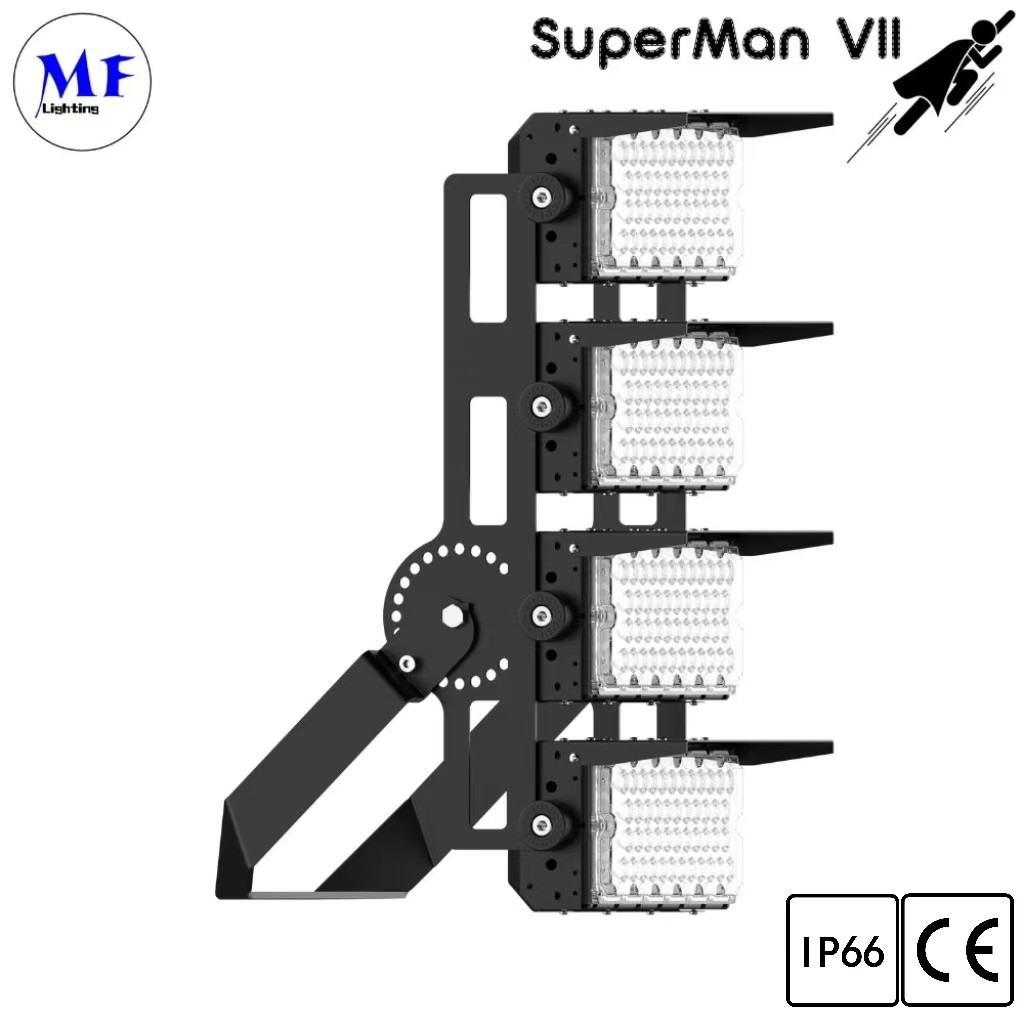

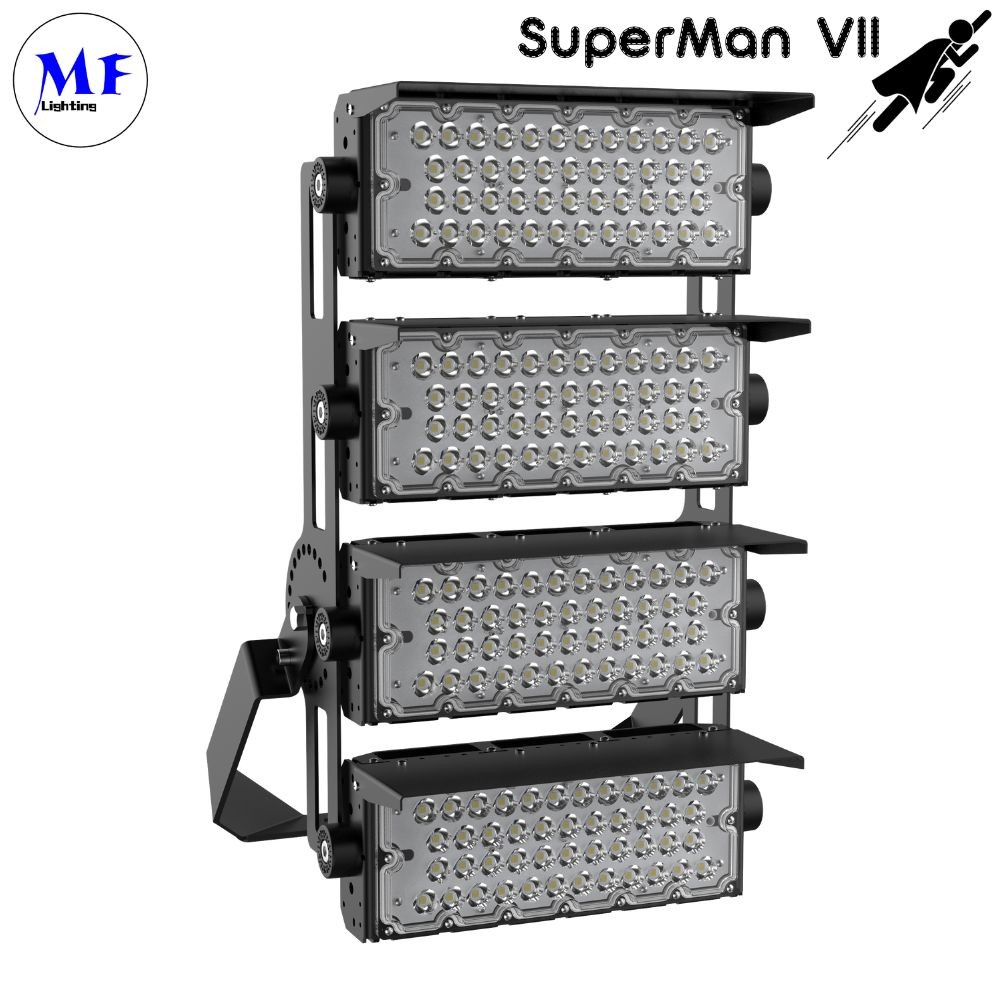

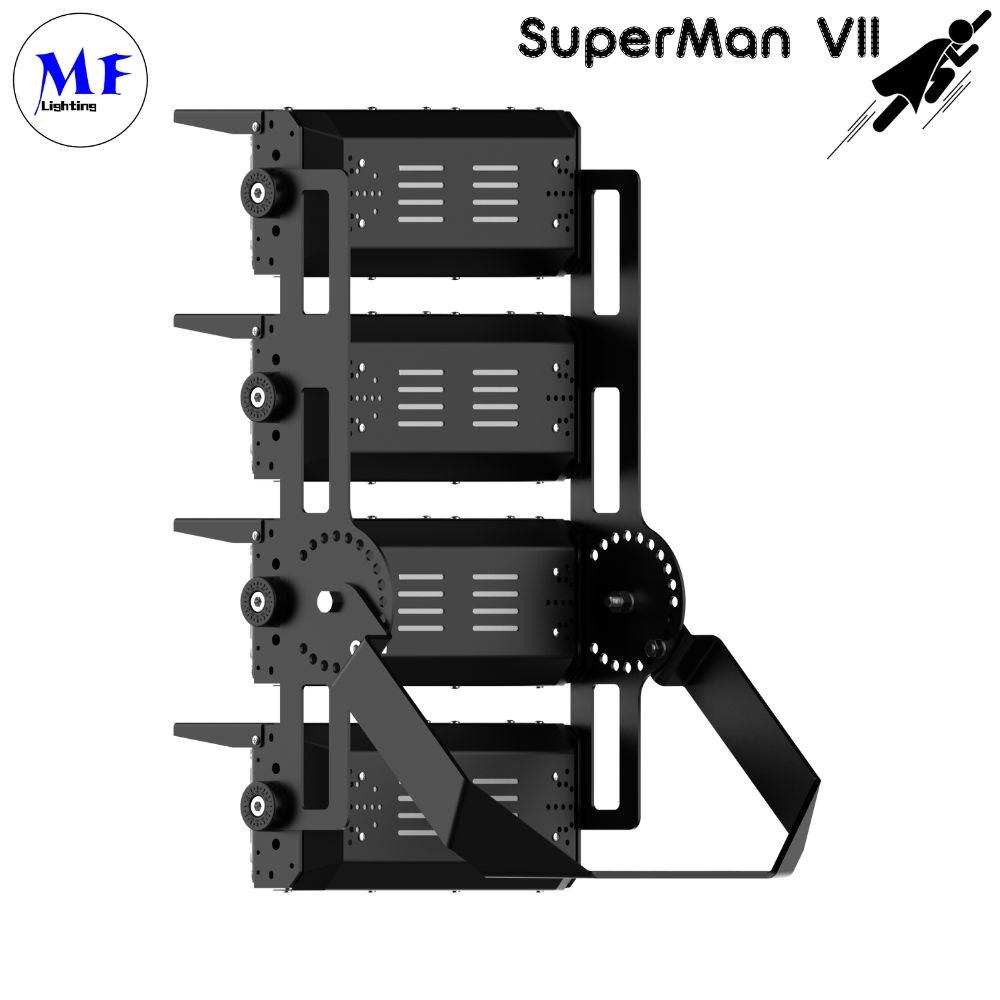

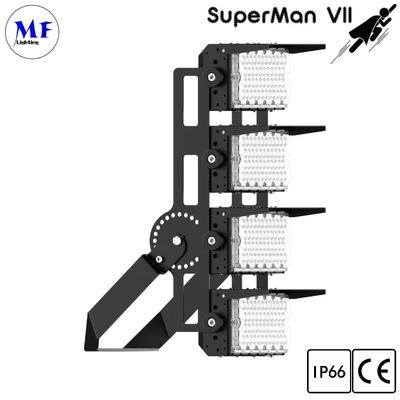

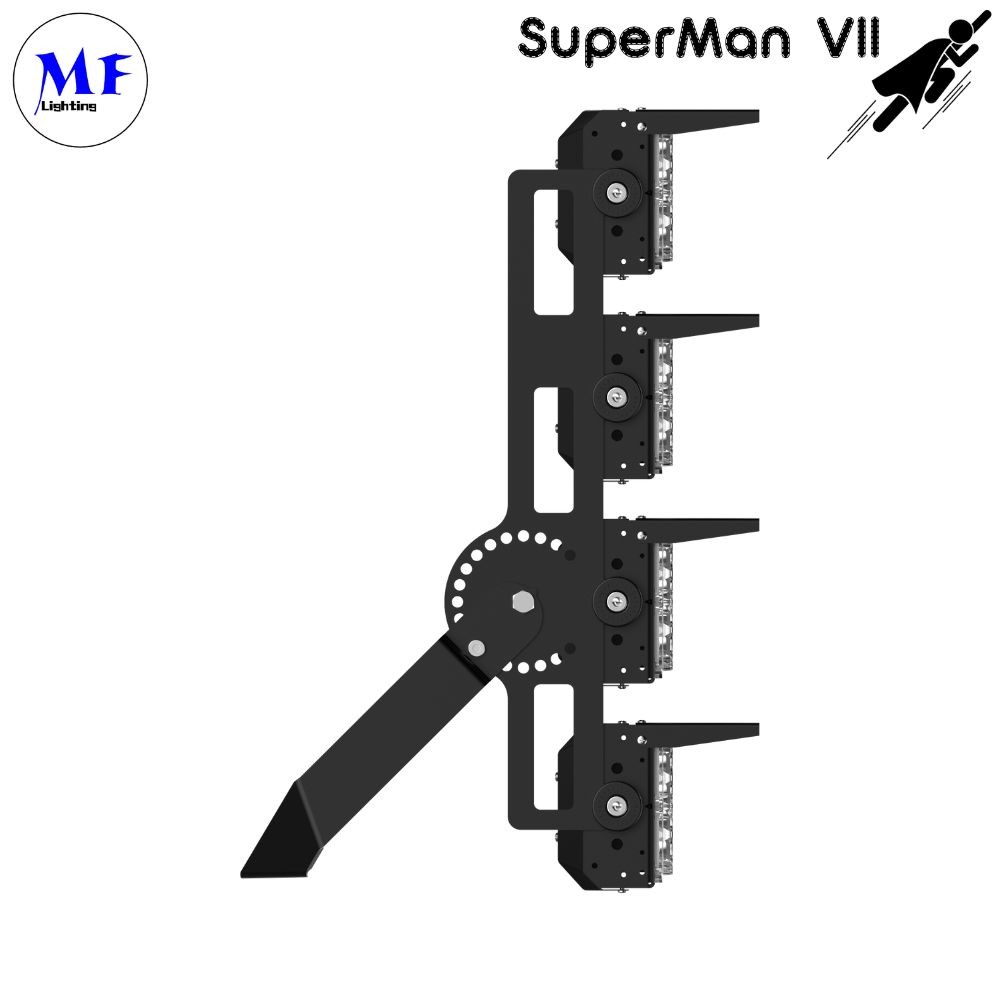

LED High Bay Light High Mast 400w/500w/ IP66 150lm/W Sports Stadiums Football Basketball Sport Field Court Projector
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 100PCS | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
| Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
| Place of Origin: | China | Brand Name: | MF Superman VII |
|---|---|---|---|
| Certification: | CE, RoHS,SAA | Model Number: | MF-QCD-T600W |
|
Detail Information |
|||
| CCT: | 3000K-6500K | Material: | Aluminum Alloy |
|---|---|---|---|
| Power: | 150W/300W/450W/600W | IP Rate: | IP66 |
| Driver: | Sosen/MeanWell | Luminous Efficacy: | 150-170lm/W |
| CRI(Ra): | 70+/80+ | Beam Angle: | 10°/20°/40°/60°/90° |
| Power Efficiency: | 0.90 | Material: | Die-Cast Aluminum |
| PF: | >0.95 | Installation: | Bracket Installation/Wall Installation/Pole Instal |
| Life Span: | >60, 000hrs | Warranty: | 6 Years |
| Highlight: | DC48V LED Stadium Flood Light,600W LED Stadium Flood Light,600 watt led stadium lights IP66 |
||
Product Description
600W IP66 Stadium LED Flood Light 6 Years Warranty 3000K-6500K Aluminum 150-170lm/W DC48V CRI80+ For Badminton Fields
| Power | 150W | 300W | 450W | 600W |
| Luminous Efficacy | 150-170LM/W | |||
| Luminous Flux | Refer to IES | |||
| CCT | 3000K-6500K | |||
| Beam Angle | 10°/20°/40°/60°/90° | |||
| CRI | 70+/80+ | |||
| Driver | MW/SOSEN/INVENTRONICS | |||
| Input Voltage | AC100-277V | |||
| Power Factor | >0.95 | |||
| Output Voltage | DC48V | |||
| THD | <15% | |||
| Driver Efficiency | 92% | |||
| IP Rating | IP66 | |||
| Lifespan | 60,000Hrs | |||
| Housing | Die-cast aluminum | |||
| Face Cover | PC | |||
| Fixture Size | 343*153*198mm | 382*394*428mm | 382*394*438mm | 382*394*593mm |
| Carton Size | 400*255*240mm | 400*390*275mm | 400*545*275mm | 400*700*275mm |
| Net Weight | 3.3kg | 8.6kg | 10.5kg | 13.3kg |
| Gross Weight | 4.8kg | 10.8kg | 12.5kg | 15.6kg |
| Corrosion Rating | WF2 | |||
Photometric Diagrams
Light Pattern
Spill Shield
Application:
Installation
Packaging
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
