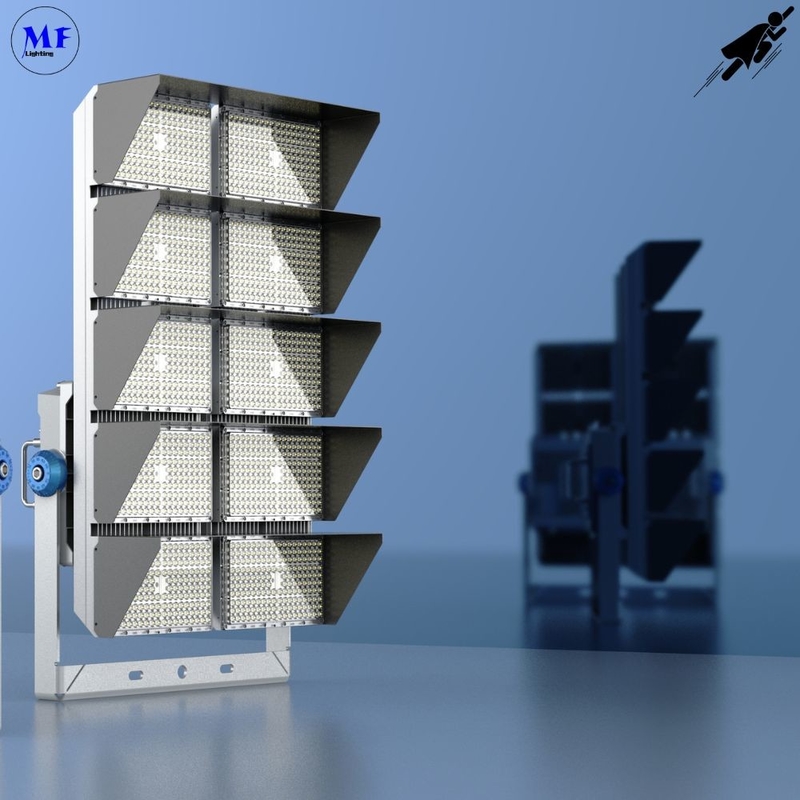

1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool
1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool
1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool
Contact Now

1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MFPL-P5A-1200
Certification: CE, RoHS,SAA Model Number: MF Superman III Family

Detail Information
CCT: 3000K,4000K,5000K,5700K, CCT Etc Material: Aluminum Alloy
Power: 150W/200W/240W/300W/400W/450W/720W/960W/1200W IP Rate: IP66
Driver: Sosen/MeanWell Luminous Efficacy: 140LM/W-170LM/W
CRI(Ra): 70+ Beam Angle: 15°/25°/45°
Ik Rate: IK8 Installation: Bracket Installation/Wall Installation/Pole Instal
Surge Voltage: 10kv Life Span: >50, 000hrs
Operation Temperature: Ta=40 Warranty: 5 Years
Highlight:

IP66 LED Stadium Flood Light

,

1200W LED Stadium Flood Light

,

IK10 1200 watt led stadium lights

Product Description

1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool

1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 01200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 1


Specifications:

What are the advantages of our product:

The new generation in LED soprts & area lighting, create an unbelievable
combination of world-class performance, energy saving, cutting-edge optical & thermal management technology and ongoing low maintenance cost in one sleek package solution.

1. Modern design

2. Independent driver cavity

3. Efficient heat dissipation

4. Professional secondary photometric design.

5. New generation LED design

6.Higher waterproof level design


1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 21200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 3


Lighting infrastructure is a strategic resource in modern stadium. LED lighting not just simply means energy saving, environmental protection, reducing installation job, and reducing subsequent maintenance cost. More importantly, it offers new oppirtunities for the stadium. Different lighting demand can be realized through intelligent control, making the stadium being a multi-functional venue which is capable of holding large scale events, such as concert.

1. Fan enthusiasm is the core part of a contest. Fan's emotion and atmosphere can be stimulated by pre-game and post-game entertainment activities, which will increase time that fans stay in the stadium.

2. Contestants need comfortable light free from glare to reduce reaction time and avoid mistakes, so that they will surpass at an exceeding level. In addition, for soprts such as football, both the vertical and horizontal directions must ensure perfect illumination.

3. Lighting inside the stadium is the central part of modern stadium lighting. Superman two series can effectively reduce glare through muttiple anti-glare design, allowing player to have upgrading.

4. Large stadium can accommodate tens of thousands of spectators. MF Lighting is available for floodlight, sports light, tunnel light, high mast high products.



PARAMETERS:

Power 150W 200W 240W 300W 400W
Luminous Flux 21000±5% 29000±5% 33600±5% 42000±5% 56000±5%
LED Quantity 176 pcs 352 pcs 352 pcs 352 pcs 528 pcs
Light efficiency 140lm/W 145lm/W 140lm/W 140lm/W 140lm/W
Power 450W 720W 960W 1200W
Luminous Flux 65250±5% 100800±5% 134400±5% 168000±5%
LED Quantity 528 pcs 1056 pcs 1408 pcs 1760 pcs
Light efficiency 140lm/W 140lm/W 140lm/W 140lm/W









Color WW NW CW CW
CCT 3000±300K 4000±300K 5000±300K 5700±300K
CRI >70
Beam Angle 15°/25°/45°
Main Material PC, Aluminum
Storage Temperature -30°C~+60°C
Operating Temperature -30°C~+50°C
Frequency 47~63HZ
Input Voltage 100~240V AC



LED PARAMETERS:
Brand Driving Power Chips size CRI LED beam angle LED light efficiency
Lumileds 0.7~1W (120~140mA) 3.0X3.0X0.52mm >70 120° 160-170lm/w



Light distribution curve/isocandela diagram:



1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 4



Procust & Packing dimension:



1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 5

1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 6





Model Module Qty Product Dimension EPA N.W Packing diemenison (mm) Module Dimension
MFPL-P5A-150 1 282.5x295x112 0.0397m2 3.48kg 300x310x145 155x256x68.8
MFPL-P5A-200 2 452.5x295x121 0.0832m2 5.08kg 340x310x145 325x256x68.8
MFPL-P5A-240 2 452.5x295x121 0.0832m2 5.23kg 340x310x145 325x256x68.8
MFPL-P5A-300 2 452.5x295x121 0.0832m2 6.49kg 340x310x145 325x256x68.8
MFPL-P5A-450 3 622.0x295x121 0.1267m2 8.55kg 510x310x145 495x256x68.8
MFPL-P5A-720 6 605.2x600x185 0.2658m2 22.07kg 620x615x200 495x537x68.8
MFPL-P5A-960 8 772.5x600x185 0.3571m2 26.19kg 680x615x200 665x537x68.8
MFPL-P5A-1200 10 942.5x600x185 0.4484m2 30.31kg 850x615x200 835x537x68.8





Installation Steps:

1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 7



Before the installation work of the luminaire, the grid power supply must be cut off, and work with electricity is strictly prohibited.

Ensure the luminaire is intace before installation and use.



Notes: Installation requires guidance from qualified personel. It must be grounded when used outdoor, and make sure the foundation can support the luminaire.

The light source in this luminaire must be replaced by the staff of supplier, the designated agent, or the similarly qualified electrician only.

The external flexible cables cannot be replaced. If the cable is damaged, luminaire would be destroyed.

This luminaire is not suitable for direct installation on the surface of ordinary combustible materials.



1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 8



1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 9



Application Fields:

1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 10



1200W IP66 LED Stadium Flood Light IK10 Beam Angle 15° /45° Die-Casting Aluminum For Tennis Court and Swimming Pool 11

282.5x295x112
