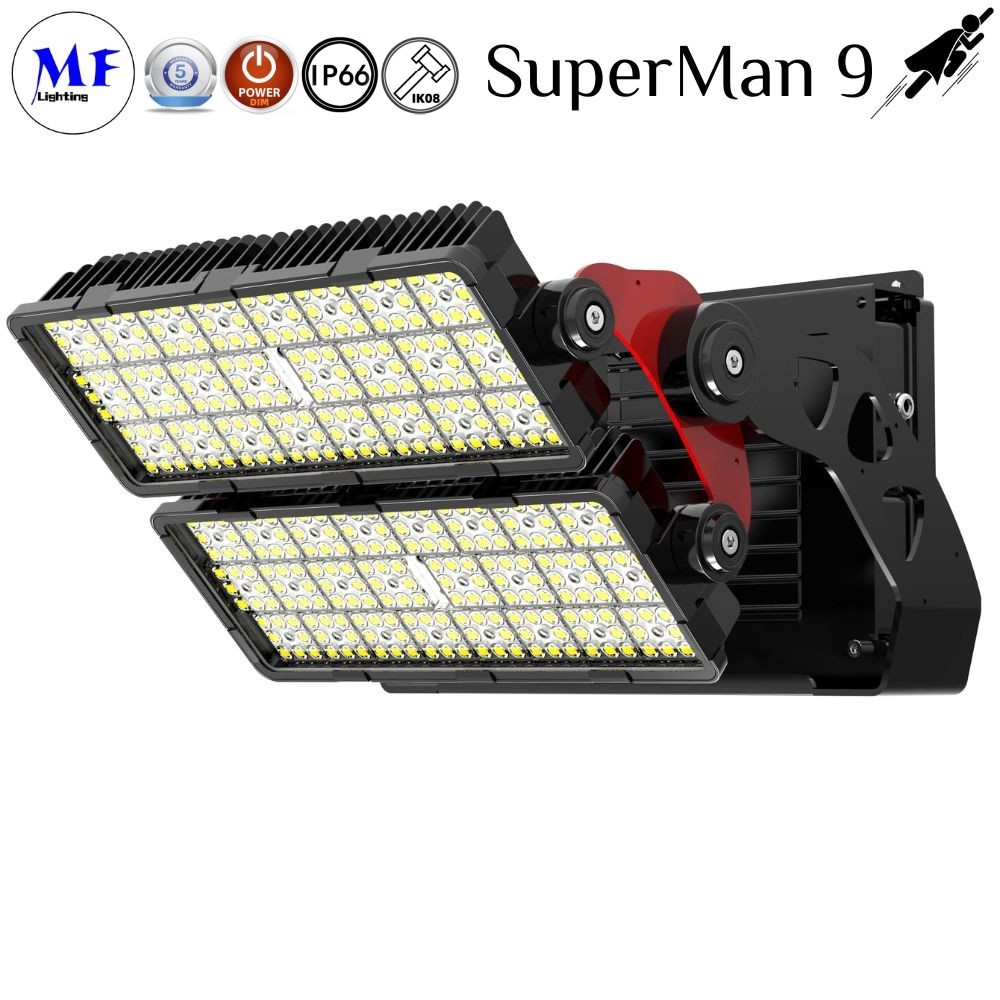

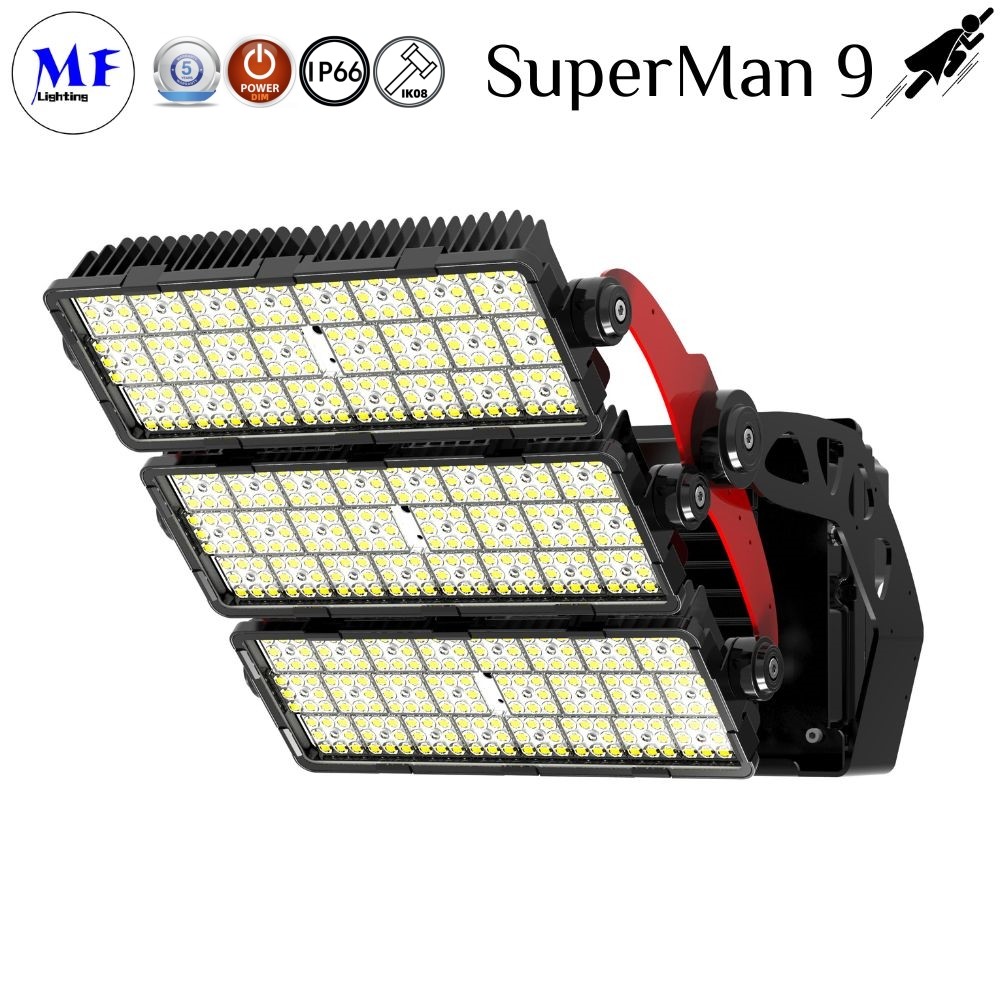

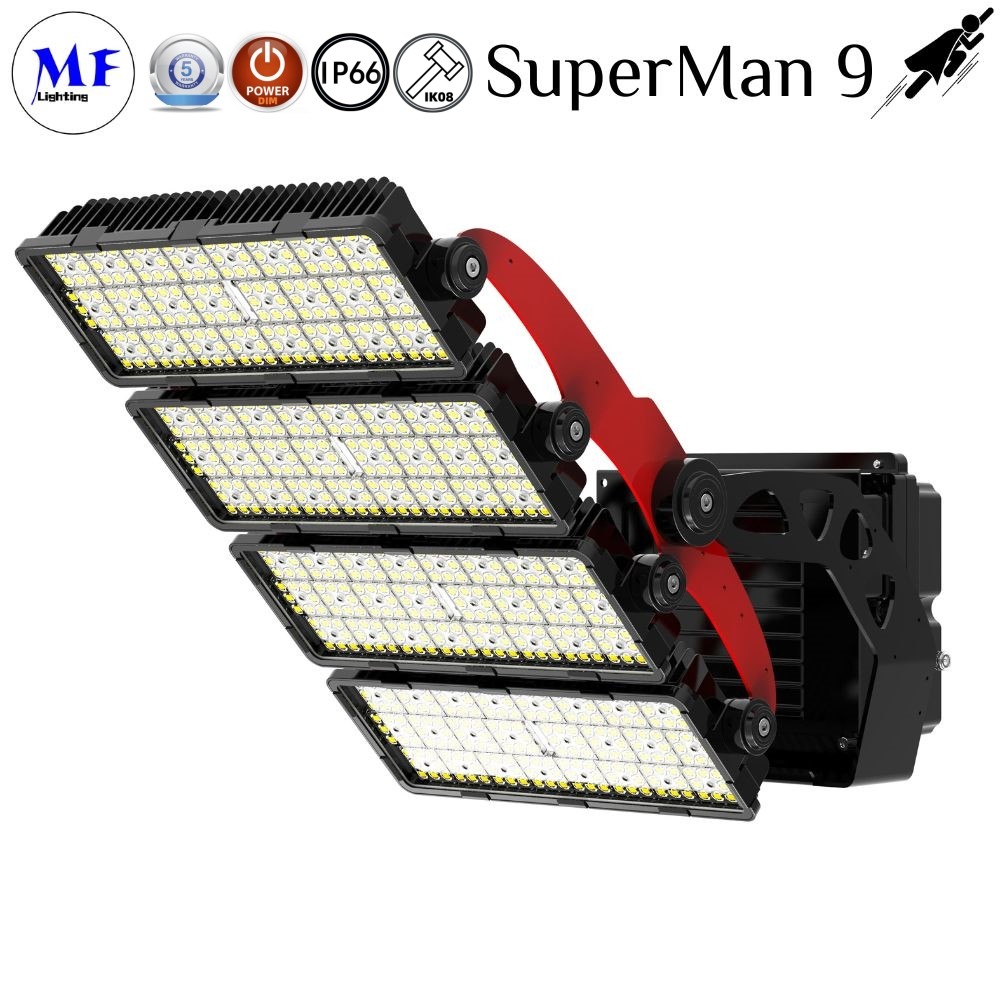

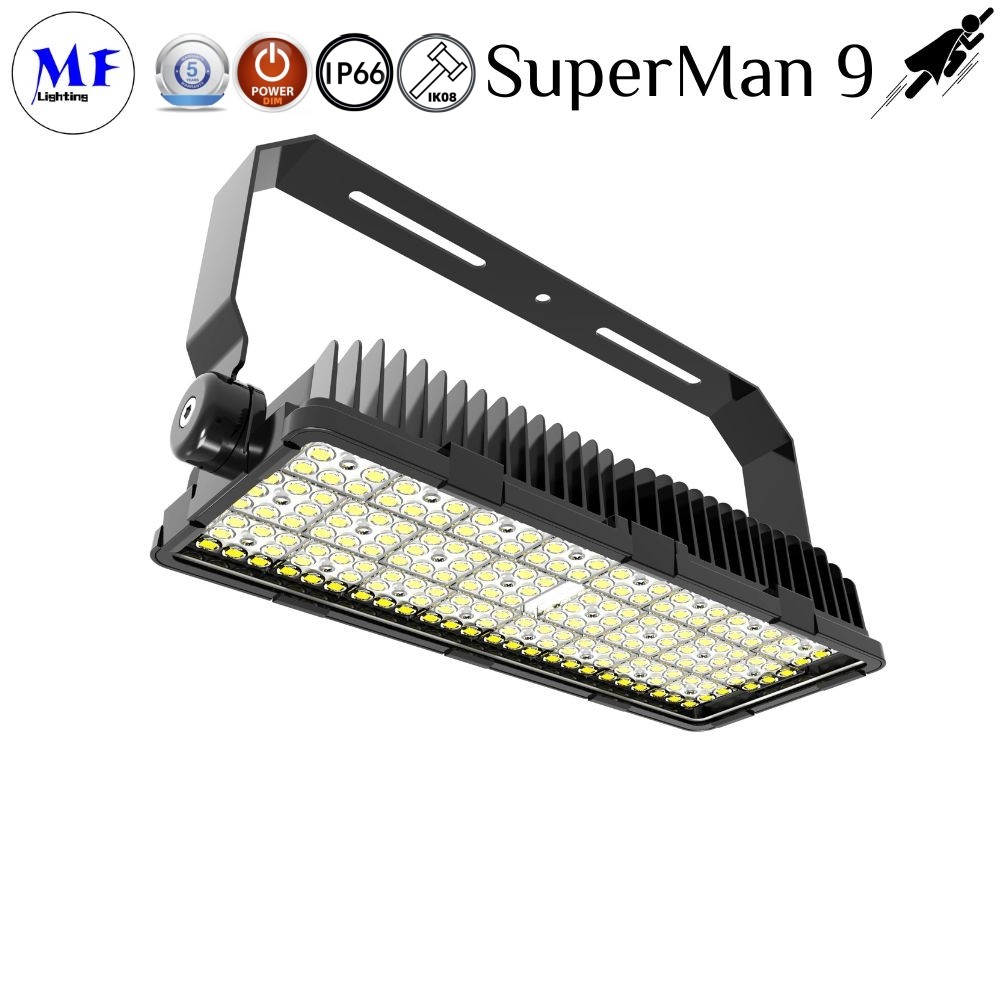

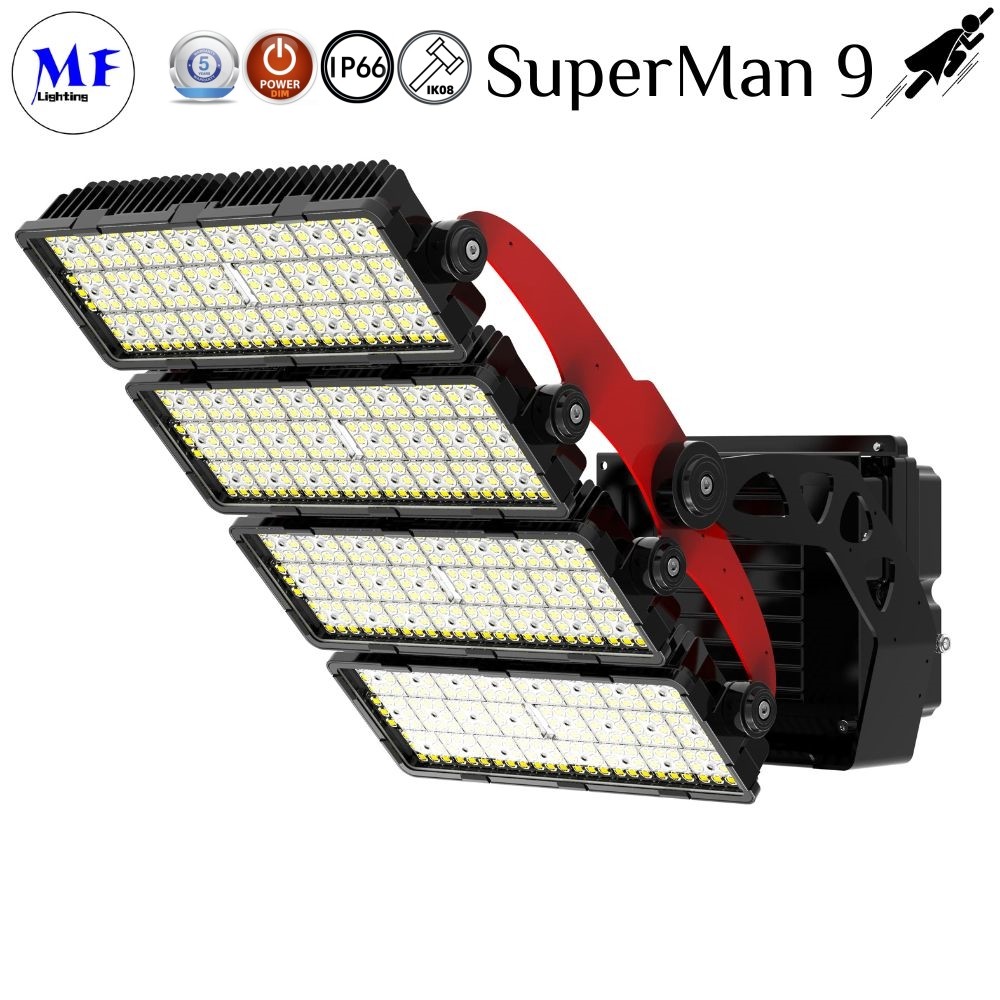

Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields

Minimum Order Quantity : 10pcs Price : Negotiable
Packaging Details : Depends on models Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal Supply Ability : 800pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE,RoHS Model Number: MF-SP06E

Detail Information

Item Name: LED Flood Light / LED Stadium Lights Material: Aluminum Alloy
Power: 300W/400W/480W/960W/1200W/1600W IP: IP67
Voltage: 100-277V/277-480V LED Chip: Lumileds
Driver Brand: Meanwell/Sosen/Lifud Power Factor: >0.95
THD: <10 CRI (Ra): >70/>80/>90
Beam Angle: 10d 30d 60d 90d Ti IK Class: IK08/IK10
Working Temp: -25°C;~50°C Luminous Efficacy: 130-155lm/W
Sensor Socket: Yes
Highlight:

Ik10 LED Stadium Lights

,

IP67 LED Stadium Lights

,

1200W LED Stadium Lights

Product Description

Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields



Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 0



Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 1



Key Features:

  1. Wide range of CCT options: 3000K, 4000K, 5000K, 5700K, 6500K
  2. High CRI options: >90Ra, >80Ra, >70Ra
  3. Input Voltage: 100-277V
  4. High Power Factor: 0.95
  5. Efficient driver: MeanWell ZhiHe BECKY Optional
  6. Wide operating temperature range: -40°C to +55°C
  7. Waterproof rating: IP67
  8. Long lifespan: >50000Hrs
  9. Various dimming options: 0-10V DMX DALI Optional
  10. Multiple certification: ENEC CE CB ROHS IP67 IK10
  11. Interchangeable lenses for different light distribution options
  12. High luminous efficacy: up to 180lm/W
  13. Optional accessories for customized installations
  14. Tool-free replaceable driver module
  15. Photometric diagrams for accurate lighting design
  16. Strong build with ADC12 Aluminum alloy+PC materials
  17. Various wattage options available: 300W, 400W, 480W, 960W, 1200W, 1600W
  18. Modular design for easy maintenance and replacement
  19. Optional reflector for enhanced light output
  20. Superior environmental testing passed: 48 hours salt spray test, 28-day solar radiation test
  21. Lightning protection features: 10KV and 20KV
  22. Multiple installation interfaces for flexible setup
  23. Unique design features for efficient heat dissipation and durability.



Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 2

Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 3



Power 300W 400W 480W 960W 1200W 1600W
Lumen output(LM) 46500 54000 62000 72000 74400 86400 148800 172800 186000 216000 148000 288000
CCT 3000K, 4000K, 5000K, 5700K, 6500K
CRI 70+/80+/90+
Export Carton Size 565*325*200mm 15kg 565*325*200mm 19kg 565*325*200mm 19kg 640*620*220mm 29kg 830*620*220mm 40kg 1020*620*220mm 51kg
Dimensions(mm) 506*330*145 506*330*145 506*330*145 506*515*145 506*700*145 506*885*145
Input Voltage AC100-277V
Power Factor >0.95
THD <15%
Fixture Material ADC12 Aluminum alloy+PC
Operating temperature -40°C to +55°C
IP Rating IP67
Dimming Control (optional) 0-10V 1-10V DALI DMX
Lifespan >50,000Hrs
Light Distribution Options 10D 30D 60D 90D TI
Certification CE CB ROHS IP67 IK10



Order Model

Order Part No Power Input Voltage Luminous Flux(lm) CRI Viewing Angle
MF-SP06E-H5050 -0140-67 300W AC100~277 50~60Hz 46500lm(155lm/w) 80+ 10°/30°/60°/TI
MF-SP06E-H5050 -0142-67 400W AC100~277 50~60Hz 62000lm(155lm/w) 80+ 10°/30°/60°/TI
MF-SP06E-H5050 -0144-67 480W AC100~277 50~60Hz 74400lm(155lm/w) 80+ 10°/30°/60°/TI
MF-SP06E-H5050 -0288-67 960W AC100~277 50~60Hz 148800lm(155lm/w) 80+ 10°/30°/60°/TI
MF-SP06E-H5050 -0432-67 1200W AC100~277 50~60Hz 186000lm(155lm/w) 80+ 10°/30°/60°/TI
MF-SP06E-H5050 -0576-67 1600W AC100~277 50~60Hz 248000lm(155lm/w) 80+ 10°/30°/60°/TI
MF-SP06C-H5050 -0140-67 300W AC100~277 50~60Hz 54000lm(180lm/w) 80+ 10°/30°/60°/TI
MF-SP06C-H5050 -0142-67 400W AC100~277 50~60Hz 72000lm(180lm/w) 80+ 10°/30°/60°/TI
MF-SP06C-H5050 -0144-67 480W AC100~277 50~60Hz 86400lm(180lm/w) 80+ 10°/30°/60°/TI
MF-SP06C-H5050 -0288-67 960W AC100~277 50~60Hz 172800lm(180lm/w) 80+ 10°/30°/60°/TI
MF-SP06C-H5050 -0432-67 1200W AC100~277 50~60Hz 216000lm(180lm/w) 80+ 10°/30°/60°/TI
MF-SP06C-H5050 -0576-67 1600W AC100~277 50~60Hz 288000lm(180lm/w) 80+ 10°/30°/60°/TI



Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 4



Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 5

Professional Light Distribution
Multiple optical lens choices are available with angles including to meet the

requirements for professional light distribution and an extensive scope of applications.



Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 6



Installation

Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 7

Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 8



Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 9

Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 10

Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 11



Stadium,Wharf,Airport, Dock, Tower Crane, Large Outdoor Parking

Lot, Football Field, Basketball Court, Tennis Court, Golf Course etc.• Outdoor Sports
• Soccer Fields • Stadium • Airport/Seaport • Parking Lots • Exhibition Center • Golf course • High Mast
Stadiums and Arenas Construction Sites Hangars Bridges, Monuments and Facades Rail, Work and Shipping Yards Large Distribution Centers


A high-performance LED sports lighting fixture from the SuperMan 9 family, tailored for illuminating sports fields, stadiums, and similar large outdoor venues. The key applications of this product include:

Sports Stadiums:

Ideal for lighting up large sports stadiums, providing high-quality illumination for various sports events such as football, soccer, baseball, and athletics.

Outdoor Sports Fields:

Suitable for lighting outdoor sports fields like soccer fields, tennis courts, basketball courts, and cricket grounds, ensuring proper visibility for players and spectators.

Indoor Sports Facilities:

Applicable for indoor sports facilities such as indoor basketball courts, volleyball courts, and gymnasiums that require bright and uniform lighting.

Arena Lighting:

Designed to light up arenas and venues for events like concerts, exhibitions, and other indoor or outdoor gatherings where powerful and efficient lighting is essential.

Recreational Areas:

Can be used in recreational areas like parks, playgrounds, and outdoor activity spaces to provide ample light for evening and night-time activities.

Street and Area Lighting:

Suitable for street and area lighting applications in urban and suburban settings, ensuring safety and visibility along roads, pathways, and parking lots.

Industrial Facilities:

Applicable for lighting up large industrial facilities, warehouses, workshops, and construction sites that require high-output lighting solutions.

Commercial Spaces:

Suitable for commercial spaces such as shopping malls, event venues, and public areas where bright and uniform lighting is needed.

Architectural Lighting:

Can be used for architectural lighting applications to highlight building facades, monuments, and other structures for aesthetic and visibility purposes.

In summary, the SuperMan 9 LED sports lighting product is versatile and designed to cater to various applications that require high-performance, energy-efficient, and durable lighting solutions for large outdoor and indoor spaces where high-quality illumination is essential.


Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 12



Packing and Production:





Waterproof High Power LED Stadium Lights 1200W IP67 Ik10 155lm/W for Sport Fields 13







About us:



Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
