150W 7 Years Warranty LED Linear High Bay Light IP66 Waterproof 170lm/W 4500K Dimmable For Workshop

Product Description

150W 7 Years Warranty LED Linear High Bay Light IP66 Waterproof 170lm/W 4500K Dimmable For Workshop

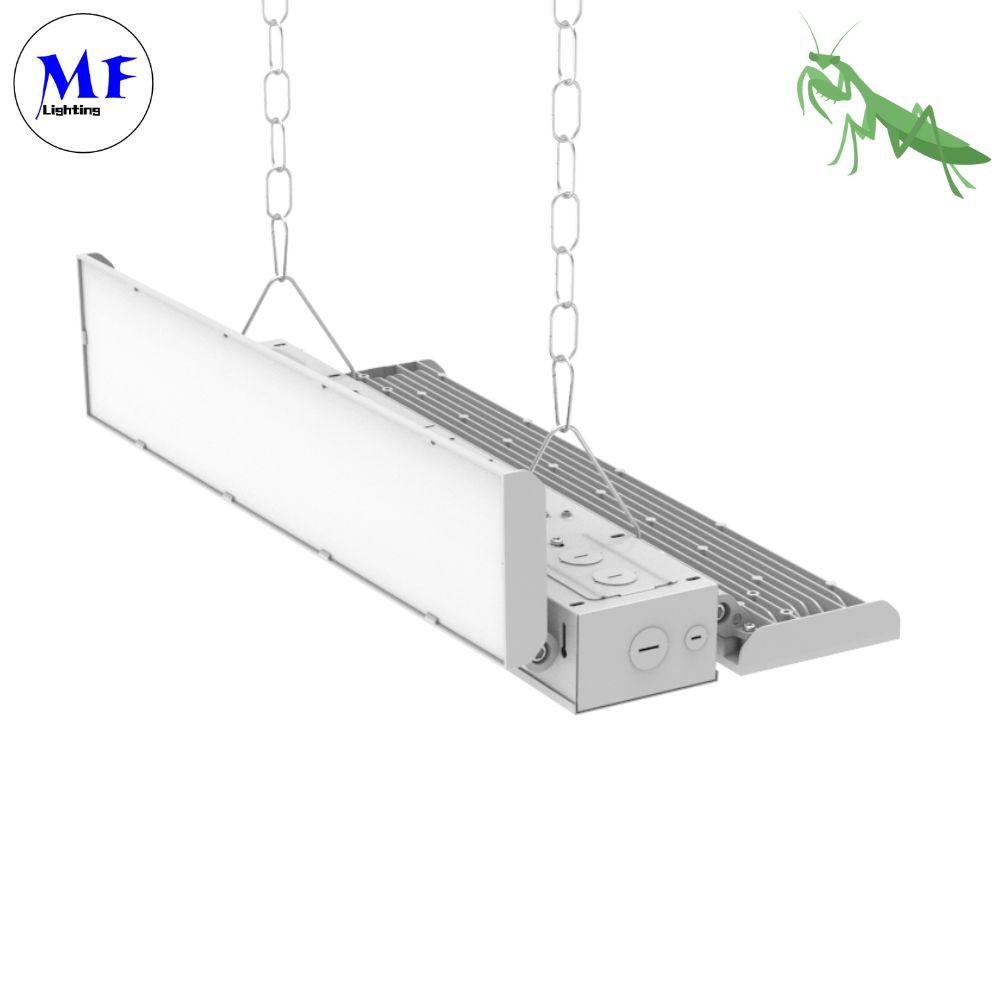

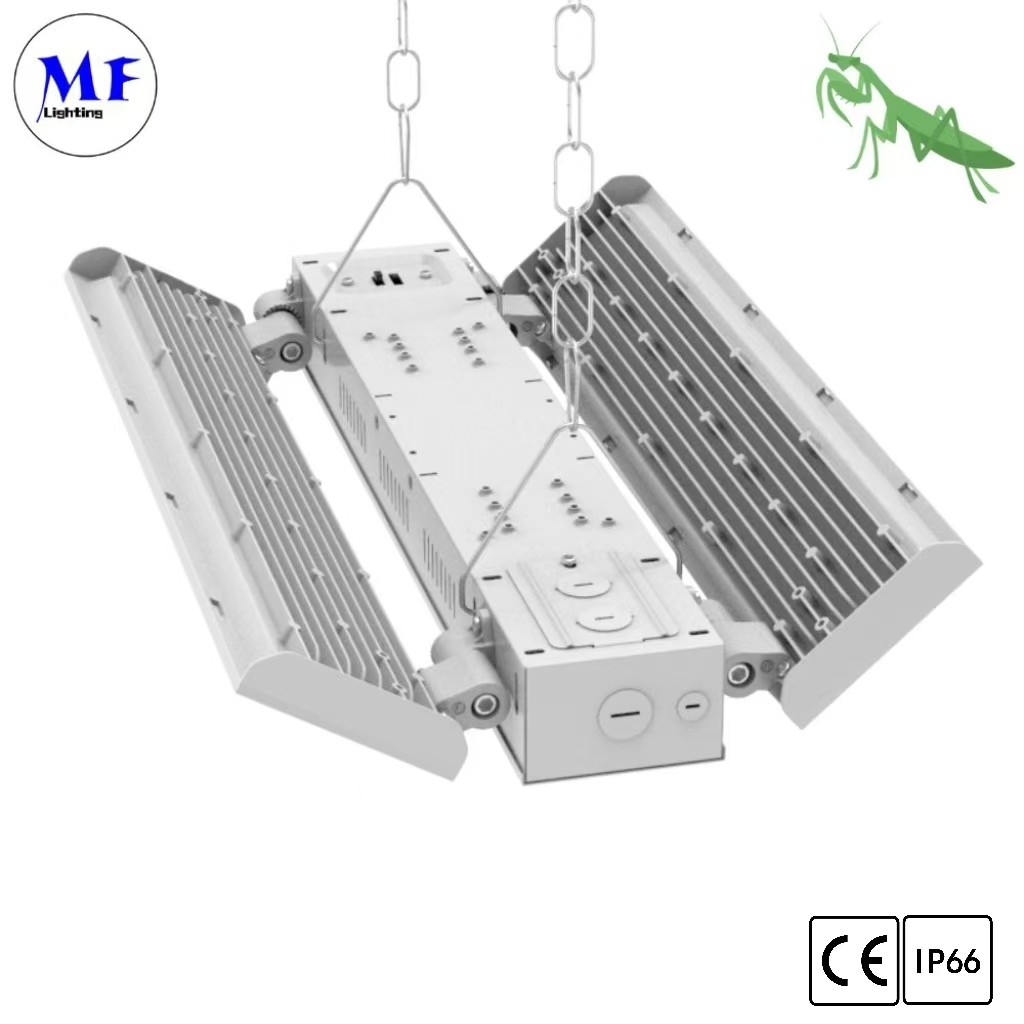

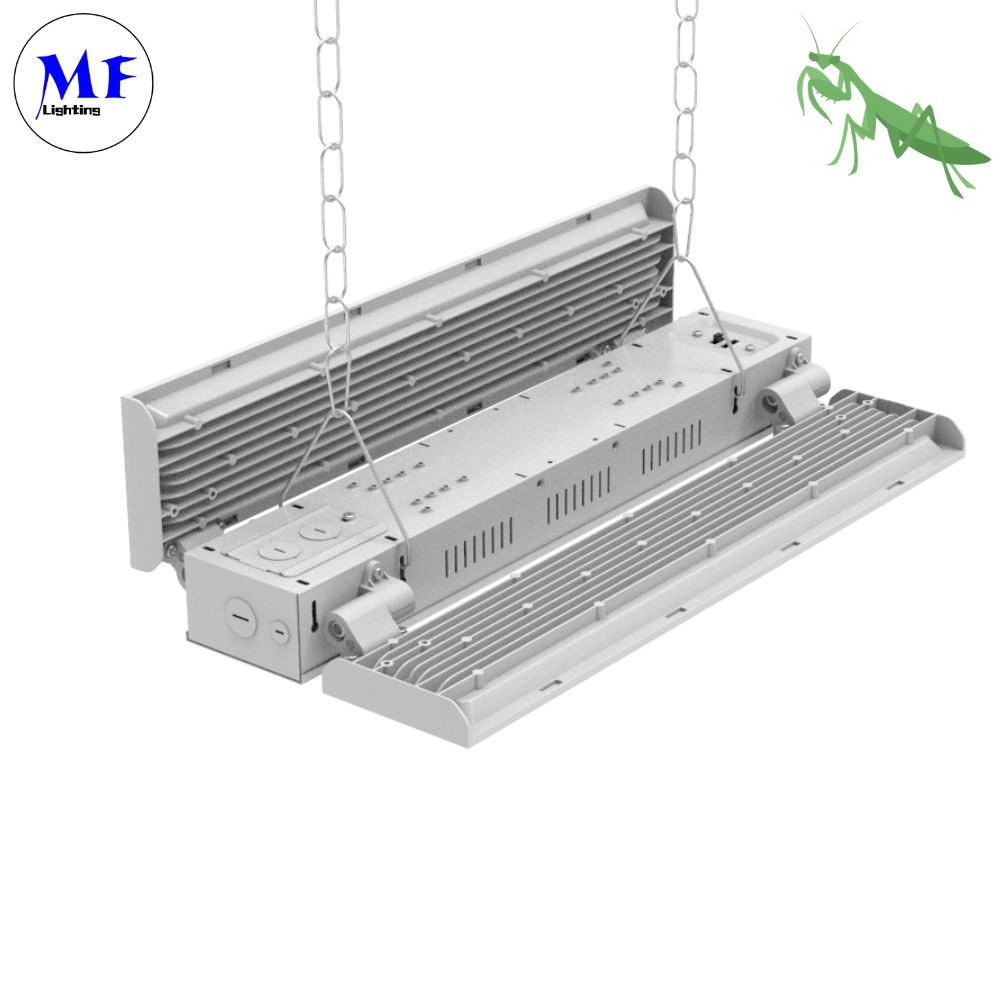

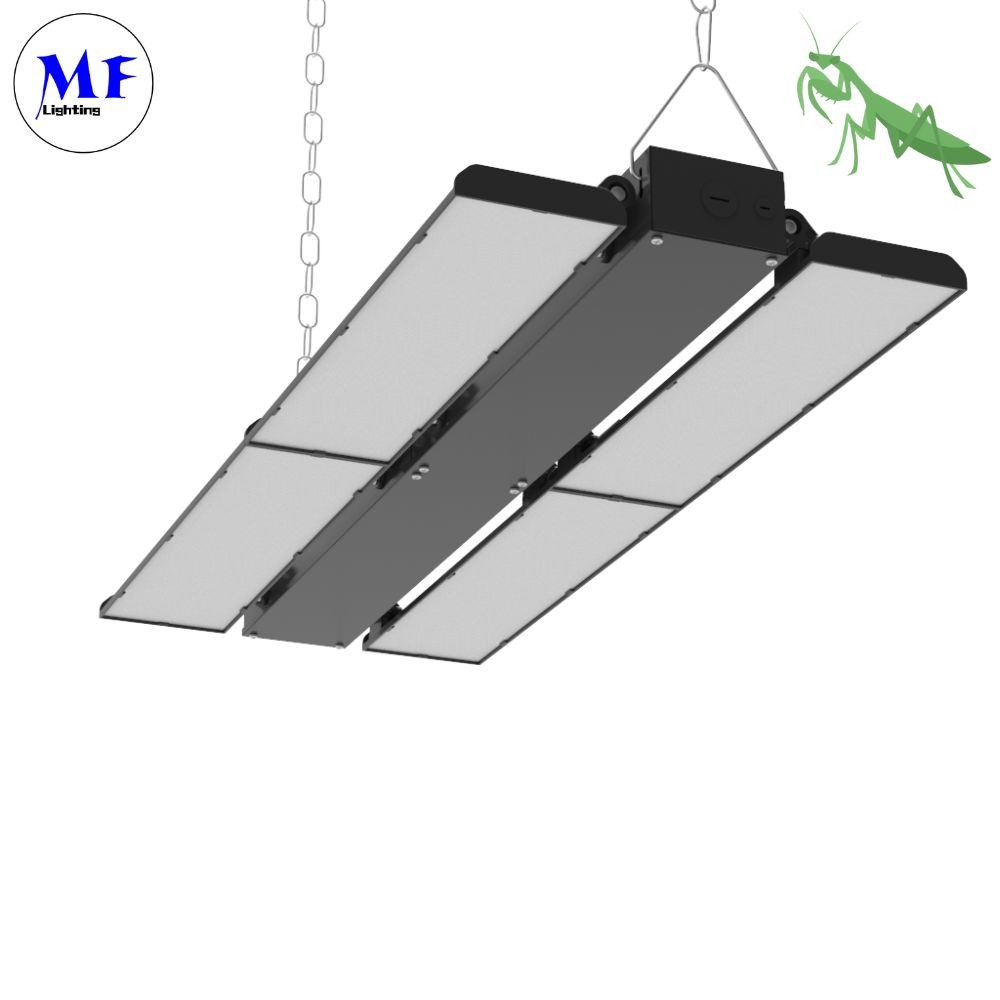

The Mantis-3 Family Linear High Bay Light is a versatile lighting solution designed for industrial and commercial spaces. With a focus on efficiency and durability, these lights are IP66 rated, ensuring protection against dust and water ingress.

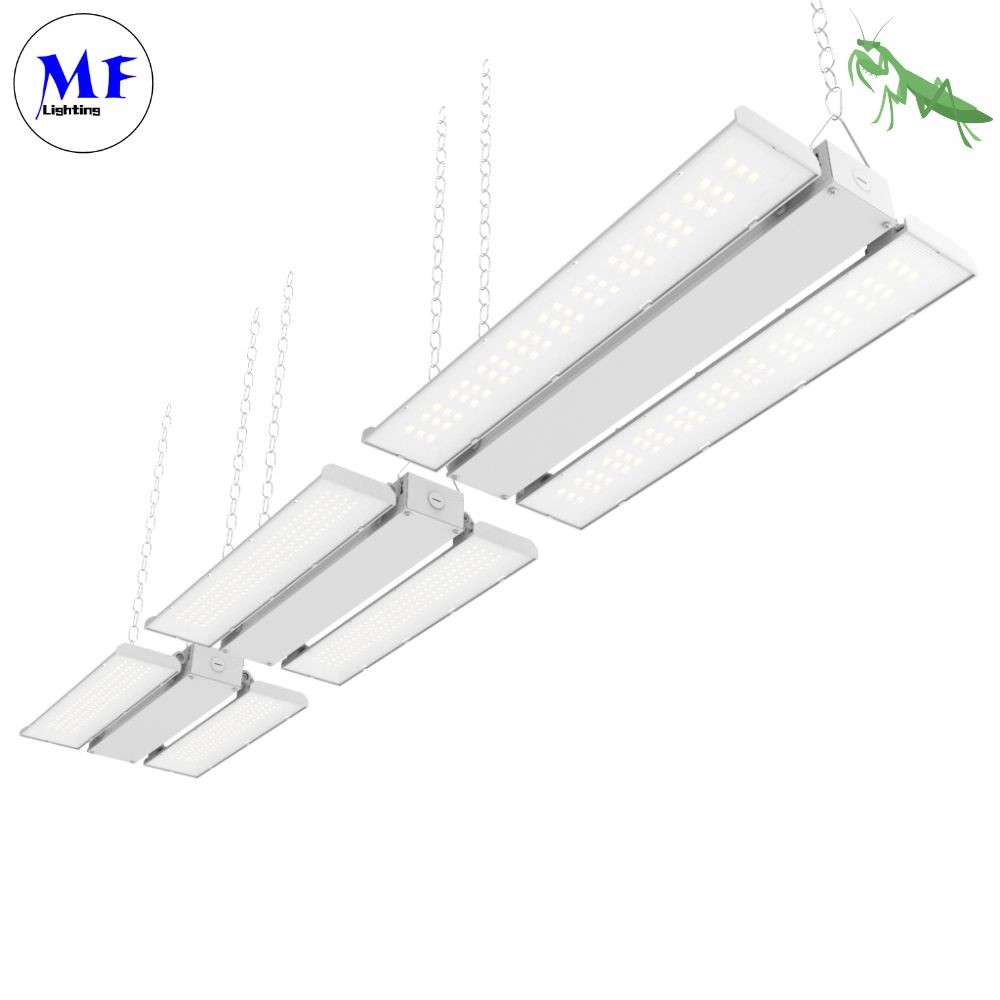

Available in various sizes and wattages, ranging from 100W to 500W, the Mantis-3 lights offer flexibility to suit different lighting requirements. The wide beam angle of 120° ensures ample light coverage, ideal for high ceiling applications.
Certified for quality and performance, these lights are built to last with dimensions ranging from 375x312x53mm to 1000x365x100mm. Whether illuminating warehouses, factories, or gymnasiums, the Mantis-3 Family Linear High Bay Lights from www.mfighting.com provide reliable and energy-efficient lighting solutions.

Adopted advanced constant current controlling techniques; Wide voltage range and high voltage 347V 480V available, global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution; Avoid the stimulation and tiredness taking from long-time working.

Applications:
Wide used in factory, workshop, warehouse, logistics center exhibition hall, gymna-sium, shipyards, mining, gas station, supermarket.

Product Benefits:
Led Chip:
170lm/w for whole lamp 3000-6500k available

Power supply:
Meanwell driver
Input Voltage: AC90-305V/AC180-528V
Power factor: 0.95
0-10V, DALI, PMW signal, Timing Dimmanle functions

LED DRIVER
Mean well driver is created for high bay, tunnel and roadway lights. The high efficiency and compact metal case enables thwm to run cooler, significantly improving reliability and extending protection is provided against input surge, output over voltage, short circuit, and over temperature.

HIGH LIGHT EFFICIENCY, HIGH HEAT DISSIPATION
Unique linear design with powerful thermal performance as well as high reliable waterproof rating IP66.

Technical Parameter:

Physical:
CRI: >70Ra
PF: >0.95
Lumen Maintanance: 90%
Output Voltage Range: DC42-48V
Frequency: 50-60Hz
Operating Temperature: -40°C to 55°C
Beam Angle: 120°
Lens Material: clear/frosted PC
Housing Material: Aluminum
Mounting: Pipe, ceiling, suspend mounts.

Qualifications:
Material usage: UL CB SAA Compliant, no mercuey.
Environment: Indoor, ourdoor, Dry/ wet location
IP Rating: IP66

Light Distribution:

Intelligent Lighting
Commercial, industrial and institutional lighting have all gained substantially in recent years from the repid advances in both computers and lighting technology. The advent of intelligent lighting controls now offers commercial and industrial businesses greater opportunities for more impressive energy savings and improved control of a number of lighting parameters.

Function:
1. APP remote control
2. Dimmable, 0-100% dimming
3. Timming dimmable, control the lights at different brightness level in different time.
4. Grouping and partition control

Additional Information:

Packing info
1. each into one carton box
2. carton material: K&K Material carton

The Mantis-3 Family Linear High Bay Light is well-suited for a variety of industrial and commercial applications where high-quality, efficient lighting is essential. Some of the key applications of this product include:

Warehouses: Ideal for illuminating large warehouse spaces with high ceilings, ensuring proper visibility for storage and logistics operations.

Manufacturing Facilities: Provides bright and uniform lighting for manufacturing plants, assembly lines, and production areas to enhance productivity and safety.

Sports Facilities: Suitable for lighting indoor sports facilities such as gymnasiums, indoor courts, and recreational centers, ensuring adequate illumination for activities.

Retail Spaces: Can be used in retail environments with high ceilings such as supermarkets, shopping malls, and retail outlets to create a well-lit and inviting atmosphere.

Exhibition Halls: Perfect for illuminating exhibition halls, trade show booths, and event spaces to showcase products and attract attention.

Gymnasiums: Offers ample lighting for gym and fitness centers, ensuring a well-lit environment for activities and workouts.

Aircraft Hangars: Provides bright and uniform lighting for aircraft maintenance and storage facilities, ensuring safe and efficient operations.

Logistics Centers: Suitable for lighting logistics and distribution centers, enabling clear visibility for sorting, packaging, and shipping operations.

Industrial Workshops: Ideal for illuminating industrial workshops, garages, and workspaces where task lighting is crucial for precision work.

Commercial Spaces: Can be used in commercial buildings, offices, showrooms, and other spaces with high ceilings to provide adequate and energy-efficient lighting.

The versatile nature of the Mantis-3 Family Linear High Bay Light makes it a valuable lighting solution for a wide range of applications that require reliable, efficient, and high-quality illumination.
