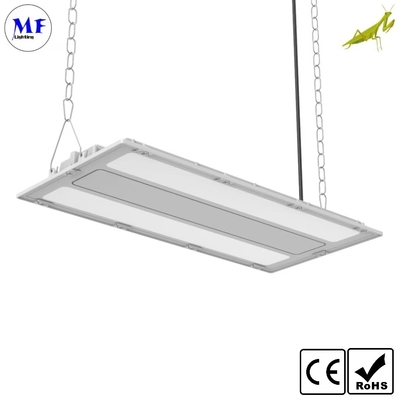

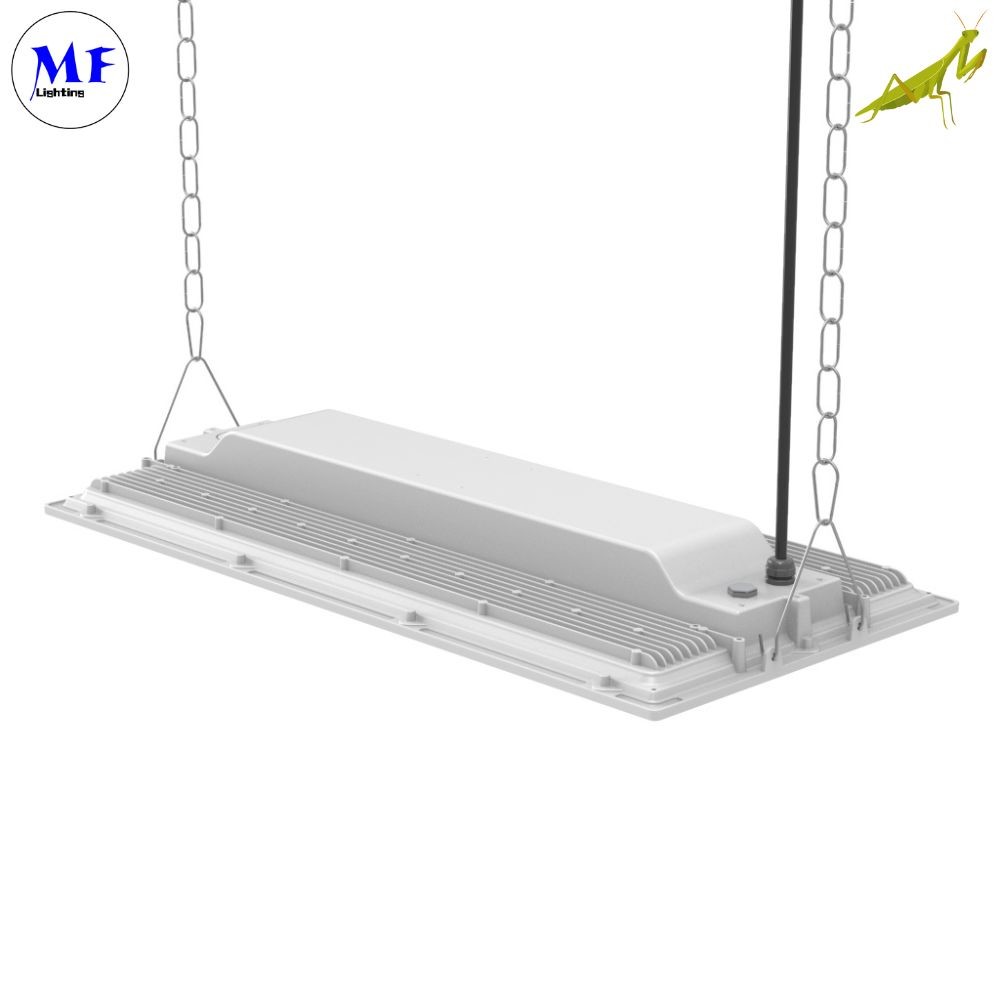

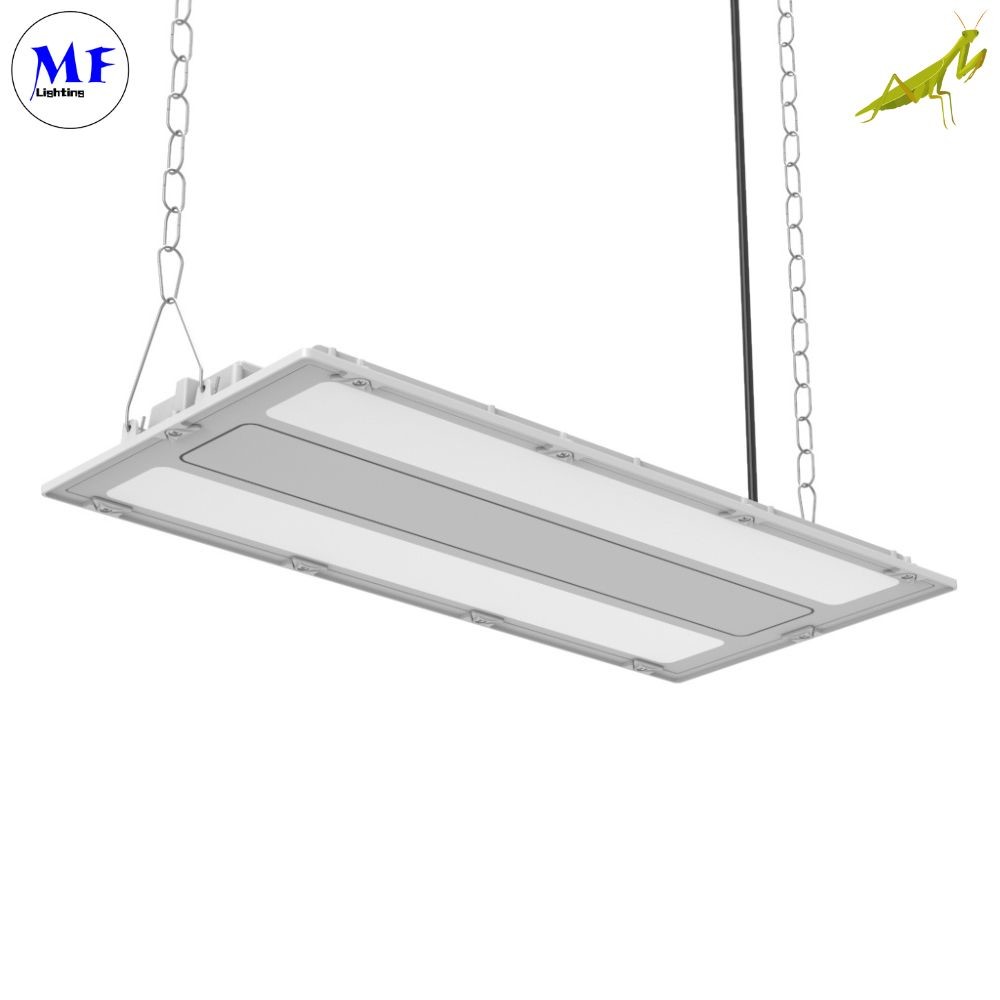

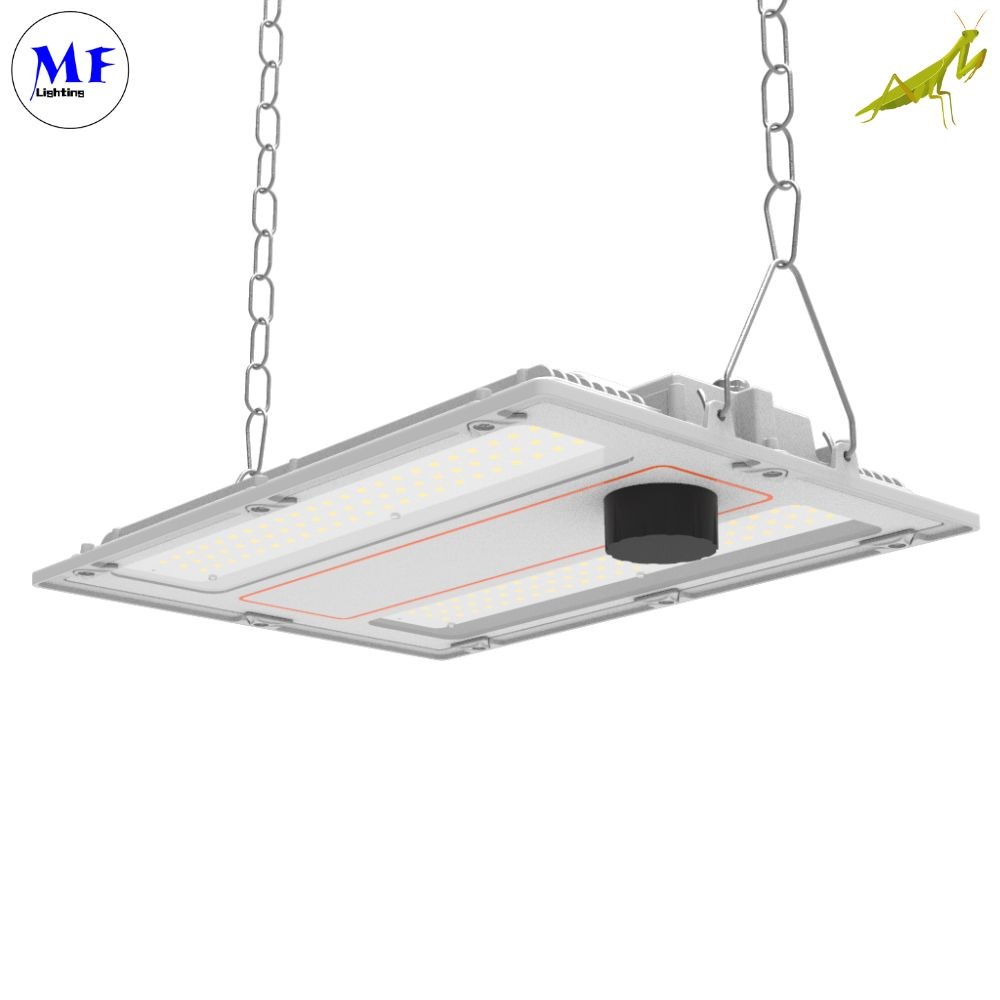

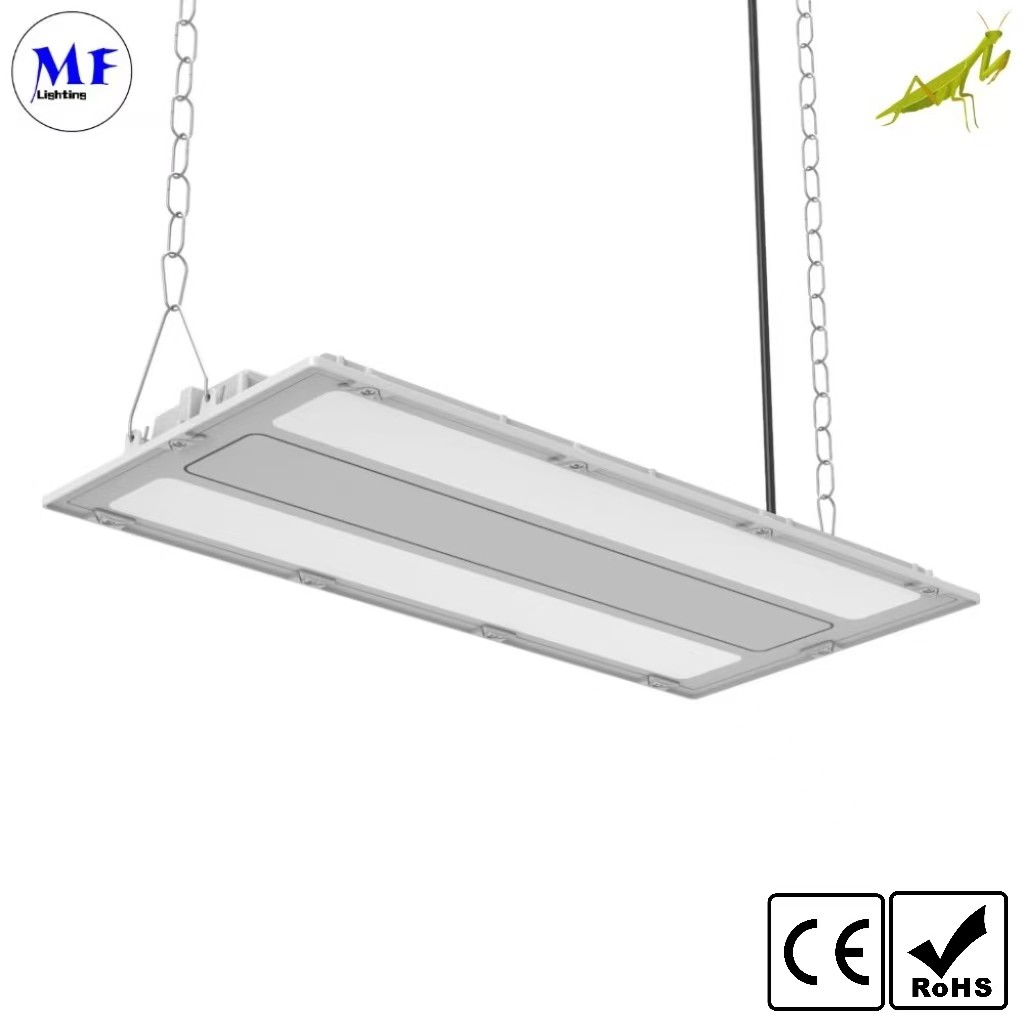

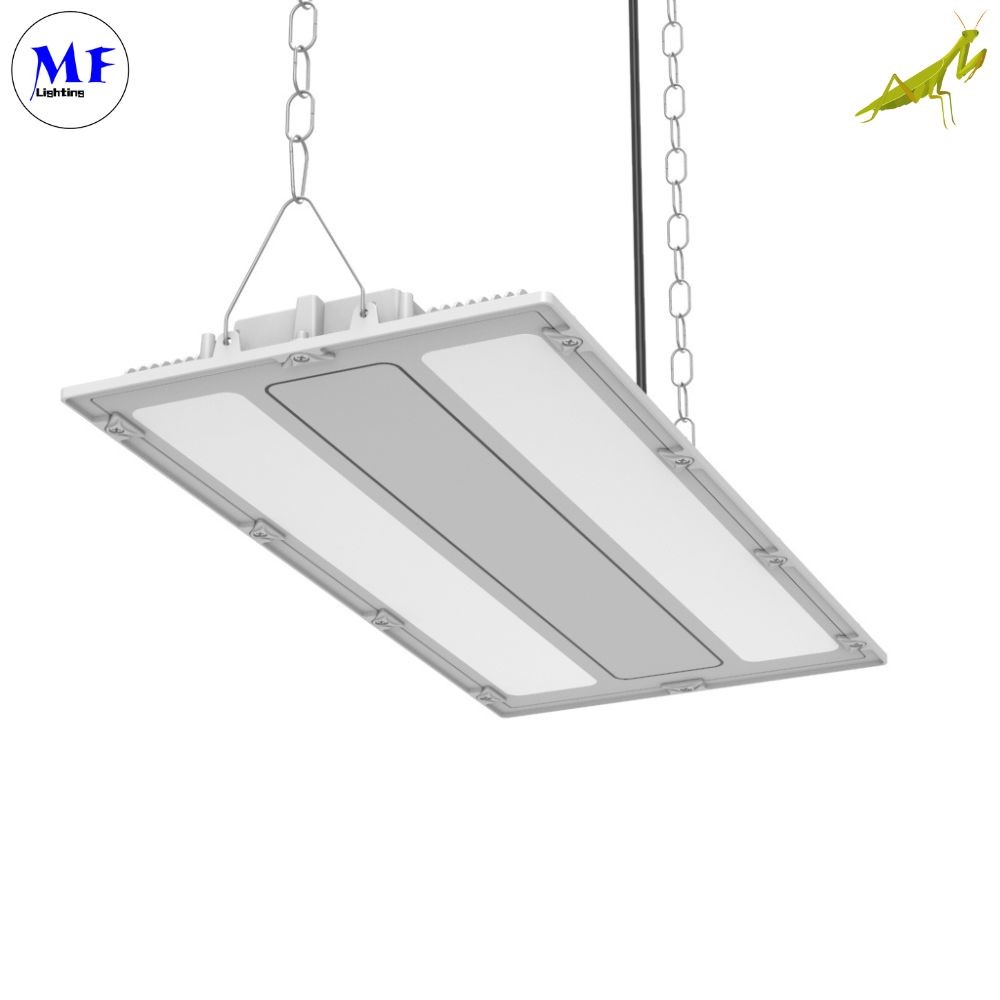

150W IP66 LED Linear High Bay Light Waterproof Dustproof 3000K-3500K Beam Angle 30°/60°/90° For Supermarket

Product Description

150W IP66 LED Linear High Bay Light Waterproof Dustproof 3000K-3500K Beam Angle 30°/60°/90° For Supermarket

High quality aviation aluminum heatsink, and a nodic oxidation treatment, giving high output and long term reliable performance. Together with high efficiency mid-power LED light source and high performance driver, this product values each dollar investment in the industrial lighting areas.

Adopted advanced constant current controlling techniques; Wide voltage range and high voltage 347V 480V available, global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution; Avoid the stimulation and tiredness taking from long-time working.

The Mantis-2 High Bay Light is a versatile lighting solution suitable for various applications. With an IP66 rating, it ensures protection against dust and water, making it suitable for both indoor and outdoor use. This product is available in different sizes ranging from 386x276x57 to 690x286x61, providing options to suit different installation requirements.


Featuring a wide beam angle range from 30° to 150x80°, the Mantis-2 High Bay Light offers flexibility in lighting design. It is available in different wattage options including 100W, 150W, 200W, 240W, 300W, 350W, 400W, and 500W, catering to various lighting needs. The product is packaged conveniently, with 2 pieces per carton in sizes ranging from 430x340x170 to 635x350x180.

Overall, the Mantis-2 High Bay Light combines durability, versatility, and efficiency, making it a reliable choice for illuminating spaces with high ceilings such as warehouses, factories, gyms, and more.

Product Benefits:
Led Chip:
170lm/w for whole lamp 3000-6500k available

Power supply:
Meanwell driver
Input Voltage: AC90-305V/AC180-528V
Power factor: 0.95
0-10V, DALI, PMW signal, Timing Dimmanle functions

LED DRIVER
Mean well driver is created for high bay, tunnel and roadway lights. The high efficiency and compact metal case enables thwm to run cooler, significantly improving reliability and extending protection is provided against input surge, output over voltage, short circuit, and over temperature.

HIGH LIGHT EFFICIENCY, HIGH HEAT DISSIPATION
Unique linear design with powerful thermal performance as well as high reliable waterproof rating IP66.

Technical Parameter:


Power	Input voltage	LED Quantity	Lumens	Dimension
100W	AC90-305V	154PCS	17000lm	386*276*57mm
150W	AC90-305V	154PCS	25500lm	386*276*57mm
200W	AC90-305V	308PCS	34000lm	486*276*57mm
250W	AC90-305V	308PCS	42500lm	486*276*57mm
300W	AC90-305V	462PCS	51000lm	590*286*61mm
360W	AC90-305V	462PCS	61200lm	590*286*61mm
400W	AC90-305V	616PCS	68000lm	690*286*61mm
500W	AC90-305V	616PCS	85000lm	690*286*61mm

Physical:
CRI: >70Ra
PF: >0.95
Lumen Maintanance: 90%
Output Voltage Range: DC42-48V
Frequency: 50-60Hz
Operating Temperature: -40°C to 55°C
Beam Angle: 120°
Lens Material: clear/frosted PC
Housing Material: Aluminum
Mounting: Pipe, ceiling, suspend mounts.

Qualifications:
Material usage: UL CB SAA Compliant, no mercuey.
Environment: Indoor, ourdoor, Dry/ wet location
IP Rating: IP66

Light Distribution:

Intelligent Lighting
Commercial, industrial and institutional lighting have all gained substantially in recent years from the repid advances in both computers and lighting technology. The advent of intelligent lighting controls now offers commercial and industrial businesses greater opportunities for more impressive energy savings and improved control of a number of lighting parameters.

Function:
1. APP remote control
2. Dimmable, 0-100% dimming
3. Timming dimmable, control the lights at different brightness level in different time.
4. Grouping and partition control

Additional Information:

Packing info
1. each into one carton box
2. carton material: K&K Material carton


Model	Carton size (2pcs/ctn)	G.W. (KG)	20'GP	40'GP	40'HQ
MF-LHB-M2S100W MF-LHB-M2S150W	430*340*170MM	4.2	950	2000	2300
MF-LHB-M2M200W MF-LHB-M2M240W	530*340*170MM	5.5	500	1100	1300
MF-LHB-M2L300W MF-LHB-M2L350W	635*350*180MM	7.3	350	750	900
MF-LHB-M2L400W MF-LHB-M2L500W	635*350*180MM	11.5	280	600	700

The Mantis-2 Family Linear High Bay Light is well-suited for a variety of industrial and commercial applications where high-quality, efficient lighting is essential. Some of the key applications of this product include:

Warehouses: The Mantis-2 is well-suited for lighting up warehouses with high ceilings, providing ample brightness for efficient operations and improved visibility.

Factories: In industrial settings such as factories, the Mantis-2 ensures well-lit workspaces, enhancing productivity and safety for workers.

Gymnasiums: This high bay light is ideal for illuminating gymnasiums and sports facilities, creating a well-lit environment for activities and events.

Retail Spaces: The Mantis-2 can be used in retail spaces with high ceilings to showcase products effectively and create a bright and inviting atmosphere for customers.

Agricultural Facilities: In agricultural settings such as barns or greenhouses, the Mantis-2 provides the necessary lighting for plant growth and maintenance.

Workshops: Workshops and manufacturing facilities can benefit from the powerful illumination provided by the Mantis-2, ensuring visibility and safety in work areas.

Indoor Sports Arenas: Indoor sports arenas and recreational facilities can use the Mantis-2 for uniform and efficient lighting during events and activities.

Logistics Centers: Logistics and distribution centers can optimize their operations with the bright and energy-efficient lighting offered by the Mantis-2.

Overall, the Mantis-2 Family Linear High Bay Light caters to a wide range of applications where reliable, durable, and efficient lighting solutions are essential for enhancing productivity, safety, and visibility in large spaces with high ceilings.
