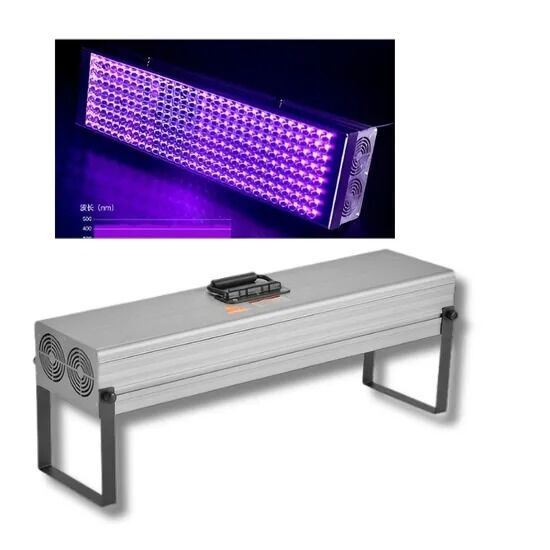

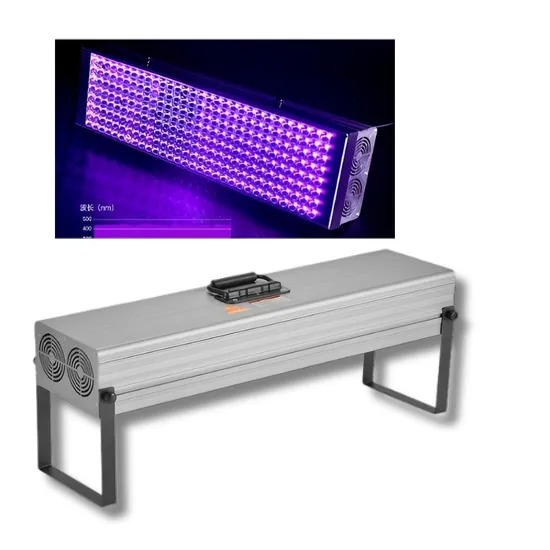

Professional 200W LED UV Curing Light
High-performance UV curing solution for industrial and commercial applications with rapid curing capabilities and versatile mounting options.
Product Specifications
| Model Number | MF-GHUV-200W |
| Power | 200W |
| Frequency Range | 50Hz-60Hz |
| Product Dimensions | 560×148×86mm |
| CRI | 80+ |
| Light Color | Violet |
| Material | PC + Aluminum |
| Input Voltage | 85-265V AC |
| Certifications | CE, ROHS, CB, TUV |
| Operating Temperature | -10°C to +45°C |
| LED Lifespan | 50,000 hours |
| Product Color | Grey/White |
| Plug Options | EU/US/CN |
| Protection Rating | IP43 |
| Wavelength | UV395nm, UV365nm |
| Gross Weight | 4.9KG |
Technical Details
Power Options
Available in 60W, 120W, 200W, and 300W configurations
Light Source
120/240/360 LEDs with 3535 chip technology
Power Supply
85-265V AC, 50/60Hz
Warranty
Housing: 36 months | LED Lifetime: 50,000 work hours
Key Features
- Europe and United States hot models with CB CE certification
- Patented product design with customization options
- Whole picture printing with laser engraving capability
- Multiple mounting options: hanging, wall, ceiling, side mounting
- Customized patterns and LOGO available for small orders
- Dual wavelength options: 395NM and 365NM
Applications
- 3D resin curing and glow filament applications
- Gel nail curing and beauty industry uses
- Pet urine detection and fluorescence analysis
- Currency verification and counterfeit detection
- Solder joint protection and chip welding bonding
- Ink curing for printing and painting applications
- Shadowless adhesive curing and traceless pasting
- Photosensitive resin solidification
- Medical applications including cancer cell tracking
- Quick-curing bandage and healing functions
Performance Characteristics
Rapid solidification within three seconds for efficient workflow. Sterilization and disinfection capabilities with healing function support.
LED UV lights are primarily used for quick curing of material coatings including paints, adhesives, and inks on various surfaces such as panels, tiles, glass, and furniture. UV curing provides exceptional durability, high gloss finish, and superior resistance to weather, water, acids, and abrasion. Standard applications typically involve subjects approximately 1000mm in length.
Customization & Support
Q1: What if this product doesn't meet my market requirements?
A1: Contact our professional team for customized solutions tailored to your specific market needs.
Q2: Can I get higher performance products?
A2: We can develop and deliver higher performance products to meet your requirements in the shortest time.
Q3: Can I request a different outer design?
A3: Yes! We offer complete customization services for private label lighting solutions.
Q4: Can I print my logo on the LED light?
A4: Absolutely. We provide OEM services including custom labels and packaging according to your specifications.
Q5: What if I receive defective products?
A5: Our defect rate is below 0.2%. During warranty, provide evidence of defects and we'll ship replacements promptly.
Q6: Do you have your own factory?
A6: Yes, we specialize in LED lighting R&D and manufacturing with over 14 years of experience and ISO quality management since 2009.
Q7: Can I order samples for testing?
A7: Yes, we welcome sample orders and accept mixed samples for quality verification.
Packaging & Shipping
We support air shipment, marine shipment, and other delivery methods. Strategically located in Dongguan with proximity to major ports including Shenzhen Shekou Port, Dongguan Humen Port, and Zhanjiang Haian New Port. Also conveniently close to Shenzhen Airport, Guangzhou Baiyun Airport, and Foshan Airport. Our multi-layer packaging includes internal and external protection with sponge cushioning to minimize transit damage.
Company Profile
Ming Feng Lighting Co., Ltd is a leading LED lighting manufacturer located in Guangdong Province, China. Established in 2009 with over 15 years of export experience, we produce comprehensive LED indoor and outdoor lighting solutions including Triproof Lights, Vapor Tight Lights, down lights, flat panels, flood lights, high bay lighting, stadium lights, landscape lighting, and aviation obstruction lights. Our rapidly expanding R&D team continuously develops innovative solutions to meet evolving market demands with partners worldwide.
