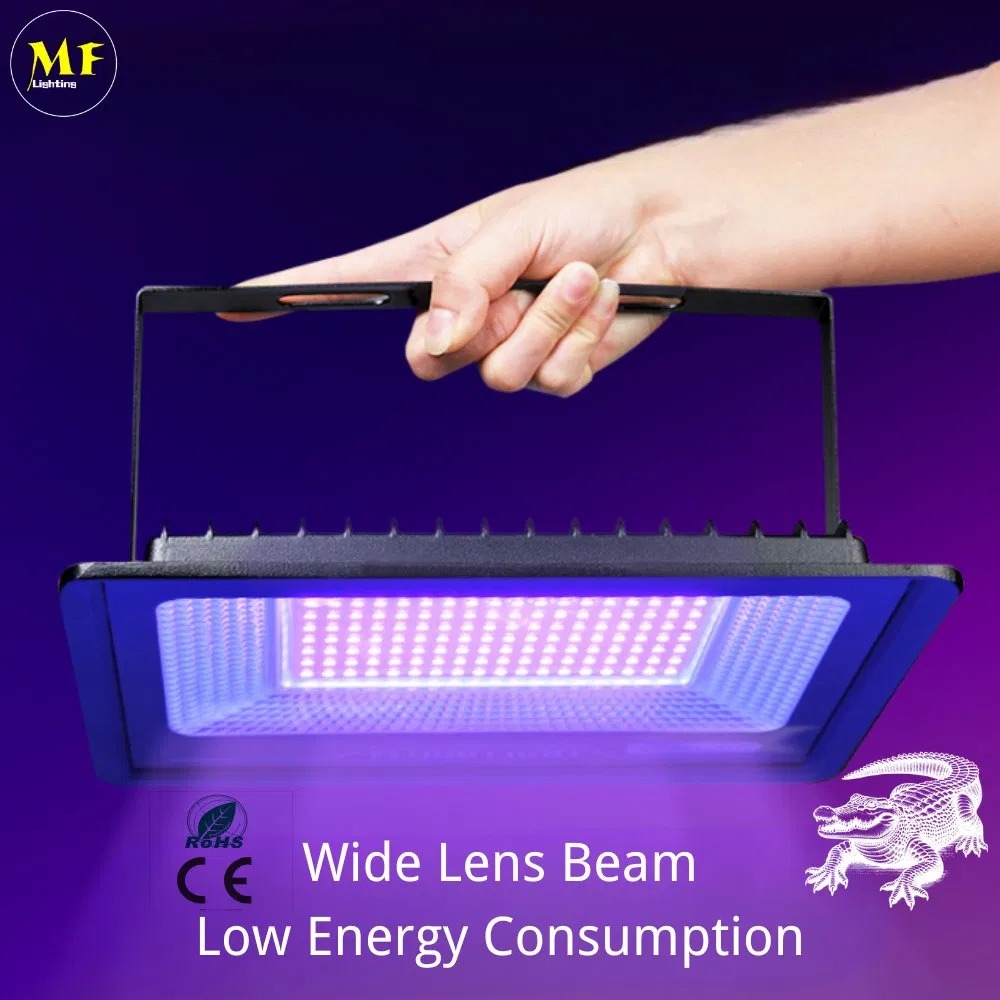

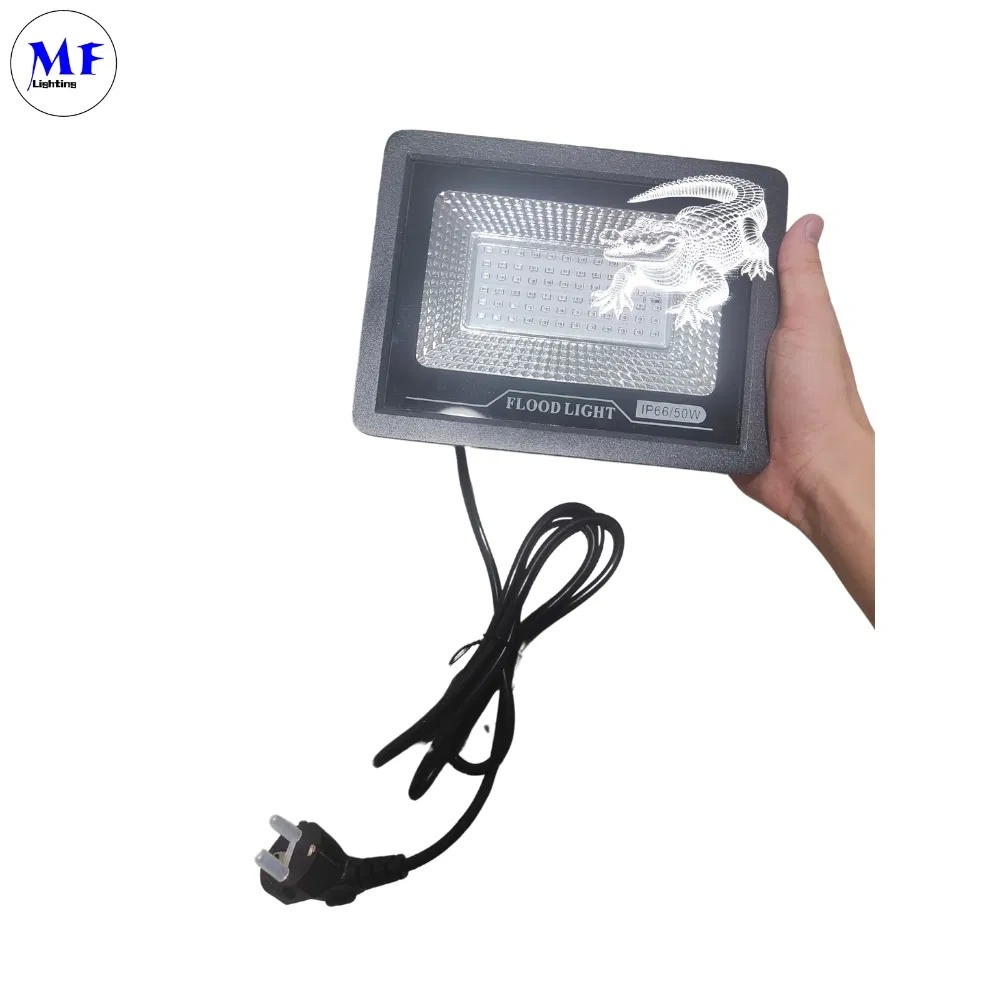

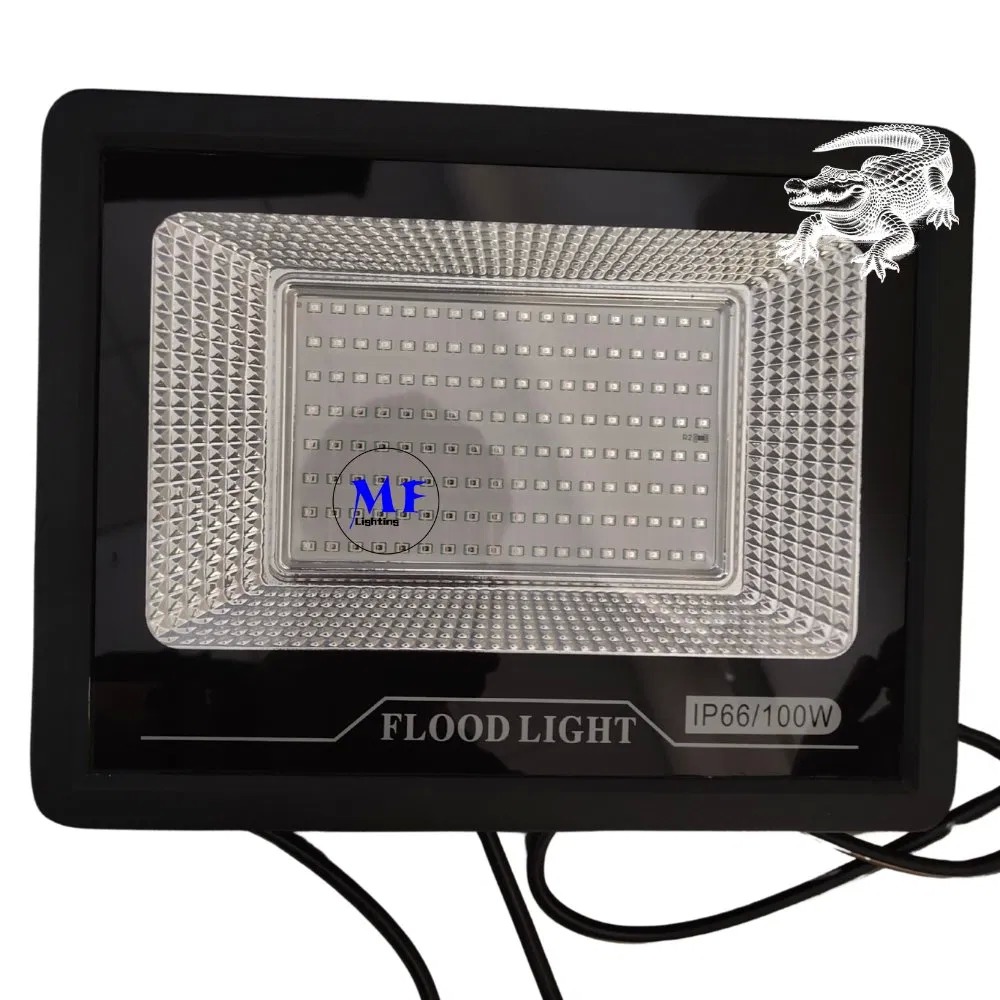

Industrial LED UV Curing Light
High-performance 150W UV LED light designed for industrial curing, sterilization, and specialized applications with IP66 protection and multiple mounting options.
Technical Specifications
| Model Number |
MF-PGUV-150W |
| Power |
150W |
| Frequency Range |
50Hz-60Hz |
| Product Size |
322×231×32mm |
| CRI |
70 |
| Light Color |
Violet |
| Material |
PC + Aluminum |
| Input Voltage |
85-265V AC |
| Certifications |
CE, ROHS, CB, TUV |
| Temperature Range |
-10°C to +45°C |
| Light Lifespan |
50,000 hours |
| Product Color |
Black |
| Plug Options |
EU/US/CN |
| Protection Rating |
IP66 |
| Wavelength |
UV 395nm |
| Gross Weight |
1400g |
Product Details

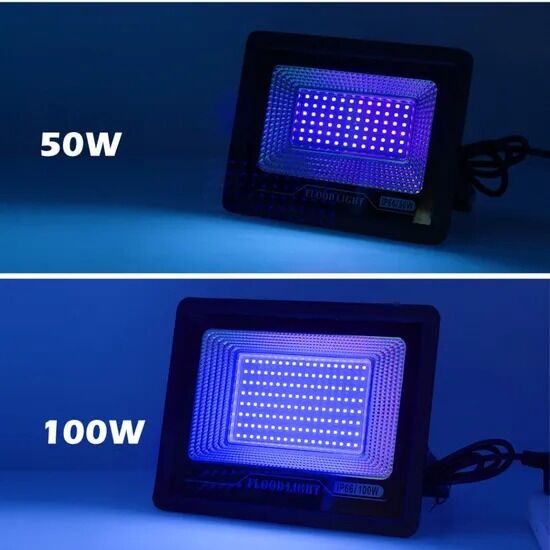

Available in multiple power outputs: 50W, 100W, and 150W configurations.

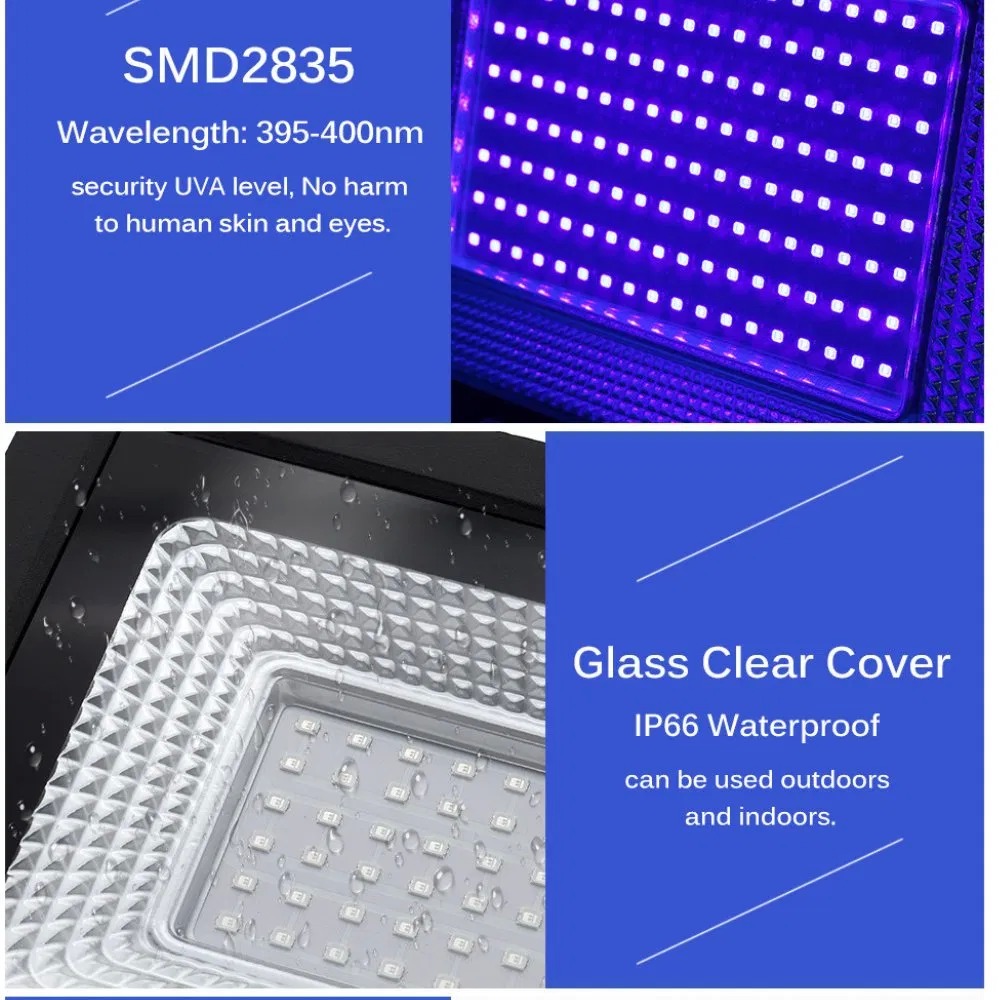

Features 2835 Chip technology operating at 395nm wavelength for optimal curing performance.
Designed with fanless operation for silent performance and efficient heat dissipation through ultra-thin aluminum housing.
Key Features
- Europe and United States hot market models
- Standard certifications and patented design
- Customizable options available
- Whole picture printing with laser engraving capability
- Multiple mounting options: hanging, wall, ceiling, side mounting
- 2835 Chip technology at 395nm/365nm options
- Custom logo printing for small orders
- Fanless design for silent operation
- Efficient heat dissipation system
- Oxidation and corrosion resistant housing
Applications
- Food industry disinfection and sterilization
- 3D resin curing and printing applications
- Gel nail curing and beauty industry
- Pet urine detection and counterfeit money detection
- Solder joint protection and electronic manufacturing
- Ink curing and printing industry
- Shadowless adhesive curing
- Photosensitive resin solidification
- Medical applications including cancer cell tracking
- Fluorescence detection and analysis
- Chip welding and bonding processes
This UV lamp provides rapid curing within three seconds and features sterilization capabilities, healing functions, and quick-curing bandage applications.
Performance Characteristics
LED UV lights are primarily used for quick curing of material coatings including paints, adhesives, inks, and resins on various surfaces such as panels, tiles, glass, and furniture. UV curing delivers high durability, excellent gloss finish, and superior resistance to weather, water, acids, and abrasion. These lamps are typically optimized for applications involving subjects approximately 1000mm in length.
Customization & Support
Q1: What if this product exceeds my market requirements?
A1: Contact our professional team for more suitable product recommendations tailored to your specific market needs.
Q2: Can I get higher performance products?
A2: We can provide higher performance options and will customize the most suitable products for your requirements.
Q3: Can I request a completely different outer design?
A3: Yes! We offer complete customization services to create private lighting solutions designed specifically for your applications.
Q4: Can I print my logo on the LED light?
A4: Yes, we provide comprehensive OEM services including custom labeling and packaging according to your specifications.
Q5: What is your defective product policy?
A5: Our defective rate is less than 0.2%. During the warranty period, we will promptly replace any defective units upon verification.
Q6: Do you have your own factory?
A6: Yes, we specialize in LED light research, development, and manufacturing with over 14 years of experience and ISO quality management since 2009.
Q7: Can I order samples for testing?
A7: Yes, we welcome sample orders and accept mixed samples for quality verification.
Packaging & Shipping
We support air shipment, marine shipment, and other delivery methods. Strategically located in Dongguan with convenient access to major ports including Shenzhen Shekou Port, Dongguan Humen Port, and Zhanjiang Haian New Port. Our location also provides easy access to Shenzhen Airport, Guangzhou Baiyun Airport, and Foshan Airport.
Our comprehensive packaging includes multi-layer protection with internal and external packaging, plus sponge cushioning around each product to minimize transit damage.
