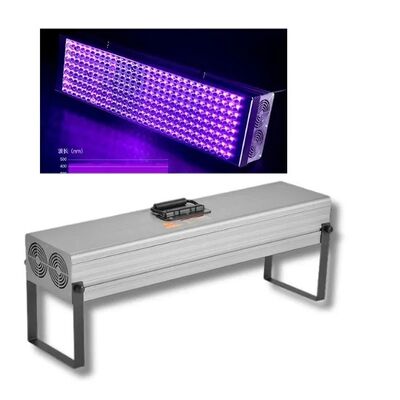

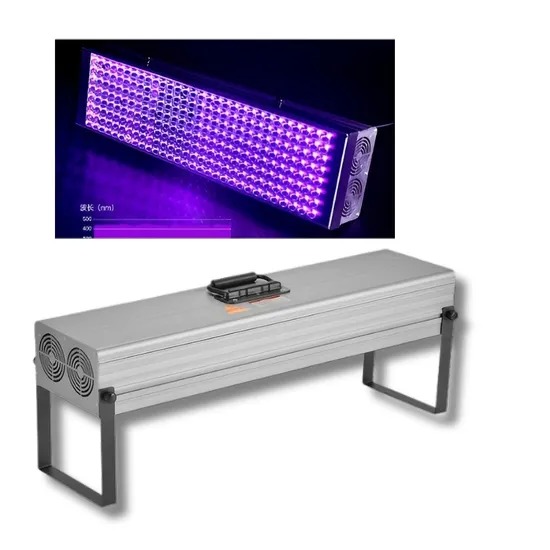

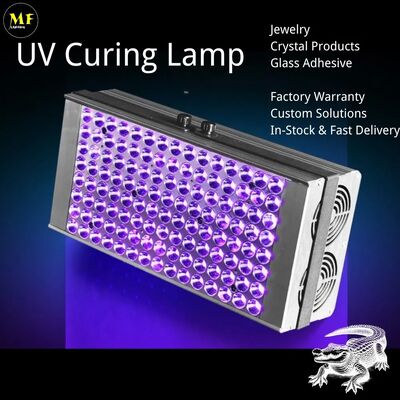

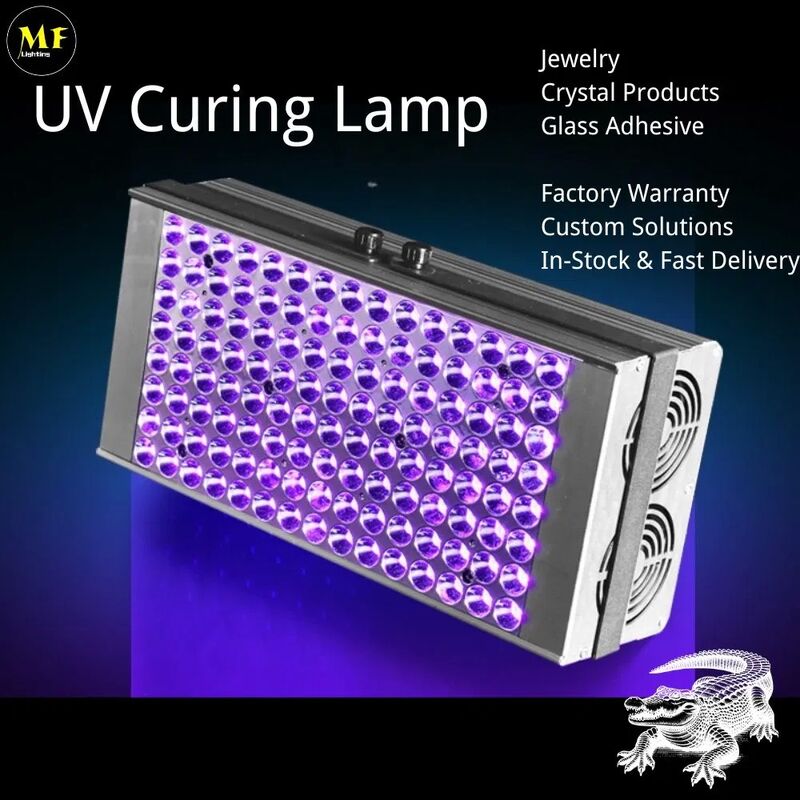

MF-GUV-300W Industrial LED UV Curing Light
Professional 300W UV LED light for industrial curing, detection, and printing applications with plug-and-play operation.
Technical Specifications
| Model Number | MF-GUV-300W |
| Power Rating | 300W |
| Input Voltage | 85-265V AC |
| Frequency Range | 50Hz-60Hz |
| Product Dimensions | 770×105×80mm |
| CRI (Color Rendering Index) | 80+ |
| Light Color | Violet |
| Construction Material | PC + Aluminum |
| Certifications | CE, ROHS, CB, TUV |
| Operating Temperature | -10°C to +45°C |
| LED Lifespan | 50,000 hours |
| Product Color | Grey/White |
| Plug Options | EU/US/CN |
| IP Rating | IP43 |
| Wavelength Options | UV395nm, UV365nm, UV405nm |
| Gross Weight | 4.59KG |
Product Details

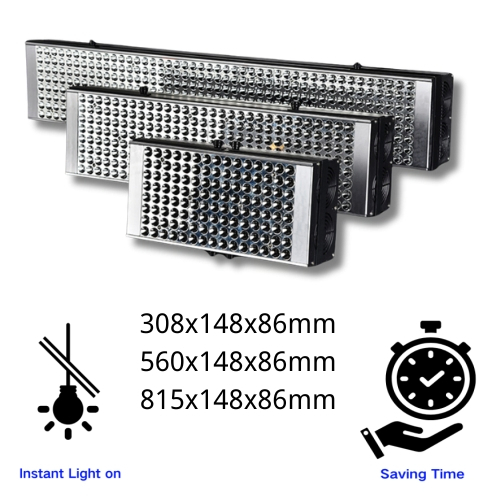

Available in multiple power outputs: 60W, 120W, 200W, 300W
Light Source: 120/240/360 LEDs with 3535 chip technology
Active Power: 60W/120W/200W/300W
Power Supply: 85-265V AC 50/60Hz
Dimming: Not available
Warranty: Housing - 36 months
Key Features
- Europe and United States hot models with CB CE certification
- Patented product design with customization options
- Whole picture printing laser engraving capability
- Multiple mounting options: hanging, wall, ceiling, side mounting
- Customized patterns and LOGO available for small orders
- Wavelength options: 395NM or 365NM

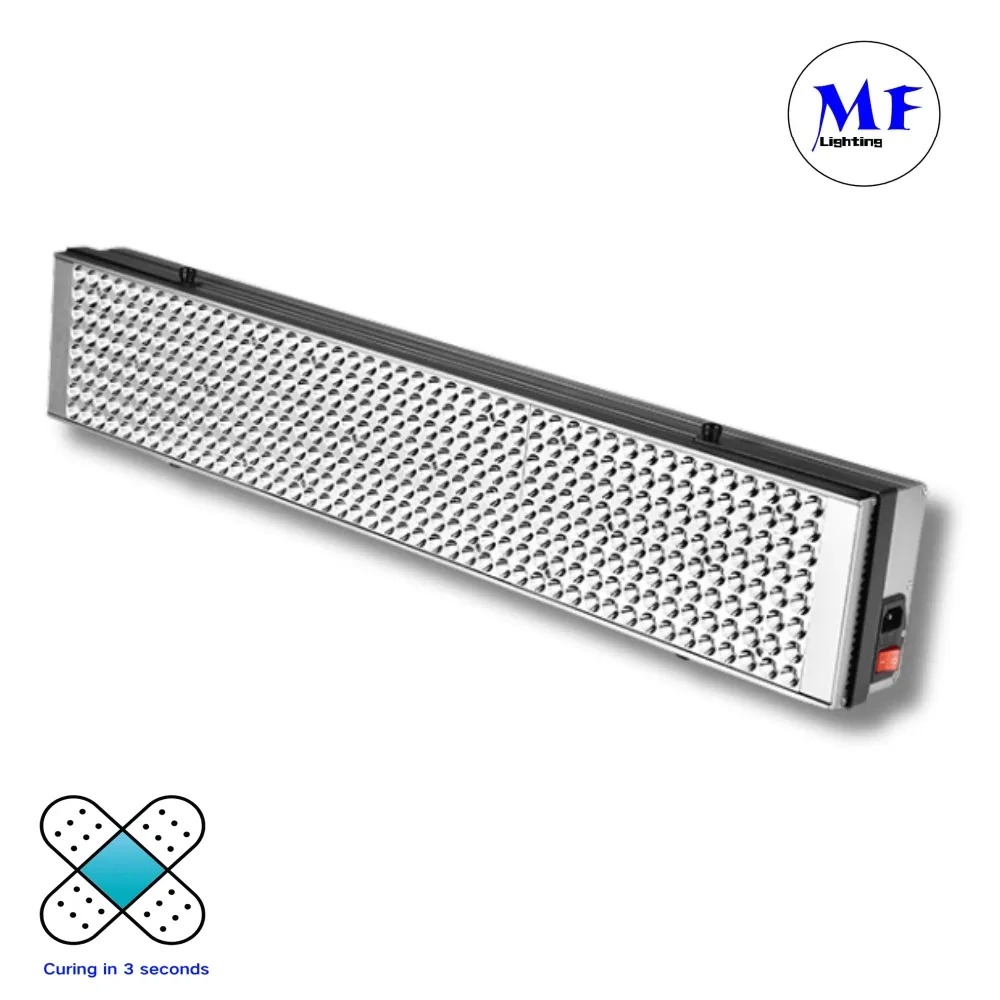

- Rapid curing within 3 seconds
- Sterilization and disinfection functions
- Fluorescence detection capability
- Medical cancer cell tracking function
- Chip welding bonding function
- Traceless pasting function
Industrial Applications
This professional UV curing lamp is designed for various industrial and commercial applications including:
- 3D resin curing and glow filament applications
- Gel nail curing and beauty industry uses
- Pet urine detection and counterfeit money identification
- Solder joint protection and electronic manufacturing
- Ink curing for printing industry
- Shadowless adhesive curing
- Photosensitive resin solidification
- Architectural coating curing
- Paint curing and finishing
- Repairing and maintenance applications
Technical Performance
LED UV lights are primarily used for rapid curing of material coatings including paints, adhesives, inks, and resins on various surfaces such as panels, tiles, glass, and furniture. UV curing delivers exceptional durability, high gloss finish, and superior resistance to weather conditions, water exposure, acids, and abrasion. These industrial-grade LED UV curing lamps are optimized for applications involving materials approximately 1000mm in length.
