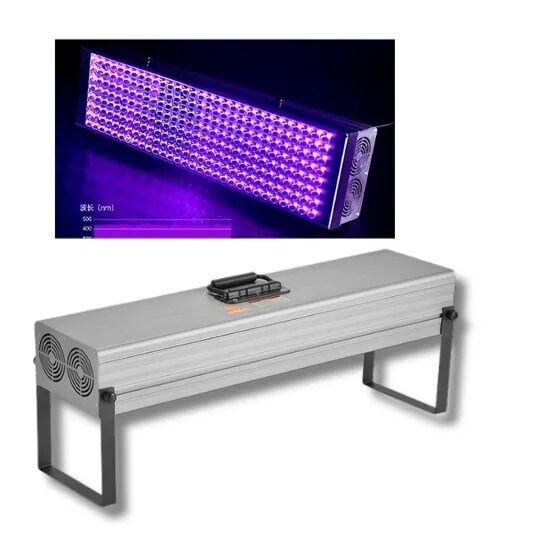

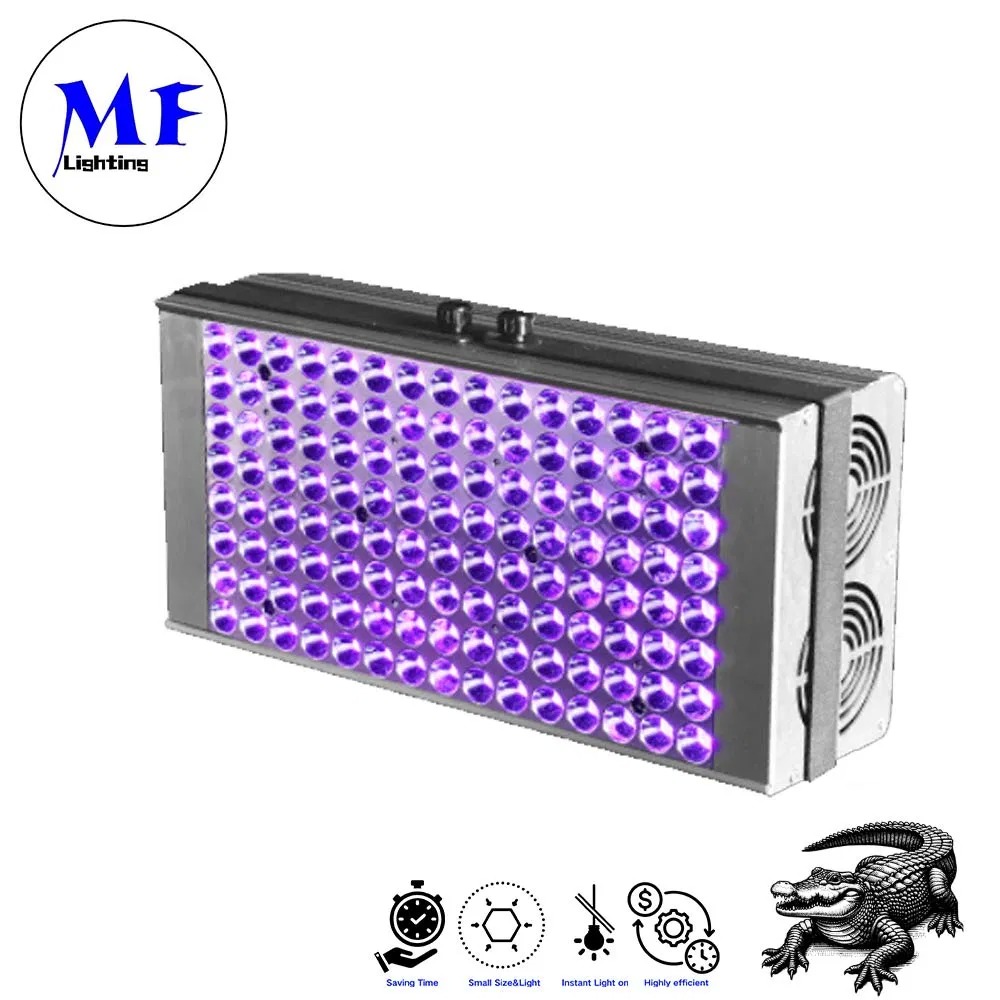

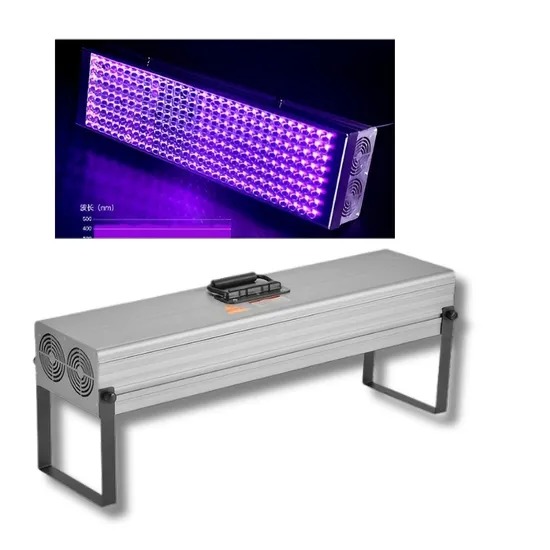

MF-GHUV Series High-Power LED UV Curing Lamps
The MF-GHUV Series delivers professional-grade UV curing with 365NM/395NM/405NM wavelengths for diverse industrial applications. Engineered for maximum efficiency, it cures materials in just 1-3 seconds using high-intensity 3535-chip LEDs. The robust die-cast aluminum housing with IP43 rating ensures durability, while the advanced dual-fan cooling system maintains optimal performance during continuous operation.
Offering exceptional 50,000-hour LED lifespan and energy-efficient 60W-300W power consumption, it's ideal for electronics manufacturing, automotive coatings, medical device assembly, 3D printing, and industrial adhesives. Flexible mounting options (handheld/wall/ceiling) and adjustable height (50-110mm) provide versatile operation. CE/CB certified with customizable sizes (308-815mm) and logo engraving available. Perfect for production lines requiring fast, reliable curing with low maintenance.
Key Advantages
Ultra-Fast Curing Performance
- Achieves complete curing in just 1-3 seconds
- Dramatically improves production efficiency
- Reduces manufacturing cycle times
Precision Wavelength Control

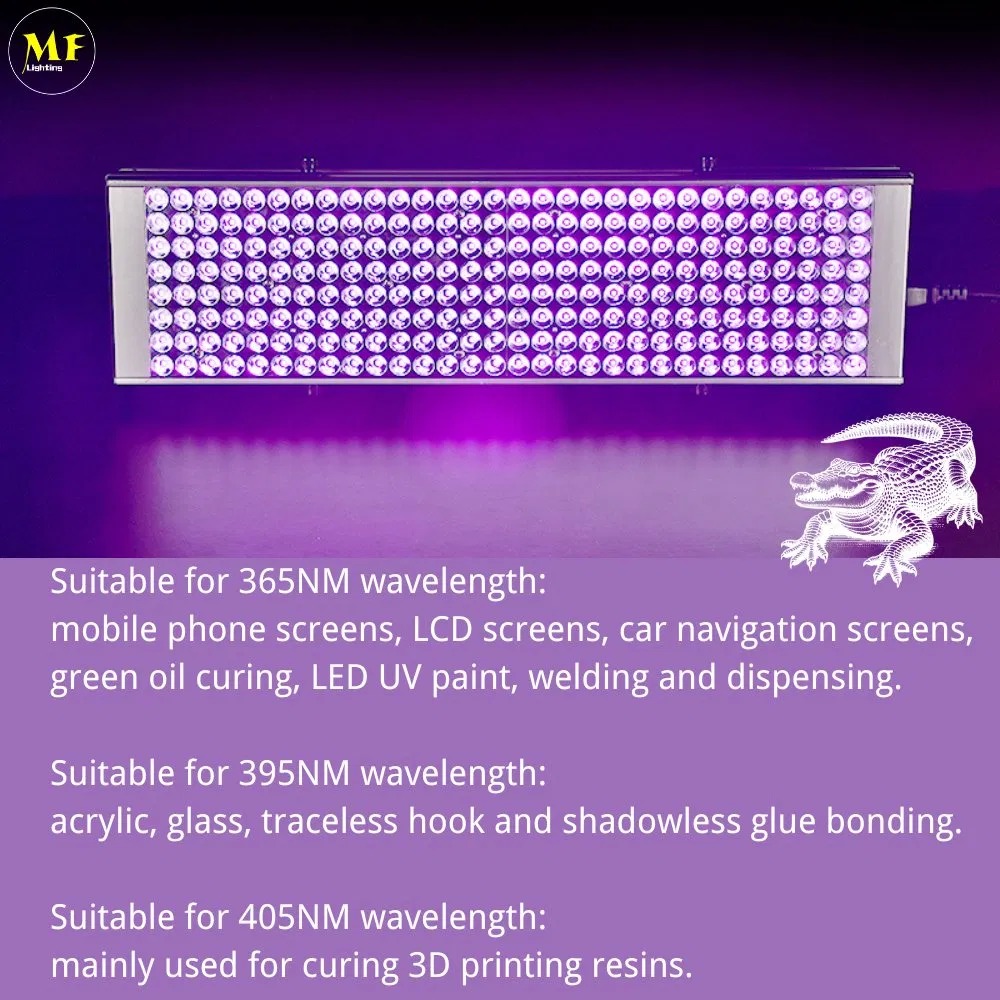

- Three wavelength options (365NM/395NM/405NM)
- 3535-chip LED technology
- Optimal curing for different materials

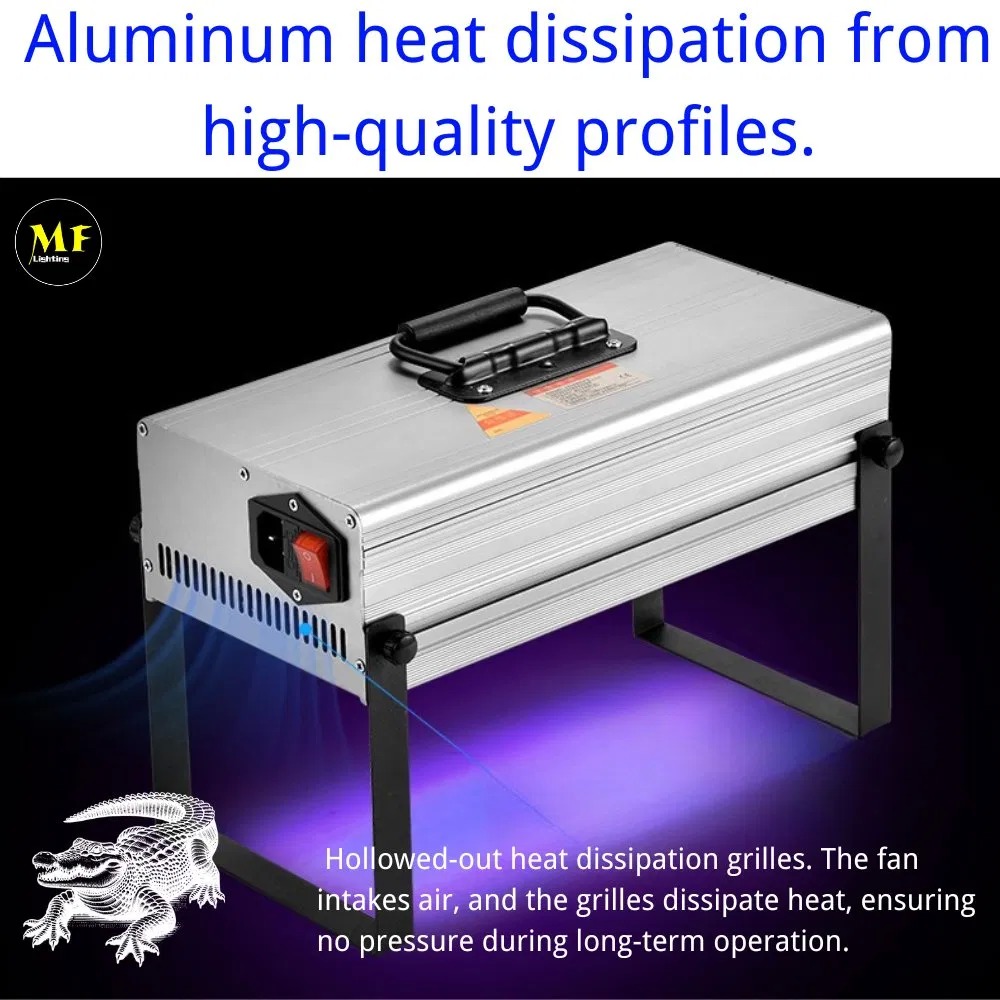

Superior Cooling System
- High-performance dual-fan design
- Ensures stable operation during continuous use
- Prevents overheating and extends component life
Robust Industrial Design
- Die-cast aluminum housing
- IP43 protection rating
- Shock-resistant and durable construction
Energy Efficient Operation
- Low power consumption (60W-300W)
- High energy conversion efficiency
- Reduces operating costs
Technical Specifications
| Power | 300W |
| Size | 815*148*86mm |
| Input | AC85-265V |
| Chip | 3535 360PCS |
| Warranty | 3 YEARS |
| Plug | CN/UK/US |
| Colour | Grey/White |
| Output | 300W |
| Power supply | 85-265V AC 50/60HZ |
| Temperature range | -10-+45°C |
| Material | PC+Alu |
| IP Rating | IP43 |
| Warranty | 36 months |
| LED lifetime | 50,000 work hours |
Product Features
Die-cast aluminum lamp body: The shell is made of high-quality die-cast aluminum, which is drop-resistant, shock-resistant, and finely crafted. It is not easily deformed by external forces. The surface is treated with grinding and painting, providing a comfortable hand feel.
It is simple and convenient to carry with a hand-held design. With an adjustable stand and a hand-held function, the size can be customized.
Industrial Applications
Building Material Coating Applications
Mainly used for instant curing of large-area surface paints, coatings adhesives, coatings, inks, etc. through the advantageous characteristics of UV (ultraviolet) curing lamps; this imparts gorgeous surface gloss, weather resistance, abrasion resistance, water resistance, acid and alkali resistance, and other high-strength curing protections to panels and other surfaces. It is widely applied to flat coatings for integrated wall panels, ceramic tiles, glass, furniture panels, wallboards, composite panels, etc. Generally, common UVLED curing lamp solutions are relatively long, mostly around 1000MM in length.
Electronics & Display Manufacturing
Cures mobile/LCD screens, camera modules, circuit boards, and LED components with precision.
Automotive & Aerospace Applications
Bonds headlight lenses, dashboard displays, interior trims, and composite materials.
Medical & Dental Equipment Production
Sterilizes devices, assembles surgical tools, and cures dental appliances and medical packaging.
3D Printing & Rapid Prototyping
Instantly hardens resin models, prototypes, and jewelry molds for efficient production.
Industrial Manufacturing Processes
Sets structural adhesives, seals components, cures coatings, and bonds various industrial materials.
Printing, Packaging & Creative Industries
Dries UV inks for labels/packaging while enabling acrylic/glass artwork and specialty crafts.
