Home ProductsLED UV Lamp815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings
Contact Now

815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings

Minimum Order Quantity : 1 Price : 143
Certification: CE

Detail Information
Model NO.: MF-GHUV-300W Dimensions: 815*148*86mm, 920*208*155mm
Material: Alu+PC Output Power: 300W
Light Source: 120/240/360/LEDs/3535chip Active Power: 300W
Power Supply: AC85-265V 50/60Hz Temperature Range: -10-+45°C
IP Rating: 43 LED Lifetime: 50,000 Work Hours
Power Factor: ≥0.9 Transport Package: 680*208*155mm
Curing Time: 1-3s Wavelength: 365NM, 395NM, 405NM
Cooling System: High-power Dual Fans
Highlight:

300W UV LED curing lamp

,

815mm UV lamp for industrial coatings

,

instant cure UV lamp with reflector

Product Description

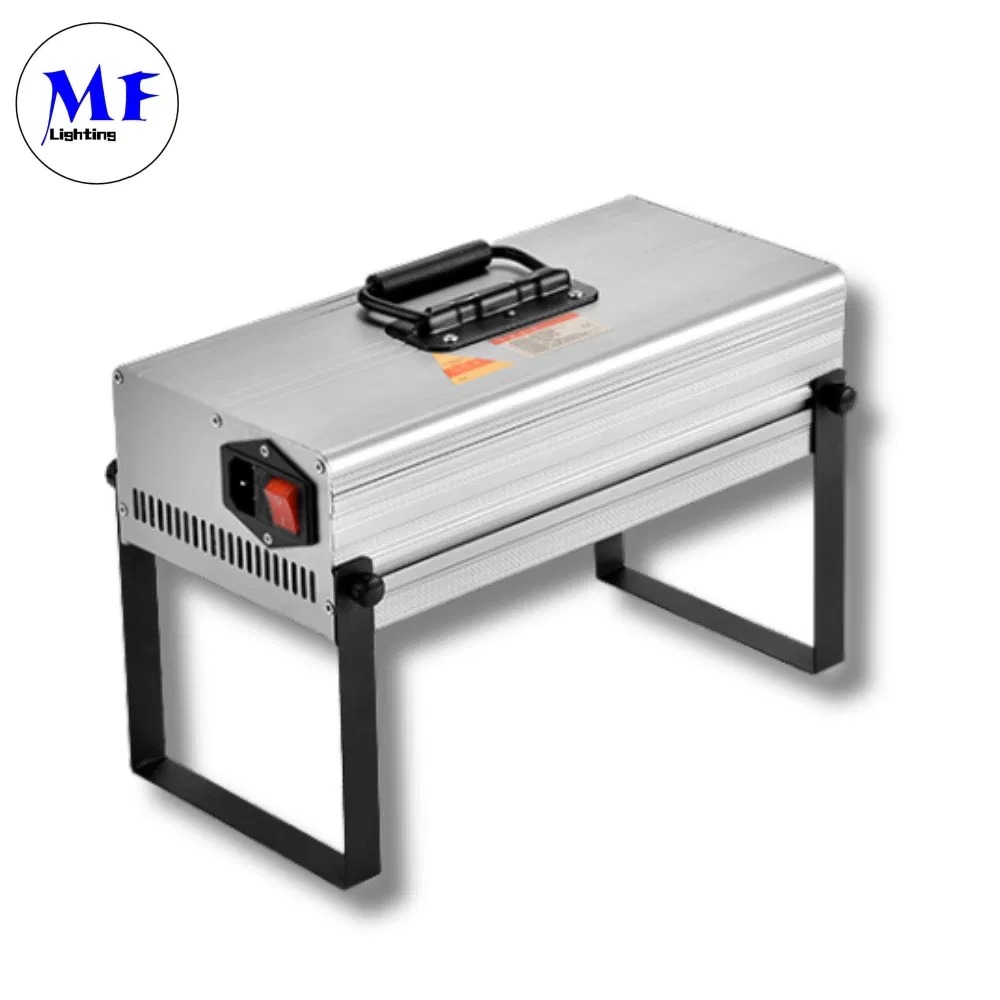

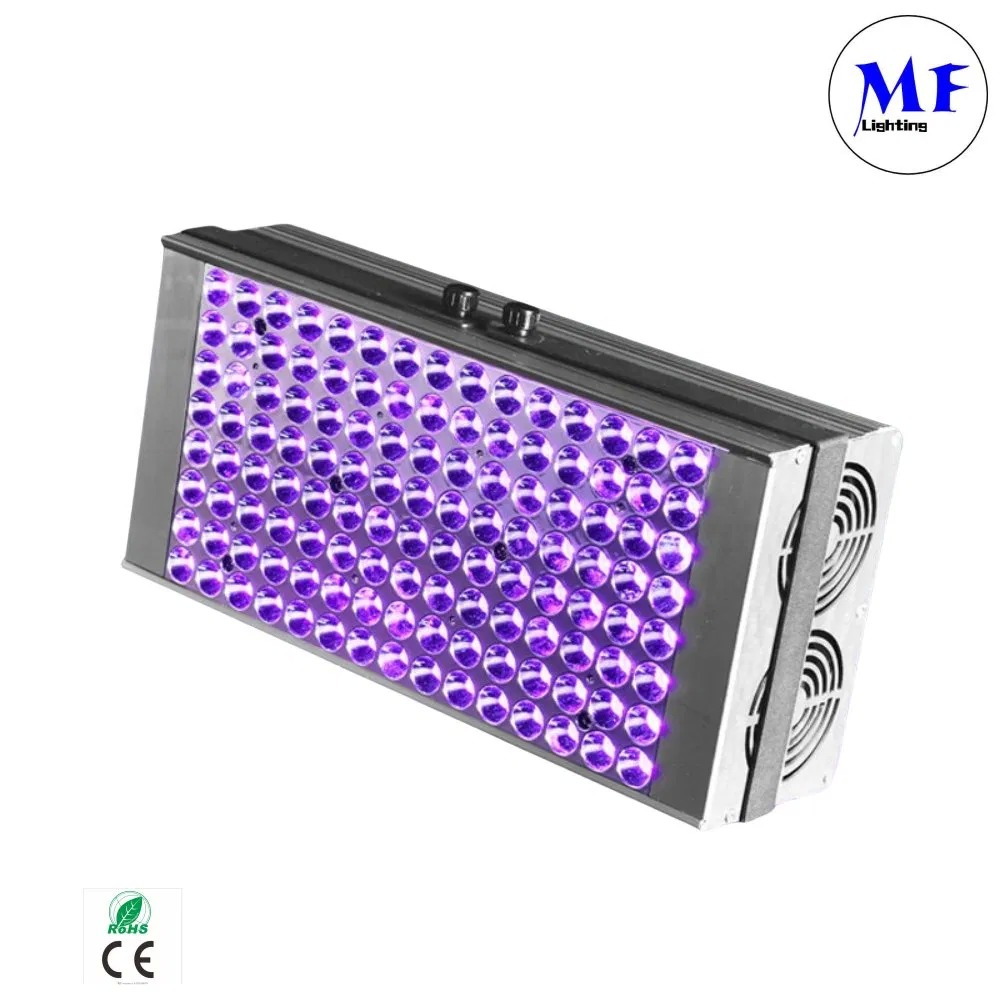

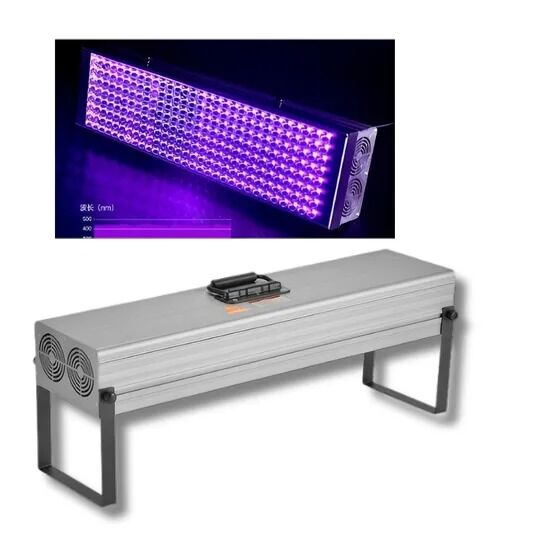

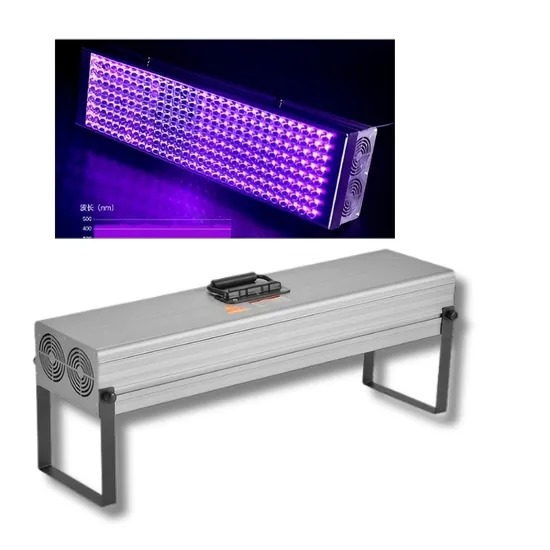

815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp
Professional UV LED curing lamp designed for 1-3 second instant curing on building panels and industrial coatings. Features high-efficiency mirror reflector technology and robust construction for demanding industrial applications.
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 0
Key Features
High-Efficiency Curing Performance
  • 1-3 second ultra-fast curing capability
  • High-power dual fan cooling system for stable performance
  • Compatible with various materials including 3D printing resin, acrylic, and glass
Robust Industrial Design
  • Cast aluminum alloy shell for impact and shock resistance
  • Surface sanding and painting for comfortable handling
  • Adjustable angle handheld device for flexible operation
Safety & Reliability
  • Wide power input range (AC100-265V)
  • CB and CE certified for safety compliance
  • 3-year comprehensive warranty
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 1
Technical Specifications
Specification Details
Catalogue Number MF-GHUV-60W/120W/200W/300W
Version Manual
Color Grey/White
Output Power LED 60W/120W/200W/300W
Light Source 120/240/360/LEDs/3535chip
Active Power 60W/120W/200W/300W
Power Supply 85-265 V AC 50/60Hz
Dimming Mode No
Temperature Range -10 to +45°C
Material PC + Aluminum
IP Rating IP43
Housing Warranty 36 Months
LED Lifetime 50,000 work hours
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 2
Advanced Technology Features

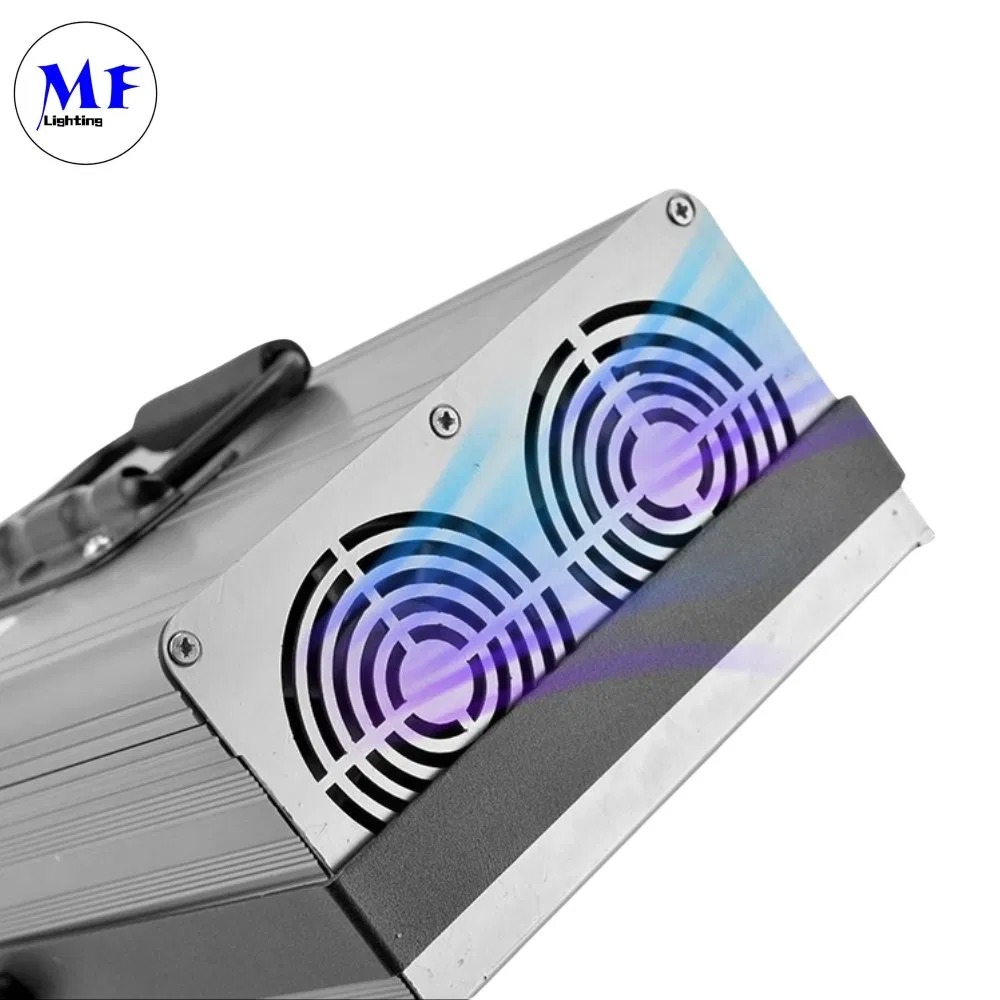

  • High-power dual fans for rapid cooling

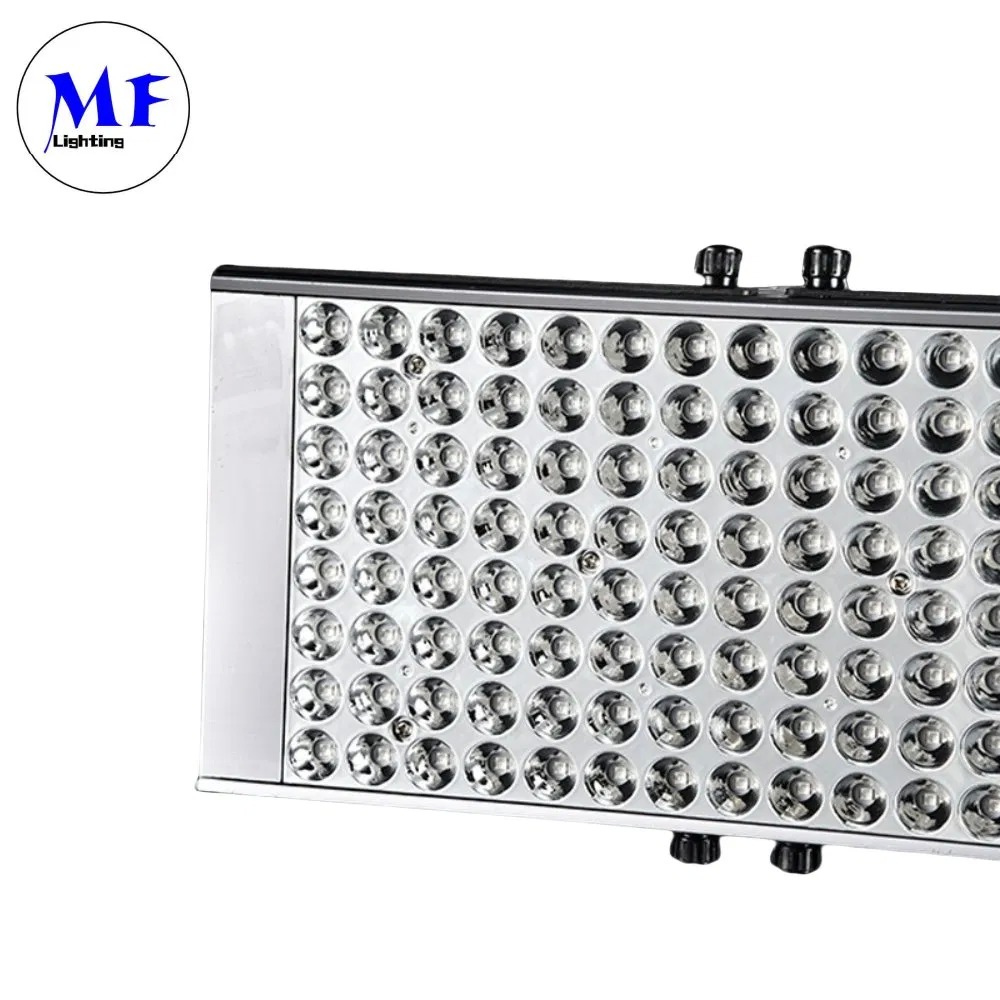

  • Mirror surface spotlight reflector cup
  • Concentrated energy output
  • Authentic wavelength accuracy
  • 1-3 second curing capability
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 3
Wavelength Applications
365NM Wavelength
  • Mobile phone screens and LCD screens
  • Car navigation screens
  • Green oil curing
  • LED UV paint
  • Welding and dispensing applications
395NM Wavelength
  • Acrylic and glass bonding
  • Traceless hook and shadowless glue applications
405NM Wavelength
  • Primarily for curing 3D printing resins
  • High precision model finishing
  • Rapid prototyping applications
Industrial Applications
3D Printing
Cures 405NM wavelength dedicated 3D printing resin with fast, uniform curing for high precision models.
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 4
Electronic Equipment Repair
Repair and replacement of mobile phones, LCD screens, car navigation systems, and LED UV coating applications.
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 5
Industrial Bonding
Streak-free bonding of acrylic and glass with fast shadowless adhesive curing for improved productivity.
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 6
Medical Equipment
Curing UV adhesive in medical devices and shadowless adhesive applications ensuring health and safety compliance.
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 7
Optical Product Manufacturing
Curing optical lenses and glass products with high energy concentration for precision optical components.
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 8
Packaging & Shipping
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 9 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 10
Company Profile
815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels Industrial Coatings 11
