Our high-power 60W, 120W, 200W, and 300W aluminum LED flood UV curing lights are available in 365nm, 395nm, and 405nm wavelengths, designed for industrial applications including triproof glue curing, speaker assembly, and wafer debonding processes.
UVLED technology offers energy-efficient, environmentally friendly curing solutions with precise power control, compact design, and customizable light source shapes for diverse industrial applications.
Robust Construction
The die-cast aluminum shell provides exceptional durability with drop-resistant, shock-resistant properties and fine craftsmanship. Surface grinding and painting treatments ensure comfortable handling and professional appearance.

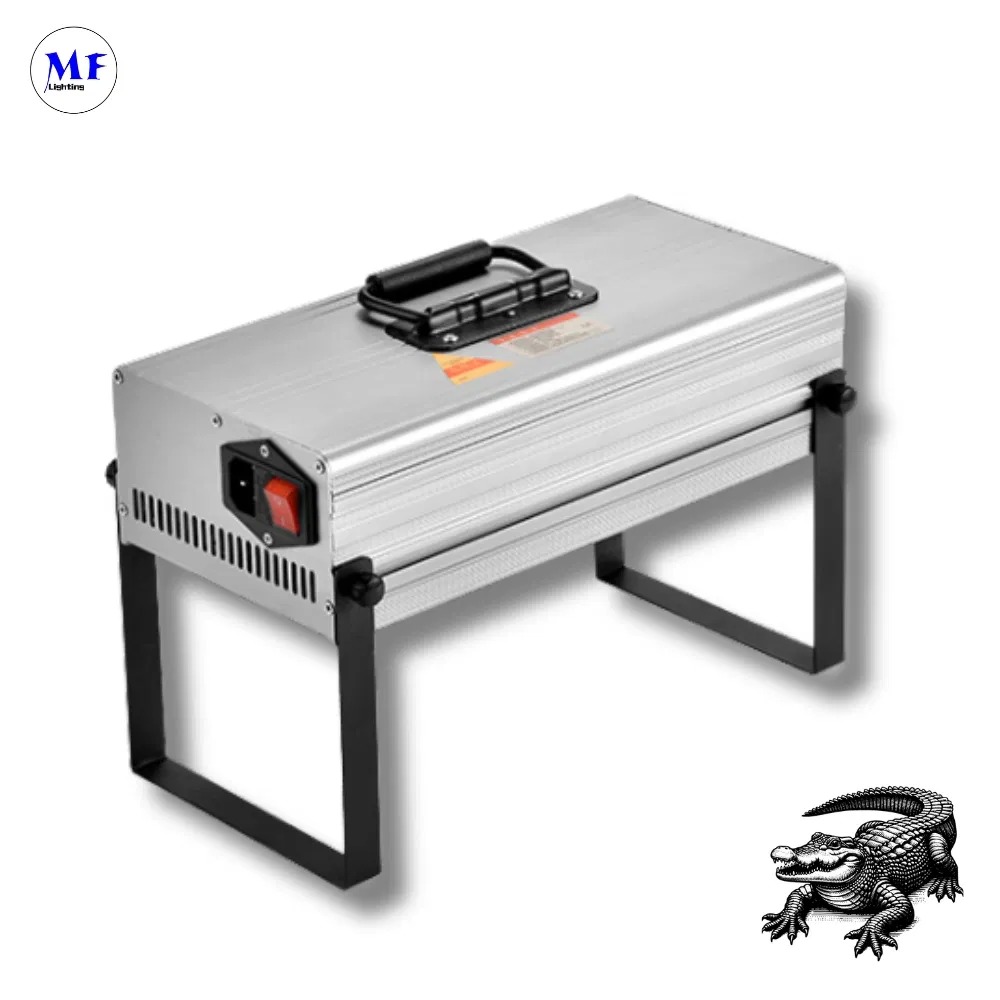

Portable design with adjustable stand and handheld functionality. Custom sizes available to meet specific application requirements.

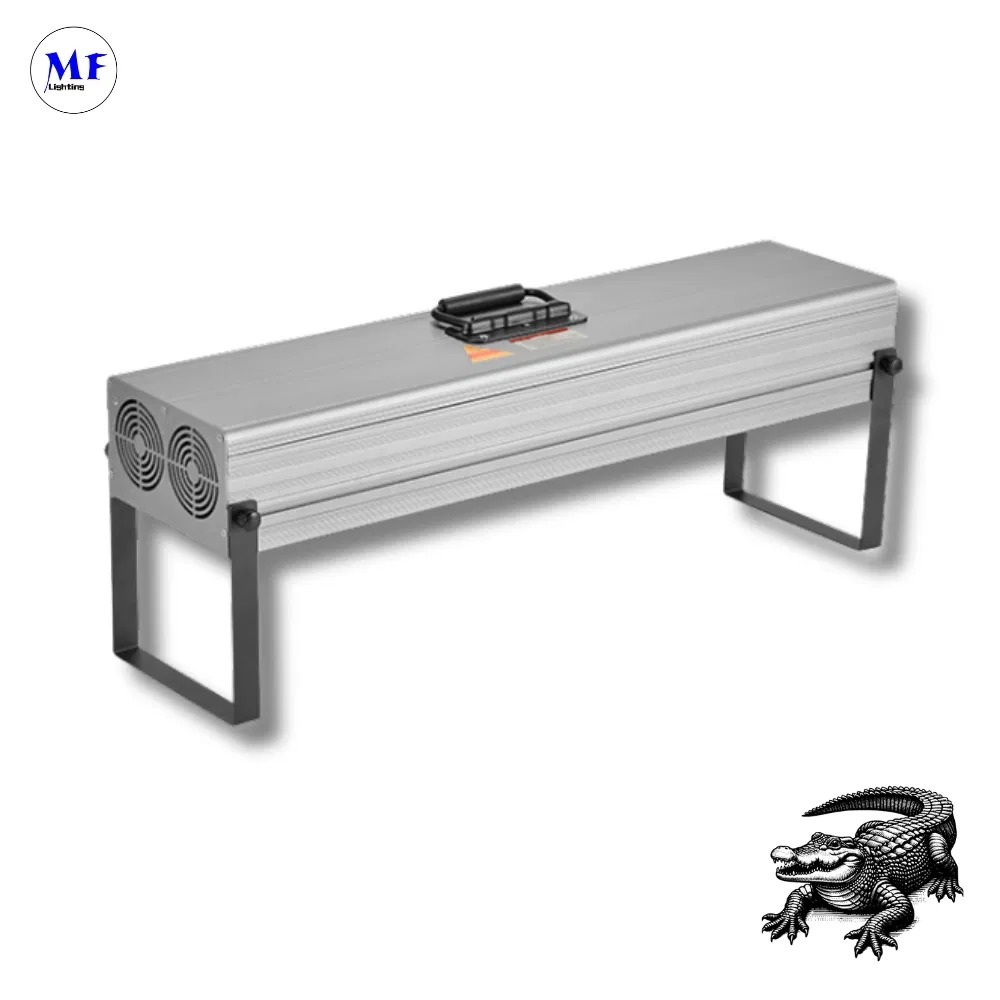

Built-in dual-fan radiator system provides efficient air cooling with high-performance operation.
Digital Printing Applications
Ideal for curing digital labels, pattern color spraying, and printing applications for 3C digital casings, mobile phone cases, cosmetic casings, handicraft glazing, clothing fabrics, leather materials, accessories, and small home appliance casings. Custom system solutions configured based on customer requirements.
Building Material Coating Applications
Specialized for instant curing of large-area surface paints, coatings, adhesives, and inks. UV characteristics provide superior surface gloss, weather resistance, abrasion resistance, water resistance, and acid/alkali resistance for panels, integrated wall panels, ceramic tiles, glass, furniture panels, wallboards, and composite panels.
Standard UVLED curing solutions typically measure approximately 1000mm in length.

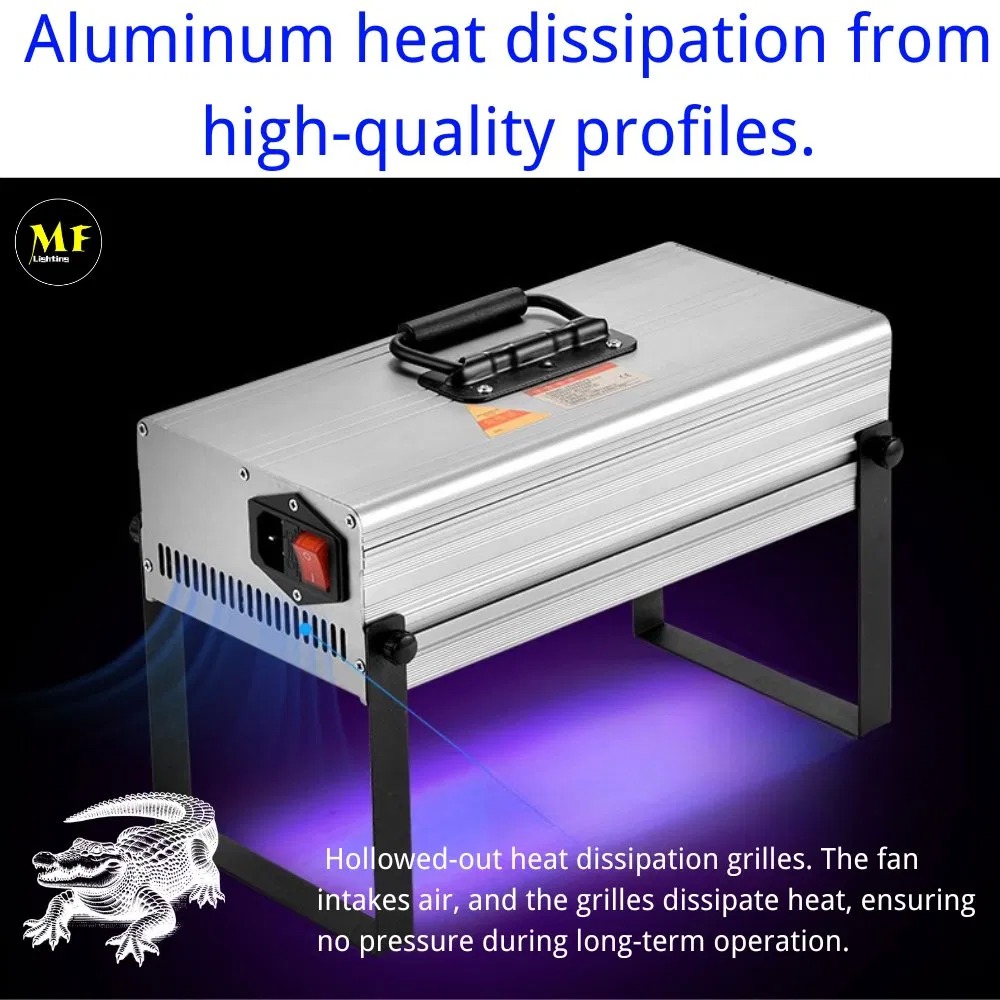

High-quality aluminum profiles ensure efficient heat dissipation. Hollowed-out grilles combined with fan intake create optimal cooling performance for long-term operation.
Performance Advantages
- Rapid curing in 1-3 seconds
- High intensity energy output
- Extended 50,000-hour LED lifespan
- Low energy consumption operation
Technical Specifications
| Catalogue Number |
MF-GHUV-60W/120W/200W/300W |
| Version |
Manual |
| Color |
Grey/White |
| Output |
LED 60W/120W/200W/300W |
| Light Source |
120/240/360/LEDs/3535chip |
| Active Power |
60W/120W/200W/300W |
| Power Supply |
85-265 V AC 50/60Hz |
| Temperature Range |
-10 to +45°C |
| Material |
PC + Aluminum |
| IP Rating |
IP43 |
| Housing Warranty |
36 Months |
| LED Lifetime |
50,000 work hours |
Wavelength Applications
- 365nm: Mobile phone screens, LCD screens, car navigation screens, green oil curing, LED UV paint, welding and dispensing
- 395nm: Acrylic, glass, traceless hook and shadowless glue bonding
- 405nm: Primarily used for curing 3D printing resins
Dimensions & Mounting
Industrial Applications
- Nail Salons: Fast curing of gel nail polish
- Dental Clinics: Curing dental resins, adhesives, and composites
- 3D Printing: Post-curing of resin-printed models
- Electronics Manufacturing: Bonding small electronic components with UV adhesives
- Medical Device Assembly: Bonding and sealing medical equipment parts
- Automotive Industry: Headlight assembly, repair, and protective film curing
- Optical Industry: Precision bonding of lenses and optical components
- Industrial Coatings: Curing UV-curable paints, coatings, and inks
- Jewelry Making: Setting UV resin and bonding small parts
- Prototyping & Model Making: Rapid curing of UV-sensitive materials
