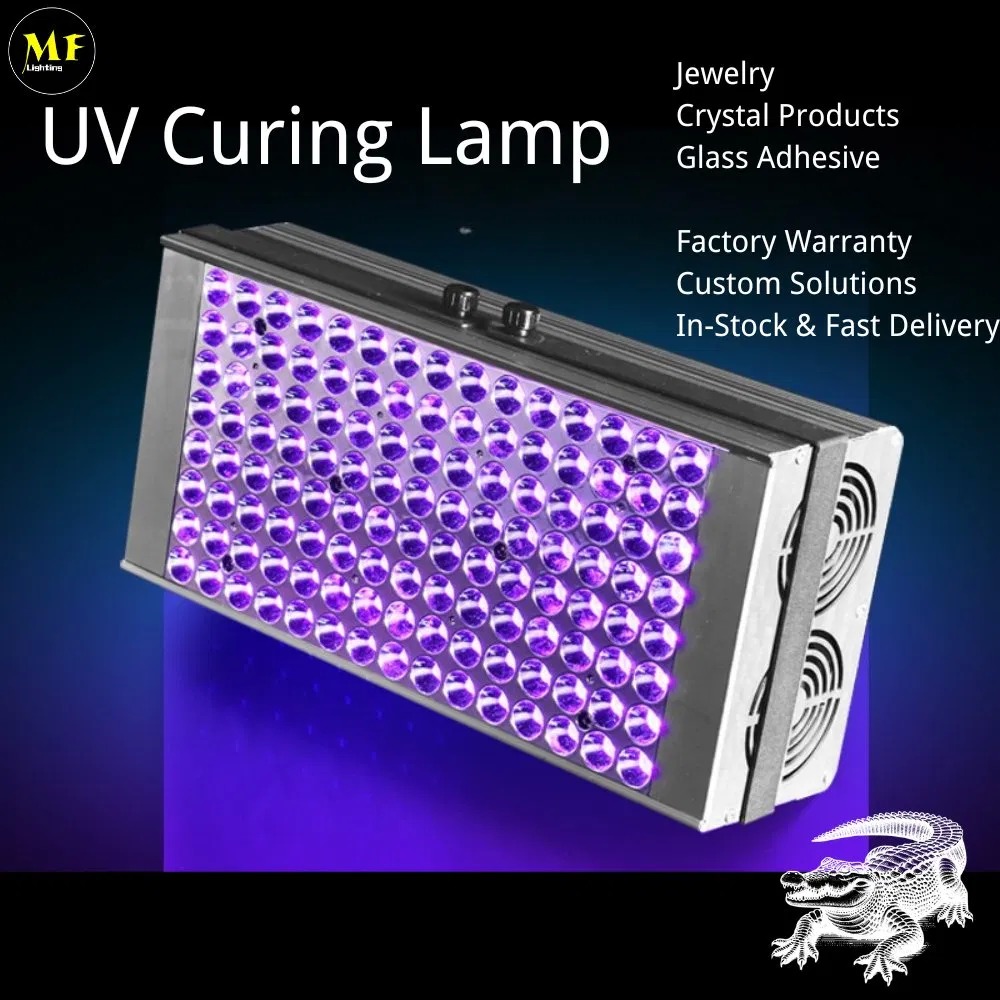

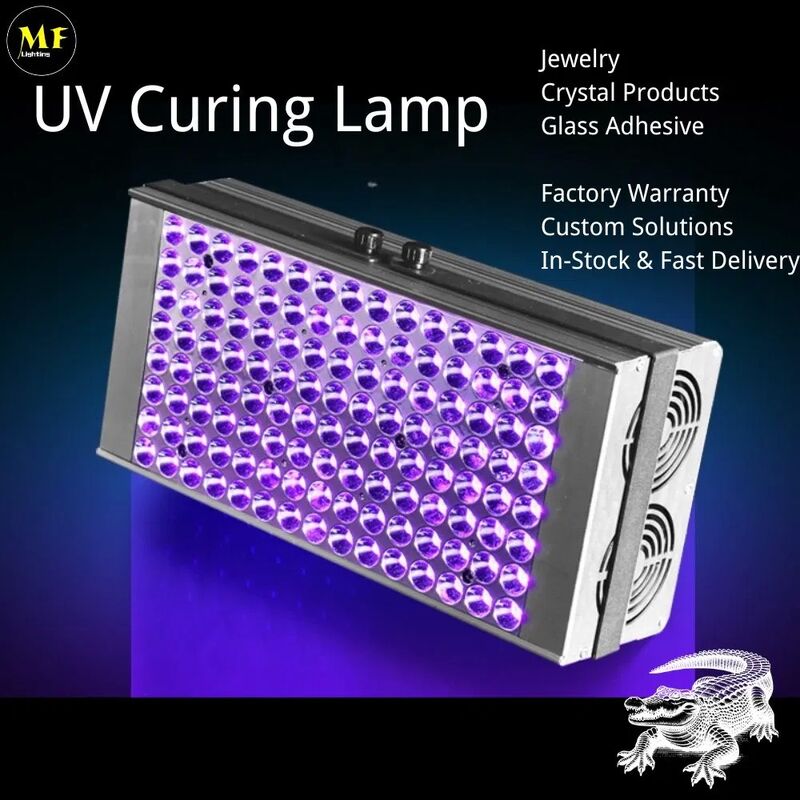

High Performance UV LED Curing Lamp
The MF-GHUV series LED curing lamps deliver professional-grade UV curing solutions with rapid 3-second curing capability. Engineered for industrial applications, these lamps feature advanced cooling systems and durable construction for reliable performance.
Key Advantages
- Fast Curing: Achieves complete curing in just 3 seconds for enhanced production efficiency
- High Power Options: Available in 60W, 120W, 200W, and 300W models
- Multi-Wavelength Support: 365NM, 395NM, and 405NM wavelengths for versatile applications
- Durable Construction: Die-cast aluminum housing for shock resistance and optimal heat dissipation
- Advanced Cooling: Dual high-speed fan system extends LED lifespan to 50,000 hours
- Flexible Operation: Hand-held and stand-mount options with adjustable height (50-110mm)
- Certified Safety: CB and CE certified with IP43 protection rating
- Customization Available: Logo engraving and pattern printing options
Technical Specifications
| Power | 60W |
| Dimensions | 308×148×86mm |
| Input Voltage | AC85-265V |
| LED Chip | 3535 120PCS |
| Warranty | 2 Years |
| Plug Options | CN/UK/US |
| Color | Grey/White |
| Output Power | 60W |
| Power Supply | 85-265V AC 50/60HZ |
| Temperature Range | -10 to +45°C |
| Housing Material | PC + Aluminum |
| IP Rating | IP43 |
| Housing Warranty | 36 months |
| LED Lifetime | 50,000 work hours |
Product Features
Robust Construction
The shell is manufactured from high-quality die-cast aluminum, providing exceptional drop resistance, shock resistance, and precision engineering. The housing maintains structural integrity under external forces and features surface grinding and painting for comfortable handling.

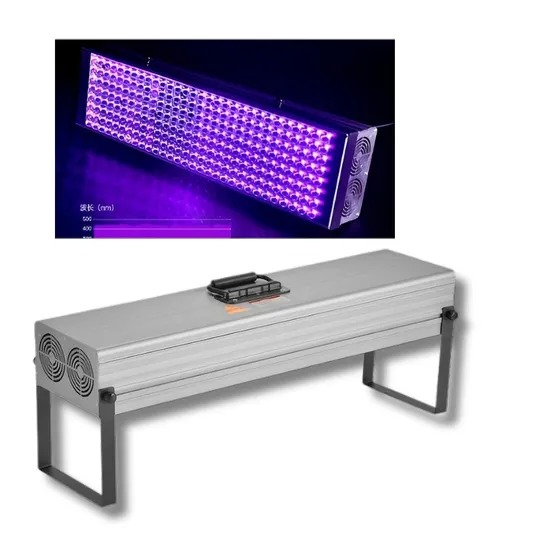

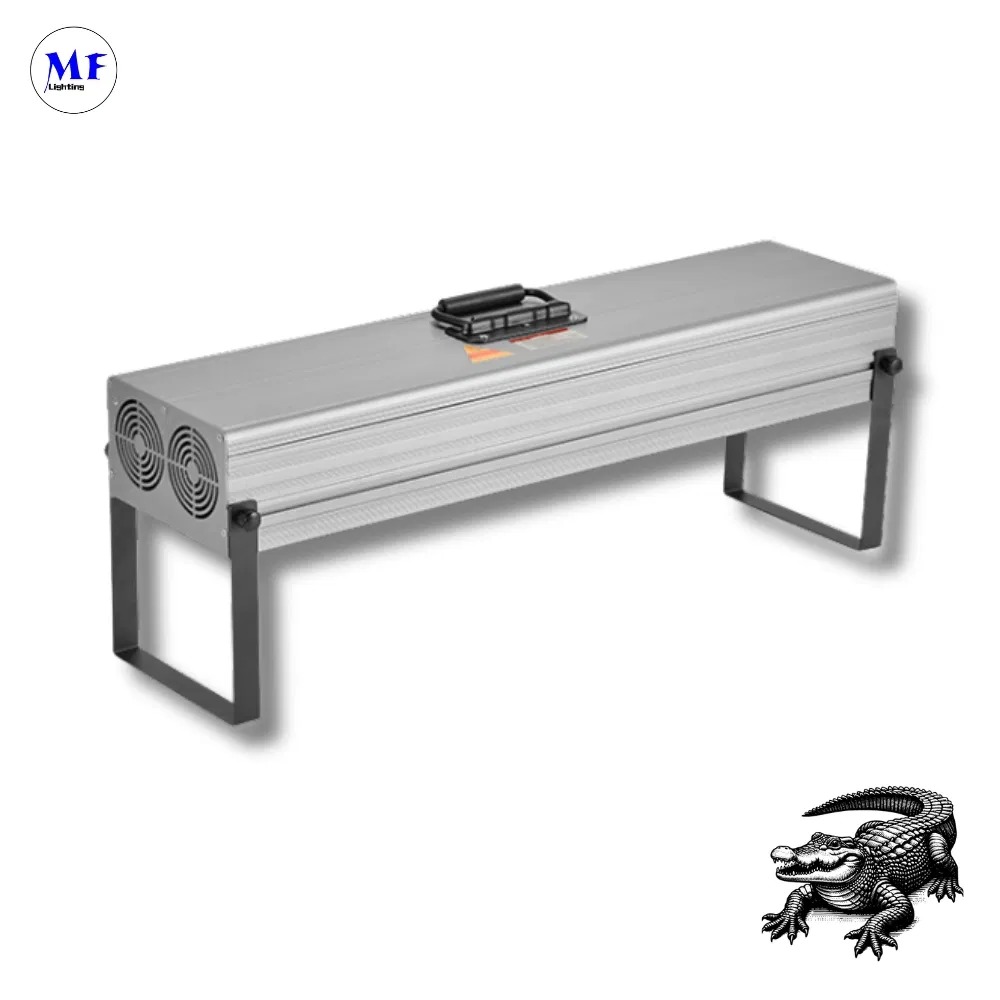

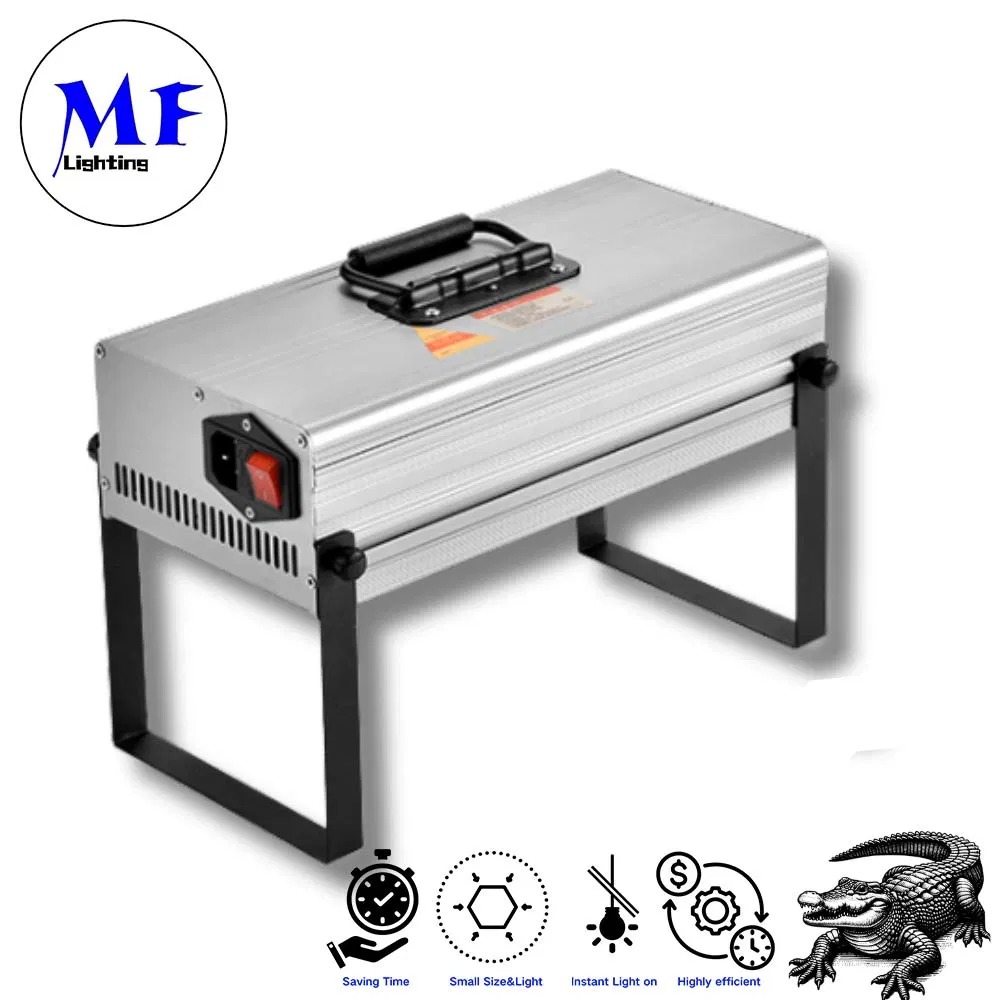

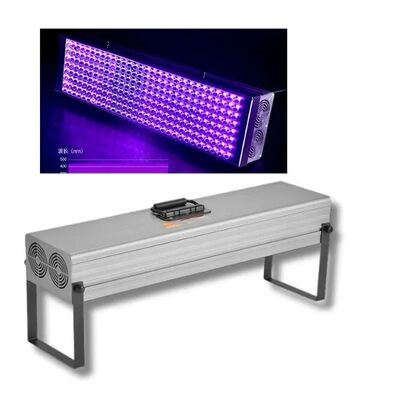

Portable hand-held design with adjustable stand functionality. Custom sizing available to meet specific application requirements.
Integrated dual-fan radiator system provides high-efficiency air cooling with superior rotational speed for optimal thermal management.
Application Areas
Building Material Coating
Ideal for instant curing of large-area surface paints, coatings, adhesives, and inks. UV curing technology provides exceptional surface gloss, weather resistance, abrasion resistance, water resistance, and acid/alkali resistance for panels and surfaces. Widely used in integrated wall panels, ceramic tiles, glass, furniture panels, wallboards, and composite panels.
Industrial Production
Instant curing for industrial adhesives and resins in electronics manufacturing. Rapid drying solution for 3D printing and automotive coatings.
Security Verification
Banknote authentication and document verification for financial institutions. Forensic evidence examination for law enforcement agencies.
Entertainment Lighting
Dynamic UV effects for concerts, nightclubs and stage performances. Special lighting for theme parks and immersive experiences.
Art & Design
Creation of fluorescent artworks and glow-in-dark installations. Special effects for photography and creative projects.
Scientific Research
Laboratory specimen analysis using fluorescence technology. UV sterilization verification in medical environments.
Retail Display
Product authentication for luxury goods and cosmetics. Eye-catching UV visual merchandising displays.
Packaging & Shipping
Certifications
Company Profile
Frequently Asked Questions
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
