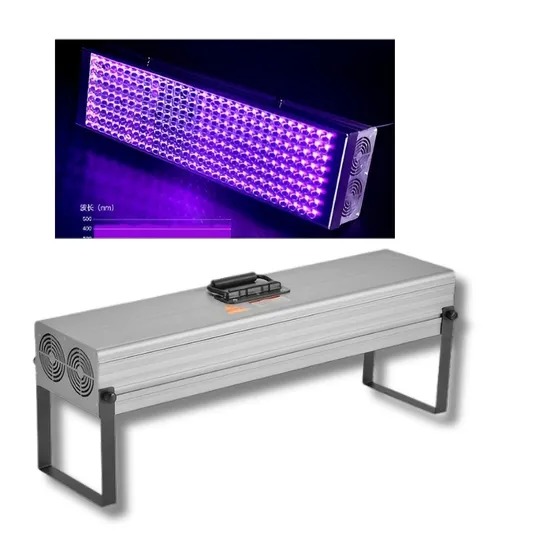

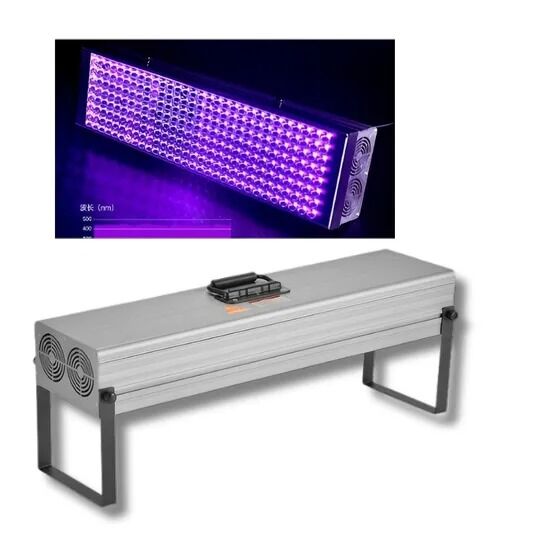

Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation
Contact Now

Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation

Minimum Order Quantity : 1 Price : 105
Certification: CE

Detail Information
Model NO.: MF-GHUV-200W Dimensions: 308*148*86mm, 560*148*86mm
Material: Alu+PC Output Power: 200W
Light Source: 120/240/360/LEDs/3535chip Active Power: 200W
Power Supply: AC85-265V 50/60Hz Temperature Range: -10-+45°C
IP Rating: 43 LED Lifetime: 50,000 Work Hours
Power Factor: ≥0.9 Transport Package: 680*208*155mm
Height Adjustment: 0~110mm Cooling System: Dual-Fan
Curing Time: 1-3 Seconds
Highlight:

Heavy-Duty UV LED curing lamp

,

Height-adjustable UV curing lamp

,

Dual-fan cooling UV lamp

Product Description

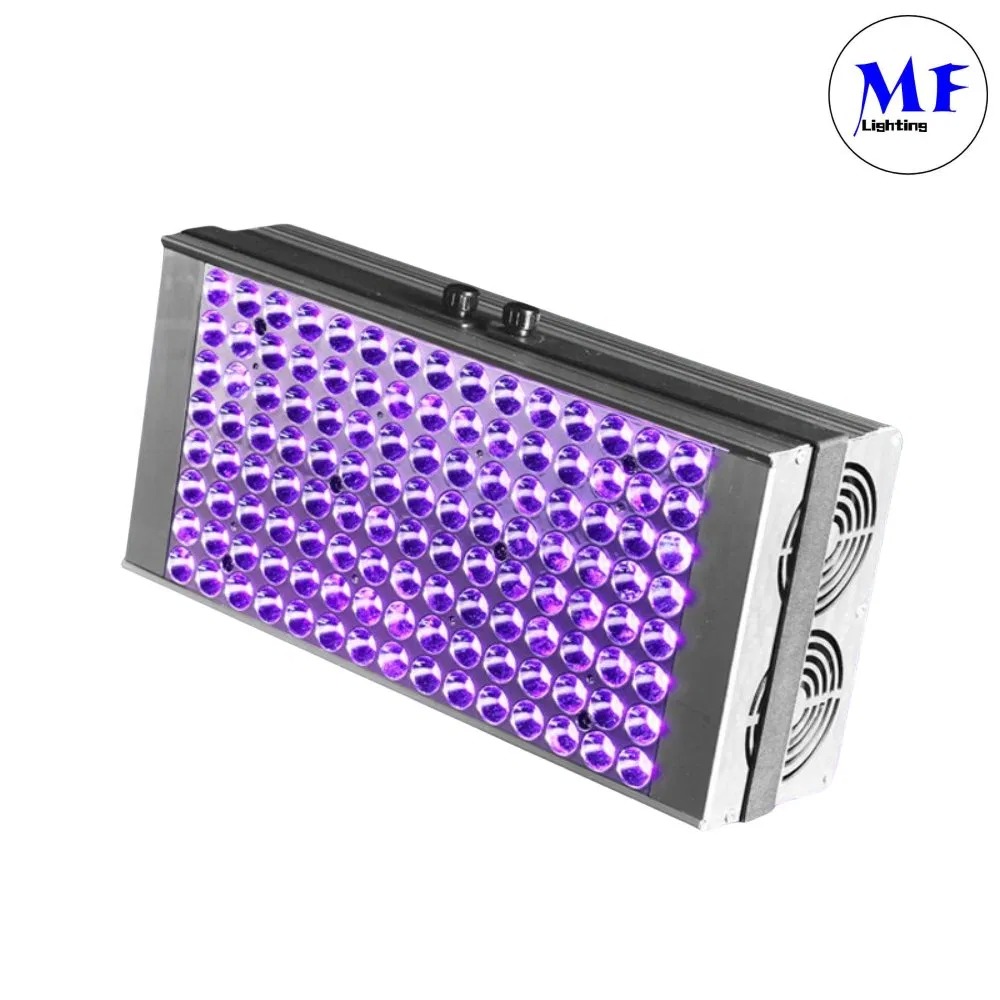

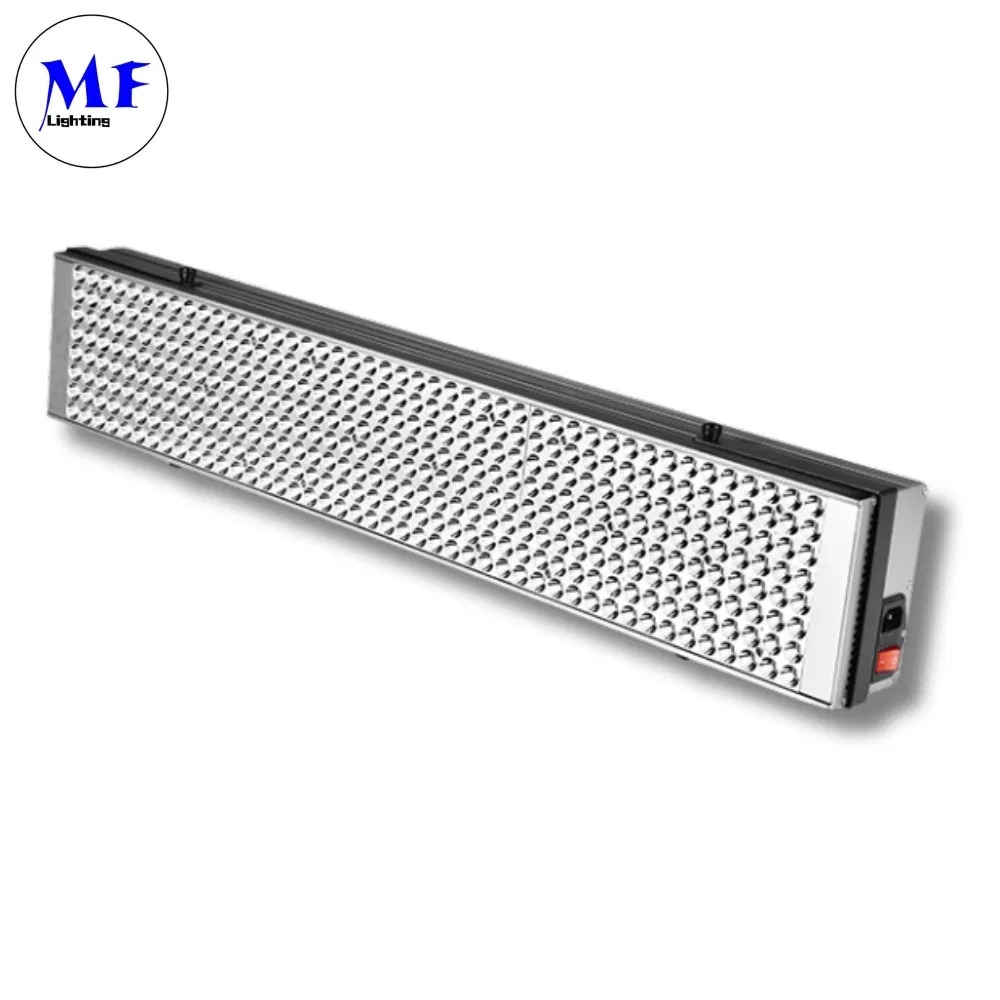

Heavy-Duty CE CB Certified 200W UV LED Curing Lamp
Professional-grade 0~110mm height-adjustable frame with dual-fan cooling system designed for factory automation applications.
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 0
Key Features
Highly Efficient Curing
  • 1-3 seconds fast curing capability
  • High-power dual-fan cooling for stable performance
  • Suitable for various materials including 3D printing resin, acrylic, and glass
Sturdy Design
  • Casting aluminium alloy shell, fall-proof and shock-resistant
  • Surface sanding and painting for comfortable handling
  • Adjustable angle handheld device for flexible operation
Convenient & Safe Operation
  • Wide power input range (AC100-265V)
  • Complies with CB and CE certification standards
  • 3-year comprehensive warranty
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 1
Technical Specifications

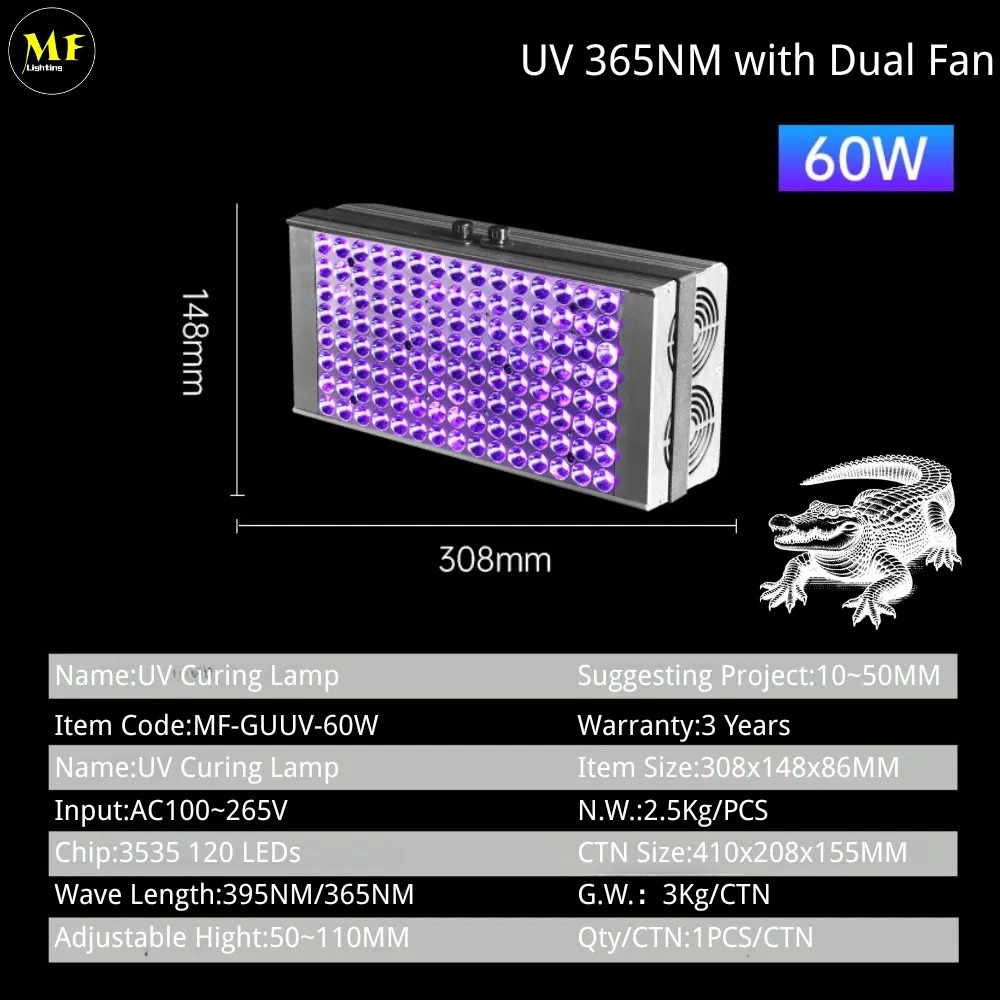

Catalogue number MF-GHUV-60W/120W/200W/300W
Version Manual
Color Grey/White
Output LED 60W/120W/200W/300W
Light Source 120/240/360/LEDs/3535chip
Active power 60W/120W/200W/300W
Power supply 85-265 V AC 50/60Hz
Temperature range -10 to +45°C
Material PC+Aluminium
IP Rating IP43
Housing Warranty 36 Months
LED lifetime 50,000 work hours
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 2 Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 3

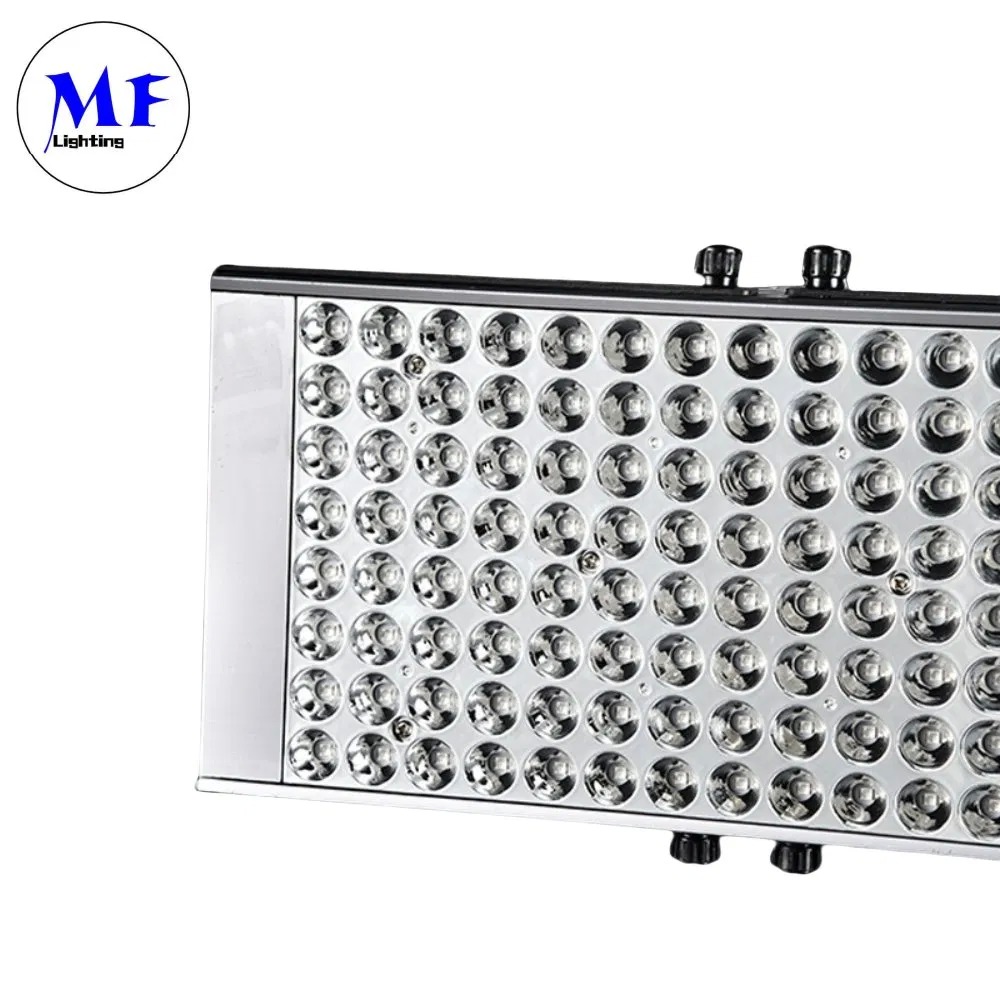

Advanced Technology Features
  • High-power dual fans for rapid cooling
  • Mirror surface spotlight reflector cup
  • Concentrated energy output
  • Authentic wavelength accuracy
  • 1-3 second curing capability
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 4
Wavelength Applications
365NM Wavelength: Mobile phone screens, LCD screens, car navigation screens, green oil curing, LED UV paint, welding and dispensing.
395NM Wavelength: Acrylic, glass, traceless hook and shadowless glue bonding.
405NM Wavelength: Primarily used for curing 3D printing resins.
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 5 Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 6 Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 7 Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 8 Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 9 Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 10
Industrial Applications
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 11
3D Printing
Cures 405NM wavelength dedicated 3D printing resin with fast and uniform curing effect, suitable for high precision 3D printing models.
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 12
Electronic Equipment Repair
Repair and replacement of mobile phones, LCD screens, car navigation screens, green oil curing, LED UV coating and soldering applications.
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 13
Industrial Bonding
Streak-free bonding of acrylic and glass with fast bonding using shadowless adhesive, improving bonding quality and productivity.
Medical Equipment
Curing UV adhesive in medical devices and application of shadowless adhesive, ensuring health and safety of medical products.
Optical Product Manufacturing
Curing optical lenses and glass products with high energy concentration, suitable for manufacturing precision optical components.
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 14
Packaging & Shipping
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 15
Company Profile
Heavy-Duty CE CB Certified 200W 0~110mm Height-Adjustable Frame Dual-Fan Cooling UV LED Curing Lamp for Factory Automation 16
