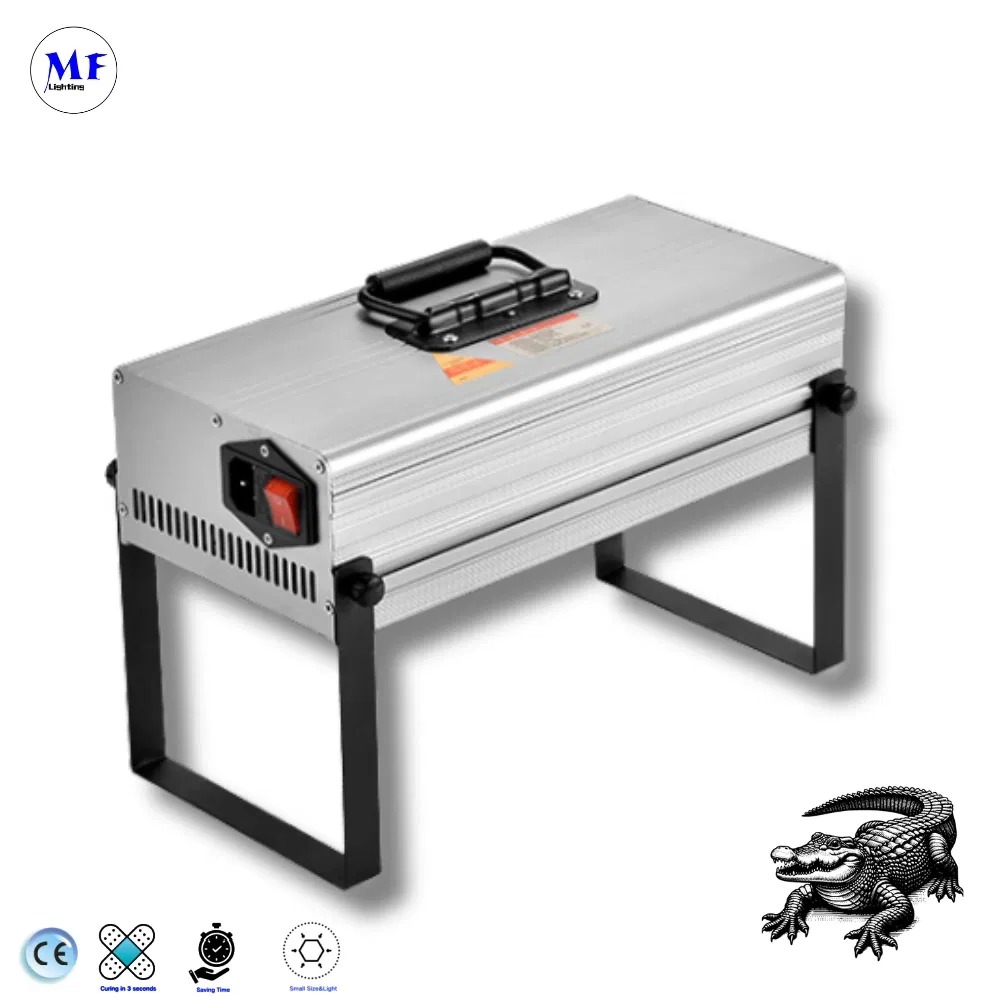

120W Heavy-Duty UV LED Curing Light
Factory-priced industrial-grade UV LED curing system with 3535-chip technology, designed for building coatings and furniture panel applications.
Technical Specifications
| Catalogue Number | MF-GHUV-120W |
| Version | Manual |
| Color | Grey/White |
| Output | LED 120W |
| Light Source | 3535-240PCS Chip |
| Active Power | 120W |
| Power Supply | 85-265 V AC 50/60Hz |
| Dimming Mode | No |
| Temperature Range | -10 to +45°C |
| Material | PC + Aluminum |
| IP Rating | IP43 |
| Housing Warranty | 36 Months |
| LED Lifetime | 50,000 work hours |
Product Features
- Europe and United States hot models with CB CE certification
- Patented product design with customization options
- Whole picture printing laser engraving capability
- Multiple mounting options: hanging, wall, ceiling, side
- Available wavelengths: 395NM, 365NM, 405NM
- Customized LOGO available for small orders
Core Performance Features
- Ultra-Fast Curing: 3535-chip LEDs achieve curing in 1-3 seconds
- Dual-Fan Cooling: High-speed fans with aluminum housing ensure optimal heat dissipation
- Multi-Wavelength: 365NM (electronics), 395NM (acrylic bonding), 405NM (3D printing resin)
- Industrial Durability: Die-cast aluminum body with anti-drop and anti-shock properties
- Flexible Mounting: Adjustable stand and handheld design for versatile applications
- Global Voltage: AC100~265V input compatible with international power standards
Key Advantages
- Energy Saving: 60W~300W options with 50% lower energy consumption than traditional lamps
- Long Lifespan: 50,000-hour LED lifespan with 36-month housing warranty
- Precision Wavelength: Mirror reflector concentrates UV energy for consistent output
- Plug-and-Play: Instant full-power operation, no warm-up time required
- Customization: Laser engraving and LOGO printing available for branding

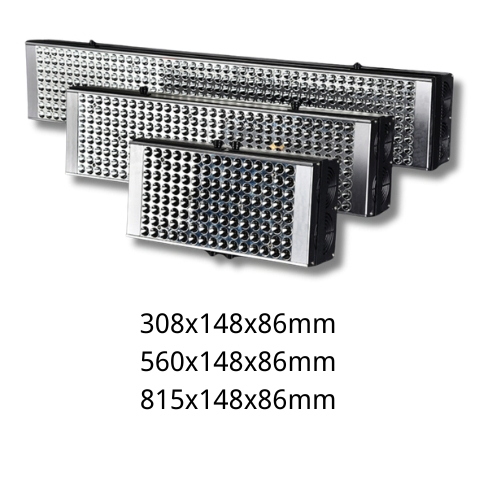

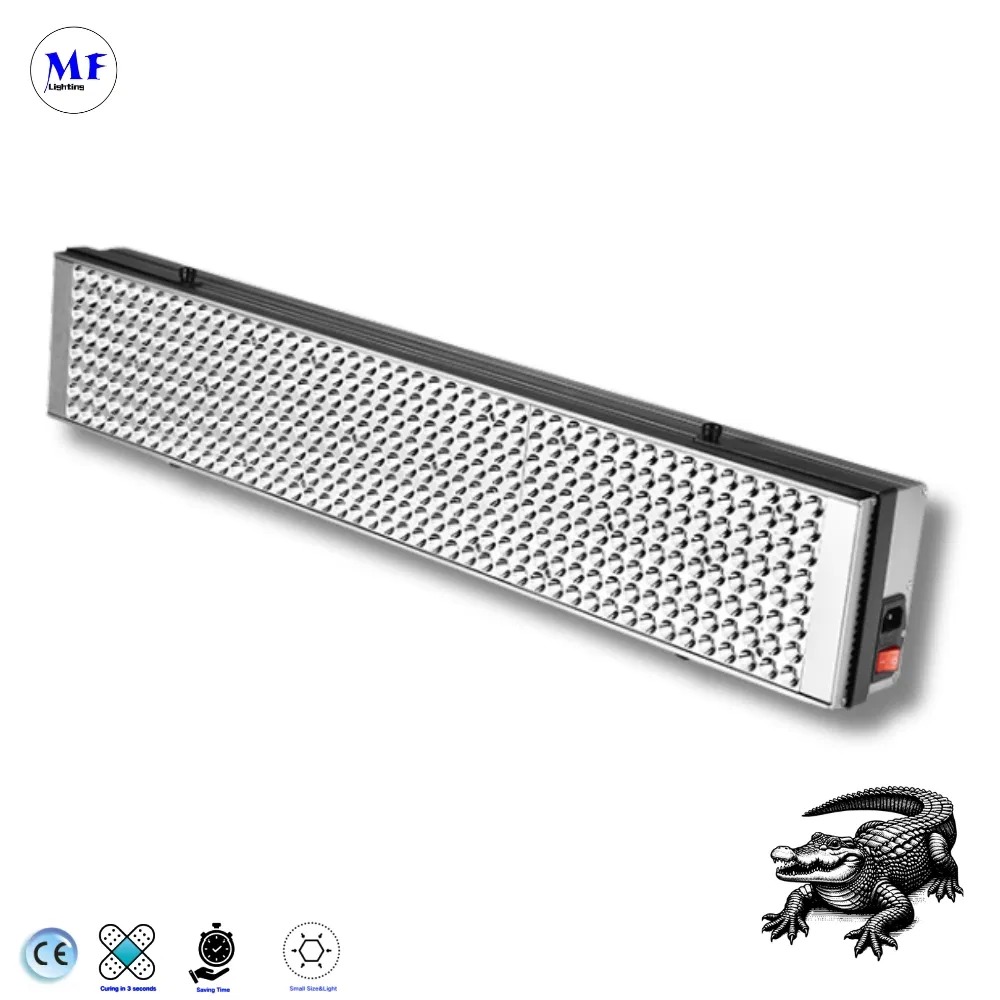

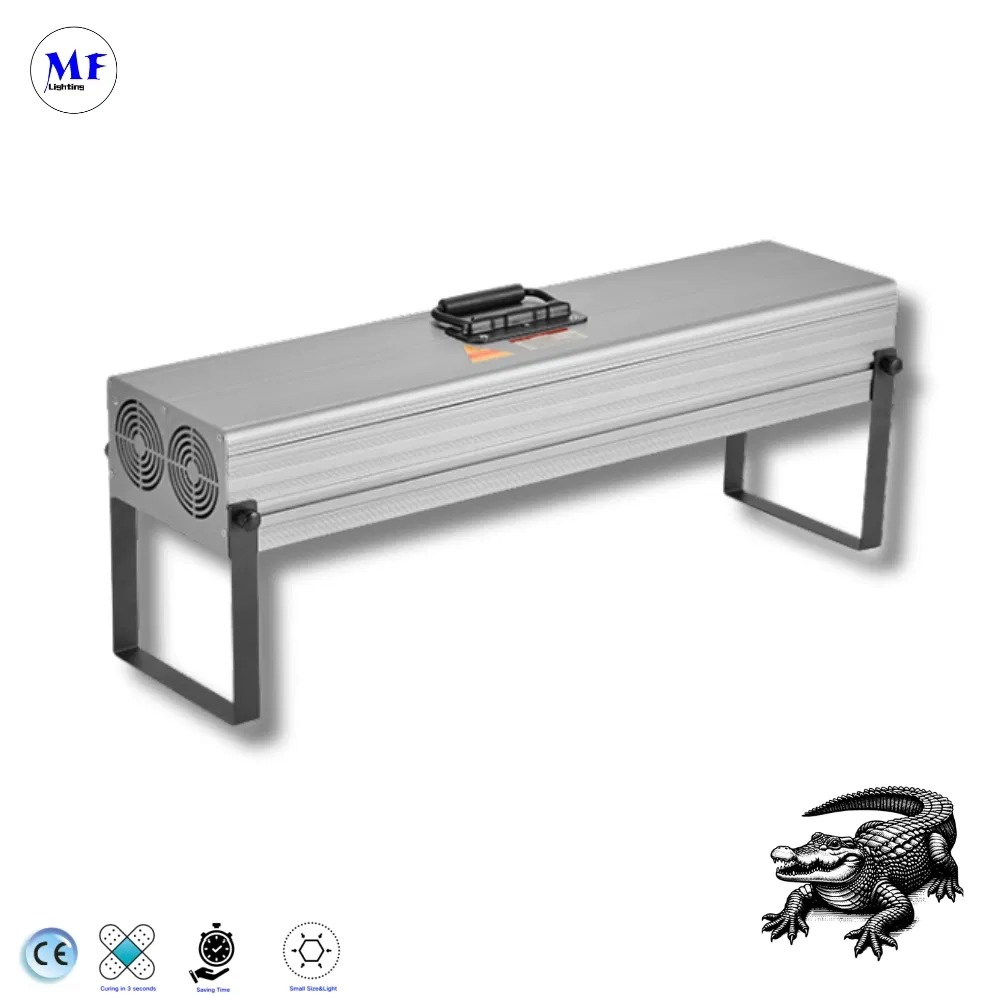

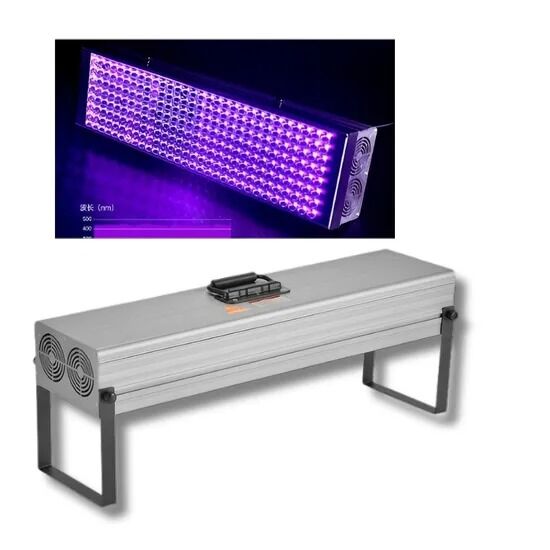

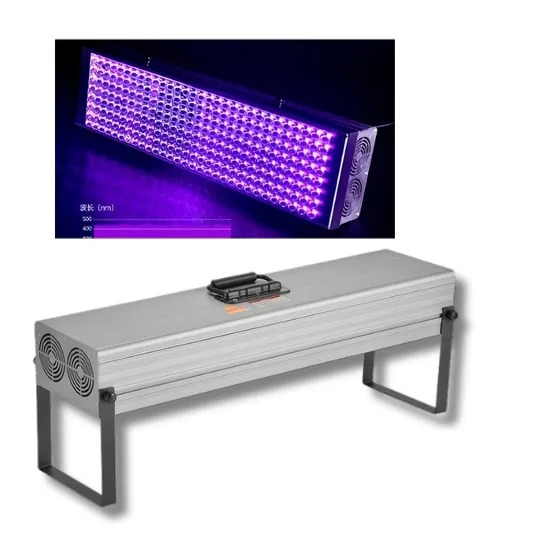

Detailed Product Photos
Industrial Applications
- Electronics Manufacturing: Curing UV glue for smartphone screens and camera modules
- Automotive Industry: Fast-curing navigation screen coatings and interior UV paints
- 3D Printing: 405NM wavelength ensures smooth resin curing for rapid prototyping
- Construction: UV coatings for wall panels and tiles enhance durability and aesthetics
- Medical Devices: Sterile bonding and fluorescent agent detection
- Printing & Packaging: Instant drying of UV inks for premium packaging
Technical Advantages
UVLED technology represents the next generation of UV curing light sources, offering significant technical advantages that meet modern energy conservation and environmental protection requirements. With low production and use costs, precise power control, and adaptability to various user environments, these systems provide convenient adjustability, compact size, and customizable light source shapes for diverse industrial applications.
The system covers numerous industrial assembly applications including PCB, LCD, electronics, plastics, footwear, glass, building material coating, handicraft glazing, printing plate making, ink drying, medical physiotherapy, aging experiments, optical catalysis, optical repair, fluorescence analysis, and fluorescent flaw detection.
Wavelength Functionality
Short wavelengths work on surface applications, while long wavelengths penetrate deep layers of inks or coatings for comprehensive curing.
Building Material Coating Applications
Primarily used for instant curing of large-area surface paints, coatings, adhesives, and inks. UV curing imparts gorgeous surface gloss, weather resistance, abrasion resistance, water resistance, acid and alkali resistance, and other high-strength curing protections to panels and surfaces. Widely applied to flat coatings for integrated wall panels, ceramic tiles, glass, furniture panels, wallboards, and composite panels.
Packaging & Shipping
Frequently Asked Questions
Q1: Are you a factory or a trading company? Where is your company located?
A1: We are 100% a factory, not a trading company. Our company is located in Dongguan, between Shenzhen and Hongkong Guangzhou, China.
Q2: How about the lead time of LED Linear High Bay Light?
A2: 3-7 days for sample order, 15-25 days for mass production order based on order quantities.
Q3: Can I have a sample order for LED Tri-proof Light?
A3: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.
Q4: How do you ship the finished production?
A4: By SEA, AIR or Express (DHL, UPS, Fedex, TNT, etc) are optional.
