UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles
Contact Now

UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles

Minimum Order Quantity : 1 Price : 105
Certification: CE

Detail Information
Model Number: MF-GHUV-200W Dimensions: 308*148*86mm, 560*148*86mm
Material: Alu+PC Output Power: 200W
Light Source: 120/240/360/LEDs/3535chip Active Power: 200W
Power Supply: AC85-265V 50/60Hz Temperature Range: -10-+45°C
IP Rating: 43 LED Lifetime: 50,000 Work Hours
Power Factor: ≥0.9 Transport Package Size: 680*208*155mm
Curing Time: 1-3 Seconds Wavelength Suitability: 365NM, 395NM, 405NM
Cooling System: High-power Dual Fans
Highlight:

UV curing machine lamp for wall panels

,

360-LED UV building coating lamp

,

200W UV lamp with IP43 resistance

Product Description

UV Curing Machine Lamp with 50K-Hour Lifespan
Professional 200W UV curing lamp featuring 360-LED engine, IP43 dust and water resistance, and exceptional 50,000-hour lifespan. Ideal for wall panels, tiles, and various industrial applications.
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 0
Key Features
Highly Efficient Curing
  • 1-3 seconds fast curing capability
  • High-power dual fan cooling for stable performance
  • Suitable for various materials including 3D printing resin, acrylic, and glass
Sturdy Design
  • Casting aluminium alloy shell for fall-proof and shock-resistant construction
  • Surface sanding and painting for comfortable handling
  • Adjustable angle handheld device for flexible operation
Convenient and Safe Operation
  • Wide power input range (AC100-265V)
  • Complies with CB and CE certification standards
  • 3-year comprehensive warranty
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 1
Technical Advantages
Superior Curing Performance
  • Complete curing within 3 seconds for maximum efficiency
  • Compatible with wide range of materials including 3D printing resin, acrylic, and glass
  • High-power dual-fan cooling ensures continuous stable operation
Durable Construction
  • Casting aluminium alloy shell provides exceptional durability and drop resistance
  • Precision surface treatment for comfortable grip and wear resistance
  • Angle-adjustable handheld design for flexible and convenient use
Safety and Reliability
  • Wide voltage input (AC100-265V) for versatile application
  • CB and CE certified for safe and reliable operation
  • 3-year warranty for worry-free after-sales service
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 2 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 3
Technical Specifications
Specification Details
Catalogue Number MF-GHUV-60W/120W/200W/300W
Version Manual
Color Grey/White
Output LED 60W/120W/200W/300W
Light Source 120/240/360 LEDs with 3535 chip
Active Power 60W/120W/200W/300W
Power Supply 85-265 V AC 50/60Hz
Temperature Range -10°C to +45°C
Material PC + Aluminum
IP Rating IP43
Housing Warranty 36 Months
LED Lifetime 50,000 work hours
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 4
Advanced Technology Features

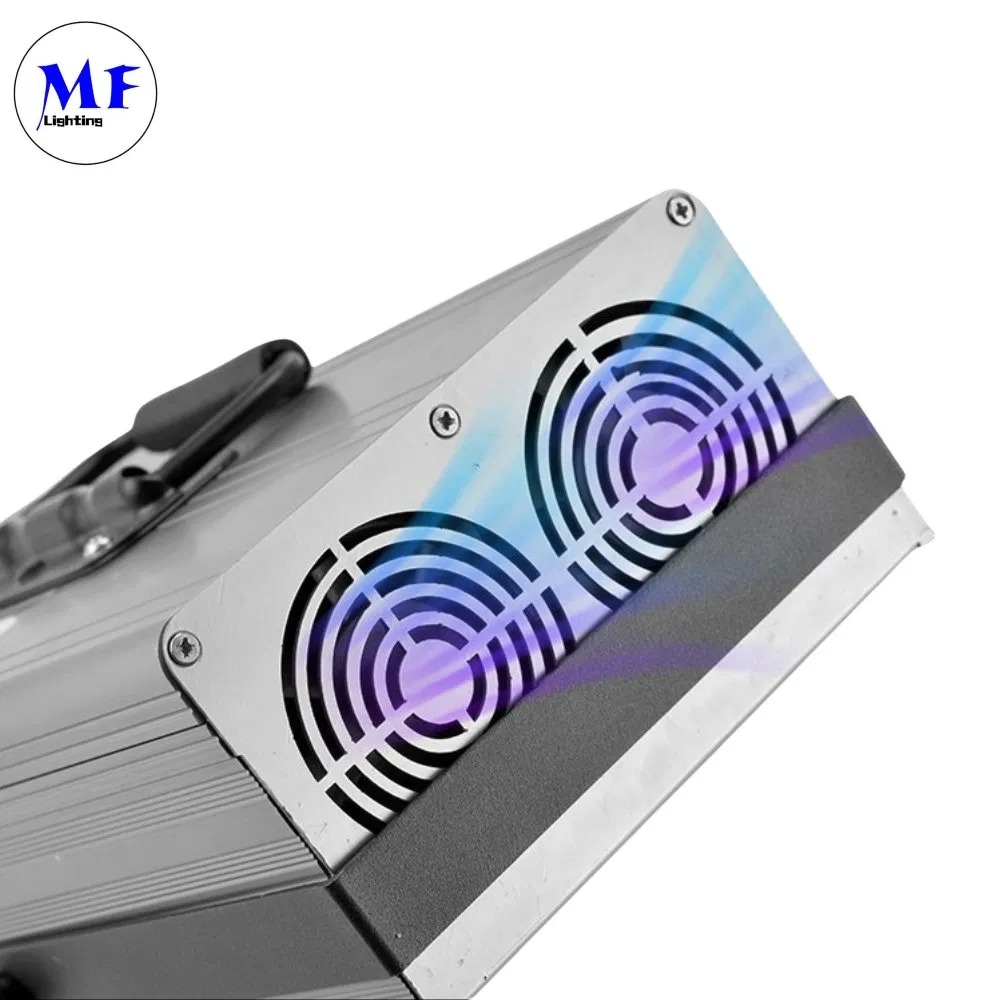

  • High-power dual fans for rapid cooling
  • Mirror surface spotlight reflector cup
  • Concentrated energy distribution
  • Authentic wavelength accuracy
  • 1-3 second curing capability
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 5 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 6 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 7
Wavelength Compatibility
  • 365NM wavelength: Mobile phone screens, LCD screens, car navigation screens, green oil curing, LED UV paint, welding and dispensing
  • 395NM wavelength: Acrylic, glass, traceless hook and shadowless glue bonding
  • 405NM wavelength: Primarily used for curing 3D printing resins
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 8 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 9 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 10 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 11 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 12 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 13 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 14 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 15
Industrial Applications
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 16
3D Printing
Cures 405NM wavelength dedicated 3D printing resin with fast and uniform curing effect, ideal for high precision 3D printing models.
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 17
Electronic Equipment Repair
Perfect for repairing and replacing mobile phones, LCD screens, curing car navigation screens and green oil, suitable for LED UV coating and soldering applications.
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 18
Industrial Bonding
Enables streak-free bonding of acrylic and glass with fast bonding using shadowless adhesive, improving bonding quality and productivity.
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 19
Medical Equipment
Ideal for curing UV adhesive in medical devices, suitable for shadowless adhesive applications in medical equipment, ensuring health and safety compliance.
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 20
Optical Product Manufacturing
Excellent for curing optical lenses and glass products with high energy concentration curing effect, suitable for precision optical component manufacturing processes.
Packaging & Shipping
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 21 UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 22
Company Profile
UV Building Coating 50K-Hour Lifespan 360-LED Engine IP43 Dust Water Resistance 200W Curing Machine Lamp for Wall Panels Tiles 23
