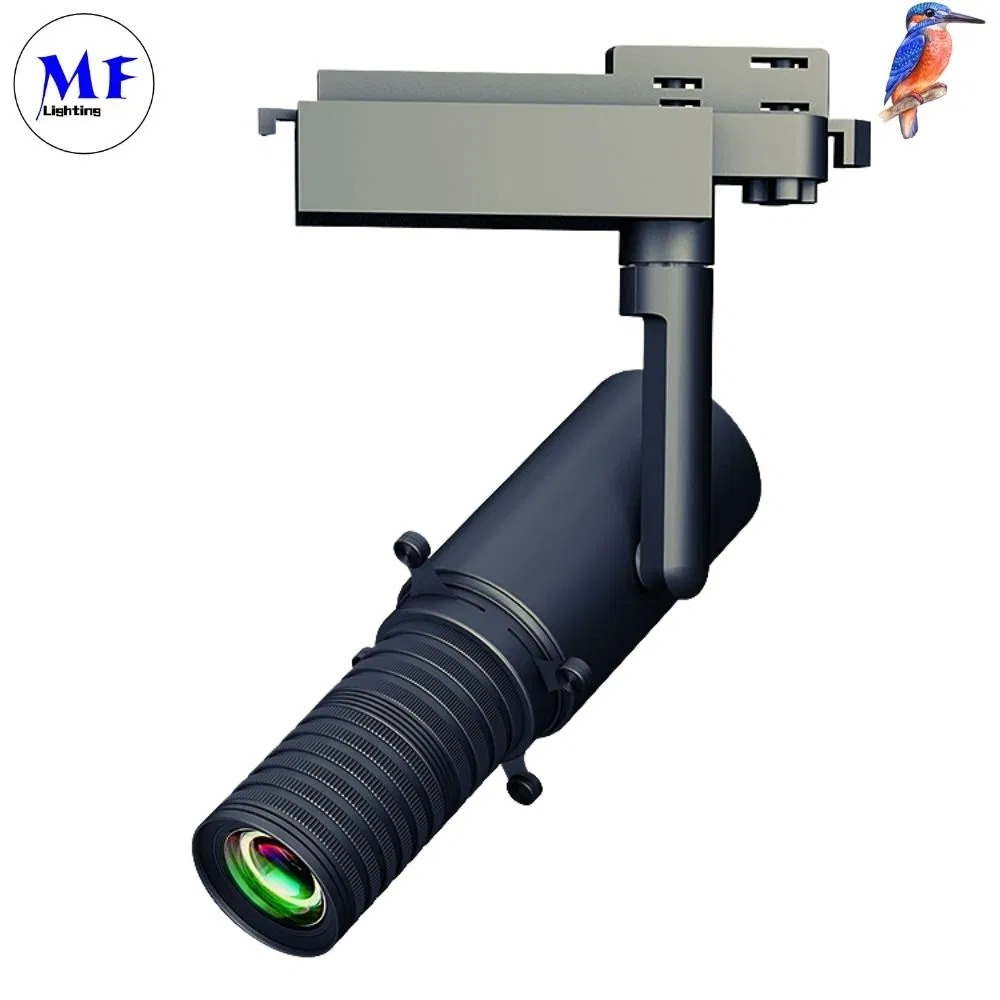

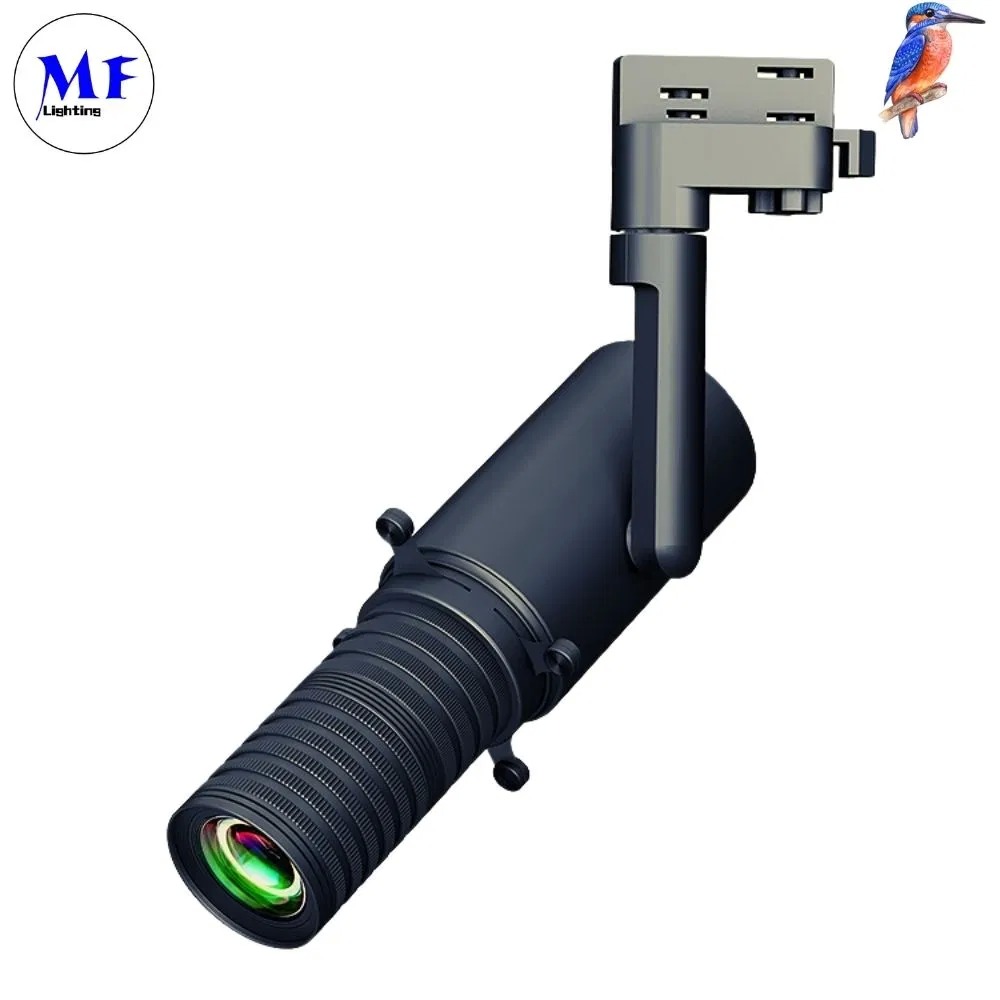

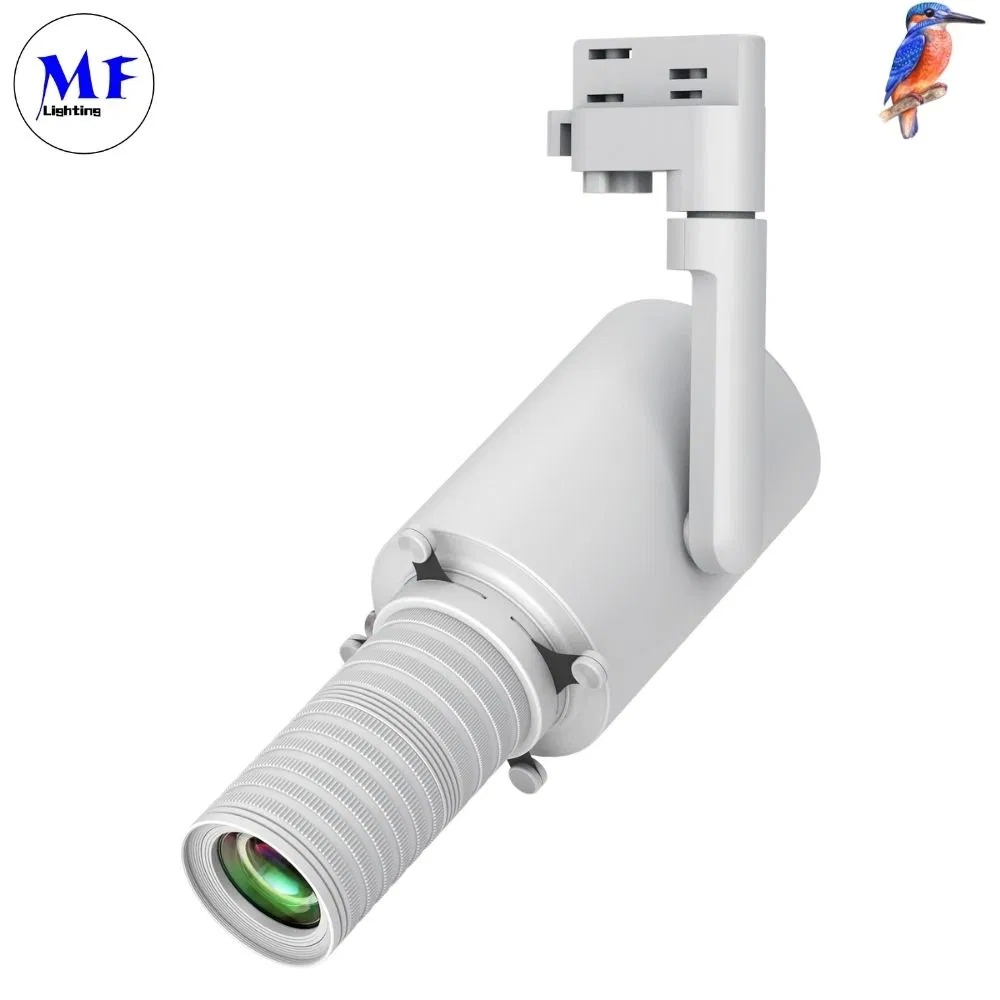

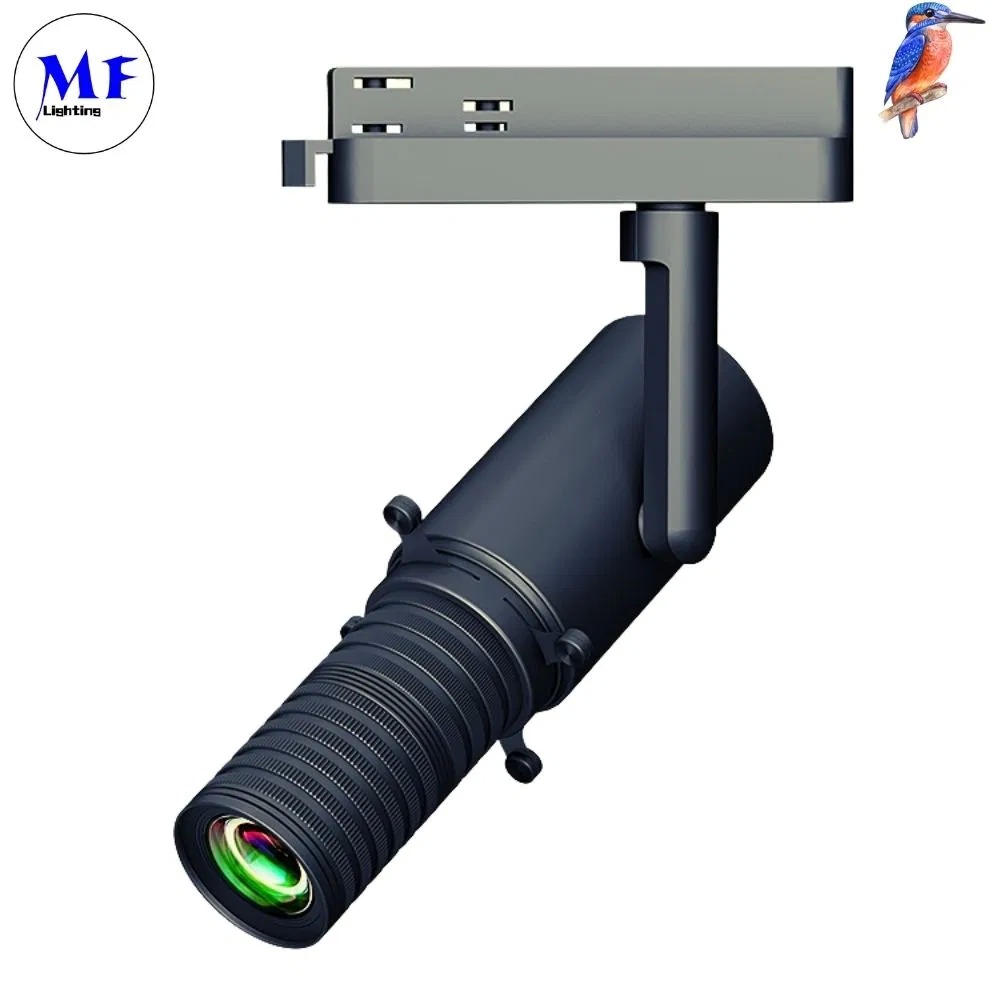

Factory Price 10W 1-10V Dimming Shapeable 360° Rotation High Brightness LED Spot Track Light
Professional LED track lighting solution featuring fully independent intellectual property rights, global patents, and certifications. Designed for art galleries with dry stepless linear zooming and spot shaping capabilities.
There can never be only one lighting design solution. The possibilities in design are limitless. We find the most suitable way of light expression within these infinite possibilities, considering cultural background, abstract concepts, and designer characteristics.
Product Specifications
| Product Name |
T1005AL |
| Item Type |
Shapeable Track Light / LED Track Light / LED Spot Light |
| Wattage |
30W |
| Luminous Flux |
900-950LM |
| Support Filters |
58 |
| Input Voltage |
220-240V |
| Light Source |
Osram |
| CRI (Ra >) |
97 |
| Housing Color |
White, Black |
| Installation |
Track-Mounted, Wall-Mounted |
| Working Time |
50,000 hours |
| Warranty |
5 years |
Industrial Grade Optical Filters
Compatible with various industrial-grade optical filters and supports customization of special narrowband and ultra narrowband optical filters. Filter functions can be superimposed for enhanced performance.
Color Filter
Adjusts luminous color according to your specific requirements
ND Filter
Reduces small-angle illumination to less than 75LUX with electronic dimming, ideal for authentic lighting applications
UV Filter
Effectively filters UV rays from LED lamps, protecting illuminated objects with superior performance in silk products and cultural relics lighting
CPL Filter
Eliminates surface reflections, allowing objects in high luminosity environments to display their original appearance
GND Filter
Alters light ratio into the lens, enabling even and constant illumination of objects, particularly useful for oblique side illumination
Advanced Design Features
360° Manual Rotation Design
Loosen the manual screw and turn the lens to achieve full 360° spot rotation adjustment, solving projection and light spot rotation challenges
Optical-Grade Variable Aperture Design
High-precision special material optical diaphragm with no blurring or freezing. Manual insertion and removal of light cutting device allows free spot shape changes
Multi-Layer Dry Damping Design
Focusing device requires no lubricating oil, featuring silky feel, stability, reliability, wear resistance, high temperature resistance, and long-lasting performance
Track Support & Color Temperature Options
DIP color temperature coupled with single lamp knob dimming design enables easy single lamp dimming, spot shaping, and color temperature adjustment. Can be used alone or with other dimming devices.
Control System Support
Supports 1-10V, DMX, DALI, ZGEBI, and other mainstream control protocols. Compatible with Huawei, Tuya, Xiaomi, T-mall Elf, Amazon, Google, and other smart AI control systems.
Operation Instructions
Aperture Adjustment
Adjust aperture to appropriate size, face center of irradiated object, and adjust sharpness to reasonable degree
Square Spot Creation
Pull four diaphragm sheets outward to maximum, then push vertically inward one by one to ensure cut square spot is smaller than object. Adjust aperture sharpness until satisfactory
Spot Rotation Adjustment
If spot shape doesn't match object, loosen hand screw at red mark, rotate blue lens part to align spot edge with object edge, then tighten hand screw. Also adjusts LOGO projection direction
Final Spot Sizing
Stretch diaphragm sheets outward one by one until spot size matches object. Repeat operations as needed to achieve desired spot effect
Important Usage Notes
- When replacing projector, pull all four diaphragm sheets outward to maximum extent before loading projection device to avoid damaging lens parts
- Do not remove remaining lens except for projection unit replacement and routine lens maintenance
- Track-type shapeable track lights are generally heavier than ordinary track lights - verify installation conditions before installation
- Lens contains no repair accessories - unauthorized disassembly voids repair and return services
Application Examples
Packaging & Shipping
Company Profile
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research, development, and manufacturing, operating under ISO quality management since 2009.
Q: Can I order a sample of the LED Light?
A: Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.
Q: What is the lead time for the LED Light?
A: Sample orders: 3-7 days. Mass production orders: 15-25 days. Exact lead time depends on order quantities.
Q: How do you ship finished products?
A: We offer optional shipping methods including SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q: Can I print my logo on the LED Light?
A: Yes, we provide OEM services. We can create labels and color boxes according to your requirements.
Q: How do I proceed with an order?
A: Provide your detailed requirements and application environment. We'll recommend suitable products and solutions. After confirming details, issue purchase order and payment to confirm, then we start production and arrange shipment.
Q: How do you handle defective products?
A: Our products undergo strict quality control with less than 0.2% defective rate. We offer 5-year warranty. During warranty, provide pictures/videos of defective lights in working situations, and we'll ship replacements within days or with your next order.
