Factory Price 5W 2700K 3000K 4000K Ultra-High Precision Projection LED Shapeable Contour Track Light for Art Gallery

Contact Now

Detail Information
Ra:	97	Color Kelvin:	2700K 3000K 4000K
Dimension:	Recessed Housing ¢ 35H35 Housing ¢28H100	Qty & G.W.:	0.21kg/ PC
Power:	5W	Luminous Flux:	100-140LM
Beam Angle:	Zoom15-36° (2836B)	Input Voltage:	48VDC
Track Type:	NA	Thermal Conductivity:	226W/m.K
Weight:	0.32Kg	Beam Angle:	55°
Distortion:	≤0.6%	Luminous Output:	300-350LM
Rotation Range:	90° Vertical/355° Horizontal
Highlight:	5W shapeable track light , ultra-high precision projection LED , contour track light for art gallery

Product Description

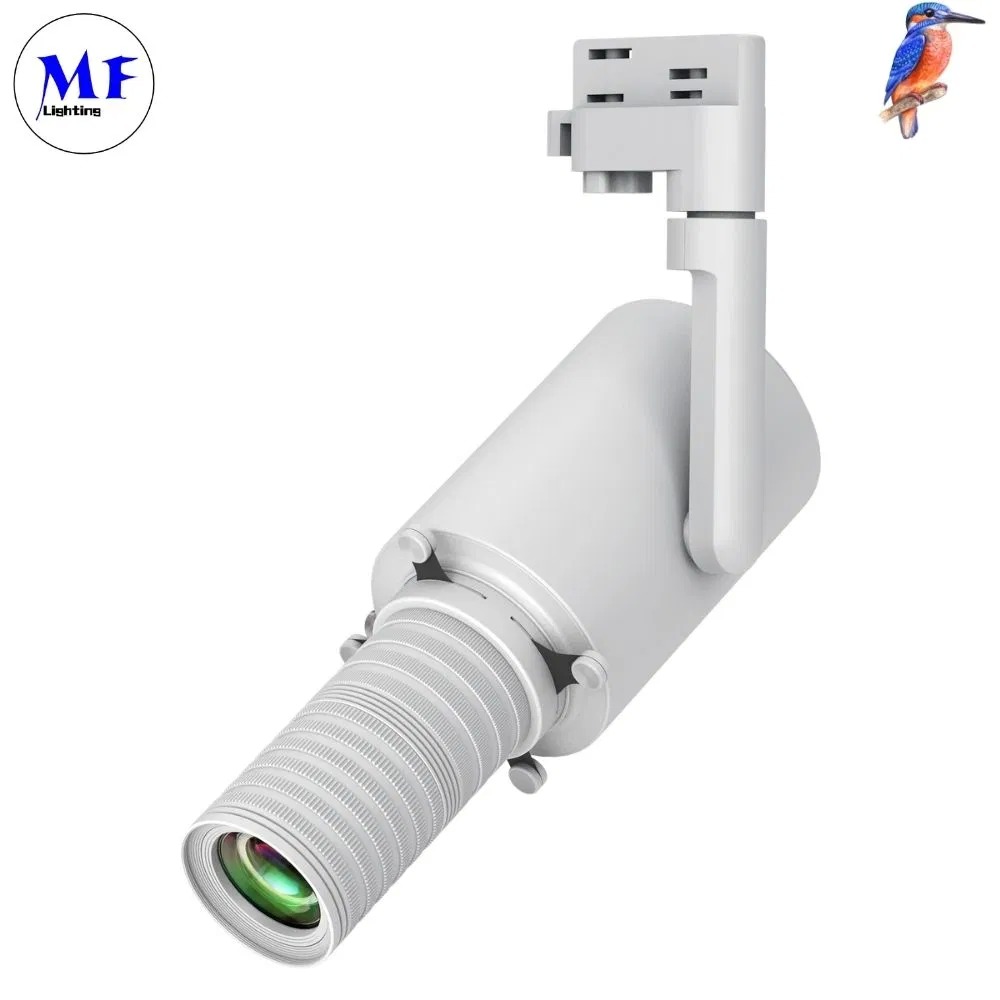

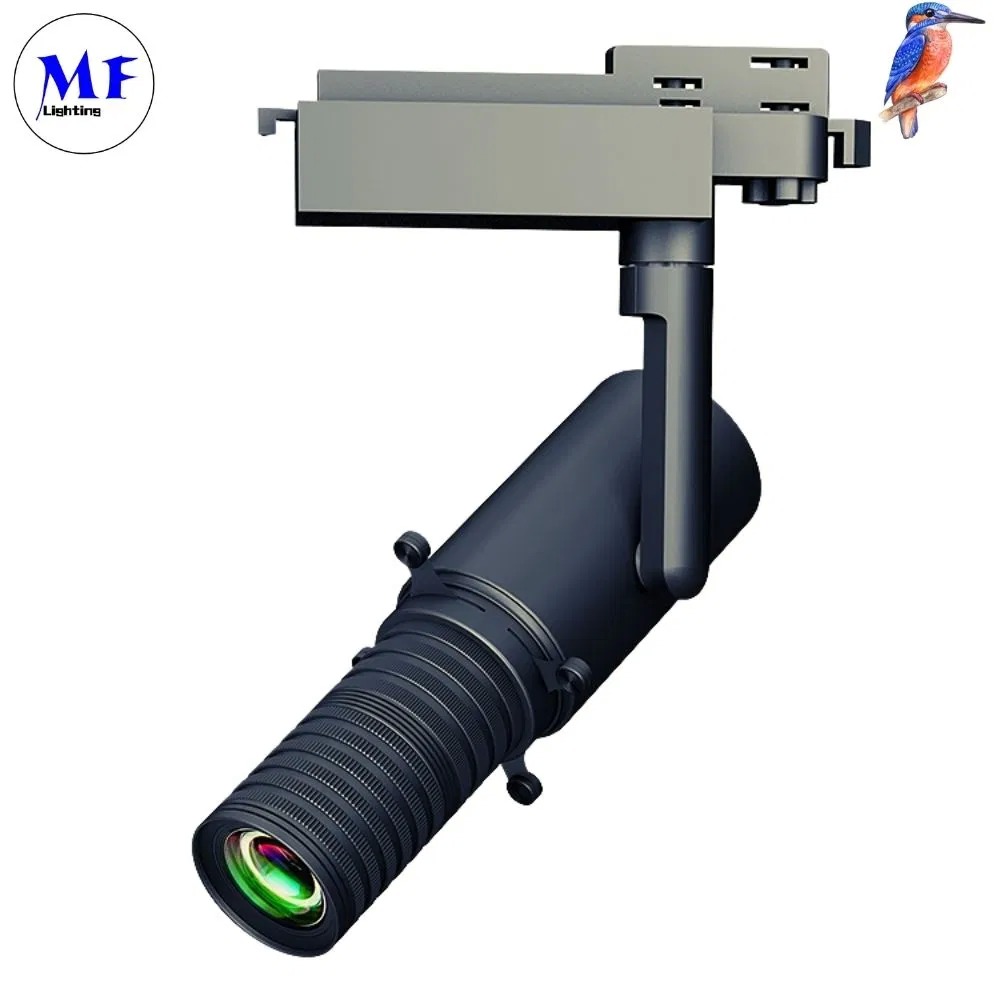

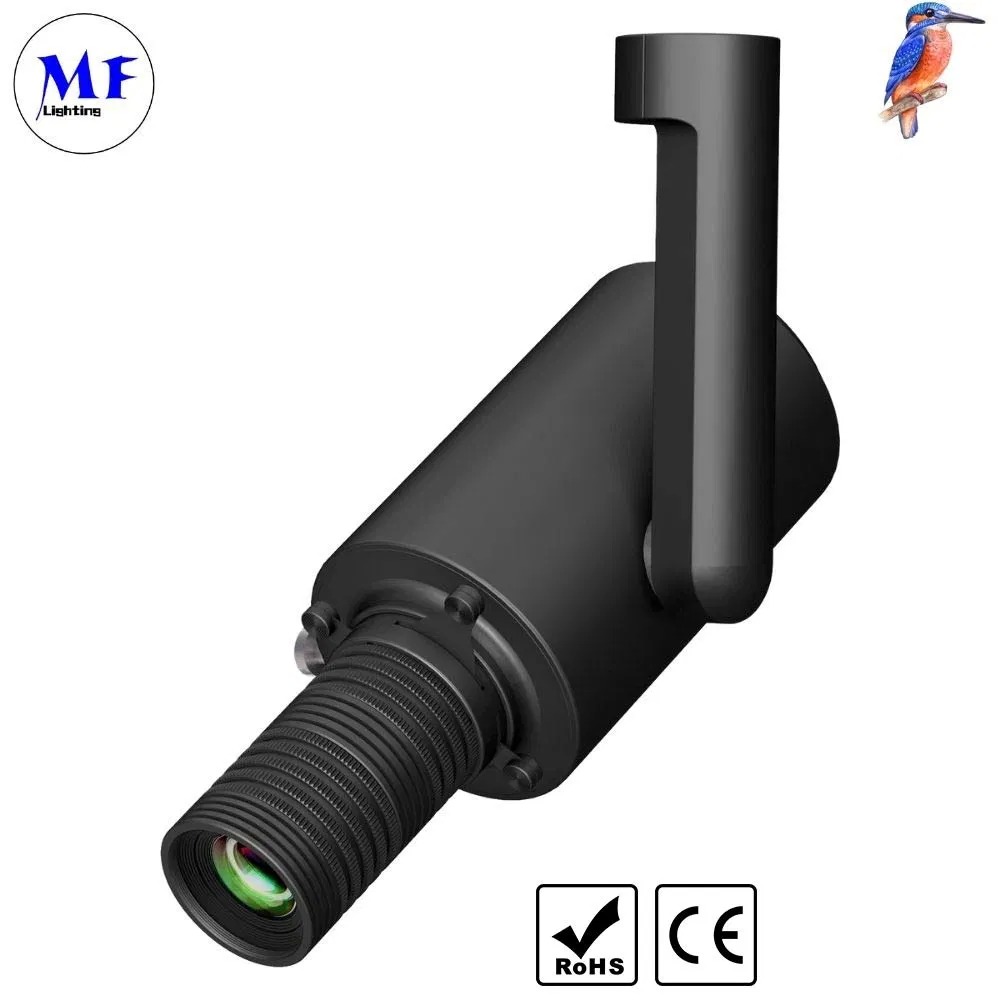

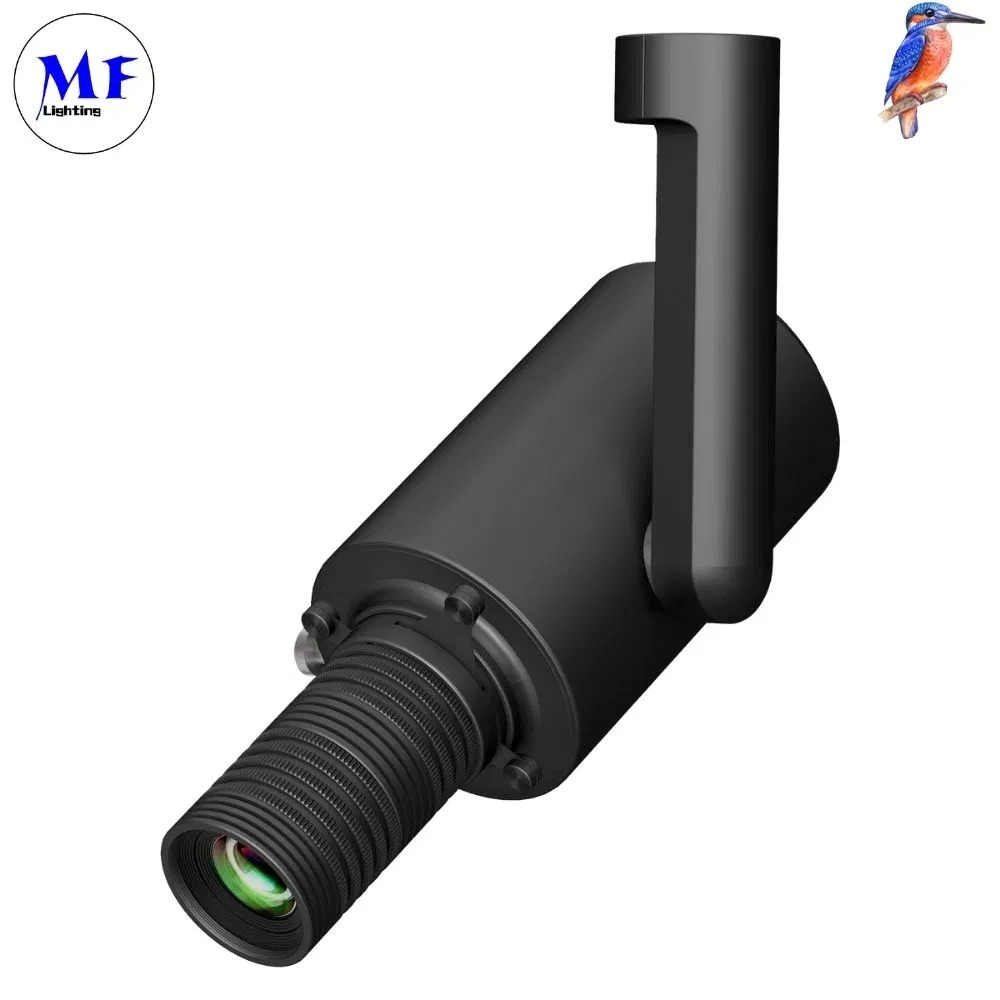

Factory Price 5W Ultra-High Precision Projection LED Shapeable Contour Track Light

Product Overview

The M1003K-3855 is a magnetic contour spotlight from Ming Feng's Kingfisher 2 Series featuring a 55° fixed-focus wide-angle lens with ultra-high-definition projection (≤0.6% distortion) and 300-350LM output at 10W. Its innovative magnetic track adapter allows 90° vertical/355° horizontal rotation for precise positioning in museums, retail, or architectural lighting. The spotlight supports tunable white (2700K-4000K) via smart controls (DALI, Bluetooth/Zigbee) and delivers uniform illumination with 11 optical lenses. Compact yet powerful (0.32Kg), it combines millimeter-level spot shaping, IP-rated durability, and energy efficiency, making it ideal for high-end commercial applications requiring both precision and flexibility. Compatible with φ38mm radiators, it integrates seamlessly into modern lighting systems.

Key Features

55° Ultra-Wide Beam: Delivers uniform wide-angle illumination with ≤0.6% distortion, perfect for wall-washing or large exhibit lighting in museums and galleries.
Smart Lighting Control: Supports tunable white (2700K-4000K) via DALI, Bluetooth, or Zigbee for dynamic scene adjustments in commercial/residential spaces.
Magnetic Track Flexibility: Features 90° vertical/355° horizontal rotation with magnetic mounting for effortless repositioning in retail or event spaces.
High-Precision Optics: Equipped with 11 optical lenses for sharp gobo projections and contour lighting with 0.01/1 resolution clarity.
Energy-Efficient Performance: 10W power with 300-350LM output balances brightness and sustainability, ideal for long-term use.
Compact & Durable Design: Lightweight (0.32Kg) IP-rated housing withstands commercial environments while fitting φ38mm systems seamlessly.

Technical Specifications

Item No.	D0525K - 2836B
Power	5W
Luminous Flux (3000K)	100-140LM
Beam Angle (Lens Model)	Zoom 15-36° (2836B)
Ra	97
Input Voltage (AC/DC)	48VDC
Color of Housing	Black, White
Dimension (mm)	Recessed housing Ø35×H35, Housing Ø28×H100
Track Type	N/A

Our Technical Advantages

Cold Forging Integrated Radiator Design

A radiator made of 1070# pure aluminum and molded by molding pressure. It has high thermal conductivity, low-temperature differences, low light failure, and long service life. Thermal conductivity: 226W/m.K

360° Manual Rotation Design

Loosen the manual screw and turn the lens to achieve the 360° spot rotation adjustment function. Device to solve the 360° rotation of the projection and light spot.

High-Definition Optical Lens Design

Formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc. A new optical path specially designed for COB light sources.

Optical-Grade Variable Aperture Design

An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.

Multi-Layer Dry Damping Design

A focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.

Enhanced Linear Zoom Mechanism

Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.

Product Parameters

Application Scenarios

Luxury Retail Lighting

Perfectly highlights high-end merchandise with its precise 55° beam and museum-grade color rendering (Ra≥97), creating dramatic product displays in boutique windows or jewelry cases.

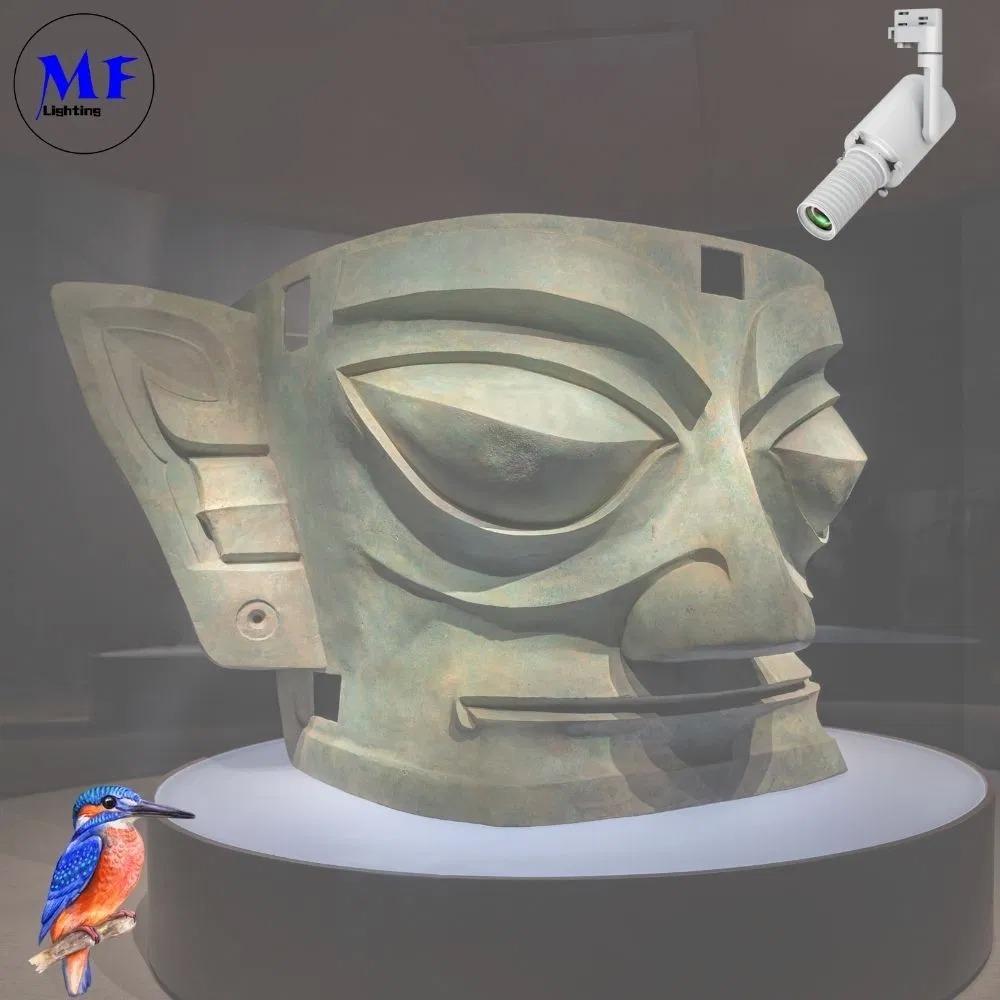

Contemporary Art Galleries

Professional-grade illumination for sculptures and installations with flicker-free, distortion-controlled light that protects artworks while enhancing textures.

Architectural Feature Lighting

Ideal for accenting structural details in hotel lobbies or corporate spaces, offering both wide wash effects and sharp gobo projections.

Smart Home Integration

Seamlessly connects to home automation systems via Bluetooth/Zigbee for adjustable ambiance in premium residences - from warm dinners to focused task lighting.

Event & Hospitality Lighting

Creates dynamic atmospheres in restaurants or wedding venues with smooth dimming and instant CCT changes for mood transitions.

Packaging & Shipping

Certifications

Company Profile & FAQ

Frequently Asked Questions

Q1: What do you sell?

A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on LED light product?

A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?

A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for LED light?

A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?

A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
