Product Description

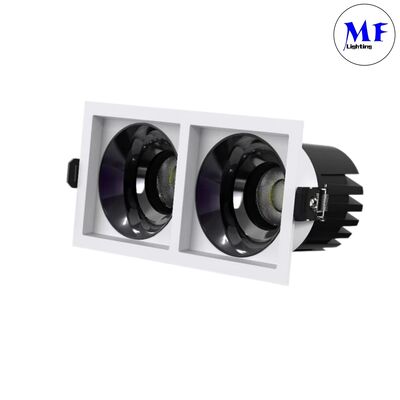

Aluminum 7W/10W/12W/15W/14W/20W/24W/30W/21W/30W/36W/45W 1 2 3 Head Square Recessed Downlight Smart Power CCT DALI 0-10V Dimming IP44 Hotel LED Down Light

Feature

1. **IP Rating**: IP20 / IP44 available, designed for indoor applications only.
2. **Long Service Life**: Integrated die-cast aluminum heat sink delivers a long lifespan of ≥50,000 hours.
3. **Anti-Glare Performance**: Deep-recessed structure with UGR<19, providing eye-comfortable lighting for bedrooms and offices.
4. **Flexible Dimming Solutions**: Multiple options: Non-Dim, TRIAC, 0-10V, Tuya Zigbee and DALI. Smart APP control is supported.
5. **Versatile Color Temperature**: Fixed CCT from 2700K-6000K; tunable CCT version is optional for custom lighting scenes.
6. **High Luminous & Color Rendering**: High efficacy of 100 lumens per watt. High CRI options of Ra80+ / Ra90+ for true-to-life color reproduction.
7. **Multiple Reflector Finishes**: Matte White, Matte Black, Bright Silver, Gunmetal Black for aesthetic matching.
8. **Multi-head Configurations**: Single-head, double-head and triple-head versions are available for different layout requirements.

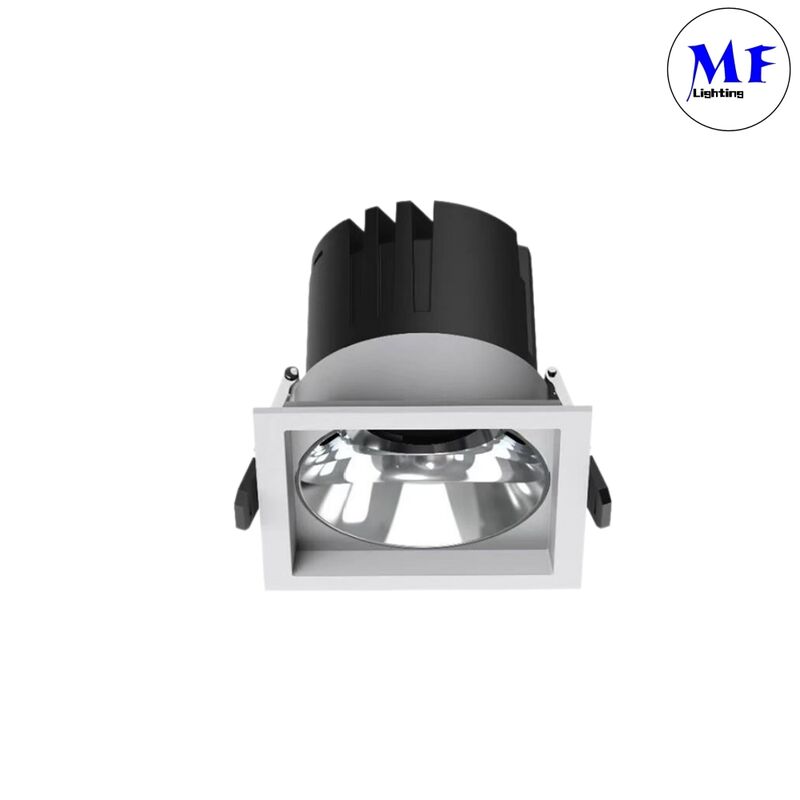

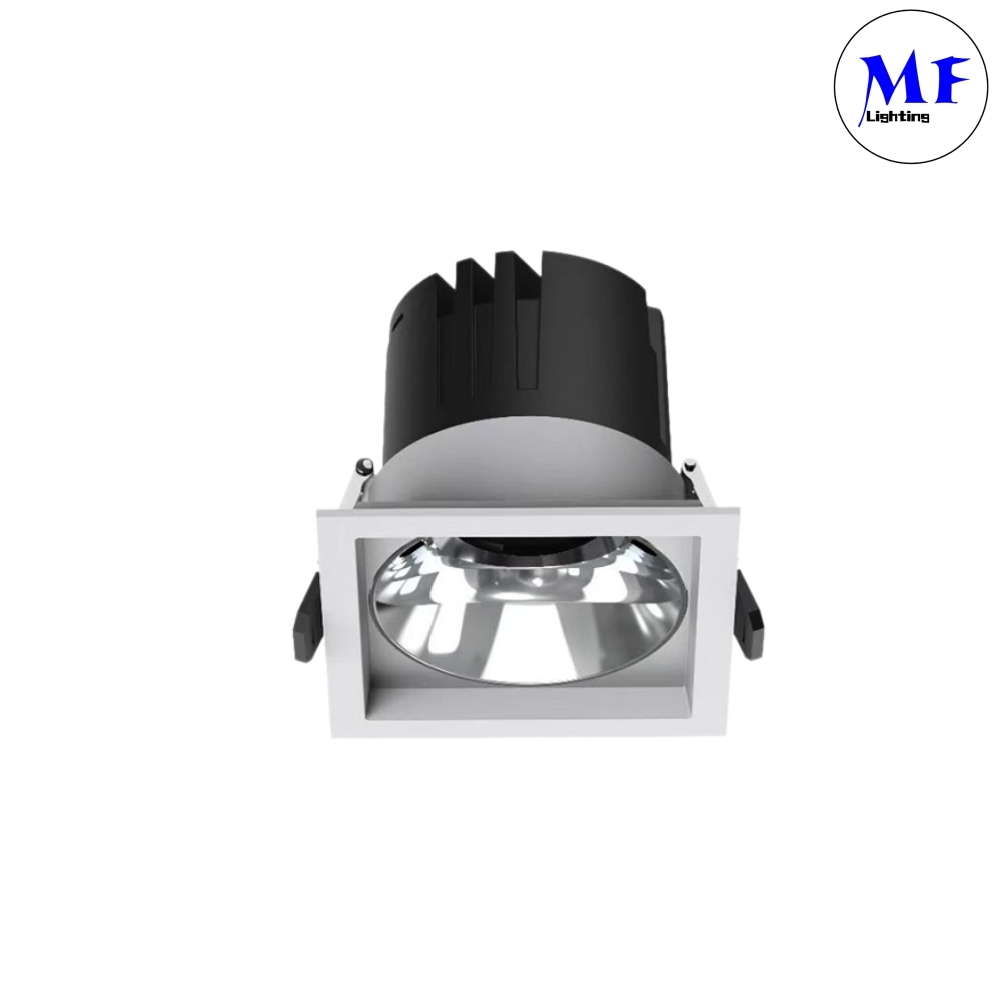

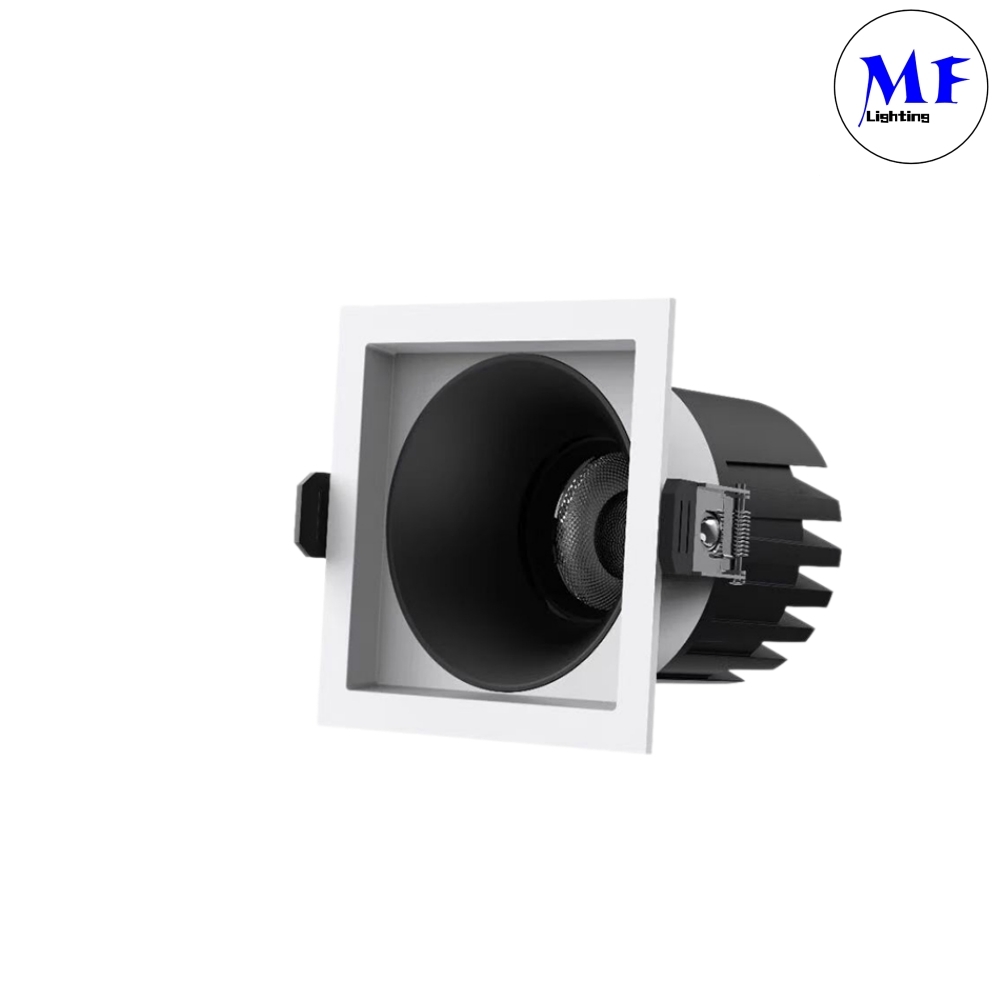

- Single-head: MF-HGS22-7W / 10W / 12W /15W

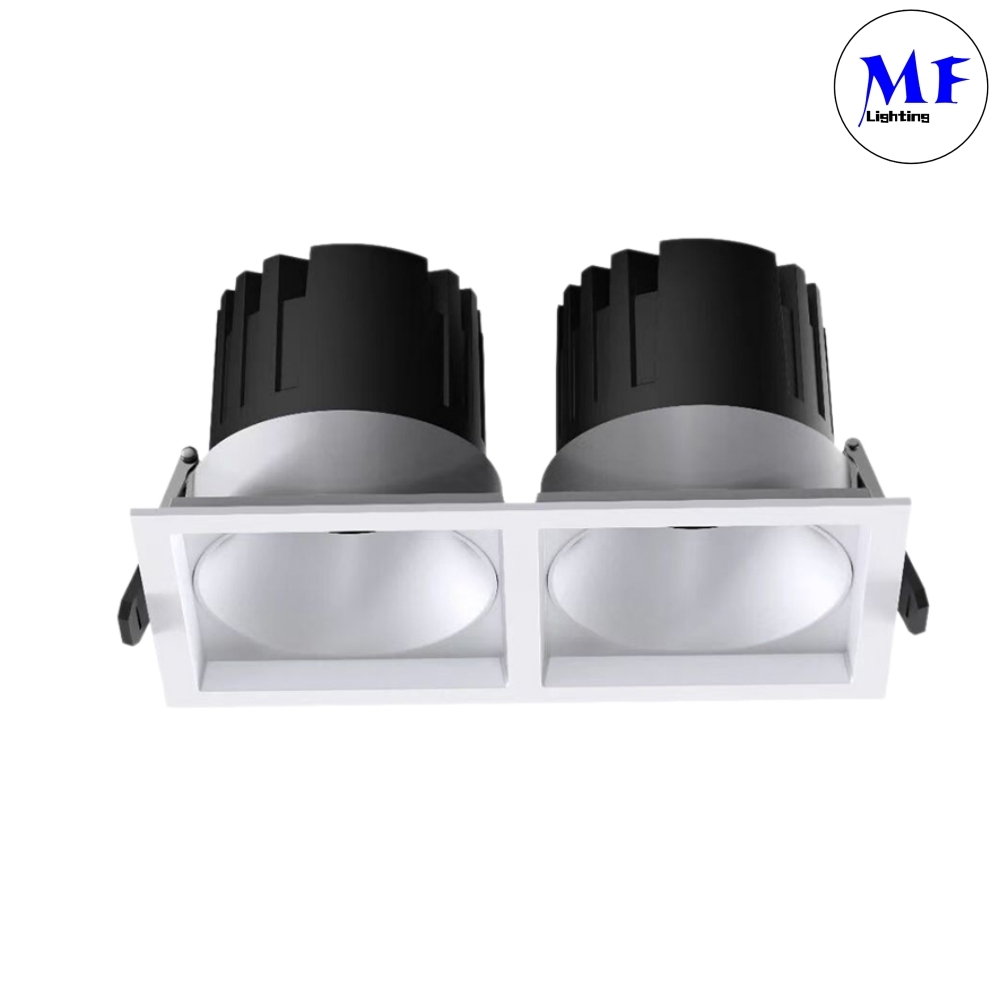

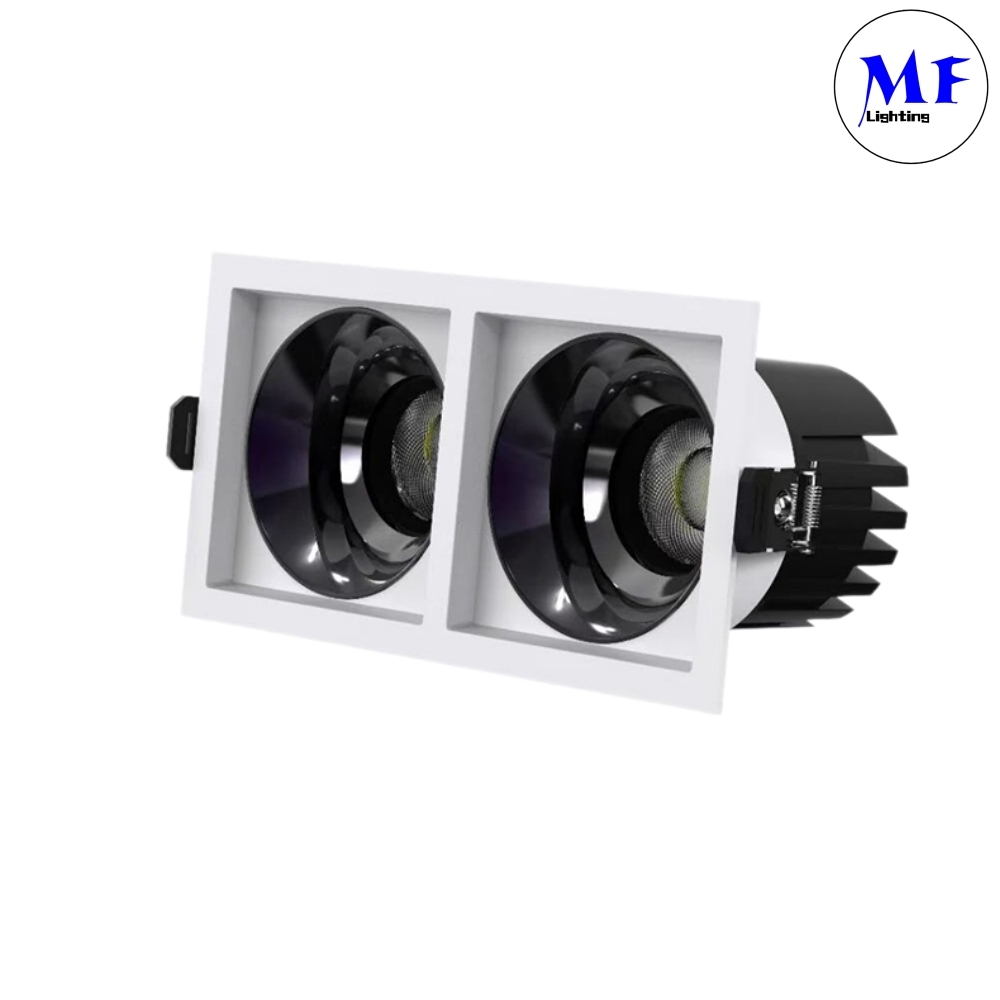

- Double-head: MF-HGS22-2*7W / 2*10W / 2*12W /2*15W

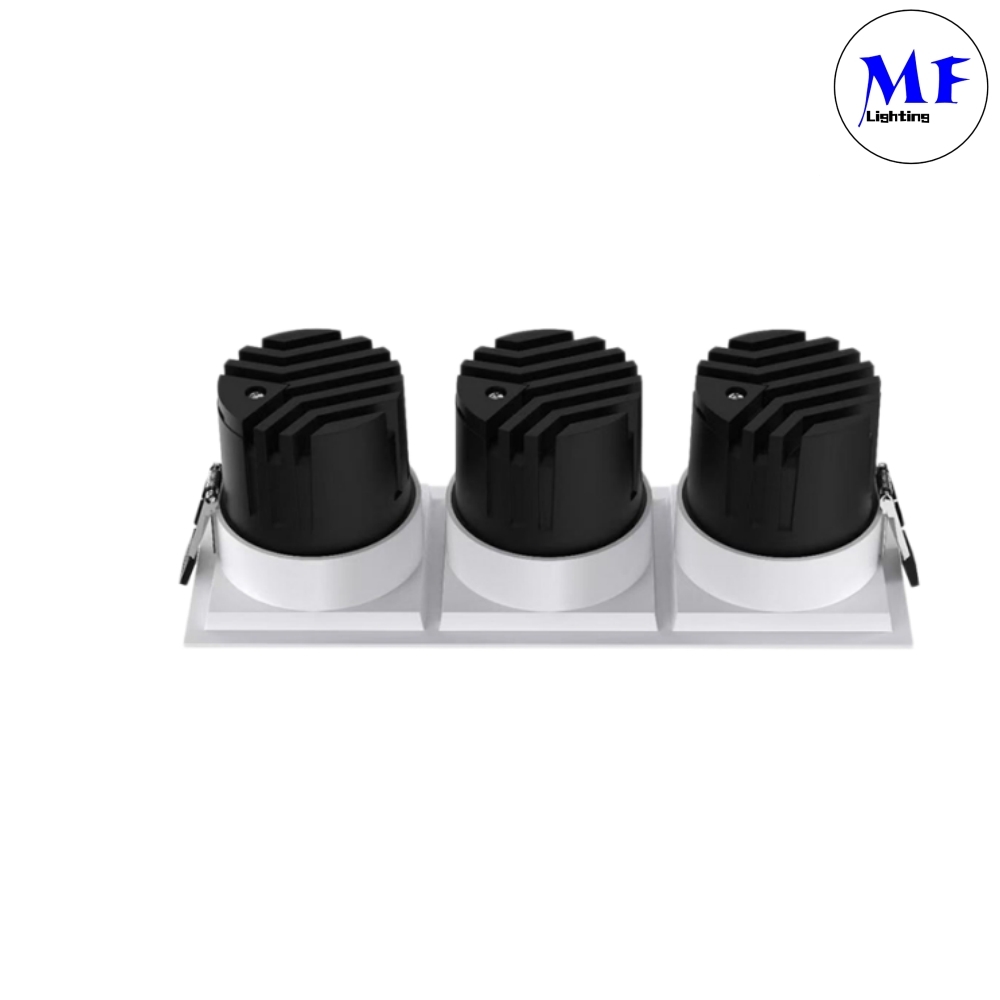

- Triple-head: MF-HGS22-3*7W / 3*10W / 3*12W /3*15W

'- Material: Die-casting Aluminum
- Bezel Color: White
- Reflector Color: Matte White, Matte Black, Bright Silver, Gunmetal Black
- IP Grade: IP20 / IP44
- Operating Temperature: -20ºC ~ 50ºC
- Lifespan: ≥50000 hours
- Dimming Types: Non-Dim, TRIAC, 0-10V, DALI-2; Tuya Zigbee tunable CCT optional

Design

Product description

1. **Detachable Modular Construction**: Composed of aluminum heat sink, COB bracket, light source, COB lens, reflector assembly, anti-glare shield, spring clips and trim bezel for easy maintenance.
2. **Rich Appearance Options**: Multiple reflector finishes together with single/double/triple-head options to fit diverse interior decoration styles.
3. **Complete Dimming Compatibility**: Supports conventional analog dimming (TRIAC, 0-10V), DALI bus control and Tuya Zigbee smart control. Both single-color dimming and tunable CCT functions are achievable.
4. **Premium Commercial-grade Color Rendering**: Ra90+ option delivers accurate color reproduction, ideal for retail stores, showrooms, restaurants, offices and residential projects.
5. **Superior Thermal Management**: Die-cast aluminum integrated heat sink ensures stable long-term operation of LED light source.
6. **Low-glare Deep-cavity Design**: UGR<19 effectively reduces direct glare and improves visual comfort for living and working spaces.
7. **Wide Application Scenarios**: Suitable for residential houses, offices, retail shops and restaurants indoors. IP44 variant can be applied in indoor areas requiring mild moisture resistance.

Product Size

Installation:

Easy Spring Clip Installation

1. Cut ceiling opening according to required cut-out dimension.
2. Complete wiring by a qualified electrician.
3. Compress spring clips and insert fixture into ceiling hole.
4. Release spring clips to secure the luminaire, power on and test.

Application:

This recessed square COB spotlight is designed for indoor‑only installation, available with IP20 or IP44 protection rating. Thanks to its UGR＜19 anti‑glare performance, high CRI output, multiple dimming & tunable‑CCT options, single‑/double‑/triple‑head configurations, it covers wide residential and commercial lighting scenarios.

1. Residential Applications

• Living rooms, bedrooms, hallways & foyers: Deep‑recessed anti‑glare structure (UGR＜19) delivers eye‑friendly ambient and accent lighting. Multiple reflector finishes (matte white, matte black, bright silver, gunmetal black) match various home interior styles. Tunable CCT function allows users to switch between warm white, natural white and cool‑white atmosphere for daily relaxation or entertainment scenarios.
• Kitchen & moisture‑prone domestic zones: IP44 version resists water splashes, applicable for kitchen ceiling lighting and other indoor home areas with minor humidity exposure.

Spring‑clip recessed mounting fits standard false ceiling cut‑outs; single‑head unit is widely adopted for regular household ceiling layout.

2. Commercial Retail Spaces

• Boutiques, fashion stores, showrooms and shopping malls: High‑CRI options (Ra80+ / Ra90+) reproduce true‑to‑life merchandise colors. Variable beam angles (15° /24° /36° /50°) support targeted accent lighting to highlight goods, display cabinets, wall exhibits and decorative artworks. Dimming systems (TRIAC, 0‑10V, DALI, Tuya Zigbee smart control) enable shops to adjust brightness and color temperature for different sales periods and promotional themes.
• Double‑head and triple‑head variants are preferred for large retail ceiling areas to simplify multi‑lamp layout.

3. Office & Corporate Premises

• Open‑plan offices, meeting rooms, reception lobbies and office corridors: UGR＜19 meets visual comfort requirements for long‑time screen‑working staff, effectively reducing glare‑caused eye fatigue. Stable die‑cast aluminum heat sink guarantees ≥50 000‑hour service life to cut maintenance frequency for large‑area commercial projects. DALI‑2 dimming compatibility fits centralized building lighting management systems.

4. Hospitality Industry

• Hotel guest rooms, hotel corridors, restaurant dining areas, cafes and lounges: Wide CCT range from 2700K‑6000K creates cozy dining or resting ambiance. Multiple reflector appearances coordinate with modern hotel interior decoration. IP44 option can be deployed for hotel restrooms and wet‑zone ceilings.

5. Other Indoor Commercial & Light‑Industrial Scenarios

• Exhibition spaces, galleries: High color rendering performance for artwork and exhibit illumination; anti‑glare design avoids distracting visual discomfort for visitors.
• Light‑duty indoor industrial environments: IP44 variant suits indoor locations with moderate dust or splash risk mentioned in product document, for general ambient lighting purpose. Note: Not for outdoor use or heavy‑duty wet industrial conditions.

Key advantages supporting above applications

1. Multi‑head selection (1‑head / 2‑head /3‑head) provides flexible solution for small‑size spot requirement or large‑area continuous ceiling lighting.
2. Rich dimming ecosystem: covers traditional analog dimming, bus control and Tuya Zigbee smart APP‑based CCT tuning to satisfy both fixed‑function commercial projects and smart‑home demands.
3. Die‑casting aluminum whole‑body construction ensures stable thermal performance under long‑hour continuous operation in commercial sites.
4. Spring‑clip installation allows quick retrofit and new‑build ceiling installation.

Limitation: This luminaire is for indoor application only; IP20 version shall not be used in splash‑prone humid areas.
