Product Description

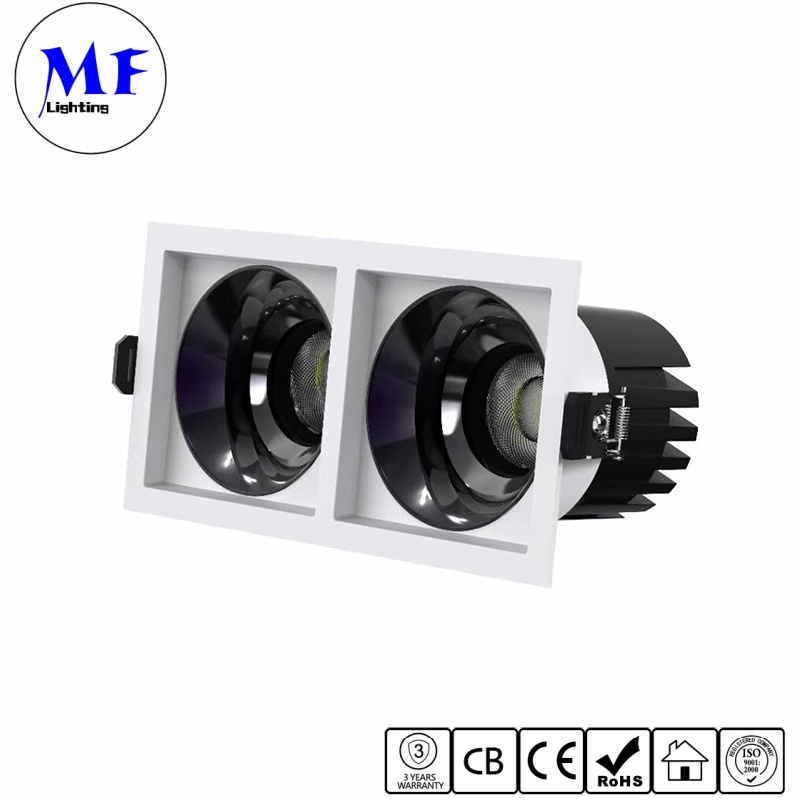

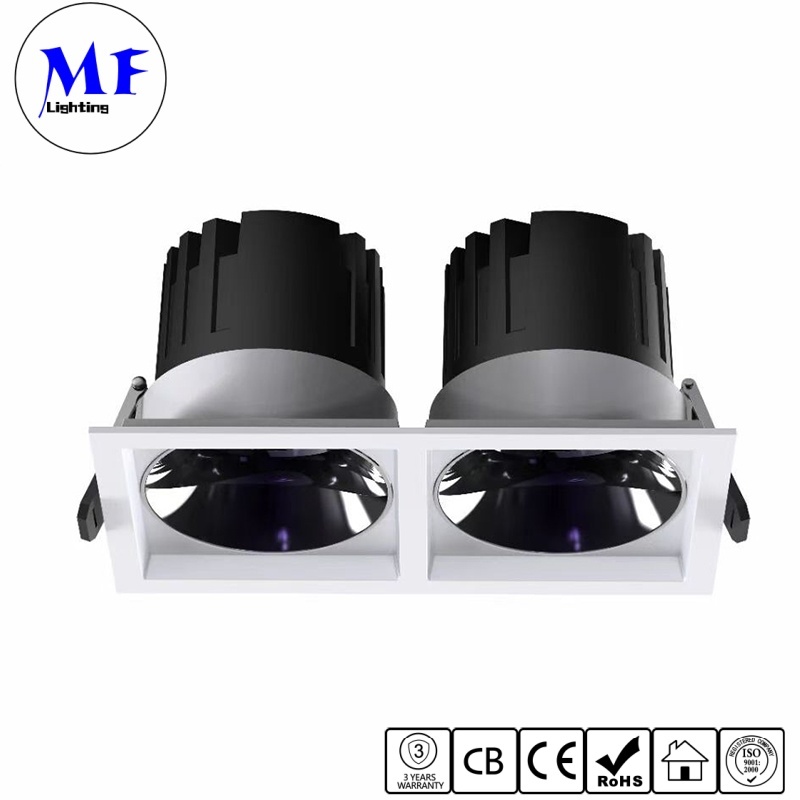

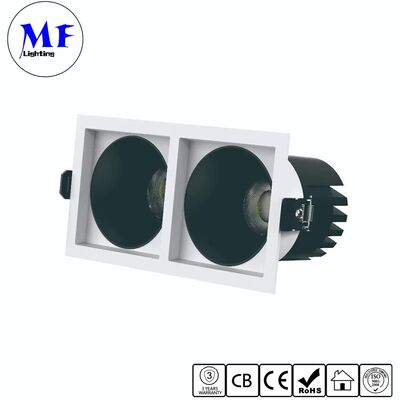

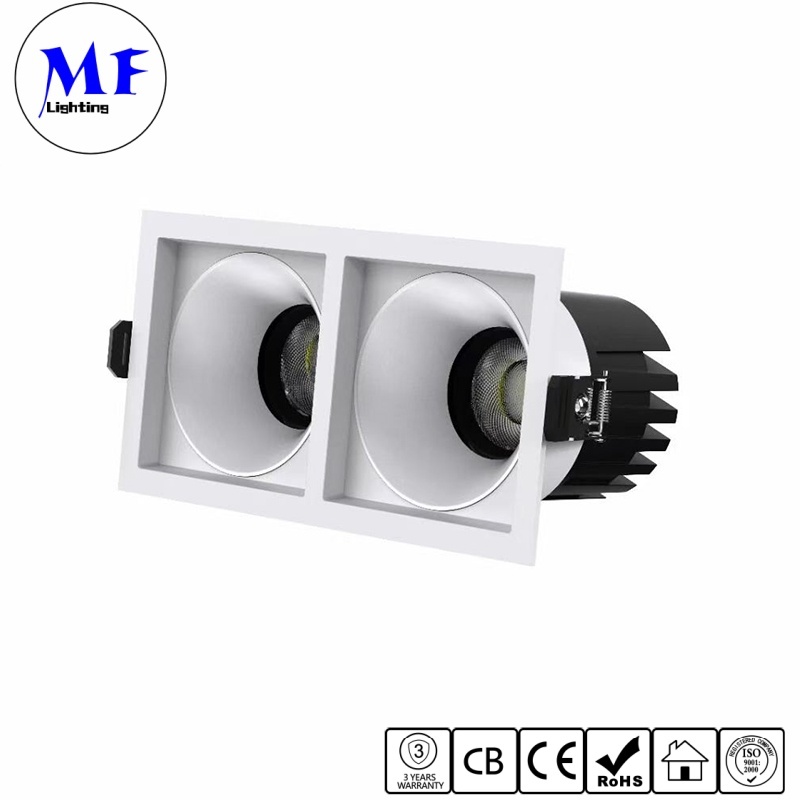

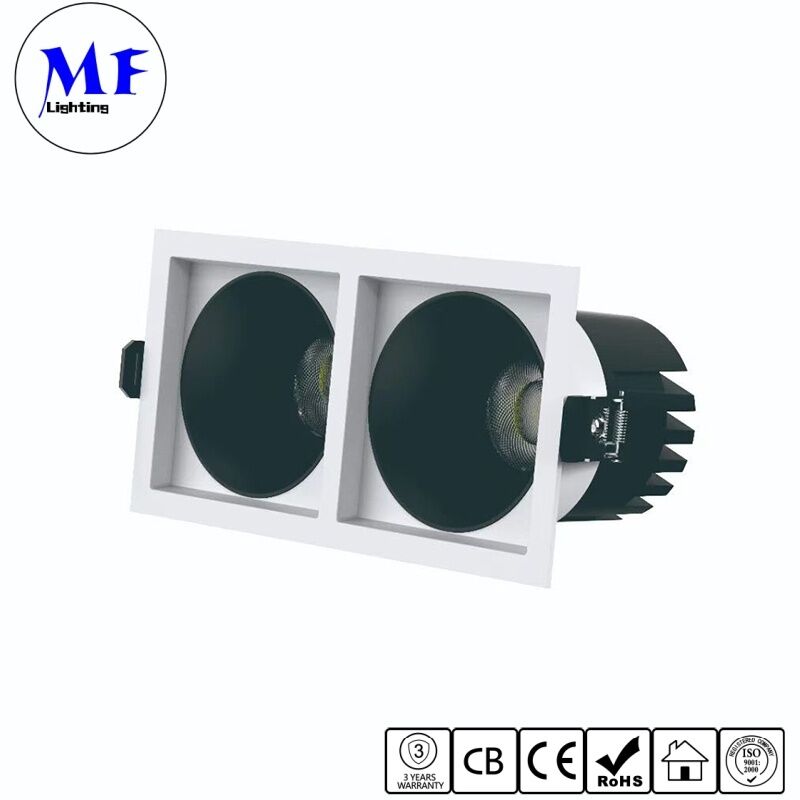

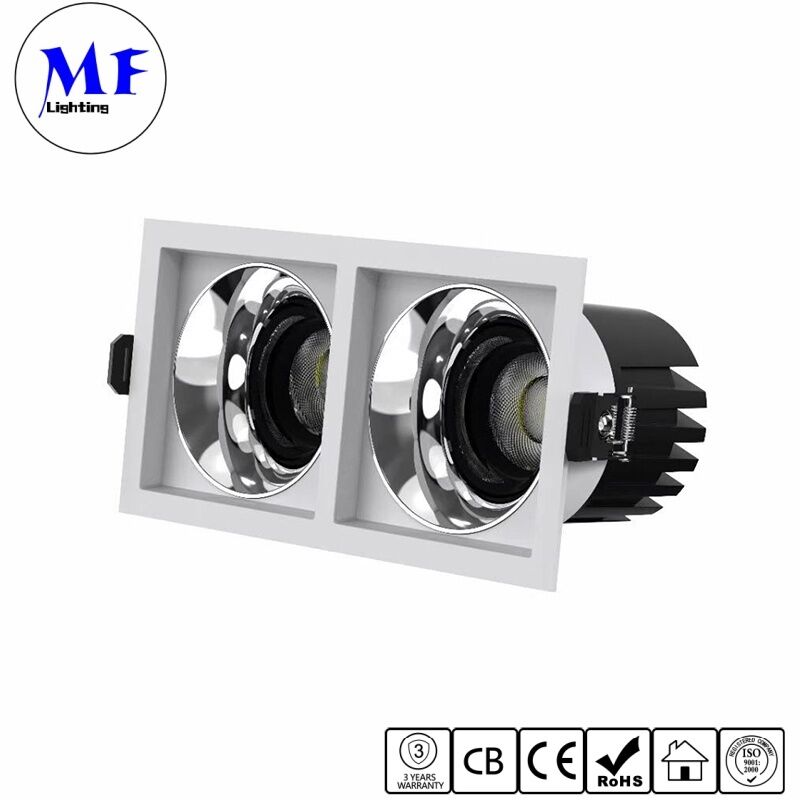

Square Recessed LED Down Light 3*7W Single/Double/Triple Head 100LM/W CRI90 IP20 IP44 Reflector Ceiling Downlight
MF HGS22 square recessed spot downlight supplies flexible single head, double head and triple head configurations with power ranging from 7W to15W per unit.
This anti glare reflector cup recessed down light delivers 100LM/W (100LM per watt), with selectable CRI80 and CRI90.
Available narrow beam angles include 15 degree,24 degree,36 degree,50 degree. It supports diverse dimming choices covering Non Dim, Triac, 0-10V, Dali 2, Dali DT8, Tuya Zigbee and Tuya Wifi, alongside optional CCT adjustable function.
Compatible input voltages contain AC100 277Vac, AC200 240V and DC24V.
Multiple premium reflector finishes are on offer: Matte White, Matte Silver, Matte Black, Bright Silver, Gun Black.
IP20 standard with optional IP44 rating, CE, RoHS, CB, SAA certified, backed by 3 year warranty.
Well suited for gallery, retail boutique, hotel lobby, showroom and high end residential accent lighting.
| tem |
Specification |
| Model |
MF-HGS22-7W/10W/12W/15W;
MF-HGS22-27W/210W/212W/215W;
MF-HGS22-37W/310W/312W/315W
|
| Input Voltage |
AC100-277Vac / AC200-240V,50/60Hz;DC24V available |
| Rated Power |
7W/10W/12W/15W per head;
single-head / double-head / triple-head assemblies
|
| Color Temperature |
2700K/3000K/3500K/4000K/5000K/6000K;
CCT adjustable 2700-6500K optional
|
| LED Source |
High-performance COB light source |
| LED Driver |
Qualified brand for different dimming versions |
| Power Factor |
10-20W≥0.50;>25W≥0.95 |
| Reflector Color |
Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black |
| Luminous Efficacy |
100LM/W,100LM per watt |
| CRI(Ra) |
CRI80 / CRI90 optional |
| Lifespan |
≥50000 Hours |
| Beam Angle |
Narrow beam angle:15°,24°,36°,50° |
| Material |
Die-casting Aluminum |
| Working Temperature |
-20ºC ~ +50ºC |
| Dimmable Option |
Non-Dim / Triac / 0-10V / DALI-2 / Dali DT8 / Tuya Zigbee / Tuya Wifi |
| IP Rating |
IP20 standard, IP44 optional |
| UGR |
<19 Anti-glare |
| Certificates |
Whole lamp: CE, RoHS;Driver: CE, RoHS, CB, SAA |
| Warranty |
3 Years
|
Offer single-head, double-head and triple-head integrated square fixtures.
Each lamp unit runs 7W-15W. Unified square trim creates neat, orderly ceiling visual effect, greatly simplifying layout work for interior designers
Integrated die-cast aluminum heat sink ensures effective heat dissipation and ≥50000-hour service life.
100LM/W luminous efficiency, optional CRI80 / CRI90.
Deep-recess anti-glare spot downlight structure UGR<19 prevents harsh direct glare, making it comfortable for long-term viewing in galleries and hotel public zones.
CCT adjustable option provides 2700K-6000K tunable white output, helping create warm ambient mode, neutral working mode and cool display mode within one fixture.
Application:
Residential Spaces
· Kitchens - resistant to oil fumes and water splashes during cleaning.
· Bathrooms - safe against shower moisture and steam.
· Walk-in closets / storage rooms - keeps dust and insects out.
· Basements / garages - withstands humidity and dust.
Commercial & Public Spaces
· Hotels / apartments - for moist areas like guest bathrooms and corridors.
· Offices / shopping malls - meets dust-proof requirements while maintaining aesthetics.
· Ship cabins - specially suited for humid marine environments like bathrooms.
| Head Type |
Power |
Carton Size(cm) |
Gross Weight |
Quantity Per Carton |
| One head |
7W/10W/12W/15W |
52x21x49.5 |
13.0KG |
50PCS |
| Double heads |
27W/210W/212W/215W |
44.5x34x40.5 |
15.0KG |
30PCS |
| Three Heads |
37W/310W/312W/315W |
44.5x34x57 |
20.0KG |
30PCS |
