Product Description

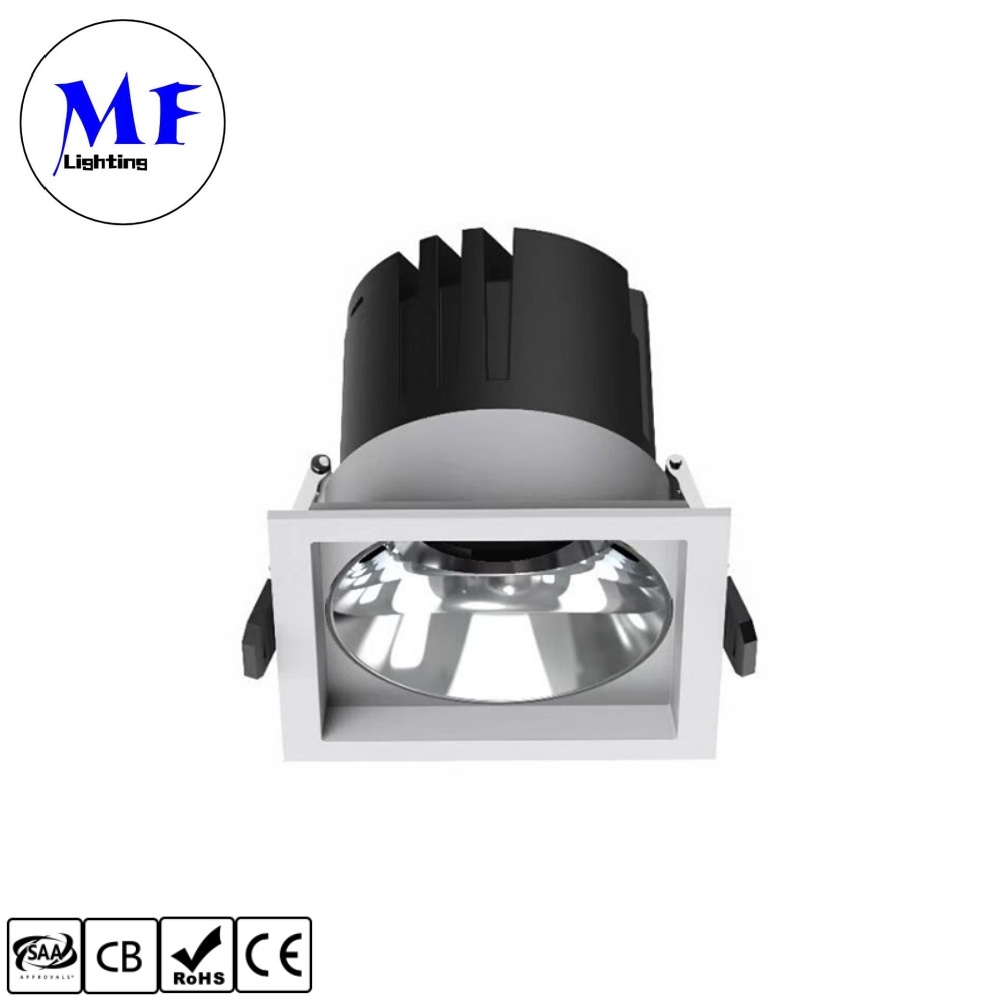

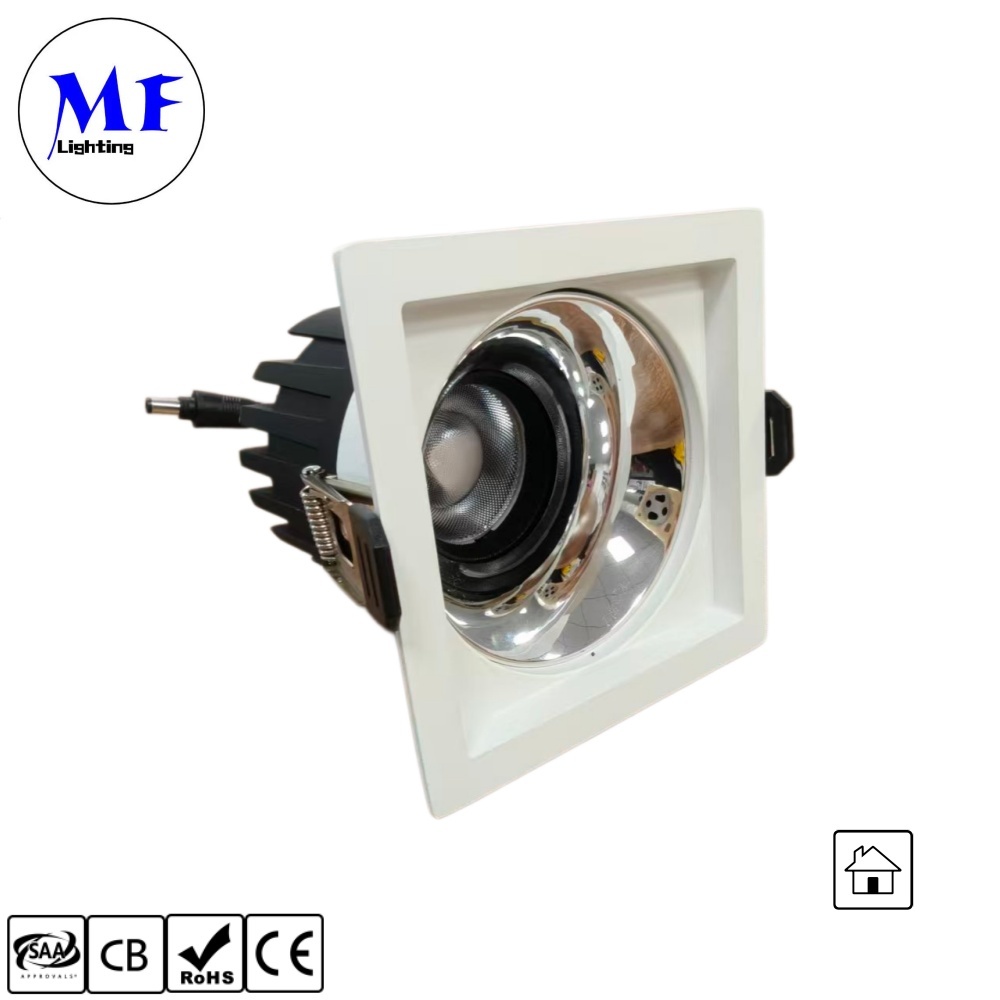

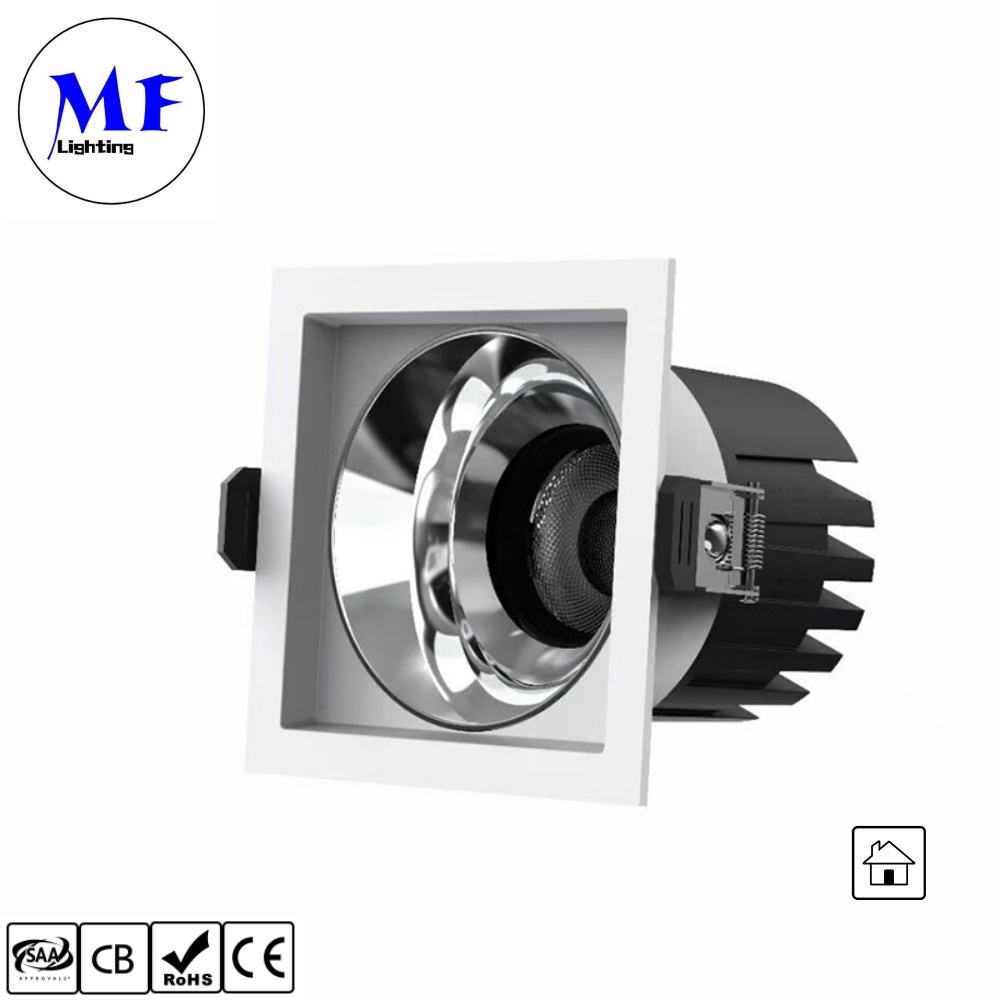

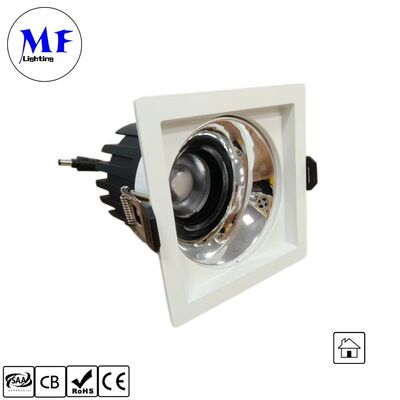

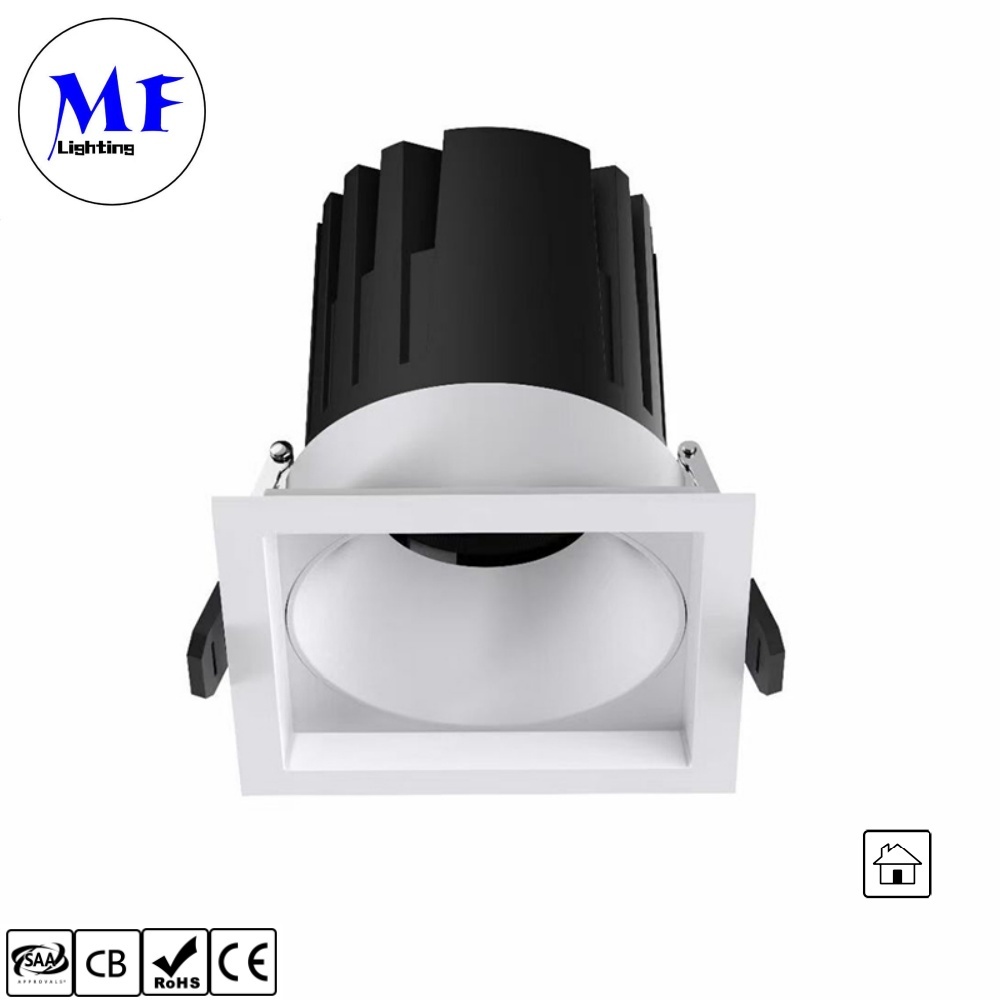

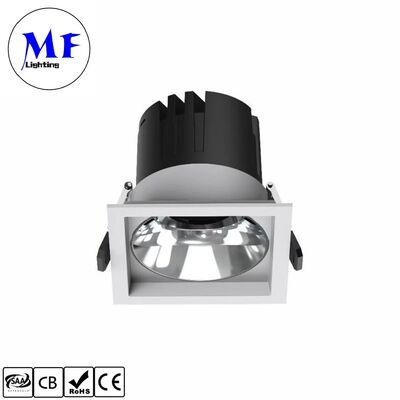

10W Anti-glare LED Spot Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Single head Spot LED Down light for Commercial Spaces
Features:
1.IP20/IP44 Rating Design: Suitable for indoor application only.
2.Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
3.Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
4.Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya zigbee and DALI dimming with smart control via APP.
5.Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes.
6.High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.
7.Multiple Housing Colors: Available in Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black
8.Multiple Heads Available.
| Model |
MF-HGS22-7W/10W/12W/15W;
MF-HGS22-2*7W/10W/12W/15W;
MF-HGS22-3*7W/10W/12W/15W
|
| Input voltage |
100-277Vac or 200-240Vac, 50hz/60hz, DC24V available |
|
Power(watt)
|
7W/10W/12W/15W
2*7W/10W/12W/15W
3*7W/10W/12W/15W
|
| Color temperature |
2700K/3000K /3500K/ 4000K / 5000K /6000K, 2700-6500K Tunable |
| LED Chip |
O.SRAM/Bridge.lux |
| LED Driver |
DONE/Aohua/Lifud/Eaglerise Brand for different dim version |
| PF |
10-20W≥0.50, 25W≥0.95 |
| Housing Colour |
White |
| Reflector color |
Matte White/Matte Silver/Matte Black/bright Sliver/Gun
Black
|
| Luminous Flux (lm) |
100LM/W |
| CRI(Ra) |
Ra80+/Ra90+ |
| Lifespan |
≥50000hrs |
| Beam Angle |
15°/24°/36°/50° |
| Material |
Die-casting Aluminum |
| Operating Temperature |
-200C ~500C |
| Dimmable |
Non-Dim/Triac/0-10V/Dali-2 dimmable as options |
| CCT Adjustable |
2700-6000K Tunable as optional if need |
| IP |
IP20/IP44 |
| UGR |
<19 |
| Certificate |
CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver) |
| Warranty Period |
3 years |
HGS22 Recessed Square Anti‑Glare Spotlight

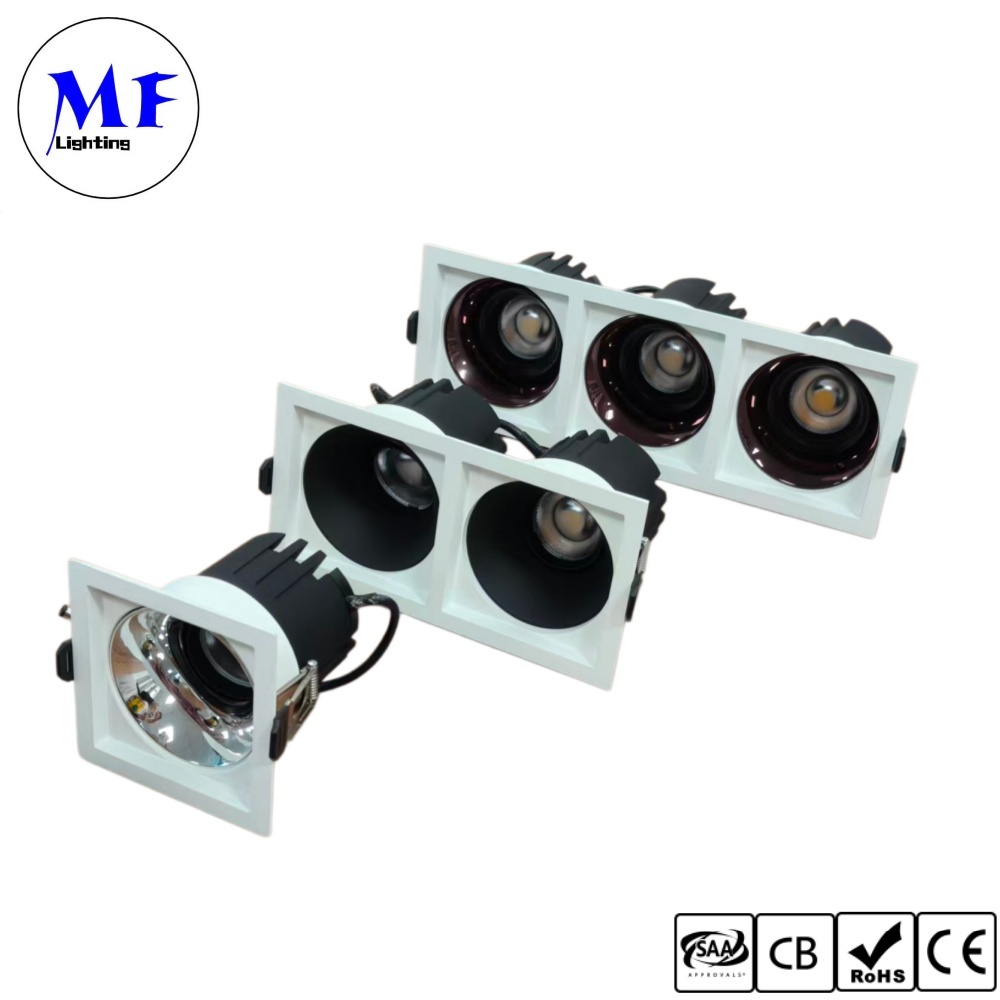

Deep anti‑glare square recessed spotlight with detachable lamp head, available in single‑head, double‑head and triple‑head configurations to fit different space lighting requirements.
Flexible Beam Angle
Multiple beam angles optional: 15°/24°/36°/50°, delivering precise light output for accent lighting.
Excellent Heat Dissipation
Full‑aluminum housing with multi‑layer Three-Dimensional heat dissipation fins. Expanded heat dissipation area efficiently lowers operating temperature, extending fixture service life.
Multiple Color Temperature Selection
3000K warm light / 4000K neutral light / 6000K cool white light, freely build various indoor atmosphere scenes.
Modular detachable lamp‑head design, easy for installation and maintenance. Ideal for offices, retail stores, hotels, commercial projects and high‑end residential spaces.
Rich Dimming & Smart Control Options
Single‑color dimming: TRIAC, 0‑10V, DALI
Tunable white 2700‑6000K: 2.4G remote, Tuya(Bluetooth/Wi‑Fi/Zigbee), DALI DT8 Multiple control solutions meet commercial smart lighting projects.
| Model |
Power |
Cut out(MM) |
Dimension(MM) |
Beam Angle |
| MF-HGS22(One head) |
7W/10W/12W |
75*75 |
88*88*79 |
15°/24°/36°/50° |
| MF-HGS22(One head) |
15W |
75*75 |
88*88*92 |
15°/24°/36°/50° |
| MF-HGS22(Two head) |
2*7W/2*10W/2*12W |
155*75 |
168*88*80 |
15°/24°/36°/50° |
| MF-HGS22(Two head) |
2*15W |
155*75 |
168*88*93 |
15°/24°/36°/50° |
| MF-HGS22(Three head) |
3*7W/3*10W/3*12W |
235*75 |
247*88*80 |
15°/24°/36°/50° |
| MF-HGS22(Three head) |
3*15W |
235*75 |
247*88*93 |
15°/24°/36°/50° |
| Head |
Power |
Carton Size(cm) |
G.W(KG) |
PCS/CTN |
| One head |
7W/10W/12W/15W |
52*21*49.5CM |
13.0KG |
50PCS |
| Double heads |
2*7W/10W/12W/15W |
44.5*34*40.5CM |
15.0KG |
30PCS |
| Three Heads |
3*7W/10W/12W/15W |
44.5*34*57CM |
20.0KG |
30PCS |
Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
