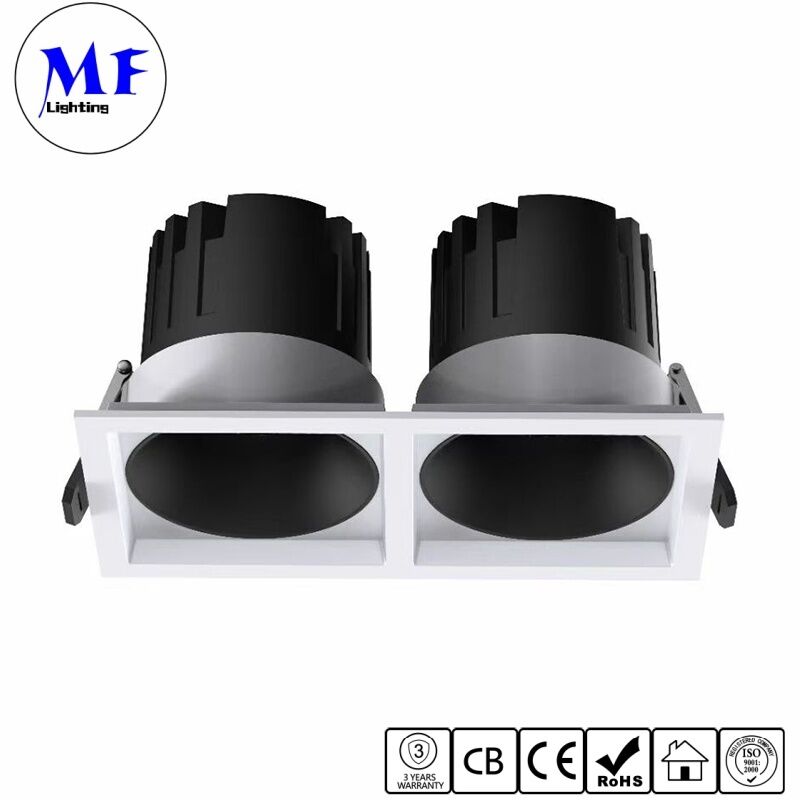

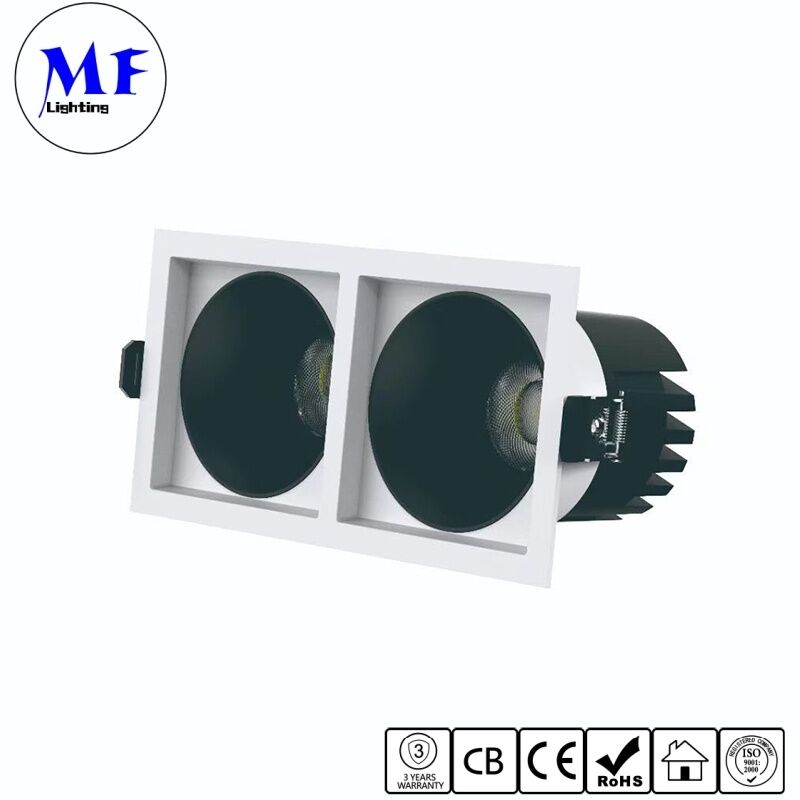

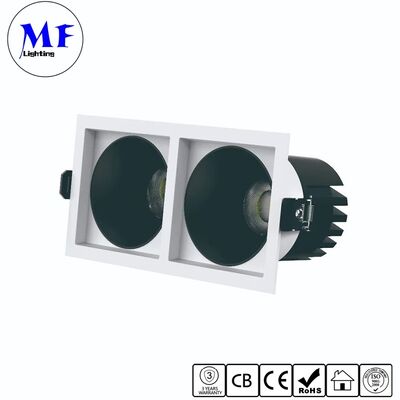

Factory Price Double-Heads Anti-Glare Square LED Down Light IP20 With TRIAC 0-10V DALI-2 DT6 DT8 Dimming Recessed Ceiling Spotlight

Contact Now

Factory Price Double-Heads Anti-Glare Square LED Down Light IP20 With TRIAC 0-10V DALI-2 DT6 DT8 Dimming Recessed Ceiling Spotlight

Minimum Order Quantity :	1	Price :	14.9$-25$
Delivery Time :	15days	Payment Terms :	L/C, T/T
Supply Ability :	5, 000PCS/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE/ RoHS（Whole Lamp）; CE/ROHS/CB/SAA(Driver)	Model Number:	MF-HGS22-2*15W

Detail Information
LED Chip:	OSRAM/Bridgelux	CRI (Ra):	Ra80+/Ra90+
Ugr:	<19	Lifespan:	≥50000hrs
CCT Adjustable:	2700-6000K Tunable As Optional	Input Voltage:	100-277Vacor 200-240Vac, 50hz/60hz, DC24V Available
Housing Colour:	White	Reflector Color:	Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black
Luminous Flux (lm):	100LM/W	Warranty Period:	3 Years
Material:	Die-casting Aluminum	Certificate:	CE/ RoHS（Whole Lamp）; CE/ROHS/CB/SAA(Driver)
LED Driver:	DONE/Aohua/Lifud/Eaglerise Brand For Different Dim Version
Highlight:	Double-Heads Anti-Glare LED Down Light , Square LED Down Light with TRIAC Dimming , Recessed Ceiling Spotlight with DALI-2 DT8

Product Description

Anti-Glare Square LED Spot Downlight MF-HGS22 Series Specifications Factory Price Double-Heads Anti-Glare Square LED Down Light IP20 With TRIAC 0-10V DALI-2 DT6 DT8 Dimming Recessed Ceiling Spotlight

MF-HGS22 series square anti-glare LED recessed spot downlight is available in single-head, double-head and triple-head versions. Made of die-cast aluminum, it features UGR<19 deep anti-glare performance, Ra80+/Ra90+ high-color-rendering 0SRAM/Bridge1ux COB chips. It supports TRIAC, 0-10V, DALI-2, DALI DT6 DT8 dimming, IP20/IP44 optional. Multiple power, beam angle & CCT options for residential, hotel and commercial lighting projects, CE & RoHS certified with 3 year warranty.

Factory Price Double-Heads Anti-Glare Square LED Down Light IP20 With TRIAC 0-10V DALI-2 DT6 DT8 Dimming Recessed Ceiling Spotlight

Model	MF-HGS22-7W/10W/12W/15W; MF-HGS22-2*7W/10W/12W/15W; MF-HGS22-3*7W/10W/12W/15W
Input voltage	100-277Vac or 200-240Vac, 50hz/60hz, DC24V available
Power(watt)	7W/10W/12W/15W 2*7W/10W/12W/15W 3*7W/10W/12W/15W
Color temperature	2700K/3000K /3500K/ 4000K / 5000K /6000K, 2700-6500K Tunable
LED Chip	OSRAM/Bridgelux
LED Driver	DONE/Aohua/Lifud/Eaglerise Brand for different dim version
PF	10-20W≥0.50, 25W≥0.95
Housing Colour	White
Reflector color	Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black
Luminous Flux (lm)	100LM/W
CRI(Ra)	Ra80+/Ra90+
Lifespan	≥50000hrs
Beam Angle	15°/24°/36°/50°
Material	Die-casting Aluminum
Operating Temperature	-20⁰C ~50⁰C
Dimmable	Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable	2700-6000K Tunable as optional if need
IP	IP20/IP44
UGR	<19
Certificate	CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver)
Warranty Period	3 years

Versions: Single‑head, double‑head, triple‑head available.
Power options: 7W/10W/12W/15W; multi‑head combinations: 2×7‑15W, 3×7‑15W.
Cut‑out: 75×75mm (single), 155×75mm (double), 235×75mm (triple).

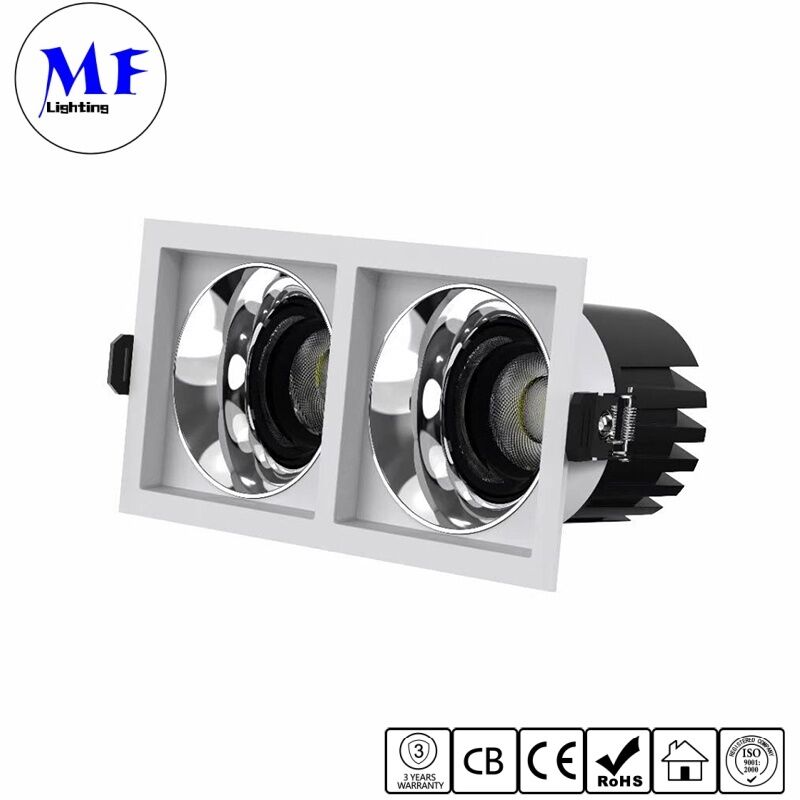

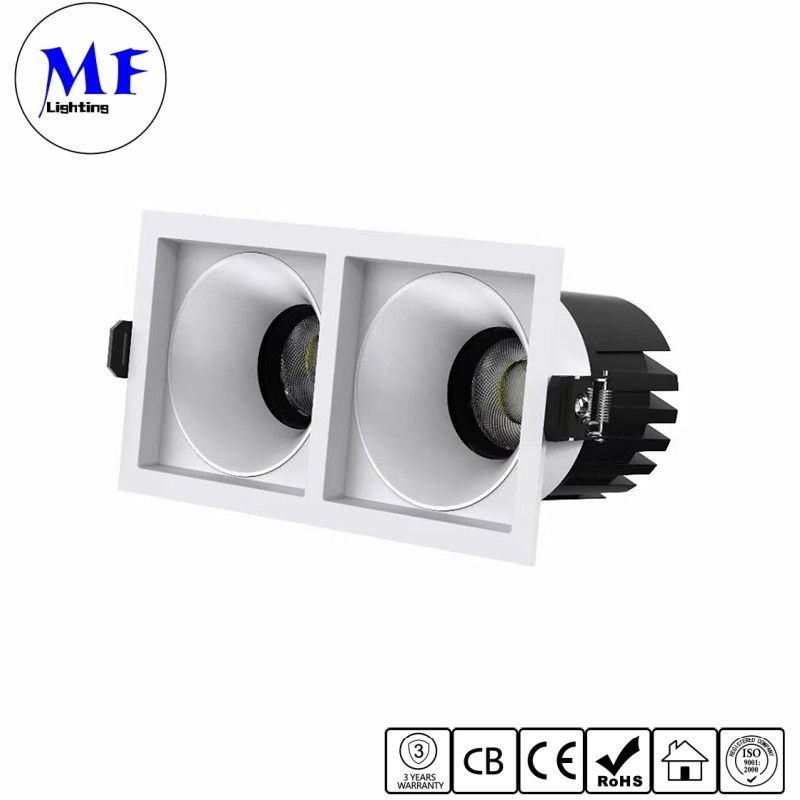

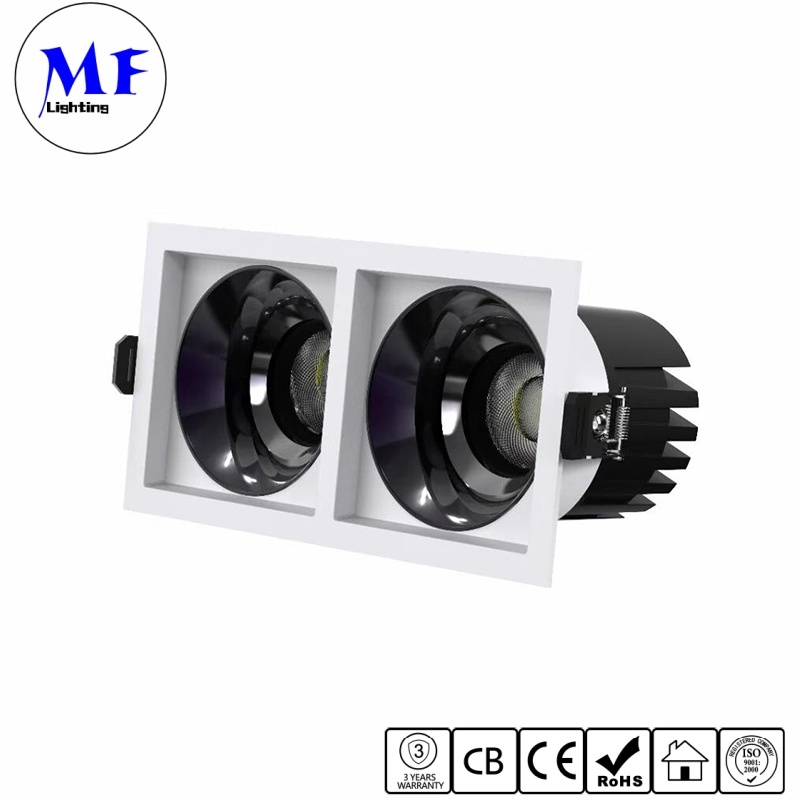

Reflector finishes: Matte White, Matte Black, Polished Silver, Gunmetal Black

Factory Price Double-Heads Anti-Glare Square LED Down Light IP20 With TRIAC 0-10V DALI-2 DT6 DT8 Dimming Recessed Ceiling Spotlight

Performance: CRI ≥90; CCT 2700K‑6000K; Input AC 100‑240V / 200‑240V.
Dimming: Triac, 0‑1‑10V, DALI dimmable options.
Certifications: CE, RoHS, SAA; IP20 rating.

Full‑aluminum housing with multi‑layer 3D heat‑dissipation fins, large heat‑dissipation area for efficient heat removal.
Complete structural composition: aluminum heat sink, COB light source & lens, anti‑glare shield, trim bezel, spring clips and wire press buckle.
Well‑structured assembly design for anti‑glare performance and stable recessed installation

Factory Price Double-Heads Anti-Glare Square LED Down Light IP20 With TRIAC 0-10V DALI-2 DT6 DT8 Dimming Recessed Ceiling Spotlight

Suitable for residential & commercial indoor lighting: living rooms, bedrooms, kitchens, hallways, hotel lobbies, guest rooms, office spaces, shopping malls, showrooms, retail stores, conference rooms, corridors and reception areas.
