Product Description

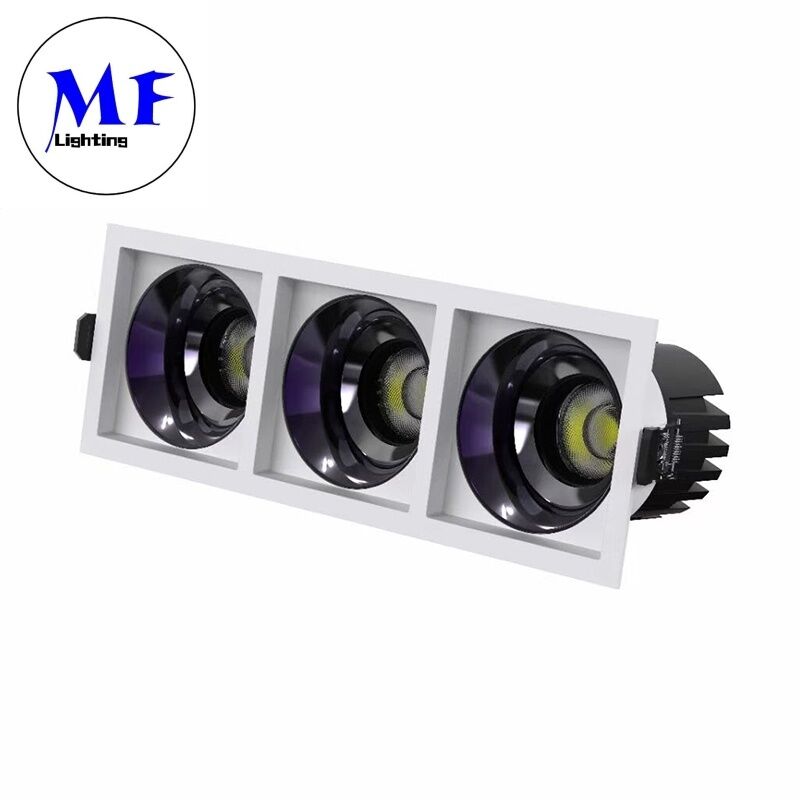

7W10W12W15W Anti-Glare Recessed Spot Down Light,TRIAC/0-10V/DALI-2 Dimmable, 100lm/W CRI90, AC100-277V, 1/2/3 Heads
− IP20/IP44 Rating Design: Suitable for indoor application only.
− Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
− Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
− Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya zigbee and DALI dimming with smart control via APP.
− Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes.
− High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.
− Multiple Housing Colors: Available in Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black
− Multiple Heads Available.
The MF-HGS22 series is a square anti-glare downlight with a clean, modern design. Its sleek lines suit a variety of interior styles, from minimalist to contemporary. Multiple housing and reflector color options are available to coordinate with different ceiling finishes and overall space aesthetics. The IP20 and IP44 ratings make it suitable for standard indoor environments as well as damp areas such as bathrooms and kitchens.
Optical Performance:
Beam angles are available in 15°, 24°, 36°, and 50°, allowing for accent or general lighting as needed.
The color temperature range spans from 2700K to 6000K, with a tunable CCT option that enables users to switch between different light colors via a switch or APP.
This flexibility meets various ambiance needs and helps clients reduce SKU inventory pressure. The flicker-free design is eye-friendly for long-duration use and is a fundamental requirement for European market exports.
Electrical Performance:
The luminaire supports a wide input voltage range of AC100-277V, making it globally compatible and adaptable to different grid conditions.
A DC24V version is also available for low-voltage safety projects. Dimming options are flexible, supporting traditional TRIAC and 0-10V dimming, as well as DALI-2 and Tuya ZigBee for smart home and building automation applications.
Models above 20W have a power factor of 0.95 or higher, minimizing grid losses — an important specification for EU and US markets.
With a rated lifespan of over 50,000 hours, the series reduces long-term replacement and maintenance costs.
The series covers single, double, and triple head configurations with consistent parameters across all options — including dimming methods, CCT, CRI, and beam angles — simplifying the selection process for clients. Customization options such as CCT tunable, adjustable power, and various reflector colors are also available to meet specific project needs
The whole luminaire is CE and RoHS certified, and the driver carries CE, RoHS, CB, and SAA certifications, ensuring smooth market access to Europe and Australia. The series comes with a 3-year warranty, providing reliable quality assurance for customers.
