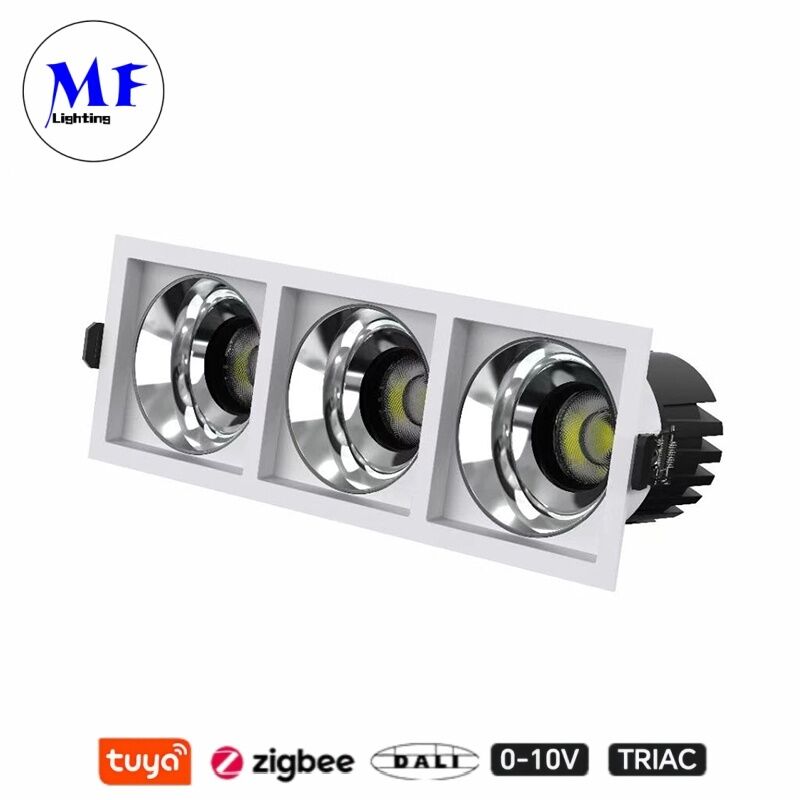

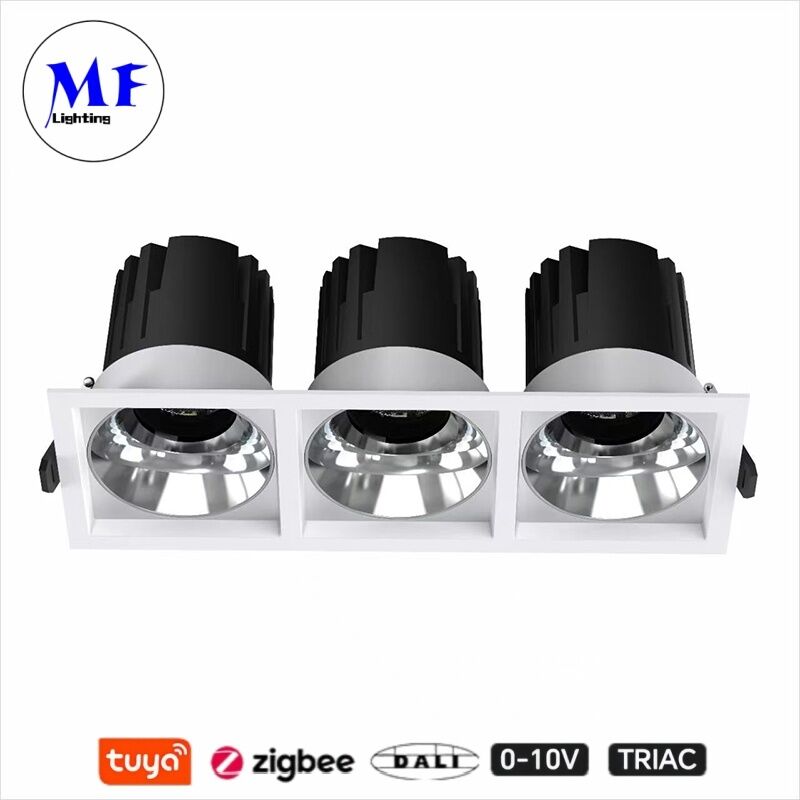

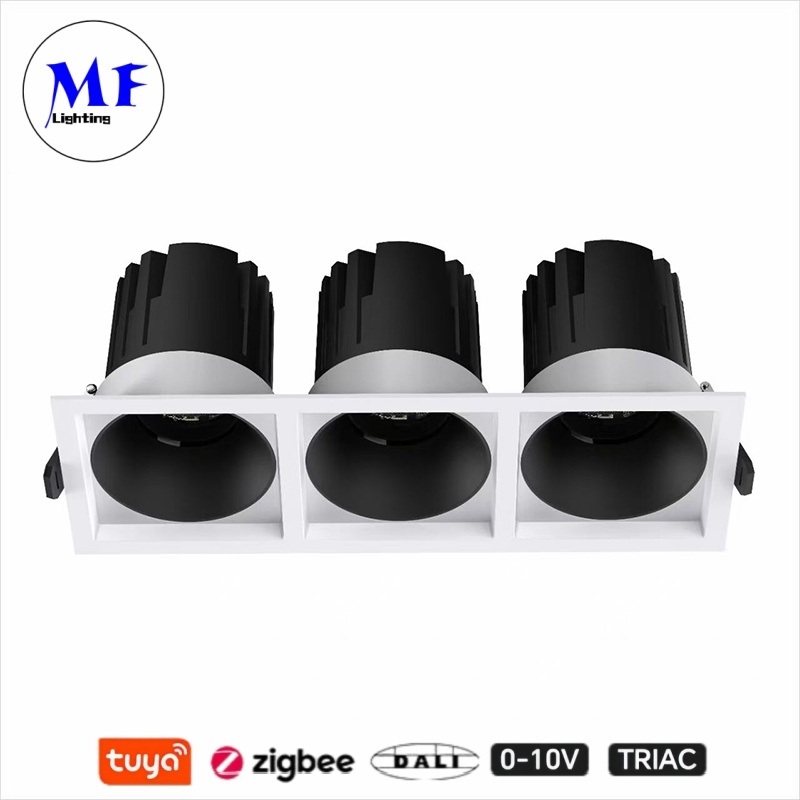

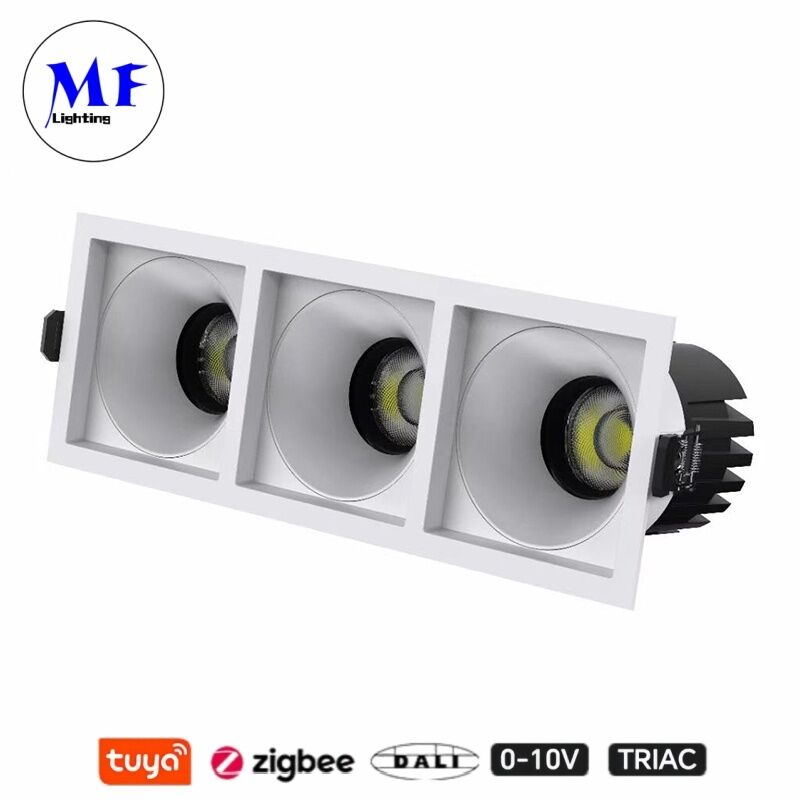

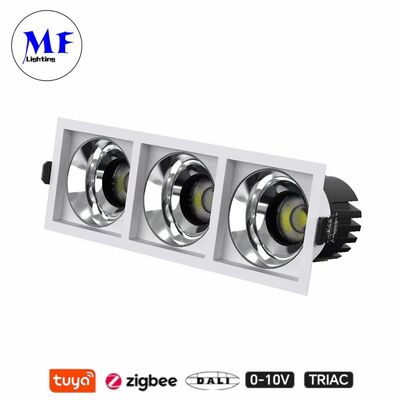

Square Recessed LED Down Light Three Heads 3*7W Triac 0-10V Dali CCT Power Adjustable Dimmable Smart Dim Aluminum Spot

Contact Now

Square Recessed LED Down Light Three Heads 3*7W Triac 0-10V Dali CCT Power Adjustable Dimmable Smart Dim Aluminum Spot

Minimum Order Quantity :	1	Price :	USD20.6-USD31.2
Delivery Time :	10workding days	Payment Terms :	T/T
Supply Ability :	10000PCS/Month

Place of Origin:	China	Brand Name:	MF
Model Number:	MF-HGS22-3*7W

Detail Information
Luminous Efficiency:	100LM/W	Power Factor:	>0.9
Input Voltage:	100-277Vac Or 200-240Vac, 50hz/60hz, DC24V Availab	Power:	3*7W/10W/12W/15W
Color Temperature:	2700-6000K Tunable As Optional	Lamp Body Material:	Die-Casting Aluminum
Installation:	Recessed	IP Rating:	IP44
LED Chip:	Osr-Am/ Bridgelux	LED Driver:	DONE/Aohua/Lifud/Eaglerise Brand For Different Dim
Housing Colour:	White	CRI:	Ra80+/Ra90+
Warranty:	3years	IP:	IP20/IP44
Highlight:	Square recessed LED down light , Triac dimmable aluminum spot light , Smart dim CCT adjustable downlight

Product Description

Square Recessed LED Down Light 3*7W Triac 0-10V Dali CCT Power Adjustable Dimmable Smart Dim Aluminum Spot

Square Recessed LED Down Light Three Heads 3*7W Triac 0-10V Dali CCT Power Adjustable Dimmable Smart Dim Aluminum Spot

IP20/IP44 Protect Rating: Anti-humid and dustproof design suitable for wet areas like bathrooms spaces.
Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP.
Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes.
High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.
Multiple Housing Colors: Available in Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black/Rose Gold to match various interior styles.

Multiple Heads Available.

Deep-recess anti-glare spot downlight structure UGR<19 prevents harsh direct glare, making it comfortable for long-term viewing in galleries and hotel public zones.

Square Recessed LED Down Light Three Heads 3*7W Triac 0-10V Dali CCT Power Adjustable Dimmable Smart Dim Aluminum Spot

Technical Parameter

Model	MF-HGS22-7W/10W/12W/15W; MF-HGS22-27W/10W/12W/15W; MF-HGS22-37W/10W/12W/15W
Input voltage	100-277Vac or 200-240Vac, 50hz/60hz, DC24V available
Power(watt)	7W/10W/12W/15W 27W/10W/12W/15W 37W/10W/12W/15W
Color temperature	2700K/3000K /3500K/ 4000K / 5000K /6000K, 2700-6500K Tunable
LED Chip	OSR-AM/Bridgelux
LED Driver	DONE/Aohua/Lifud/Eaglerise Brand for different dim version
PF	10-20W≥0.50, 25W≥0.95
Housing Colour	White
Reflector color	Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black
Luminous Flux (lm)	100LM/W
CRI(Ra)	Ra80+/Ra90+
Lifespan	≥50000hrs
Beam Angle	15°/24°/36°/50°
Material	Die-casting Aluminum
Operating Temperature	-200C ~500C
Dimmable	Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable	2700-6000K Tunable as optional if need
IP	IP20/IP44
UGR	<19
Certificate	CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver)
Warranty Period	3 years

Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.

Factory Price Anti-glare Triac Dali TUYA Dimmable 7W 10W 12W 15W Square LED Recessed Spot Down Light for Bathroom Kitchen Industrial Retail Commercial Spaces

Easy Spring Clip Installation

Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.

Head	Power	Carton Size(cm)	G.W(KG)	PCS/CTN
One head	7W/10W/12W/15W	522149.5CM	13.0KG	50PCS
Double heads	2*7W/10W/12W/15W	44.53440.5CM	15.0KG	30PCS
Three Heads	3*7W/10W/12W/15W	44.53457CM	20.0KG	30PCS

FAQ:

Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience.
Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.
What is your main product?
Our main products are as follows:
LED Triproof lights/ LED Vapor Tight Lights
LED High Bay Lights
LED Flood lgihts
LED Explosion Proof Lights
LED Down Lights
LED underwater lights (swimming pool lights, fountain lights, underwater spotlights)
LED garden spot/spike lights
LED inground lights
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options?
We accept T/T, Western Union, Paypal. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF, CNF and DDP
What is the delivery time?
The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
1). We offer OEM/ODM services.
2). We have our own design team.
3). We offer high-quality products at reasonable prices.
4). We have no MOQ request.
5). Our sales team has 12 years of experience in underwater lighting.
