Product Description

Aluminum 7W/10W/12W/15W/14W/20W/24W/30W/21W/30W/36W/45W 1 2 3 Head Square Recessed Downlight Smart Power CCT DALI 0-10V Dimming IP44 Hotel LED Down Light

Feature

1. High luminous efficiency: High lumen output reaching **140-160LM/W**; available with high CRI Ra80+ / Ra90+ for true-to-life color rendering.
2. Long service life: Die-cast aluminum integrated heat sink delivers a lifespan of **≥50,000 hours**, with 5-year product warranty.
3. Anti-glare lighting performance: 120° wide beam angle, UGR<19, offers eye-comfortable illumination.
4. Multiple dimming & smart control options: Support Non-Dim, TRIAC, 0-10V, DALI-2, Tuya Zigbee smart dimming with APP control.
5. Flexible colour temperature solution: Fixed CCT from 2700K-6000K; optional tunable CCT 2700-6000K for diverse lighting scenarios.
6. IP20 indoor-grade protection rating, only for indoor use.

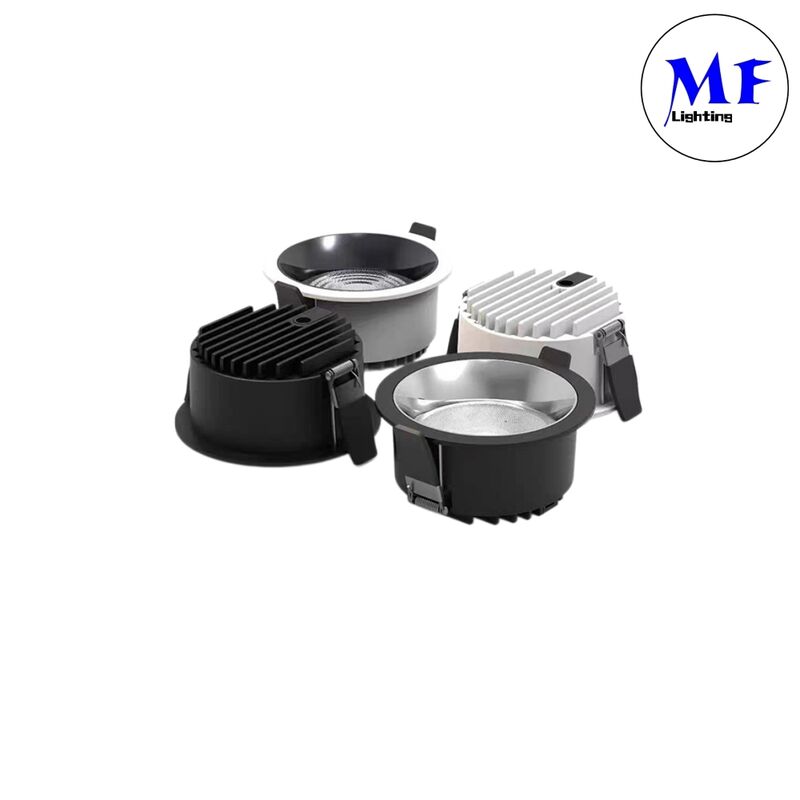

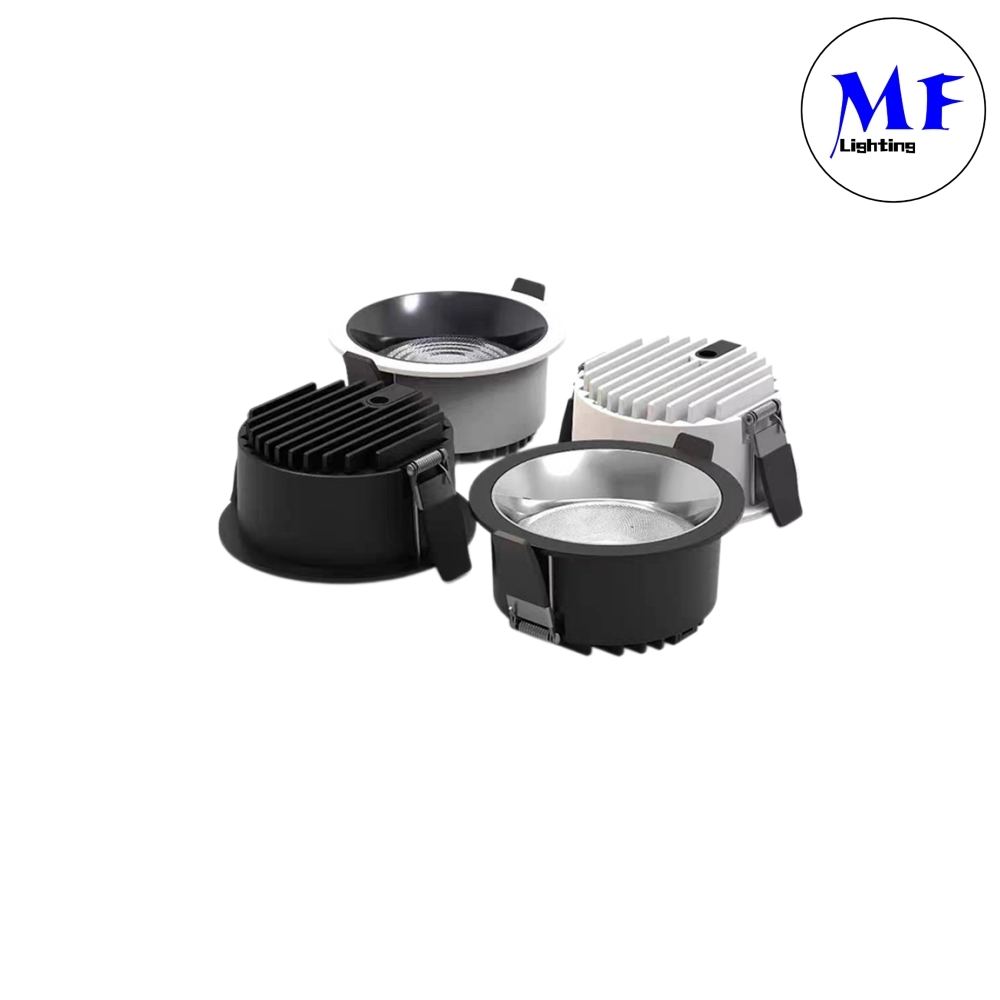

7. Rich housing & reflector colour selections: White, Black, Shiny silver, Gun Black, to fit different interior decoration styles.
8. Wide power range: Covers 7W-100W with multiple cut-out sizes to meet different project requirements.

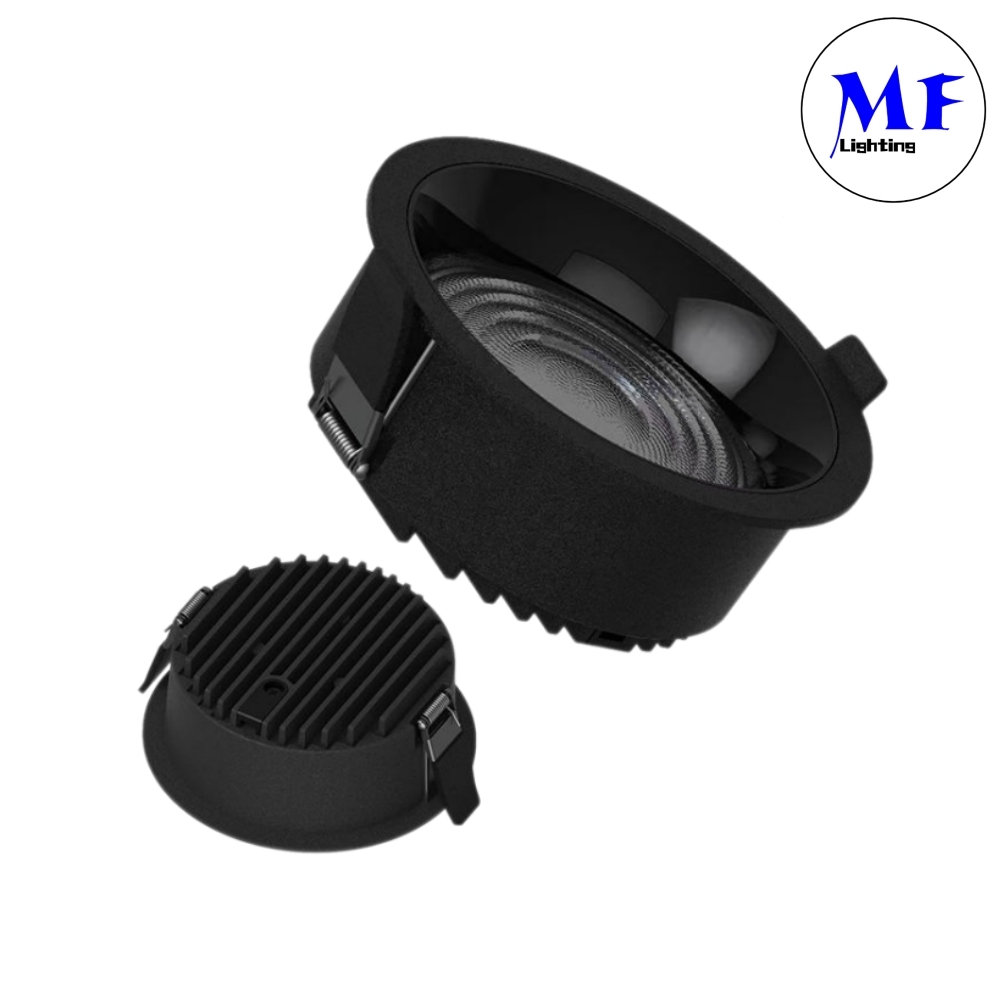

1. **Structure & Material**: Whole lamp adopts die-casting aluminum material for heat dissipation; built-in SMD LED chip (Bridgelux chip); fitted with anti-glare lamp cup, optical lens, spotlight reflection component and steel spring clips for mounting.
2. **Electrical parameters**: Input voltage 110Vac or 200-240Vac, 50/60Hz; PF value: ≥0.50 for 5-20W models, ≥0.95 for power above 20W.
3. **Driver options**: Equipped with drivers from Aohuaweiye, Lifud, Eaglerise, Boke for different dimming versions.
4. **Working environment**: Operating temperature: -20ºC ~ 50ºC.
5. **Certifications**: Whole lamp with CE, RoHS certification; drivers pass CE, RoHS, CB, SAA certifications.
6. **Installation type**: Recessed ceiling mounting with steel spring clip structure for quick installation.

Design

Product description

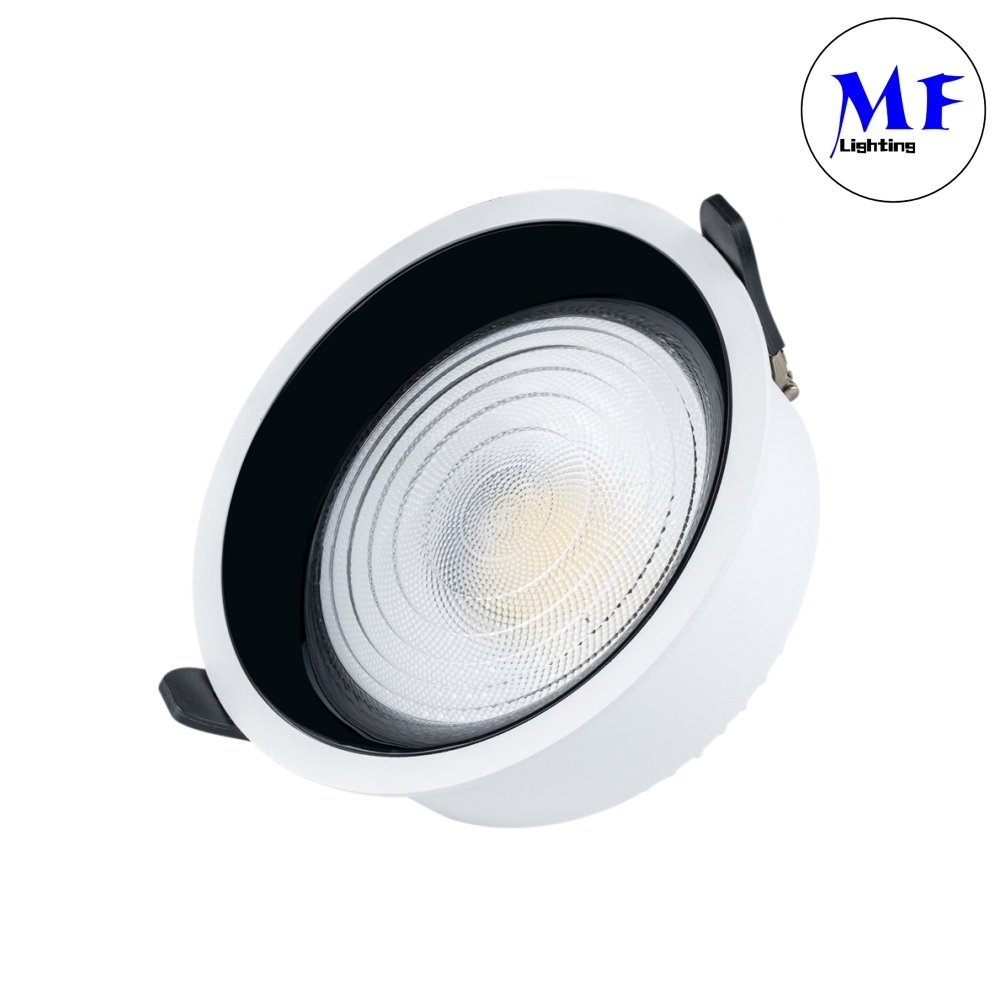

1. **Optical design**: Equipped with independent anti-glare lamp cup + optical lens + spotlight reflection assembly; forms 120° wide beam angle, suppress glare with UGR<19, soft and uniform light output.
2. **Thermal design**: Integrated die-cast aluminum shell acts as heat sink, efficiently dissipates heat from SMD light source, extends LED working lifetime.
3. **Mounting structure**: Adopt steel spring clip design; simple push-in snap-fit recessed installation, matches various ceiling cut-out sizes from 75mm-260mm for different power variants.
4. **Appearance design**: Modular detachable structure including reflector, lens, SMD chip board and aluminum housing; multi-colour optional reflectors & housings to match interior decoration styles.
5. **Electrical design**: Reserved multiple dimming interfaces, compatible with TRIAC /0-10V /DALI /Tuya Zigbee smart control; optional CCT-tunable hardware to realize colour-temperature switching.

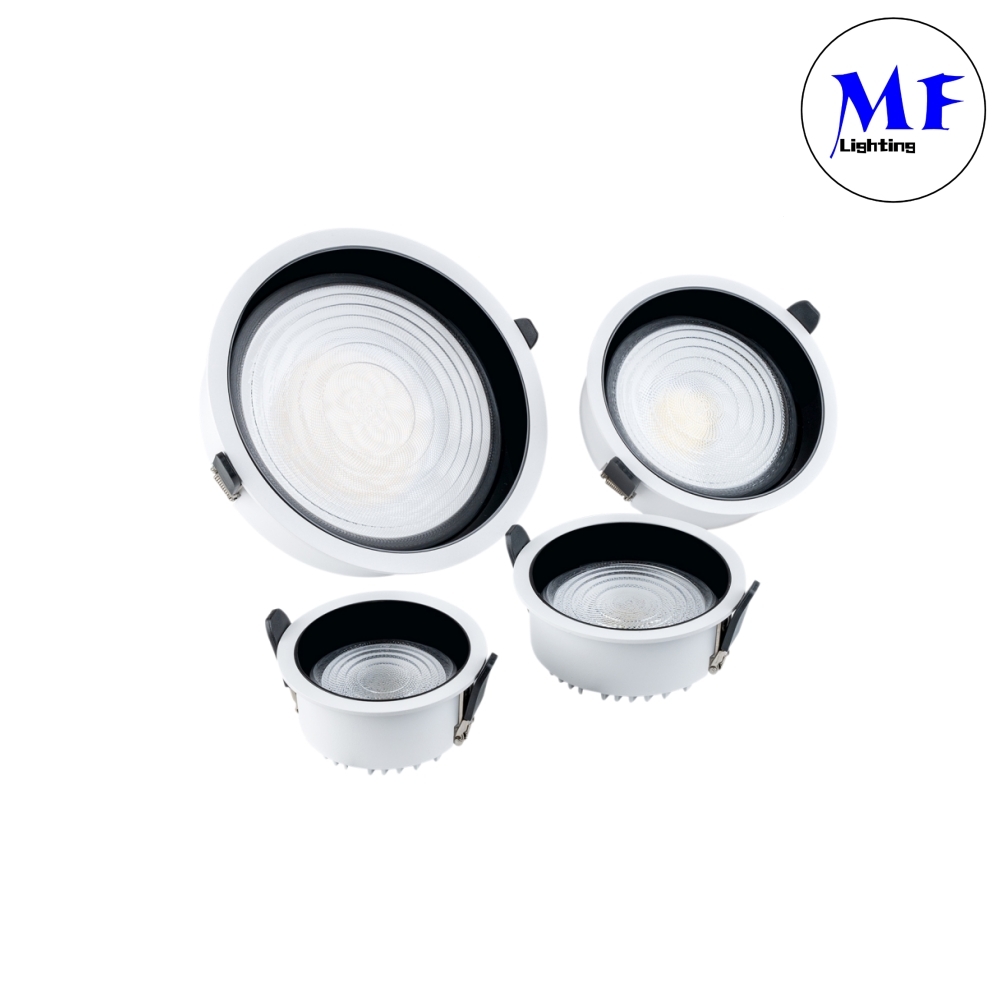

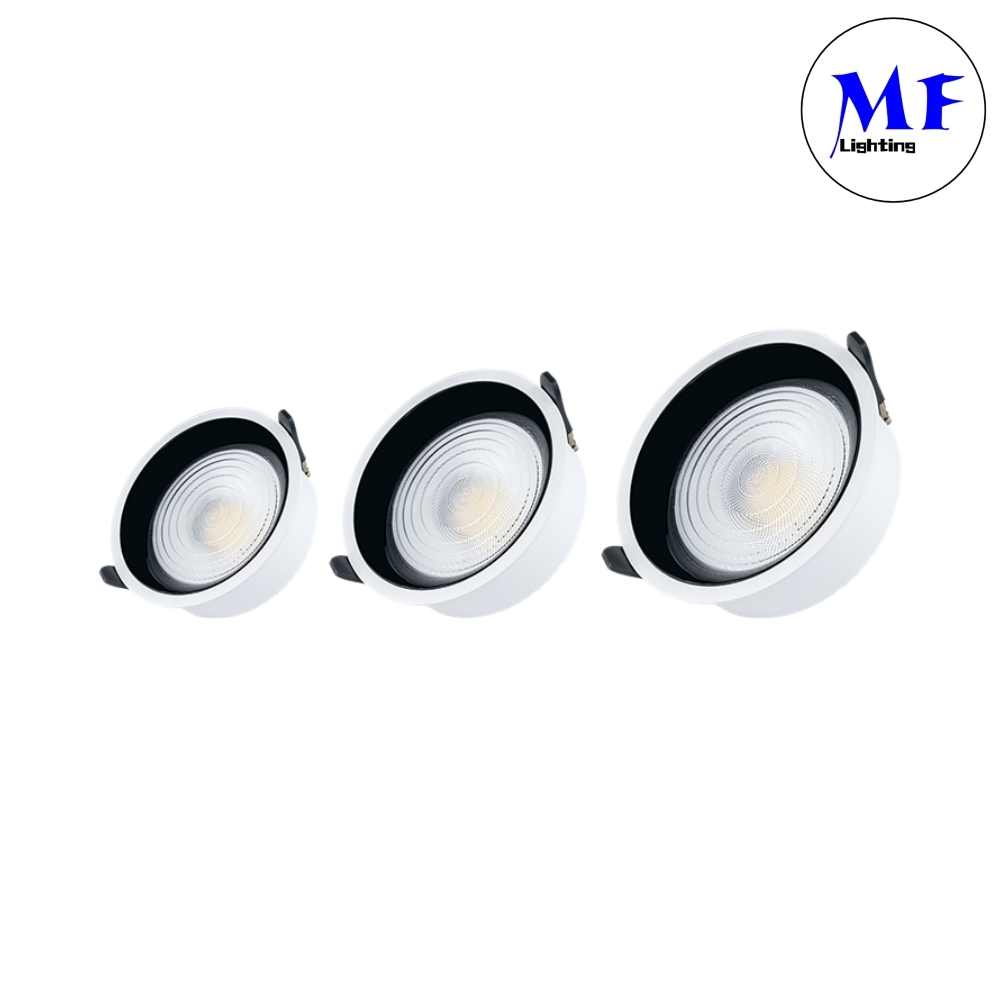

6. **Size gradient design**: Serial-size iteration: power ranges 7W-100W, corresponding cut-out hole sizes from 75mm up to 260mm, height varies according to power for different ceiling space conditions.

Product Size

Installation:

Easy Spring Clip Installation

1. Cut ceiling opening according to required cut-out dimension.
2. Complete wiring by a qualified electrician.
3. Compress spring clips and insert fixture into ceiling hole.
4. Release spring clips to secure the luminaire, power on and test.

Application:

This recessed square COB spotlight is designed for indoor‑only installation, available with IP20 or IP44 protection rating. Thanks to its UGR＜19 anti‑glare performance, high CRI output, multiple dimming & tunable‑CCT options, single‑/double‑/triple‑head configurations, it covers wide residential and commercial lighting scenarios.

1. Residential Applications

• Living rooms, bedrooms, hallways & foyers: Deep‑recessed anti‑glare structure (UGR＜19) delivers eye‑friendly ambient and accent lighting. Multiple reflector finishes (matte white, matte black, bright silver, gunmetal black) match various home interior styles. Tunable CCT function allows users to switch between warm white, natural white and cool‑white atmosphere for daily relaxation or entertainment scenarios.
• Kitchen & moisture‑prone domestic zones: IP44 version resists water splashes, applicable for kitchen ceiling lighting and other indoor home areas with minor humidity exposure.

Spring‑clip recessed mounting fits standard false ceiling cut‑outs; single‑head unit is widely adopted for regular household ceiling layout.

2. Commercial Retail Spaces

• Boutiques, fashion stores, showrooms and shopping malls: High‑CRI options (Ra80+ / Ra90+) reproduce true‑to‑life merchandise colors. Variable beam angles (15° /24° /36° /50°) support targeted accent lighting to highlight goods, display cabinets, wall exhibits and decorative artworks. Dimming systems (TRIAC, 0‑10V, DALI, Tuya Zigbee smart control) enable shops to adjust brightness and color temperature for different sales periods and promotional themes.
• Double‑head and triple‑head variants are preferred for large retail ceiling areas to simplify multi‑lamp layout.

3. Office & Corporate Premises

• Open‑plan offices, meeting rooms, reception lobbies and office corridors: UGR＜19 meets visual comfort requirements for long‑time screen‑working staff, effectively reducing glare‑caused eye fatigue. Stable die‑cast aluminum heat sink guarantees ≥50 000‑hour service life to cut maintenance frequency for large‑area commercial projects. DALI‑2 dimming compatibility fits centralized building lighting management systems.

4. Hospitality Industry

• Hotel guest rooms, hotel corridors, restaurant dining areas, cafes and lounges: Wide CCT range from 2700K‑6000K creates cozy dining or resting ambiance. Multiple reflector appearances coordinate with modern hotel interior decoration. IP44 option can be deployed for hotel restrooms and wet‑zone ceilings.

5. Other Indoor Commercial & Light‑Industrial Scenarios

• Exhibition spaces, galleries: High color rendering performance for artwork and exhibit illumination; anti‑glare design avoids distracting visual discomfort for visitors.
• Light‑duty indoor industrial environments: IP44 variant suits indoor locations with moderate dust or splash risk mentioned in product document, for general ambient lighting purpose. Note: Not for outdoor use or heavy‑duty wet industrial conditions.

Key advantages supporting above applications

1. Multi‑head selection (1‑head / 2‑head /3‑head) provides flexible solution for small‑size spot requirement or large‑area continuous ceiling lighting.
2. Rich dimming ecosystem: covers traditional analog dimming, bus control and Tuya Zigbee smart APP‑based CCT tuning to satisfy both fixed‑function commercial projects and smart‑home demands.
3. Die‑casting aluminum whole‑body construction ensures stable thermal performance under long‑hour continuous operation in commercial sites.
4. Spring‑clip installation allows quick retrofit and new‑build ceiling installation.

Limitation: This luminaire is for indoor application only; IP20 version shall not be used in splash‑prone humid areas.
