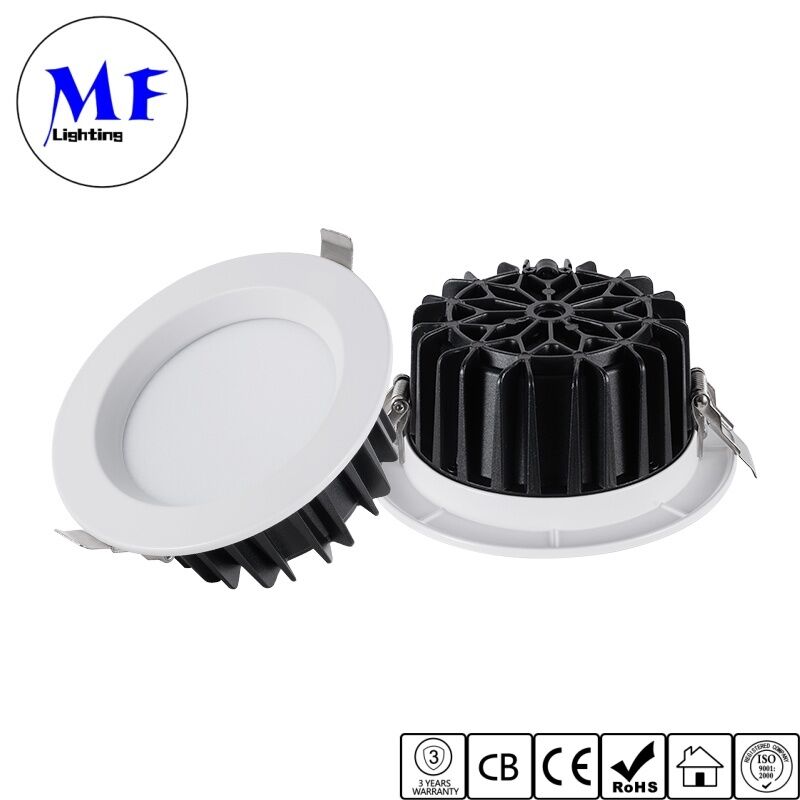

OEM ODM Recessed SMD LED Downlight IP40 Indoor Lighting 20W 30W 50W CCT Adjustable Power Dimmable CRI90 Alu Ceiling Down Light

Product Description

OEM ODM Recessed SMD LED Downlight IP40 Indoor Lighting 20W 30W 50W CCT Adjustable Power Dimmable CRI90 Alu Ceiling Down Light

MF DLT15 SMD recessed LED downlight delivers even wide-spread ambient lighting for modern commercial and residential renovation jobs.
Power range covers 5W up to 50W fitted with milky PC diffuser for soft homogeneous light output.

It provides 100LM per watt luminous efficiency, with optional CRI80 and CRI90.
Extra wide 120-degree beam angle, UGR less than 19 to minimize uncomfortable glare.

Multiple control modes are available including Non Dim, Triac, 0-10V, Dali 2, Dali DT8, Tuya Zigbee and Tuya Wifi, plus optional CCT adjustable function. Input voltage supports AC110Vac and AC200-240V.

White and black housing selections are offered. IP40 rating for dry indoor locations, CE, RoHS, CB, SAA certified with 3-year factory warranty.
Ideal for retail boutique, showroom, hotel lobby, office and premium domestic interior lighting projects.

Multiple dimmable variants satisfy different project technical requirements: Non-dimmable / Triac / 0-10V / DALI 2 / Dali DT8 / Tuya Zigbee / Tuya Wifi.

Tuya smart editions support mobile-APP remote management: brightness adjustment, CCT switching, multi-lamp group-control and custom scene-mode preset storage.

CCT adjustable optional with 2700K-6000K range. One single fixture can produce warm relaxing mode, neutral office-working mode and cool commodity-display mode.

Input voltage covers AC110Vac and AC200-240V, compatible with most household and commercial power-grid systems across global markets.

Power-factor compliance: 5-20W ≥0.50; power higher than 20W ≥0.95, meets international commercial-lighting energy-efficiency criteria.

CCT adjustable option provides 2700K-6000K tunable white output, helping create warm ambient mode, neutral working mode and cool display mode within one fixture.

Different from accent-oriented spot downlights, MF DLT15 is engineered for ambient general lighting.

Milky PC diffuser softens SMD source output, avoid glaring central hot-spot which commonly appears on bare-reflector COB lamps.
Light spills smoothly across ceiling and wall surfaces.

Fixed 120-degree beam angle delivers wide coverage. It works great when you need even base lighting rather than pinpoint object highlighting.
UGR less than 19 anti-glare performance improves visual comfort in offices, retail shops and living zones where people stay for extended hours.

Optional CRI80 and CRI90 grades. CRI90 variant preserves true hue for merchandise, furniture and interior decoration pieces.
Luminous efficiency reaches 100LM per watt, generating considerable energy savings for venues running daily long operating hours.

IP40 Rating Design: Suitable for indoor application only.
Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50 ,000 hours or more.
Anti-Glare Flicker free Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
Flexible Dimming Options: Supports Non-Dim ,TRIAC,0-10V,Tuya zigbee and DALI dimming with smart control via APP.

Wide Color Temperature Range: Available in 2700K to 6000K ,with tunable CCT 2700-6000K options for customized lighting scenes.
High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)for accurate color rendering.

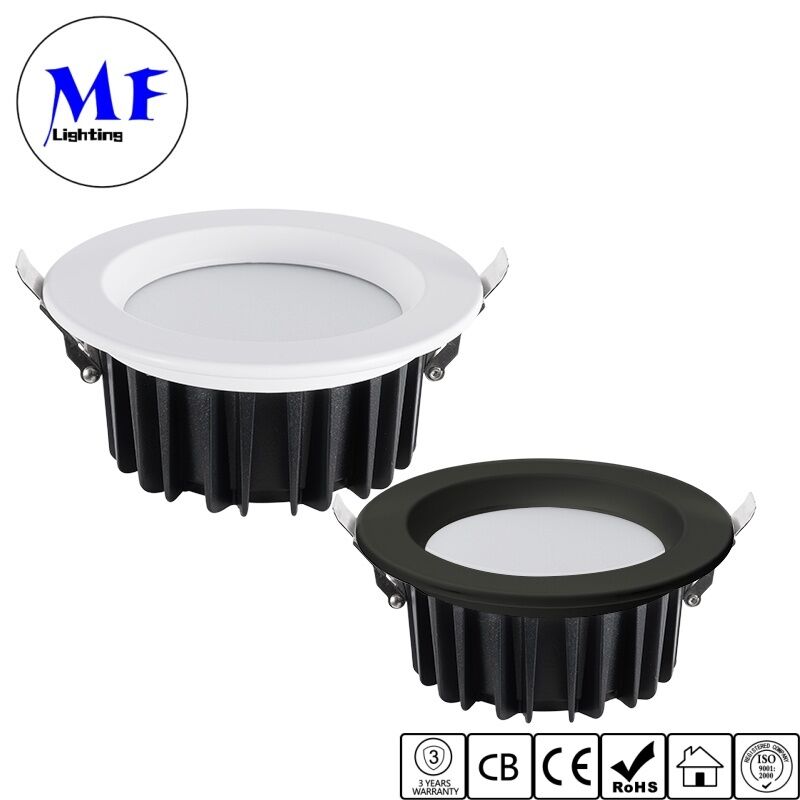

Multiple Housing Colors: Available in White ,Black to match various interior styles.

Installation Guide

1. Cut ceiling opening strictly following cut-out dimension of selected power variant.
2. Complete wiring connection to power supply. Professional certified electrician is strongly advised for wiring operation.
3. Squeeze spring clips located on two sides of lamp body, insert full fixture assembly into ceiling opening.
4. Release spring clips to achieve firm locking. Switch-on power supply and run lighting function test.

Installation Tips
• Double-check ceiling hole dimension before cutting ceiling panel. Wrong aperture size leads to mounting failure.
• Calculate sufficient back-depth space inside ceiling matching lamp body height.
• For smart-control variants, strictly follow supporting driver operation manual.

Application:

Residential Spaces

· Kitchens - resistant to oil fumes and water splashes during cleaning.
· Bathrooms - safe against shower moisture and steam.

· Walk-in closets / storage rooms - keeps dust and insects out.
· Basements / garages - withstands humidity and dust.

Commercial & Public Spaces

· Hotels / apartments - for moist areas like guest bathrooms and corridors.

· Offices / shopping malls - meets dust-proof requirements while maintaining aesthetics.

· Ship cabins - specially suited for humid marine environments like bathrooms.



Job reference photos from Ming Feng

Industrial Settings:In industrial environments where dust ,moisture ,or water exposure can be an issue , waterproof lighting like these downlights can be beneficial.

Retail or Commercial Spaces:These downlights can also be used in retail stores ,restaurants ,or other commercial spaces where water resistance and durability are needed.

Neutral export-grade carton packing. Custom-printed color-box and OEM marking service available.

Multiple logistics-solution options: sea freight, air freight, express delivery according to project-schedule requirement.
