Product Description

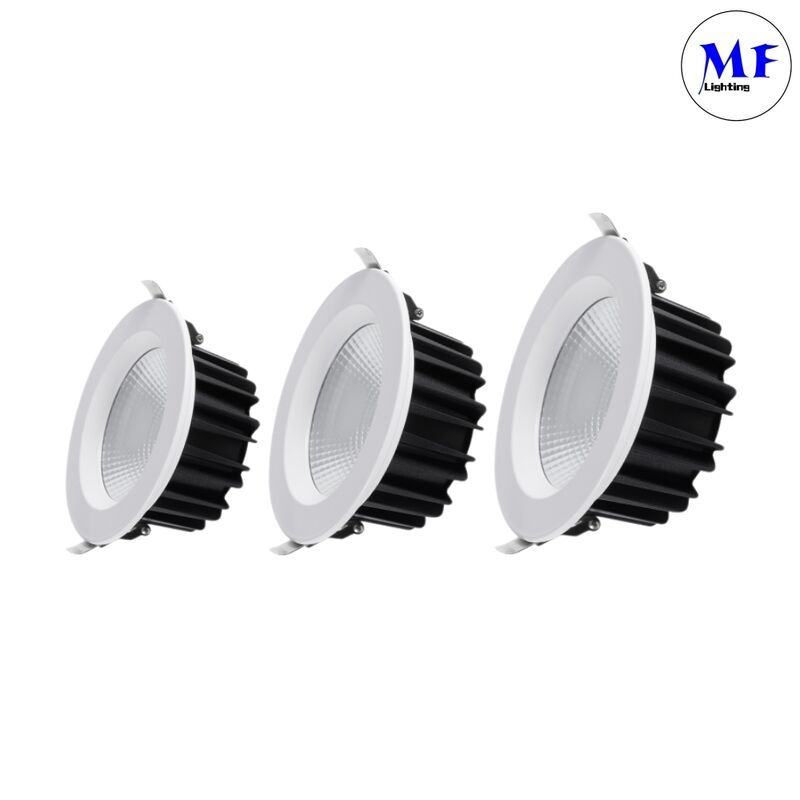

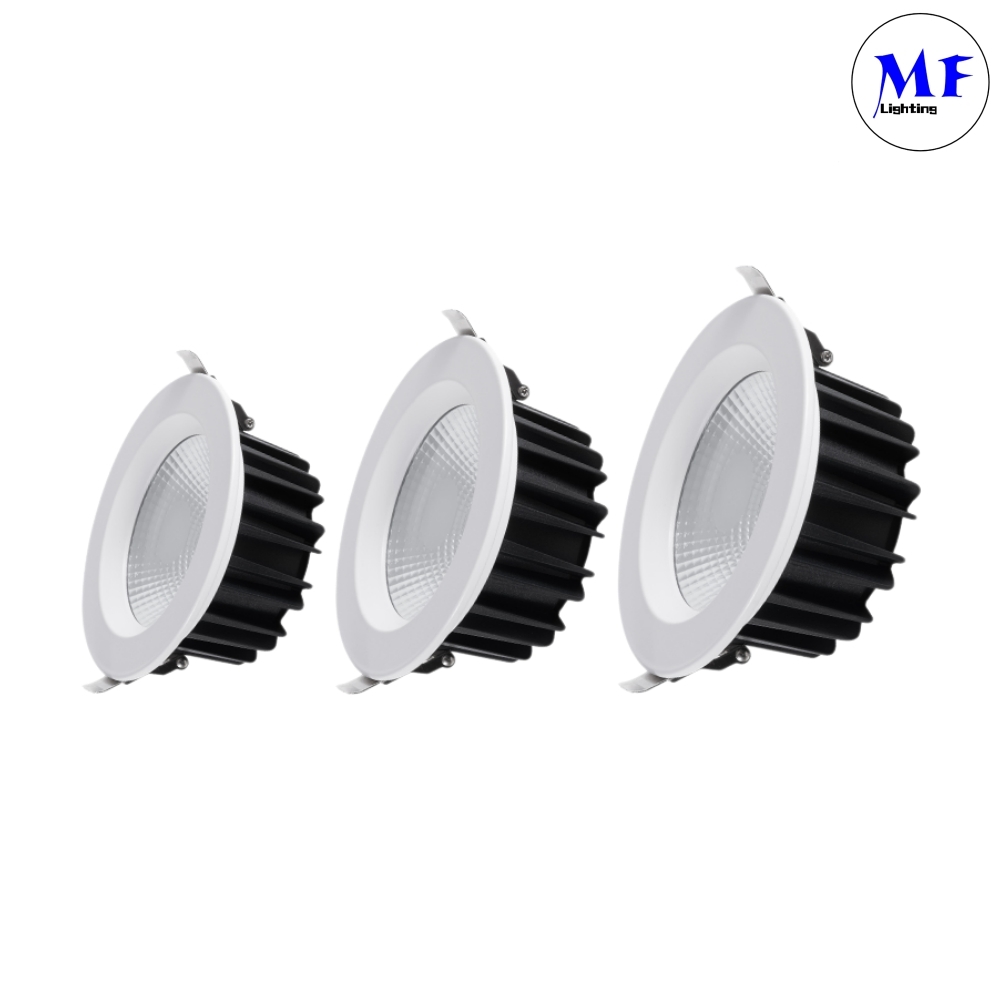

IP40 SMD Downlight 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W Smart CCT Power Dimming Adjustable Smart Triac Dali 0-10V Recessed Aluminum LED Down Light

Feature

1. IP20/40 rating design, for indooronly application.
2. Long service life: integrated diecast aluminum heat sink delivers lifespan ≥50,000 hours.
3. Glarefree performance with milky PC diffuser; UGR<19, comfortable for bedroom and office lighting.
4. Multiple dimming modes available: NonDim, TRIAC, 010V, DALI, Tuya Zigbee with APP smart control.
5. Rich color temperature options: fixed CCT 2700K6000K; optional tunable CCT 27006000K for custom lighting scenes.
6. High luminous efficiency: 100 lm/W; highquality color rendering with Ra80+ / Ra90+ optional.

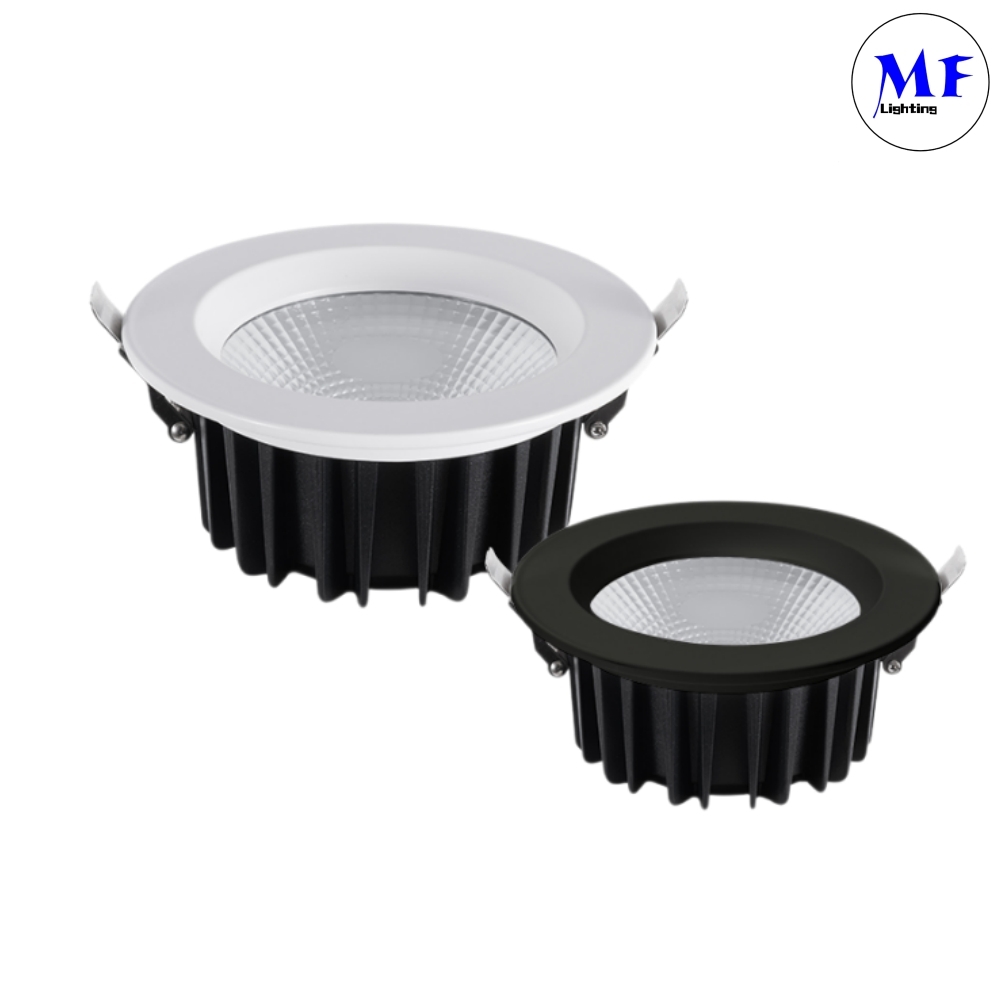

7. Two housing color choices: White, Black.
8. Beam angle: 120°.
9. SDCM<3.
10. Springclip structure for easy embedded ceiling installation.

1. Power range: 5W-50W multiple wattage versions.

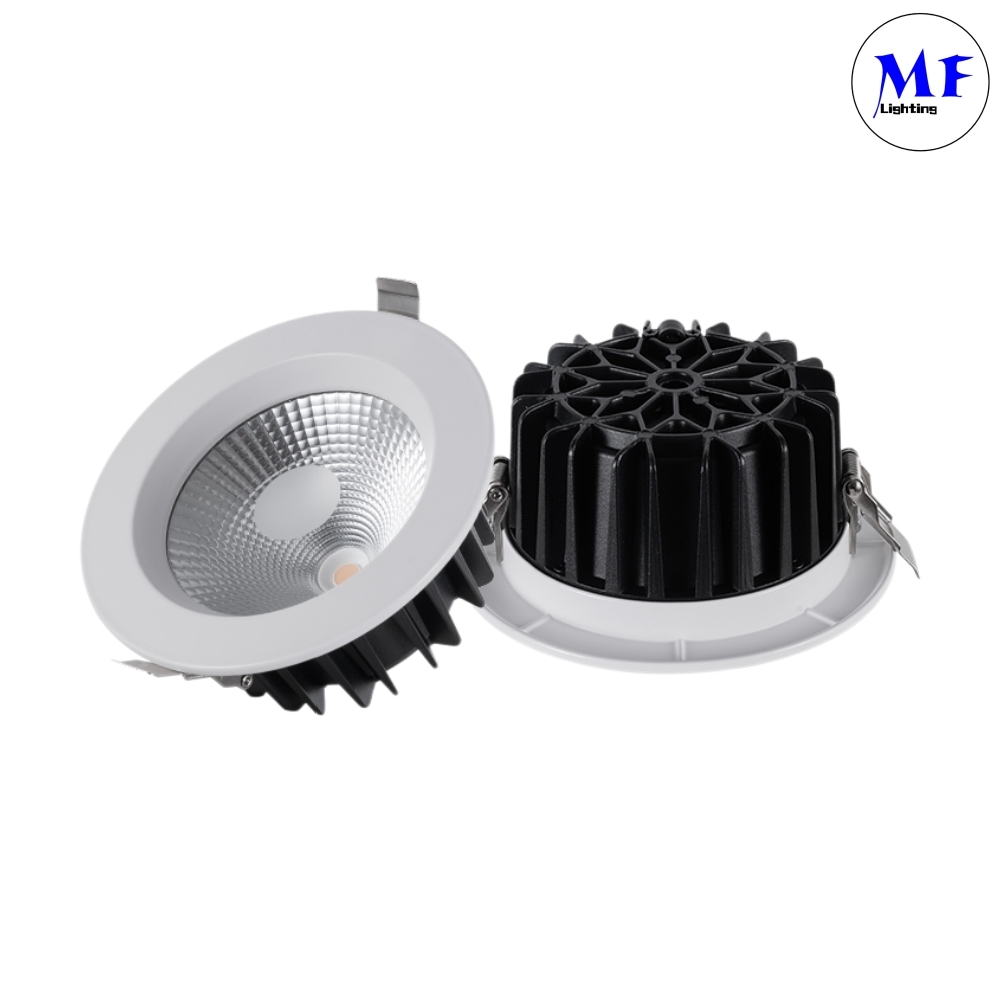

2. Housing material: die-casting aluminum for good heat dissipation.
3. Light source: O-SRAM / Epistar SMD LED chip optional.
4. Driver brands optional: Lifud, Aohuaweiye, Eaglerise, BOKE for different dimming versions.
5. Input voltage: 110Vac or 200-240Vac, 50Hz/60Hz.
6. Power factor: ≥0.50 for 5-20W; ≥0.95 for power above 20W.
7. Working ambient temperature: -20ºC ~ 50ºC.
8. Certifications: CE, RoHS for complete lamp; Driver supports CE, RoHS, CB, SAA.
9. 3-year warranty period.

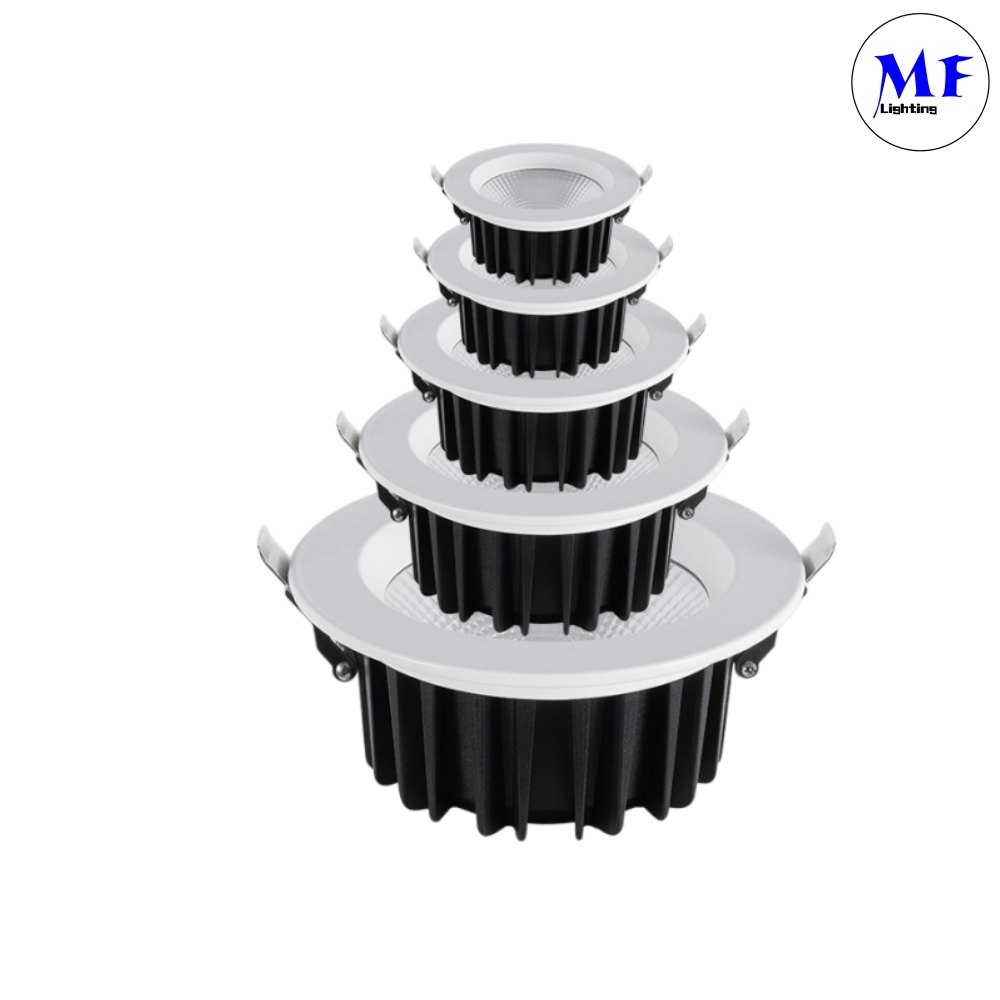

10. Multiple physical dimensions & ceiling cut-out sizes to fit different application scenarios.

Design

SMD&COB Design

Product description

1. Anti-glare lighting (UGR<19), eye-protecting indoor illumination.
2. Dimming function: single-color brightness adjustment via TRIAC / 0-10V / DALI / Tuya Zigbee.
3. CCT tuning function (optional): adjust color temperature from 2700K-6000K.
4. Good heat dissipation relying on die-cast aluminum heat sink to extend lamp working life.
5. IP40 dust-proof performance for indoor commercial, retail, restaurant and residential lighting.
6. Quick embedded ceiling mounting by strength spring buckle clips.

'- Cover: transparent / milky PC diffuser cover.
- Structure components: high-quality die-cast aluminum body, transparent glass / PC cover, strength spring buckle.
- Housing color: White / Black.
- Beam angle: 60 degree.

Product Size

Installation:

Easy Spring Clip Installation

1. Cut ceiling opening according to required cut-out dimension.
2. Complete wiring by a qualified electrician.
3. Compress spring clips and insert fixture into ceiling hole.
4. Release spring clips to secure the luminaire, power on and test.

Application:

This recessed square COB spotlight is designed for indoor‑only installation, available with IP20 or IP44 protection rating. Thanks to its UGR＜19 anti‑glare performance, high CRI output, multiple dimming & tunable‑CCT options, single‑/double‑/triple‑head configurations, it covers wide residential and commercial lighting scenarios.

1. Residential Applications

• Living rooms, bedrooms, hallways & foyers: Deep‑recessed anti‑glare structure (UGR＜19) delivers eye‑friendly ambient and accent lighting. Multiple reflector finishes (matte white, matte black, bright silver, gunmetal black) match various home interior styles. Tunable CCT function allows users to switch between warm white, natural white and cool‑white atmosphere for daily relaxation or entertainment scenarios.
• Kitchen & moisture‑prone domestic zones: IP44 version resists water splashes, applicable for kitchen ceiling lighting and other indoor home areas with minor humidity exposure.

Spring‑clip recessed mounting fits standard false ceiling cut‑outs; single‑head unit is widely adopted for regular household ceiling layout.

2. Commercial Retail Spaces

• Boutiques, fashion stores, showrooms and shopping malls: High‑CRI options (Ra80+ / Ra90+) reproduce true‑to‑life merchandise colors. Variable beam angles (15° /24° /36° /50°) support targeted accent lighting to highlight goods, display cabinets, wall exhibits and decorative artworks. Dimming systems (TRIAC, 0‑10V, DALI, Tuya Zigbee smart control) enable shops to adjust brightness and color temperature for different sales periods and promotional themes.
• Double‑head and triple‑head variants are preferred for large retail ceiling areas to simplify multi‑lamp layout.

3. Office & Corporate Premises

• Open‑plan offices, meeting rooms, reception lobbies and office corridors: UGR＜19 meets visual comfort requirements for long‑time screen‑working staff, effectively reducing glare‑caused eye fatigue. Stable die‑cast aluminum heat sink guarantees ≥50 000‑hour service life to cut maintenance frequency for large‑area commercial projects. DALI‑2 dimming compatibility fits centralized building lighting management systems.

4. Hospitality Industry

• Hotel guest rooms, hotel corridors, restaurant dining areas, cafes and lounges: Wide CCT range from 2700K‑6000K creates cozy dining or resting ambiance. Multiple reflector appearances coordinate with modern hotel interior decoration. IP44 option can be deployed for hotel restrooms and wet‑zone ceilings.

5. Other Indoor Commercial & Light‑Industrial Scenarios

• Exhibition spaces, galleries: High color rendering performance for artwork and exhibit illumination; anti‑glare design avoids distracting visual discomfort for visitors.
• Light‑duty indoor industrial environments: IP44 variant suits indoor locations with moderate dust or splash risk mentioned in product document, for general ambient lighting purpose. Note: Not for outdoor use or heavy‑duty wet industrial conditions.

Key advantages supporting above applications

1. Multi‑head selection (1‑head / 2‑head /3‑head) provides flexible solution for small‑size spot requirement or large‑area continuous ceiling lighting.
2. Rich dimming ecosystem: covers traditional analog dimming, bus control and Tuya Zigbee smart APP‑based CCT tuning to satisfy both fixed‑function commercial projects and smart‑home demands.
3. Die‑casting aluminum whole‑body construction ensures stable thermal performance under long‑hour continuous operation in commercial sites.
4. Spring‑clip installation allows quick retrofit and new‑build ceiling installation.

Limitation: This luminaire is for indoor application only; IP20 version shall not be used in splash‑prone humid areas.
