Product Description

LED Recessed Downlight MF-DLT15 CMD Series

SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light

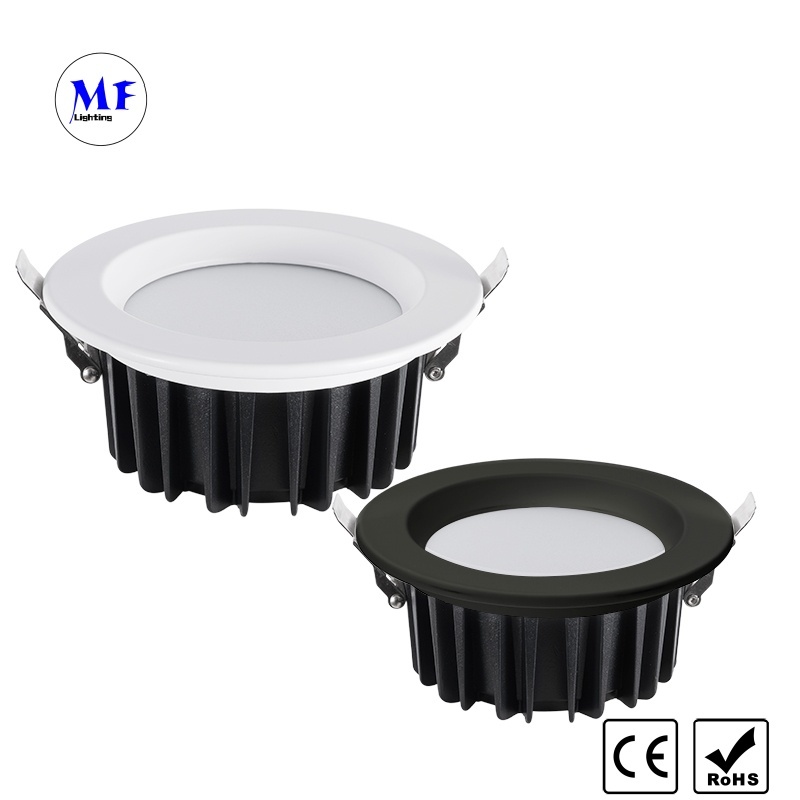

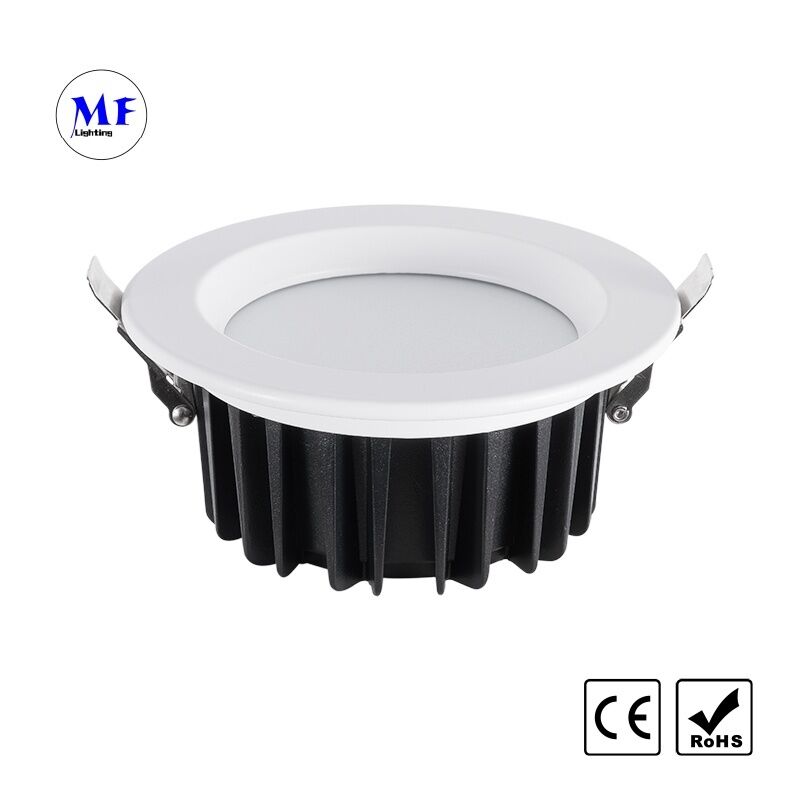

This series is an indoor IP40 recessed LED downlight from Ming Feng Lighting.

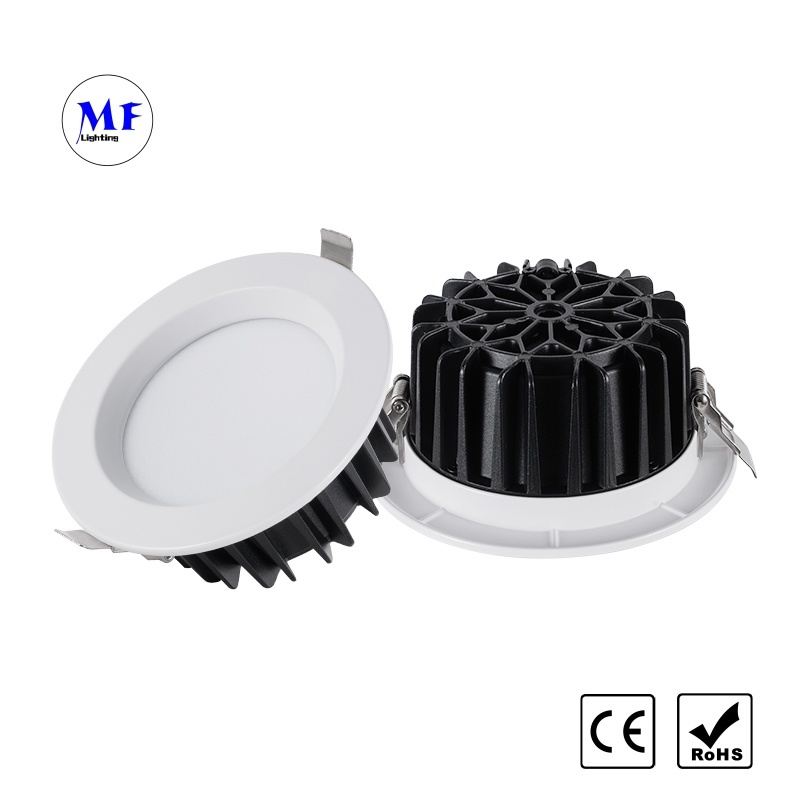

It adopts die-cast aluminum heat sink for long service life up to 50,000 hours. With milky PC diffuser, its UGR<19 brings comfortable, glare-free lighting.

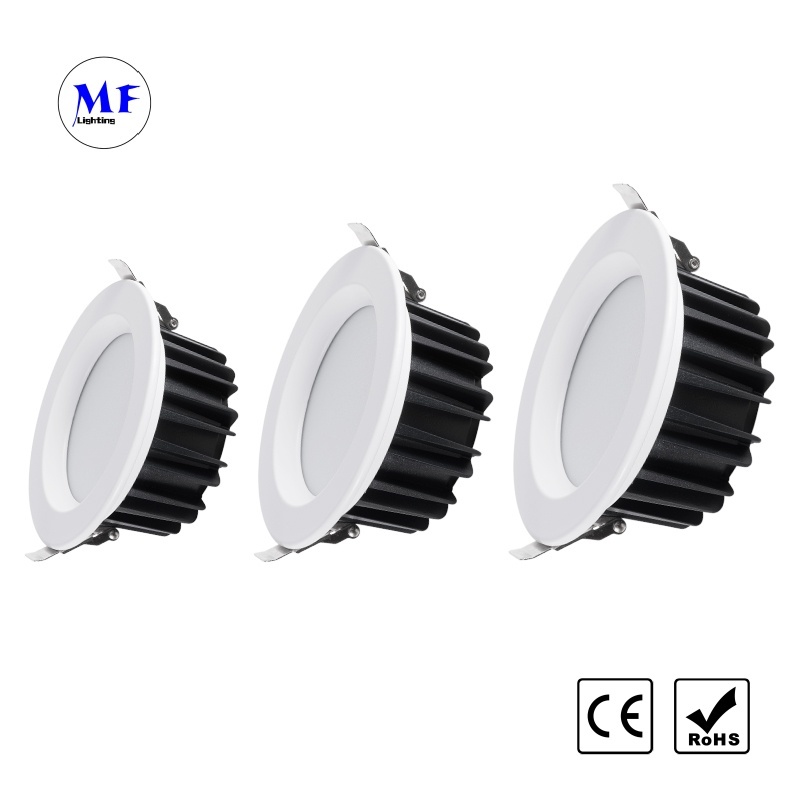

Multiple power options range from 5W to 50W. It supports fixed or tunable CCT (2700K-6000K), high CRI Ra80+/Ra90+, and delivers 100lm/W high efficiency.

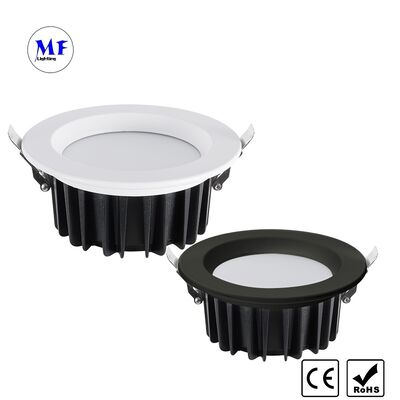

Various dimming versions are available: Non-Dim, TRIAC, 0-10V, DALI-2 and Tuya Zigbee smart control. White or black housing can be chosen.
This downlight is easy to install with spring clips. It fits offices, bedrooms, retail shops and commercial spaces. It has CE & RoHS certificates and comes with 3-year warranty.

SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light  SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light

SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light

Model
MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Input voltage
110Vacor 200-240Vac, 50hz/60hz
Power(watt)
5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color temperature
2700K/3000K /3500K/ 4000K / 5000K /6000K
LED Chip
0SRAM/Epistar COBas options
LED Driver
Lifud/Aohuaweiye/Eaglerise/BOKEBrand for different dim version
PF
5-20W≥0.50, 20W≥0.95
Housing Colour
White/black as options
Cover
PC Milky
Luminous Flux (lm)
100LM/W
CRI(Ra)
Ra90+/ Ra80+ As options
Lifespan
≥50000hrs
Beam Angle
120°
Material
Die-casting Aluminum
Operating Temperature
-20°C ~50°C
Dimmable
Non-Dim/Triac/0-10V/Dali-2dimmable/Tuya Zigbeeas options
CCT Adjustable
2700-6000K Tunable as optional if need
IP
IP40
UGR
<19
Certificate
CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver)
Life Spain
≥50,000Hrs
Warranty Period
3 years

SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light   SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light



SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down LightSMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light

Easy Spring Clip Installation
1. Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
2. Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
3. Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4. Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.



SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light    SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light

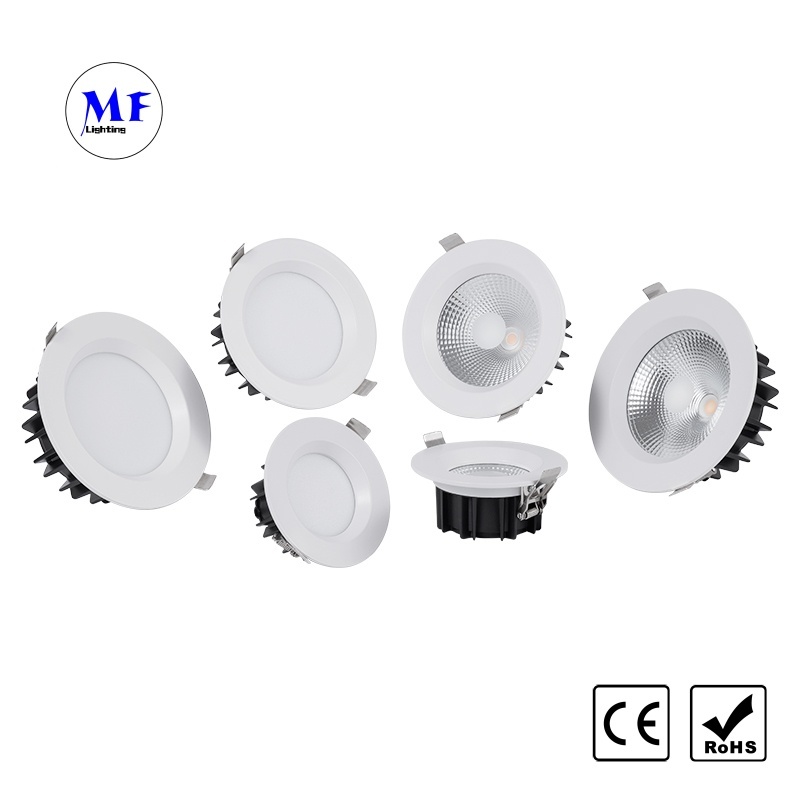

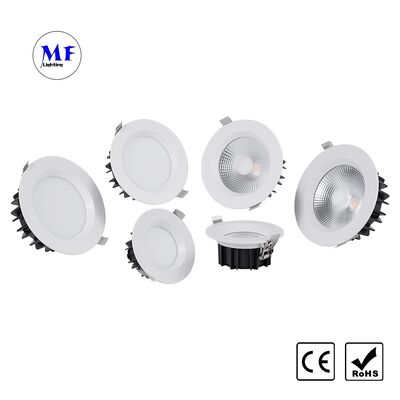

Multiple cover options:Available with white PC cover or transparent glass cover to meet different design needs.
Wide CCT selection:Color temperature options: 3000K / 3500K / 4000K / 6000K, warm white to cool white for different atmosphere.
Excellent color consistency:Uniform color output, premium color tolerance, delivers comfortable visual experience.
High-performance BridgeLux chips:Deliver higher brightness and comfortable illumination, much better than ordinary LED chips. Different wattages provide different brightness levels.
Flicker-free lighting:Stroboflash-free design with uniform light output, effectively protects eyesight, ideal for commercial use.
Commercial application scenes:Suitable for retail shops, boutiques, offices and other indoor commercial projects.
SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light
SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light































SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light

Power
Carton Size(cm)
G.W(KG)
PCS/CTN
5W/7W/10W/12W
64*27*56CM
22.5KG
100PCS
15W/20W
77*32*34CM
19.5KG
50PCS
25W/30W/35W
62*41*43.5CM
25.0KG
40PCS
40W/45W/50W
51*37*51.5CM
22.0KG
40PCS



SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light



SMD LED Recessed Downlight Triac 5W/10W/25W/40W 0-10V Dali-2 Dt6 Dt8 Dimmable Smart Zigbee Tuya WiFi IP40 Die-Cast Aluminum Ceiling Down Light
