Product Description
15W 100lm/W Spot Downlight Triac /0-10V/Dali-2/Tuya Zigbee Dimmable CRI90 Beam Angle 60° Recessed Anti-Glare COB LED Down Light for Commercial and Housing Places
Features:
1.IP20/40 Rating Design: Suitable for indoor application only.
2.Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
3.Glare-free Design : with Milky PC Diffuser ,the UGR<19 provides eye-friendly lighting for bedrooms and offices.
4.Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya zigbee and DALI dimming with smart control via APP.
5.Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT 2700-6000K options for customized lighting scenes.
6.High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.
7.Multiple Housing Colors: Available in White, Black as options.

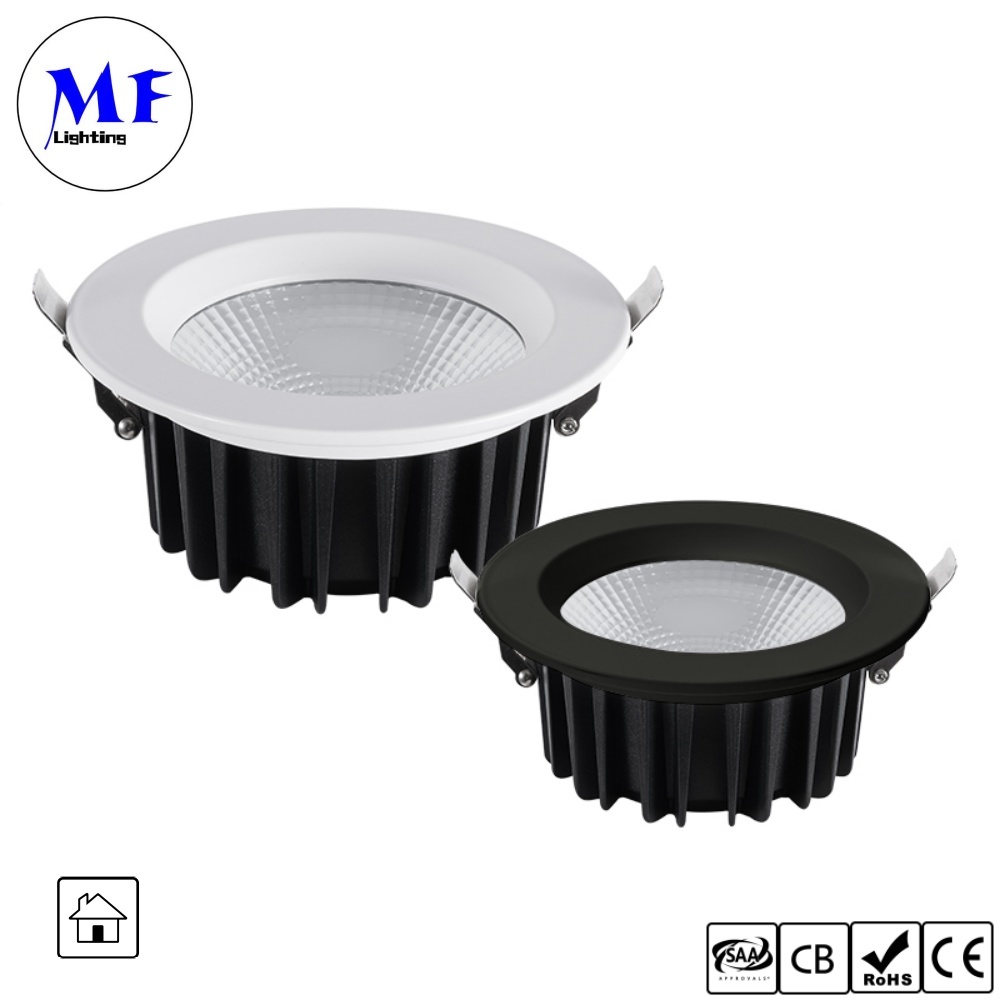

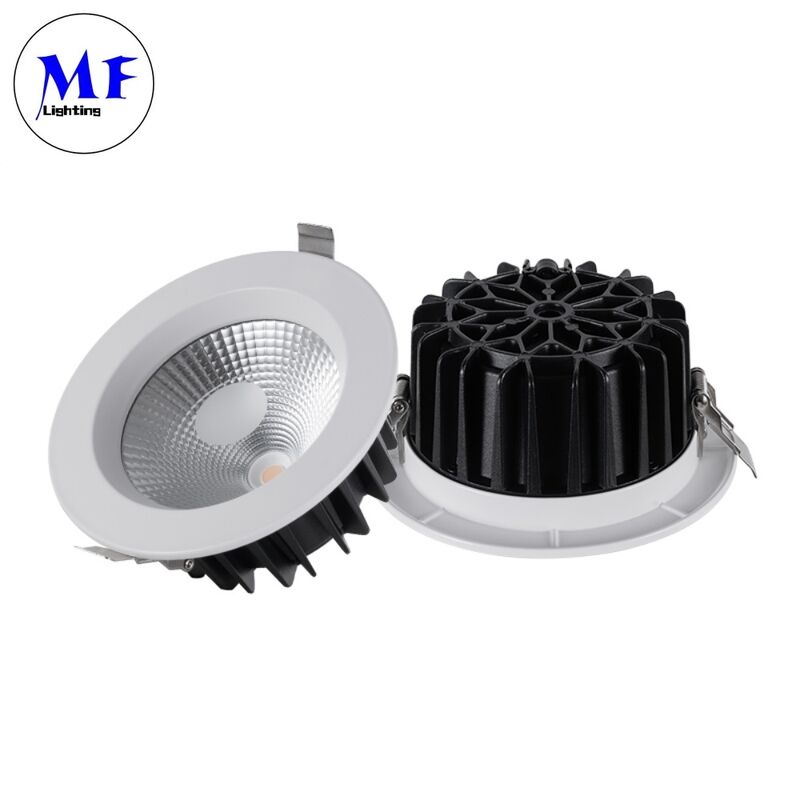

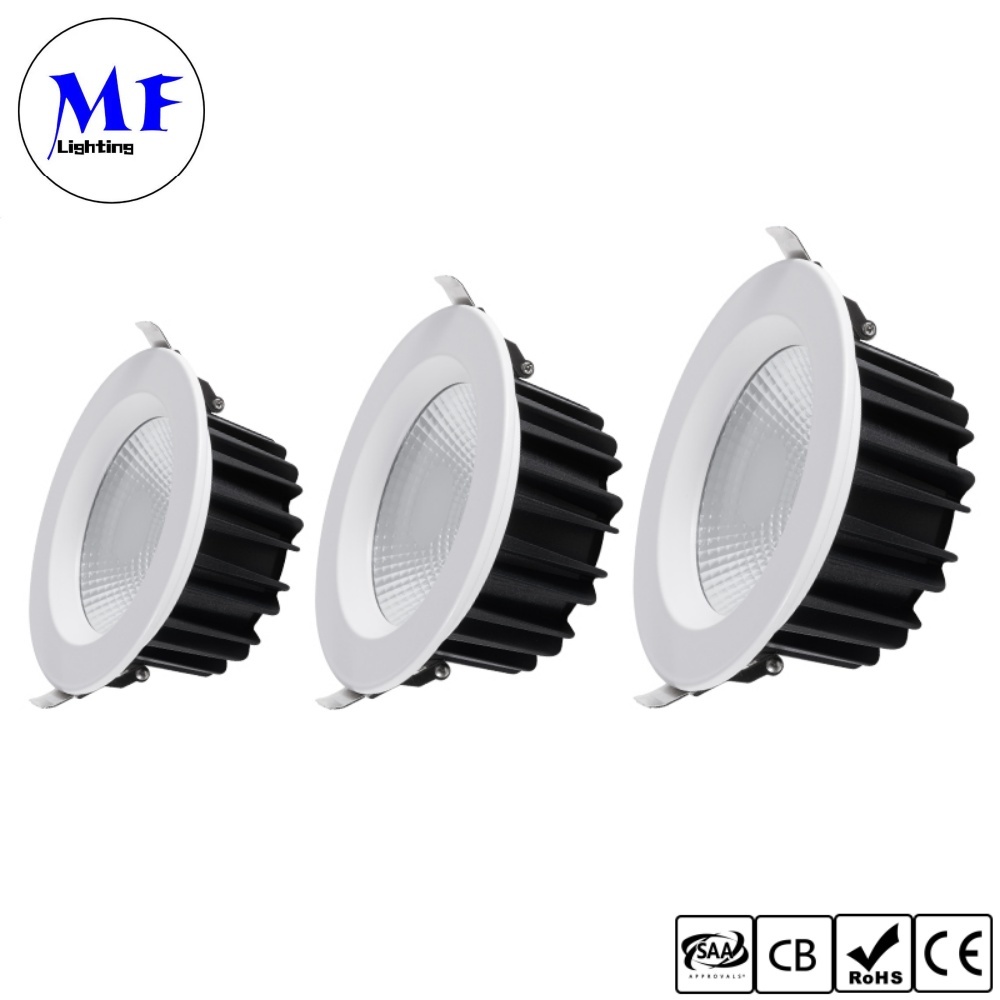

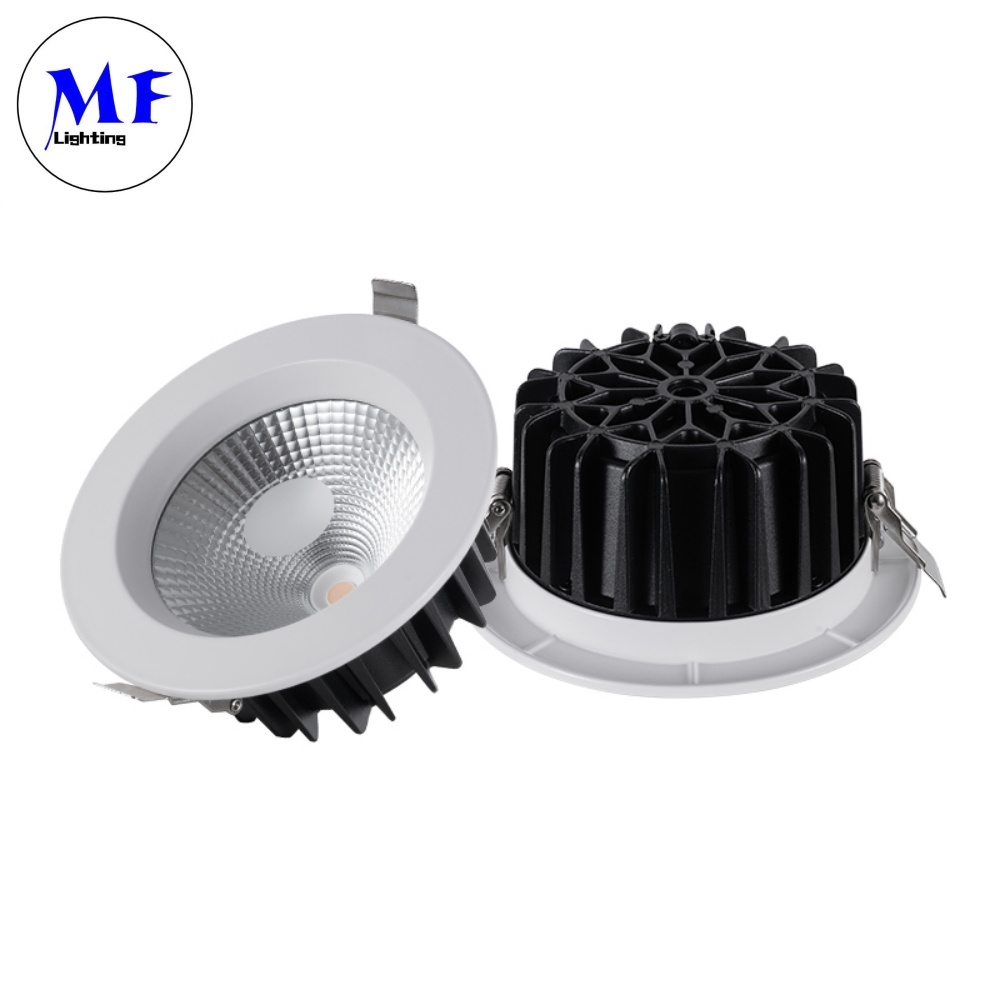

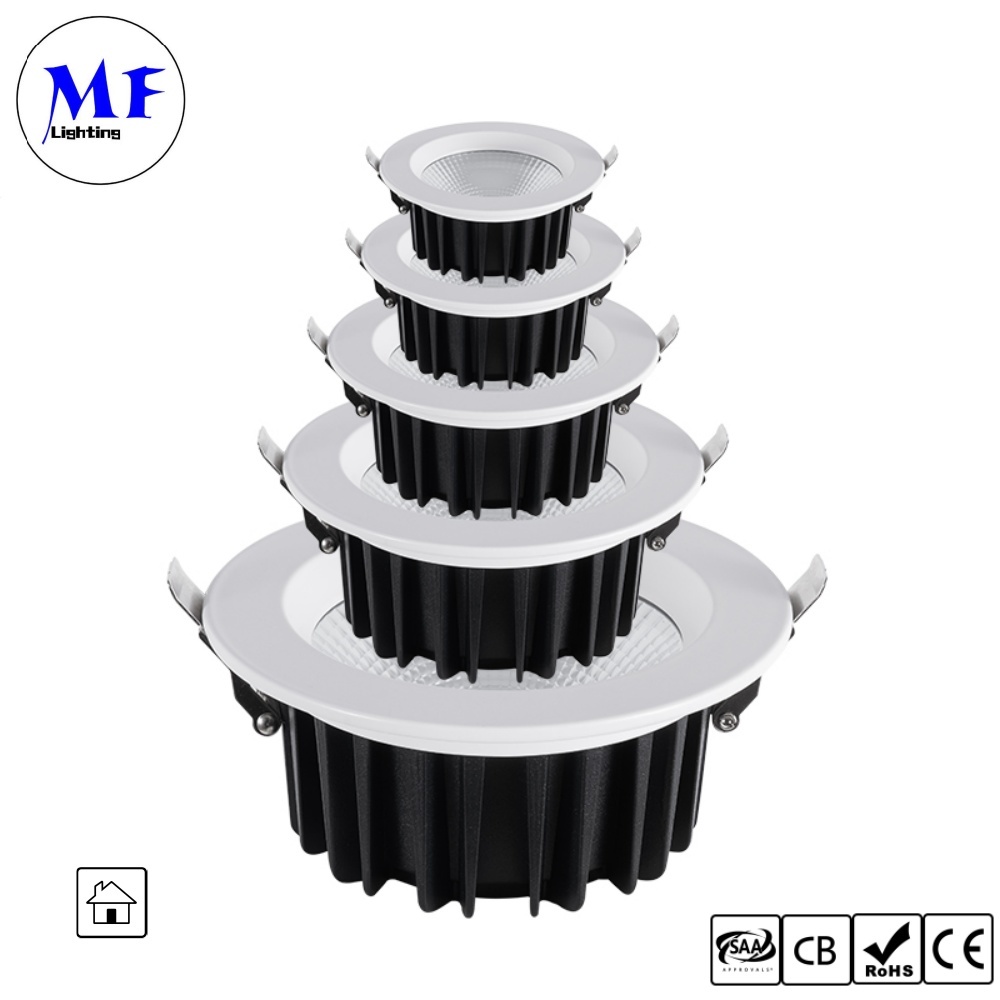

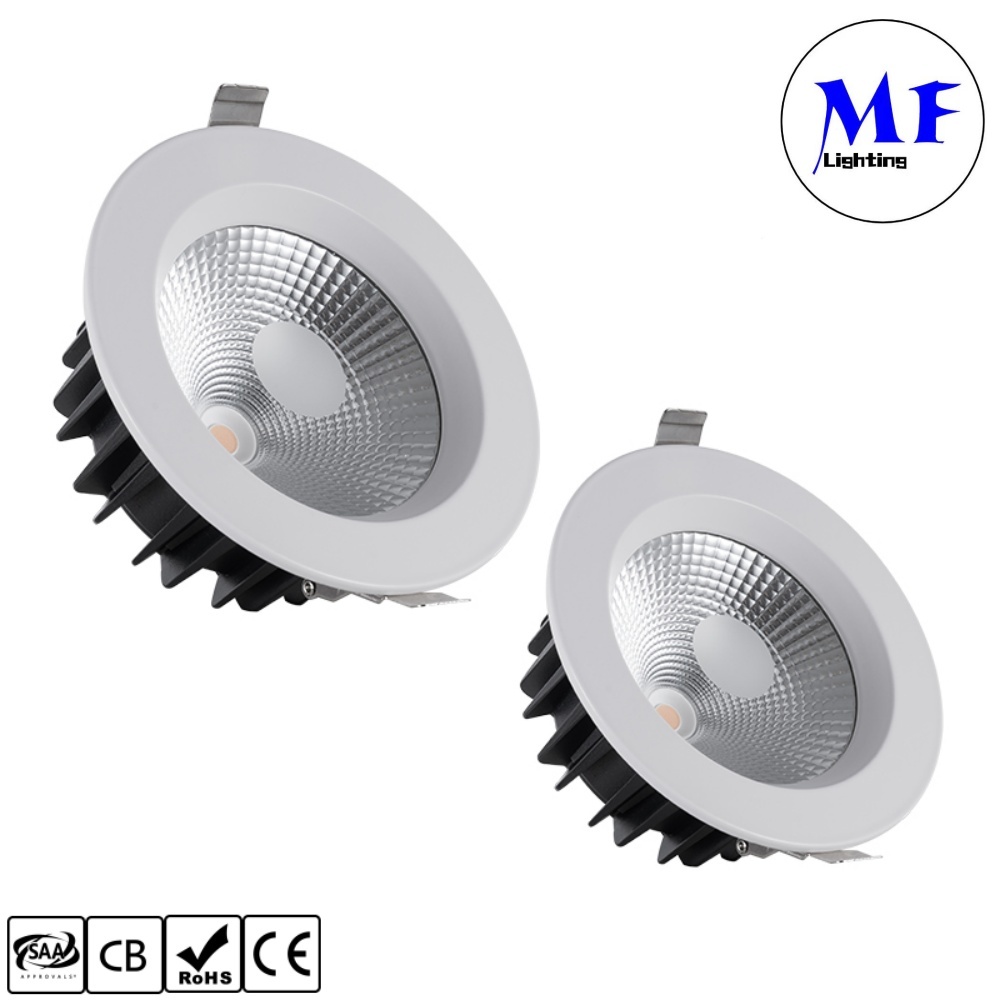

Detail Photos:
MF-DLT15 Family downlight is equipped with a multi-layer refractive optical lens, which produces strong stereoscopic lighting effect. It features a 60° beam angle for focused light output. Made of high-quality die-cast aluminum, the light has great heat dissipation performance. It comes with transparent glass cover and strong spring buckles, enabling simple and stable installation into ceilings.
This commercial downlight is flicker-free to protect eyesight. It delivers uniform and soft light for comfortable lighting experience. The aerodynamic heat dissipation design with guide fins accelerates heat removal, effectively reducing the operating temperature and extending the service life of the lamp.
Intelligent Dimming & CCT Tunable
Seamlessly adjust brightness and color temperature from 2700K warm white to 6000K cool white.
Multiple control protocols supported: DALI, 0-10V, Tuya/Zigbee, TRIAC.
Switch freely among warm white, natural white and cool white to create different lighting atmospheres for commercial & residential scenes.
| Model |
MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input voltage |
110Vac or 200-240Vac, 50hz/60hz |
| Power(watt) |
5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Color temperature |
2700K/3000K /3500K/ 4000K / 5000K /6000K , 2700-6500K Tunable |
| LED Chip |
O.SRAM/E.pistar COB as options |
| LED Driver |
Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim version |
| PF |
5-20W≥0.50, 20W≥0.95 |
| Housing Colour |
White/black/as options |
| Cover |
PC Milky |
| Luminous Flux (lm) |
100LM/W |
| CRI(Ra) |
Ra80+/Ra90+ |
| Lifespan |
≥50000hrs |
| Beam Angle |
60° |
| Material |
Die-casting Aluminum |
| Operating Temperature |
-20ºC~50ºC |
| Dimmable |
Non-Dim/Triac/0-10V/Dali-2 dimmable/Tuya Zigbee as options |
| CCT Adjustable |
2700-6000K Tunable as optional if need |
| IP |
IP40 |
| UGR |
<19 |
| Certificate |
CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver) |
| Warranty Period |
3 years |
| Model |
Power |
Cut out(MM) |
Dimension(MM) |
Beam Angle |
| MF-DLT15 |
5W/7W/10W/12W |
95 |
115*50 |
60° |
| MF-DLT15 |
15W/20W |
120 |
145*62 |
60° |
| MF-DLT15 |
25W/30W |
145 |
165*65 |
60° |
| MF-DLT15 |
30W/35W |
170 |
190*75 |
60° |
| MF-DLT15 |
40W/45W |
170 |
225*75 |
60° |
| MF-DLT15 |
50W |
230 |
250*75 |
60° |
Instructions
- Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
- Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
- Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
- Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
| Power |
Carton Size(cm) |
G.W(KG) |
PCS/CTN |
| 5W/7W/10W/12W |
64*27*56CM |
22.5KG |
100PCS |
| 15W/20W |
77*32*34CM |
19.5KG |
50PCS |
| 25W/30W/35W |
62*41*43.5CM |
25.0KG |
40PCS |
| 40W/45W/50W |
51*37*51.5CM |
22.0KG |
40PCS |
Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
