Product Description
Product Description

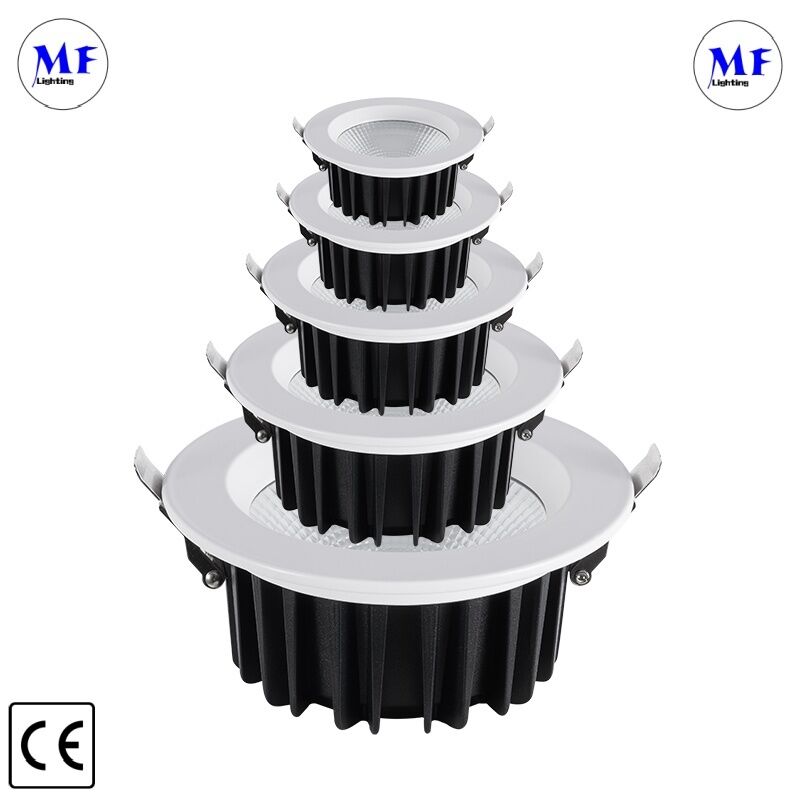

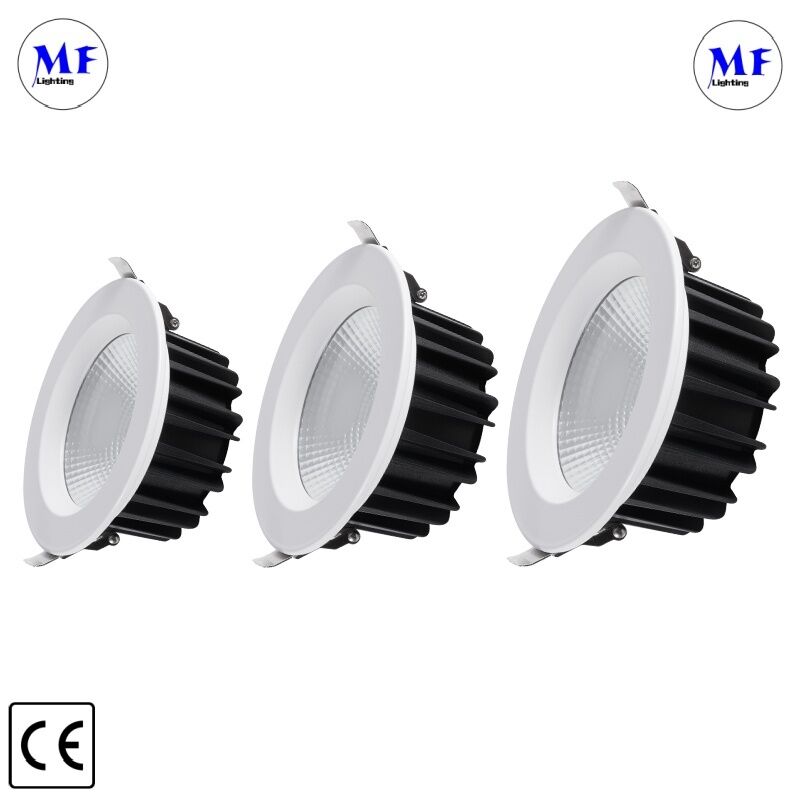

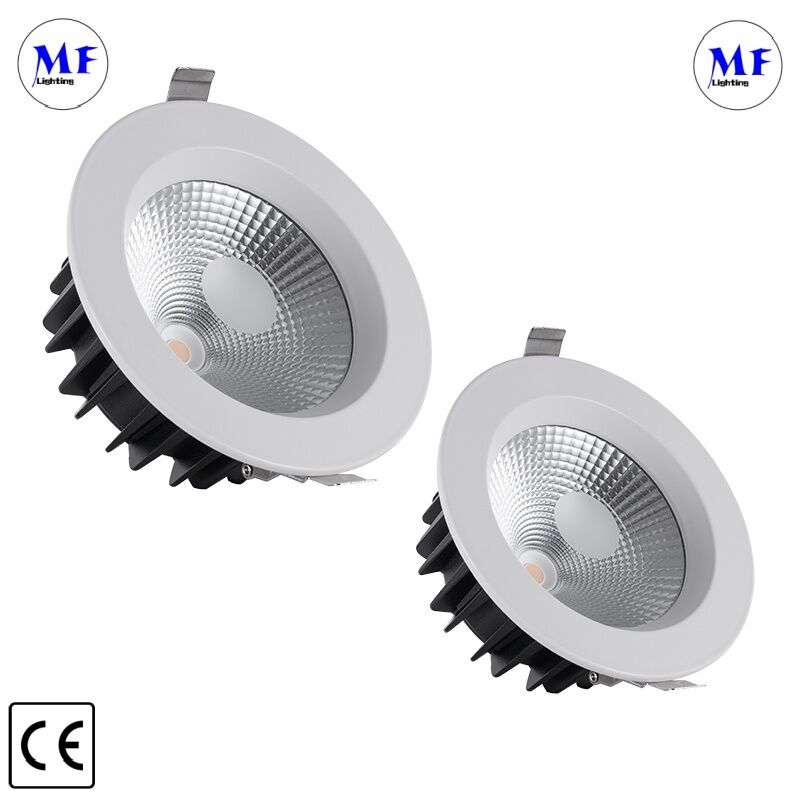

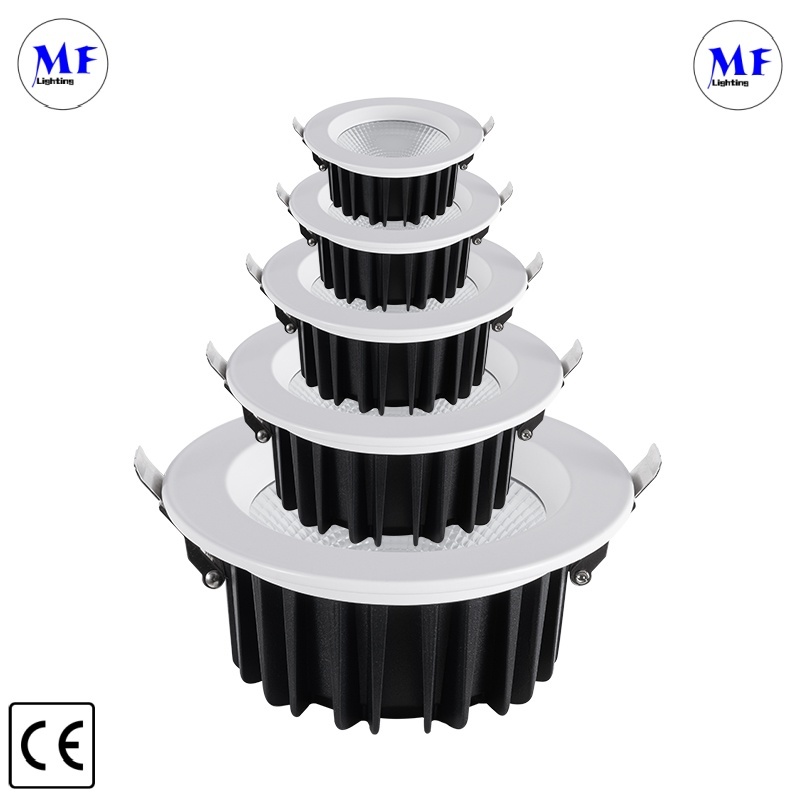

COB LED Recessed Anti-Glare UGR<19 Dimmable Die-Cast Aluminum Indoor Commercial Led spot light Led Down light
The MF-DLT15 series is a high-performance COB LED recessed downlight with a die-cast aluminum heat sink, transparent glass cover and milky PC diffuser. It offers 5W-50W power options, 60° beam angle, 100LM/W high luminous efficiency, CRI Ra80+/Ra90+, anti-glare UGR<19, multiple dimming options and 2700-6000K CCT tuning. Suitable for indoor commercial and residential lighting.
|
Item
|
Specification |
| Model |
MF DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Rated Power |
5W,7W,10W,12W,15W,20W,25W,30W,35W,40W,45W,50W |
| Color Temperature |
2700K,3000K,3500K,4000K,5000K,6000K; CCT adjustable 2700-6000K optional |
| LED Source |
High-performance COB light source |
| LED Driver |
Qualified brand for different dimming versions |
| Power Factor |
5-20W ≥0.50;>20W ≥0.95 |
| Housing Color |
White / Black optional |
| Cover Material |
Milky PC Diffuser |
| Luminous Efficacy |
100LM/W,100LM per watt |
| CRI(Ra) |
CRI80 / CRI90 optional |
| Lifespan |
≥50000 Hours |
| Beam Angle |
60 degree wide beam angle |
| Material |
Die casting Aluminum |
| Working Temperature |
-20ºC ~ +50ºC |
| Dimmable Option |
Non Dim / Triac / 0-10V / DALI 2 / Dali DT8 / Tuya Zigbee / Tuya Wifi |
| Input Voltage |
AC110Vac / AC200-240V, 50-60Hz |
| IP Rating |
IP40 |
| UGR |
less than 19 Anti glare |
| Certificates |
Whole lamp: CE, RoHS;Driver: CE, RoHS, CB, SAA |
| Warranty |
3 Years
|
IP20/40 Rating Design: Suitable for indoor application only.
Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
Glare-free Design: Milky PC diffuser, UGR<19, eye-friendly lighting for bedrooms and offices.
Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya Zigbee and DALI dimming with smart control via APP.
Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT 2700-6000K options for customized lighting scenes.
High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.

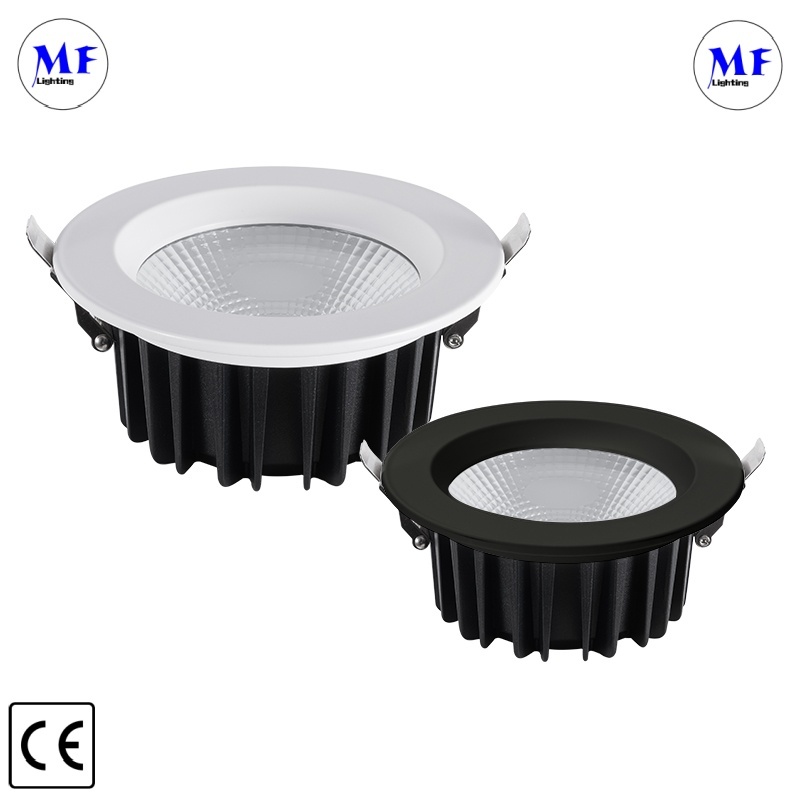

Multiple Housing Colors: Available in White and Black options.
60° Beam Angle, SDCM<3.
3-Year Warranty.

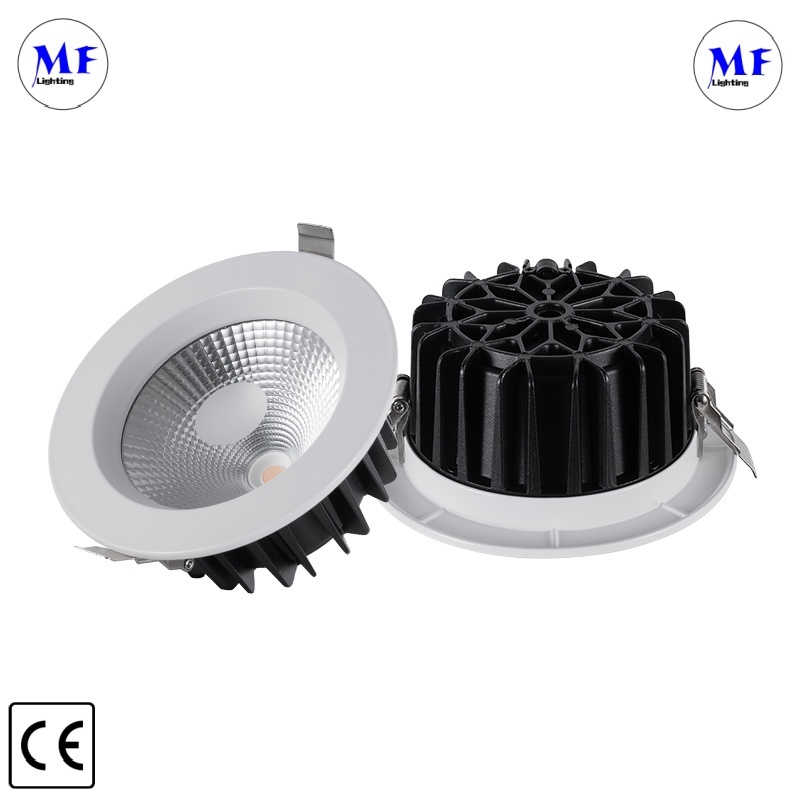

High quality die-cast aluminum housing
Transparent glass cover
Strong heat dissipation heat sink
Strength spring buckle
Milky PC diffuser
COB LED chip: OS-RAM / Epi-star optional
LED Driver: Lifu-d / Aohua-weiye / Ea-glerise / BO-KE for different dim version
White / Black housing optional
Easy Spring Clip Installation
1. Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding
luminaire.
2. Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is
best to be operated by a professional electrician.
3. Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4. Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use
Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
| Power |
Carton Size(cm) |
Gross Weight |
Quantity Per Carton |
| 5W/7W/10W/12W |
64x27x56 |
22.5KG |
100PCS |
| 15W/20W |
77x32x34 |
19.5KG |
50PCS |
| 25W/30W/35W |
62x41x43.5 |
25.0KG |
40PCS |
| 40W/45W/50W |
51x37x51.5 |
22.0KG |
40PCS |
Neutral export-grade carton packing. Custom-printed color-box and OEM marking service available.
Multiple logistics-solution options: sea freight, air freight, express delivery according to project-schedule requirement.
