SMD Recessed 120° Wide Beam PC Milky Diffuser Anti-Glare UGR<19 Dimmable Die-Cast Aluminum Indoor Commercial LED spot light LED Down light

Product Description

Product Description



SMD Recessed 120° Wide Beam PC Milky Diffuser Anti-Glare UGR<19 Dimmable Die-Cast Aluminum Indoor Commercial LED spot light LED Down light





The MF-DLT15 SMD series is a wide-beam, uniform-light LED recessed downlight. Different from the COB 60° focused version, the SMD version uses SMD LED chips + PC milky diffuser + 120° luminous surface, delivering softer, more even light distribution. It is ideal for general indoor lighting in offices, retail stores, restaurants, hotels, corridors and residential spaces.





Item	Specification
Model	MF DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Rated Power	5W,7W,10W,12W,15W,20W,25W,30W,35W,40W,45W,50W
Color Temperature	2700K,3000K,3500K,4000K,5000K,6000K; CCT adjustable 2700-6000K optional
LED Source	High-performance COB light source
LED Driver	Qualified brand for different dimming versions
Power Factor	5-20W ≥0.50;>20W ≥0.95
Housing Color	White / Black optional
Cover Material	Milky PC Diffuser
Luminous Efficacy	100LM/W,100LM per watt
CRI(Ra)	CRI80 / CRI90 optional
Lifespan	≥50000 Hours
Beam Angle	120 degree wide beam angle
Material	Die casting Aluminum
Working Temperature	-20ºC ~ +50ºC
Dimmable Option	Non Dim / Triac / 0-10V / DALI 2 / Dali DT8 / Tuya Zigbee / Tuya Wifi
Input Voltage	AC110Vac / AC200-240V, 50-60Hz
IP Rating	IP40
UGR	less than 19 Anti glare
Certificates	Whole lamp: CE, RoHS;Driver: CE, RoHS, CB, SAA
Warranty	3 Years



SMD light source with 120° wide beam angle



PC milky diffuser for uniform and soft light



Anti-glare UGR<19



No transparent glass cover; softer visual effect



5W-50W multiple power options



Non-Dim / TRIAC / 0-10V / DALI / Tuya Zigbee dimming options



2700-6000K CCT optional, 2700-6000K tunable optional



100LM/W high efficiency, Ra80+/Ra90+ optional



Die-cast aluminum heat sink, lifespan ≥50,000 hours



3-year warranty















IP40 Rating Design: Suitable for indoor application.



Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.



Glare-free Design: Milky PC diffuser, UGR<19, eye-friendly for bedrooms and offices.



Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya Zigbee and DALI dimming with smart control via APP.



Wide Color Temperature Range: 2700K to 6000K, with tunable CCT 2700-6000K optional.



High Luminous Efficiency: 100LM/W with Ra80+/Ra90+ high CRI options.

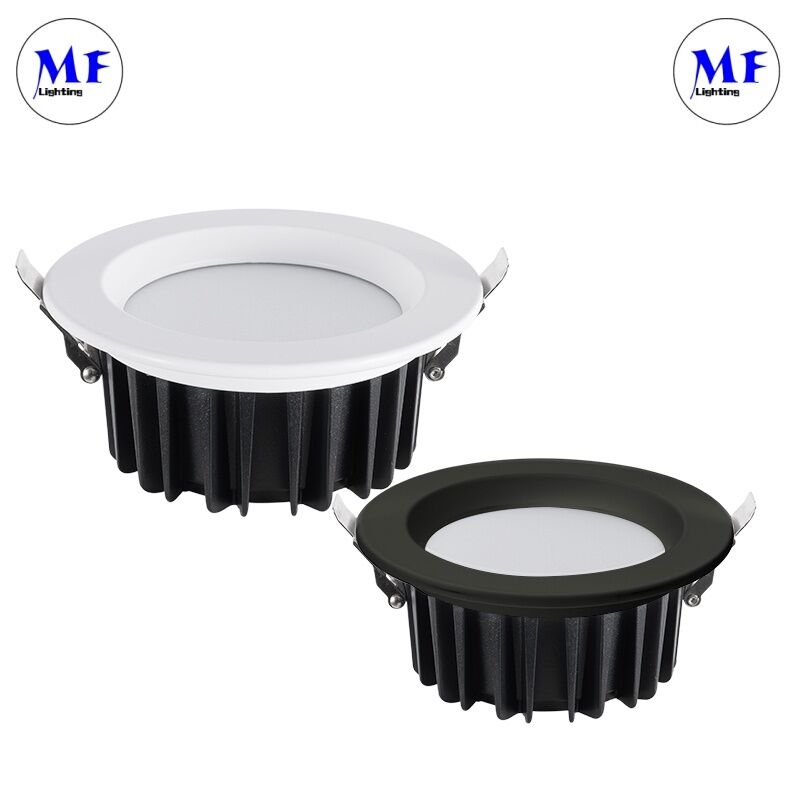

Multiple Housing Colors: White and Black options.



120° Wide Beam Angle: Wide luminous surface for even light distribution.



SDCM<3: Good color consistency.



3-Year Warranty.







Easy Spring Clip Installation
1. Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding
luminaire.
2. Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is
best to be operated by a professional electrician.
3. Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4. Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use





Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.



Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.





Power	Carton Size(cm)	Gross Weight	Quantity Per Carton
5W/7W/10W/12W	64x27x56	22.5KG	100PCS
15W/20W	77x32x34	19.5KG	50PCS
25W/30W/35W	62x41x43.5	25.0KG	40PCS
40W/45W/50W	51x37x51.5	22.0KG	40PCS

Neutral export-grade carton packing. Custom-printed color-box and OEM marking service available.

Multiple logistics-solution options: sea freight, air freight, express delivery according to project-schedule requirement.
