Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Contact Now

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Minimum Order Quantity :	1PC	Price :	USD6.4~USD26.0/PC
Packaging Details :	Carton	Delivery Time :	7 Working days
Payment Terms :	T/T	Supply Ability :	10, 000PCS/Months

Place of Origin:	China	Brand Name:	MF
Certification:	CE/ROHS/SAA	Model Number:	MF-DLT15-7W

Detail Information
Input Voltage:	110Vac Or 200-240Vac, 50hz/60hz	Power:	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
CCT:	2700K/3000K /3500K/ 4000K / 5000K /6000K, 2700-6500K Tunable	LED Chip:	O.SRAM/E.pistar SMD As Options
LED Driver:	Lifud/Aohuaweiye/Eaglerise/BOKE Brand For Different Dim Version	PF:	5-20W≥0.50, 20W≥0.95
Housing Colour:	White/black/as Options	Cover:	PC Milky
Luminous Efficiency:	100LM/W	CRI:	Ra80+/Ra90+
Lifespan:	≥50000hrs	Beam Angle:	60°
Materials:	Die-casting Aluminum	Operating Temperature:	-20℃~50℃
Dimmable:	Non-Dim/Triac/0-10V/Dali-2 Dimmable/Tuya Zigbee As Options	CCT Adjustable:	2700-6000K Tunable As Optional If Need
IP Grade:	IP40	Warranty:	3 Years
Highlight:	dimmable LED down light CCT adjustable , recessed LED spot light anti-glare , triac dimmable LED down light

Product Description

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Features:

1.IP20/40 Rating Design: Suitable for indoor application only.

2.Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.

3.Glare-free Design : with Milky PC Diffuser ,the UGR<19 provides eye-friendly lighting for bedrooms and offices.

4.Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya zigbee and DALI dimming with smart control via APP.

5.Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT 2700-6000K options for customized lighting scenes.

6.High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.

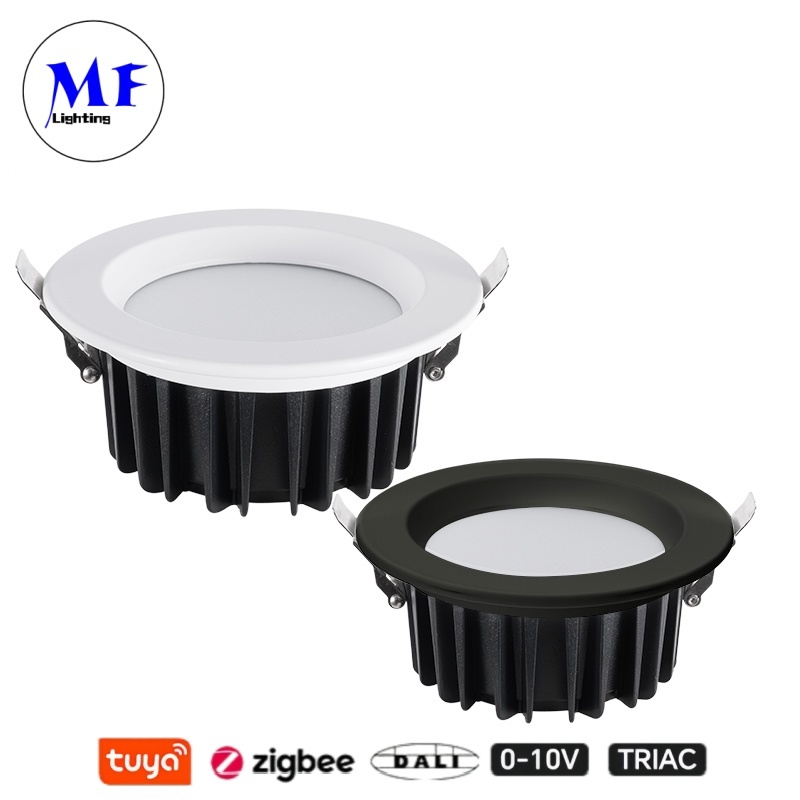

7.Multiple Housing Colors: Available in White, Black as options.

Detail Photos:

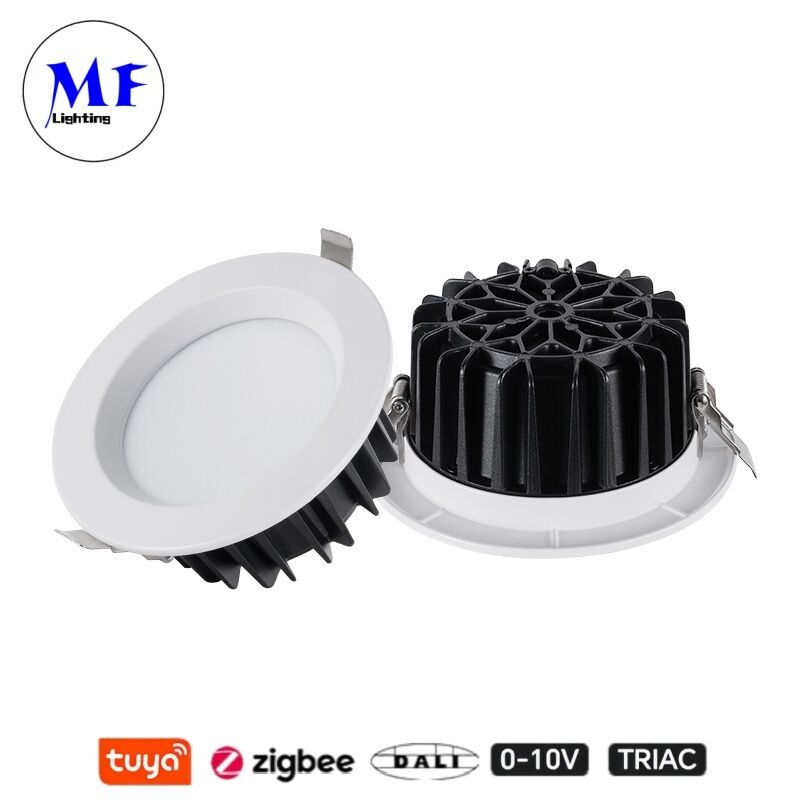

MF-DLT15 Family downlight is equipped with a multi-layer refractive optical lens, which produces strong stereoscopic lighting effect. It features a 60° beam angle for focused light output. Made of high-quality die-cast aluminum, the light has great heat dissipation performance. It comes with transparent glass cover and strong spring buckles, enabling simple and stable installation into ceilings.

Intelligent Dimming & CCT Tunable
Seamlessly adjust brightness and color temperature from 2700K warm white to 6000K cool white.
Multiple control protocols supported: DALI, 0-10V, Tuya/Zigbee, TRIAC.
Switch freely among warm white, natural white and cool white to create different lighting atmospheres for commercial & residential scenes.

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Model	MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Input voltage	110Vac or 200-240Vac, 50hz/60hz
Power(watt)	5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Color temperature	2700K/3000K /3500K/ 4000K / 5000K /6000K
LED Chip	OSR-AM/Epi-star SMD as options
LED Driver	Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim version
PF	5-20W≥0.50, 20W≥0.95
Housing Colour	White/black as options
Cover	PC Milky
Luminous Flux (lm)	100LM/W
CRI(Ra)	Ra90+/ Ra80+ As options
Lifespan	≥50000hrs
Beam Angle	120°
Material	Die-casting Aluminum
Operating Temperature	-20⁰C ~50⁰C
Dimmable	Non-Dim/Triac/0-10V/Dali-2 dimmable/Tuya Zigbee as options
CCT Adjustable	2700-6000K Tunable as optional if need
IP	IP40
UGR	<19
Certificate	CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver)
Life Spain	≥ 50,000Hrs
Warranty Period	3 years

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Model	Power	Cut out(MM)	Dimension(MM)	Beam Angle
MF-DLT15	5W/7W/10W/12W	95	*11550**	60°
MF-DLT15	15W/20W	120	*14562**	60°
MF-DLT15	25W/30W	145	*16565**	60°
MF-DLT15	30W/35W	170	*19075**	60°
MF-DLT15	40W/45W	170	*22575**	60°
MF-DLT15	50W	230	*25075**	60°

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Instructions

Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Power	Carton Size(cm)	G.W(KG)	PCS/CTN
5W/7W/10W/12W	642756CM	22.5KG	100PCS
15W/20W	773234CM	19.5KG	50PCS
25W/30W/35W	624143.5CM	25.0KG	40PCS
40W/45W/50W	513751.5CM	22.0KG	40PCS

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.

Dimmable 7W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee Beam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

FAQ:

Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience.
Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.
What is your main product?
Our main products are as follows:
LED Triproof lights/ LED Vapor Tight Lights
LED High Bay Lights
LED Flood lgihts
LED Explosion Proof Lights
LED Down Lights
LED underwater lights (swimming pool lights, fountain lights, underwater spotlights)
LED garden spot/spike lights
LED inground lights
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options?
We accept T/T, Western Union, Paypal. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF, CNF and DDP
What is the delivery time?
The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
1). We offer OEM/ODM services.
2). We have our own design team.
3). We offer high-quality products at reasonable prices.
4). We have no MOQ request.
5). Our sales team has 12 years of experience in underwater lighting.
