Product Description

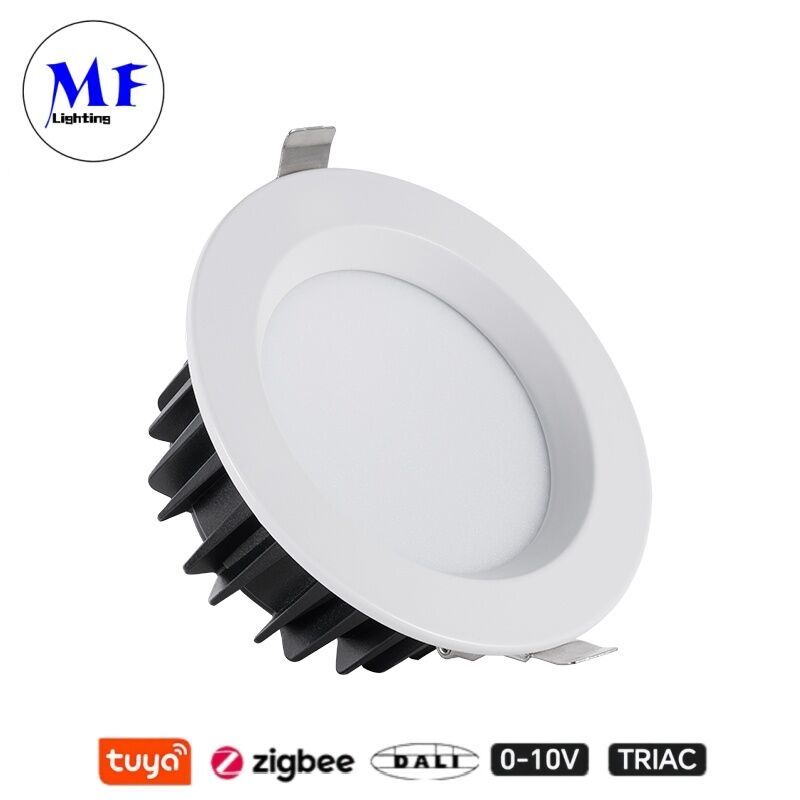

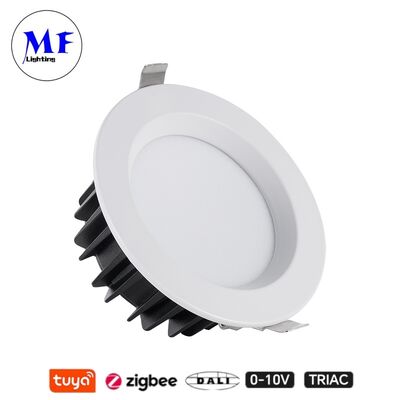

15W 100lm/W LED Spot Down Light CCT Adjustable CRI90 Triac /0-10V/Dali-2/Tuya Zigbee DimmableBeam Angle 60° Recessed Anti-Glare SMD for Commercial and Residential Places

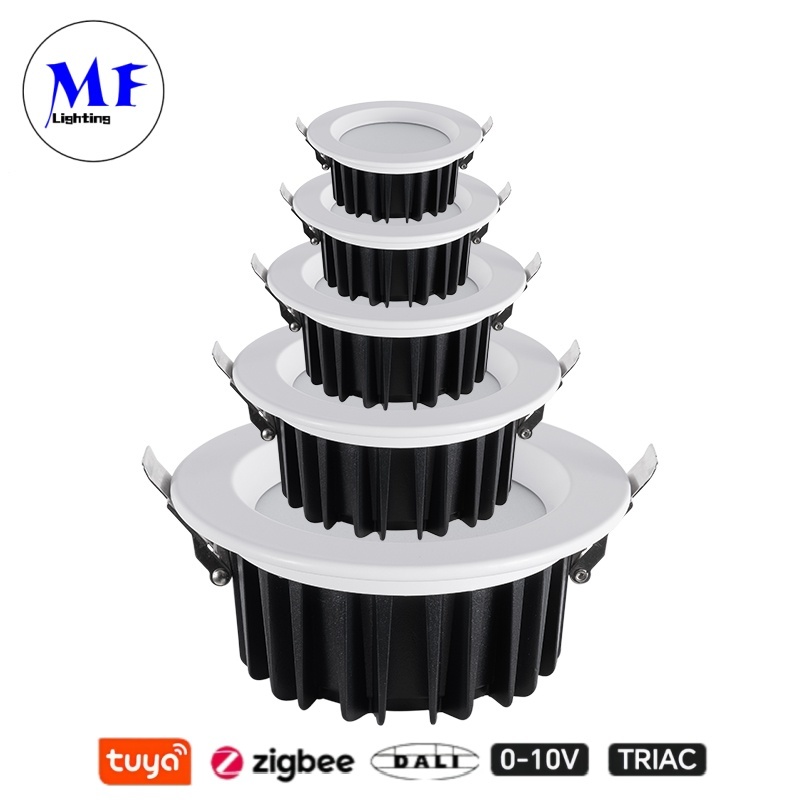

MF‑DLT15 series is a high‑performance SMD LED recessed downlight designed for modern indoor commercial and residential lighting applications. Covering power options from 5W up to 50W, this downlight supports multiple cut‑out sizes to suit various ceiling installation requirements, enabling flexible deployment in offices, retail shops, restaurants and bedrooms.

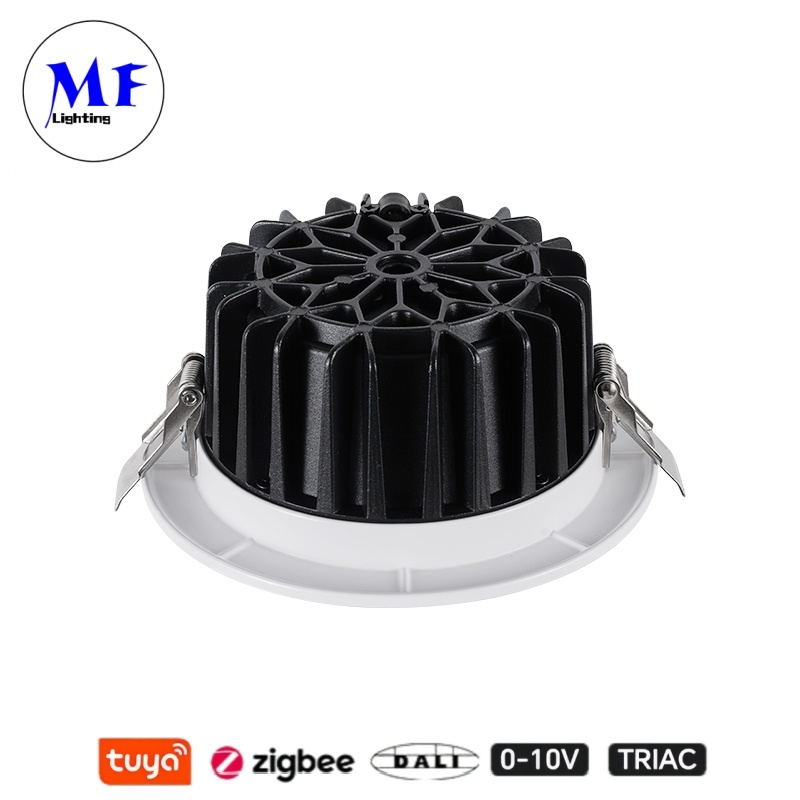

Built with robust die‑cast aluminum housing, the luminaire delivers excellent heat dissipation to secure a long service life over 50,000 hours, backed by a 3‑year warranty. Equipped with milky PC diffuser, it achieves UGR＜19 anti‑glare performance, offering comfortable, eye‑friendly illumination. It reaches high luminous efficiency of 100lm/W, with CRI Ra80+ or Ra90+ optional for true‑to‑life colour reproduction. A broad colour temperature range from 2700K to 6000K is available, including tunable CCT 2700‑6000K for customised lighting ambience.
For smart lighting demands, multiple dimming versions are selectable: non‑dimmable, TRIAC, 0‑10V, DALI‑2 and Tuya Zigbee for APP remote control. Drivers from trusted brands such as Lifud and Eaglerise are adopted for stable performance. White or black housing colours can be chosen to match interior decoration styles. Rated IP40 for indoor‑only use, it features convenient spring‑clip installation for quick ceiling mounting. The product complies with CE and RoHS standards, making it a reliable embedded lighting solution for diverse indoor projects.
Features:
1.IP20/40 Rating Design: Suitable for indoor application only.
2.Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
3.Glare-free Design : with Milky PC Diffuser ,the UGR<19 provides eye-friendly lighting for bedrooms and offices.
4.Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya zigbee and DALI dimming with smart control via APP.
5.Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT 2700-6000K options for customized lighting scenes.
6.High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.

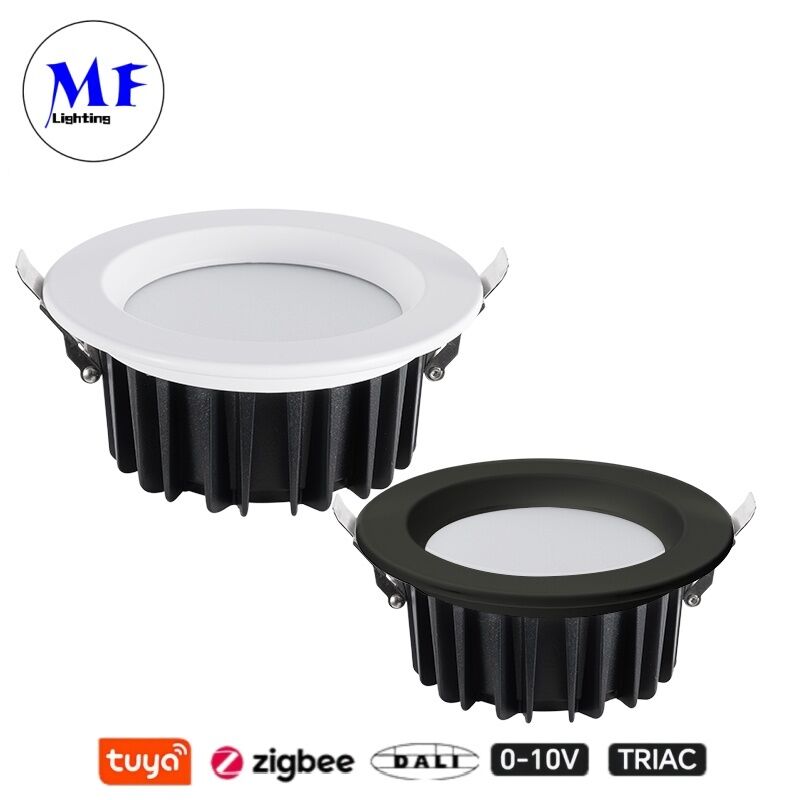

7.Multiple Housing Colors: Available in White, Black as options.
Intelligent Dimming & CCT Tunable
Seamlessly adjust brightness and color temperature from 2700K warm white to 6000K cool white.
Multiple control protocols supported: DALI, 0-10V, Tuya/Zigbee, TRIAC.
Switch freely among warm white, natural white and cool white to create different lighting atmospheres for commercial & residential scenes.
| Model |
MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input voltage |
110Vac or 200-240Vac, 50hz/60hz |
| Power(watt) |
5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Color temperature |
2700K/3000K /3500K/ 4000K / 5000K /6000K |
| LED Chip |
OSR-AM/Epi-star SMD as options |
| LED Driver |
Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim version |
| PF |
5-20W≥0.50, 20W≥0.95 |
| Housing Colour |
White/black as options |
| Cover |
PC Milky |
| Luminous Flux (lm) |
100LM/W |
| CRI(Ra) |
Ra90+/ Ra80+ As options |
| Lifespan |
≥50000hrs |
| Beam Angle |
120° |
| Material |
Die-casting Aluminum |
| Operating Temperature |
-200C ~500C |
| Dimmable |
Non-Dim/Triac/0-10V/Dali-2 dimmable/Tuya Zigbee as options |
| CCT Adjustable |
2700-6000K Tunable as optional if need |
| IP |
IP40 |
| UGR |
<19 |
| Certificate |
CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver) |
| Life Spain |
≥ 50,000Hrs |
| Warranty Period |
3 years |
| Model |
Power |
Cut out(MM) |
Dimension(MM) |
Beam Angle |
| MF-DLT15 |
5W/7W/10W/12W |
95 |
115*50 |
60° |
| MF-DLT15 |
15W/20W |
120 |
145*62 |
60° |
| MF-DLT15 |
25W/30W |
145 |
165*65 |
60° |
| MF-DLT15 |
30W/35W |
170 |
190*75 |
60° |
| MF-DLT15 |
40W/45W |
170 |
225*75 |
60° |
| MF-DLT15 |
50W |
230 |
250*75 |
60° |
Instructions
- Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
- Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
- Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
- Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
| Power |
Carton Size(cm) |
G.W(KG) |
PCS/CTN |
| 5W/7W/10W/12W |
64*27*56CM |
22.5KG |
100PCS |
| 15W/20W |
77*32*34CM |
19.5KG |
50PCS |
| 25W/30W/35W |
62*41*43.5CM |
25.0KG |
40PCS |
| 40W/45W/50W |
51*37*51.5CM |
22.0KG |
40PCS |
Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
