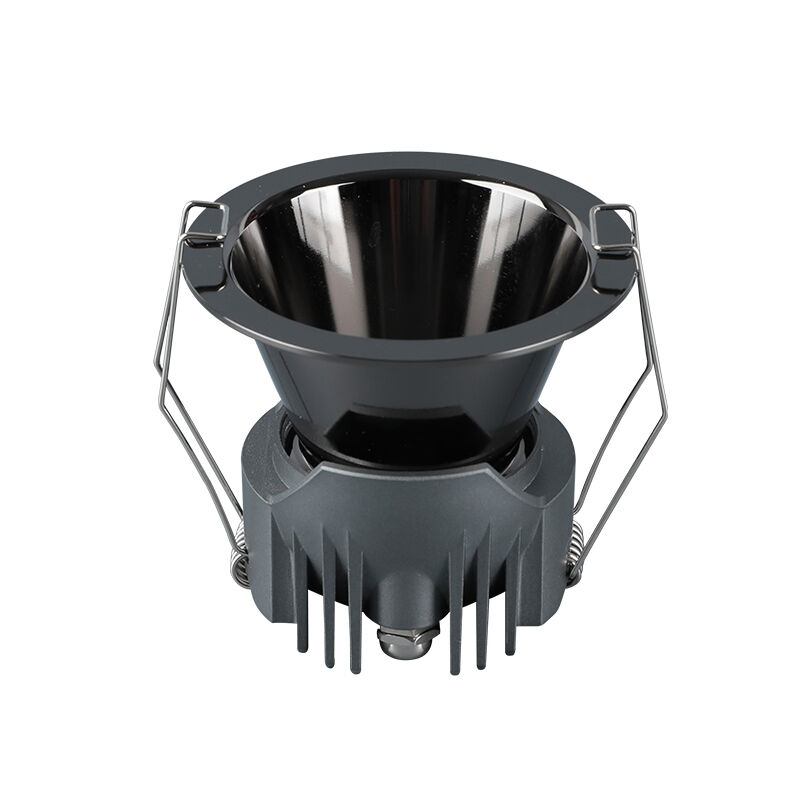

High Reflector Cup Recessed LED Down Light
TRIAC 0-10V DALI-2 DALI DT6 DT8 Dimmable IP65 Waterproof Anti Glare LED Recessed Spot Light 7-20W
Product Overview
This IP65 anti-fog downlight is engineered for wet-location lighting projects. Compatible with TRIAC, 0-10V, DALI-2, DALI DT6 and DALI DT8 dimming drivers, it provides flexible brightness control for commercial spaces, villas and apartments. The sealed wire outlet rubber ring ensures reliable waterproof performance, while the deep anti-glare cavity controls UGR less than 19 for eye protection. Available in various reflector and housing colors with wide CCT range 2700K-6000K and full certifications CE/RoHS/CB/SAA, this is a durable and customizable lighting solution for indoor humid environments.
Technical Specifications
| Model | MF-HGS20-S10W/12W/18W/20W/25W/30W |
|---|
| Input Voltage | 100-277Vac or 200-240Vac, 50hz/60hz |
|---|
| Power | 10W/12W/18W/20W/25W/30W |
|---|
| Color Temperature | 2700K/3000K/3500K/4000K/5000K/6000K |
|---|
| LED Chip | OSRAM/Bridgelux |
|---|
| LED Driver | DONE/Aohua/Lifud/Eaglerise Brand for different dim versions |
|---|
| Power Factor | 10-12W≥0.50, 20W≥0.95 |
|---|
| Housing Color | White/Black/Rose Gold/Bronze/Silver |
|---|
| Reflector Color | Matte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold/Bronze |
|---|
| Luminous Flux | 100LM/W |
|---|
| CRI (Ra) | Ra80+/Ra90+ |
|---|
| Lifespan | ≥50,000 hours |
|---|
| Beam Angle | 24°, 36°, 55° |
|---|
| Material | Die-casting Aluminum |
|---|
| Operating Temperature | -20℃ to 50℃ |
|---|
| Dimmable | Non-Dim/Triac/0-10V/DALI-2 dimmable as options |
|---|
| CCT Adjustable | 2700-6000K Tunable as optional |
|---|
| IP Rating | IP65 |
|---|
| UGR | <19 |
|---|
| Certifications | CE/RoHS (Whole Lamp); CE/RoHS/CB/SAA (Driver) |
|---|
| Warranty Period | 3 years |
|---|
Product Gallery
Manufacturer Profile
Mingfeng Lighting is a professional manufacturer with over 14 years of experience in research, development, and manufacturing. Operating under ISO quality management since 2009, we specialize in high-quality LED lighting solutions for commercial and residential applications.
Frequently Asked Questions
Q1: Are you a manufacturer?
Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.
Q2: Can I order a sample of the LED Light?
Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
Q3: What is the lead time for the LED Light?
For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
Q4: How do you ship the finished products?
We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Light?
Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
Q6: How do I proceed with an order for the LED Light?
Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend suitable products and solutions based on your request. Thirdly, after confirming all details, customers will issue a purchase order and make payment to confirm, then we will start production and arrange shipment.
Q7: How do you handle defective products?
All of our products are produced under strict quality control systems, with a defective rate less than 0.2% according to our shipment records. We offer a 3-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
