10W/12W/15W/20W/25W/30W IP65 Waterproof Dim Triac 0-10V Dali Zigbee Bluetooth Recessed White Downlight Bathroom Shower Room Swimming Pool LED Down Light

Minimum Order Quantity :	1	Price :	8

Certification:	CE, RoHS

Detail Information
Color Temperature:	2700/3000K/3500K/4000/5000K/6000K	Anti-Glare:	Ugr<19
System Illumination:	1000-3000lm	CRI(Ra):	>80ra / >90ra
Lifespan:	50,000 Hours	Voltage (AC):	AC100-277V/AC200-240V
Power:	10W/12W/18W/20W/25W/30W	IP Rating:	IP65
LED Source:	COB LED	Function:	Non-Dim / Triac / 0-10V / Dali / Zigbee / Bluetooth
Lamp Body Material:	Aluminum	Beam Angle:	24° / 36° / 55°
Operating Temperature:	-20°C To +50°C	Power Factor:	PF≥0.50 For 10-12W, PF≥0.95 For 20W+
Luminous Efficiency:	100LM/W
Highlight:	IP65 waterproof LED downlight , Triac dimmable recessed downlight , Zigbee Bluetooth bathroom LED light

Product Description

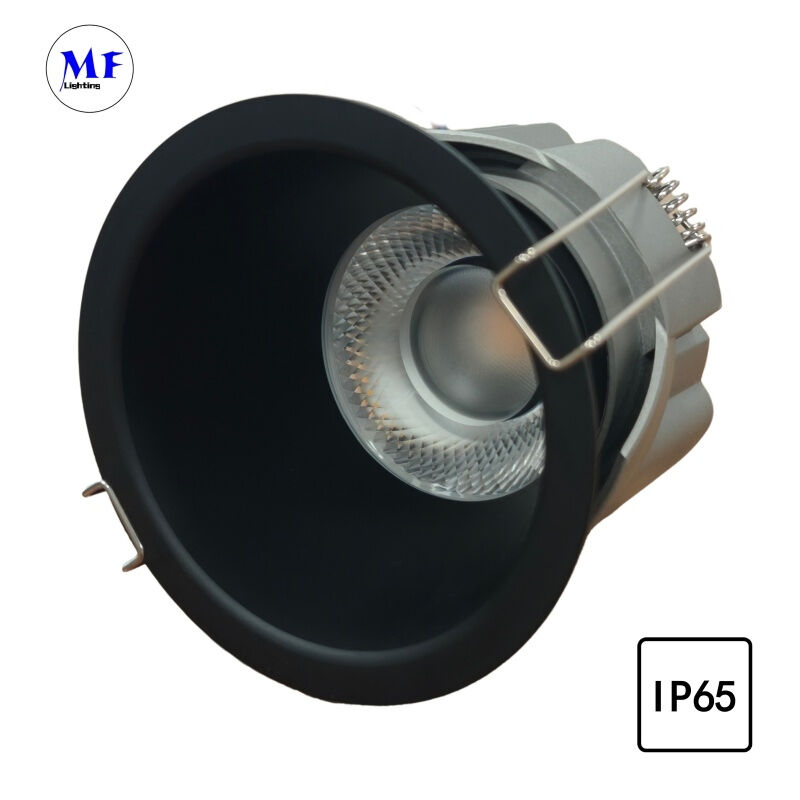

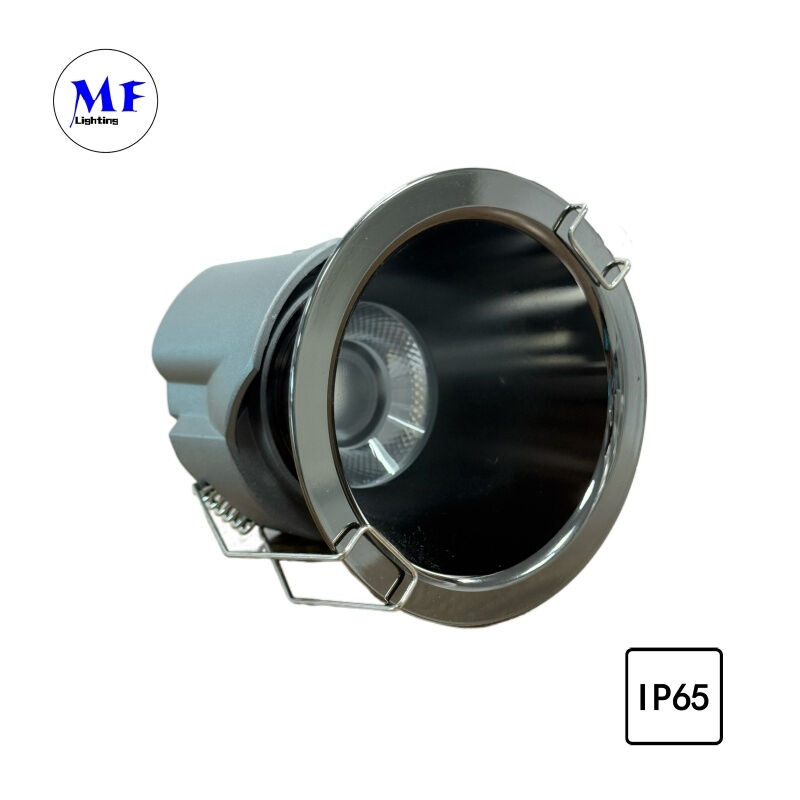

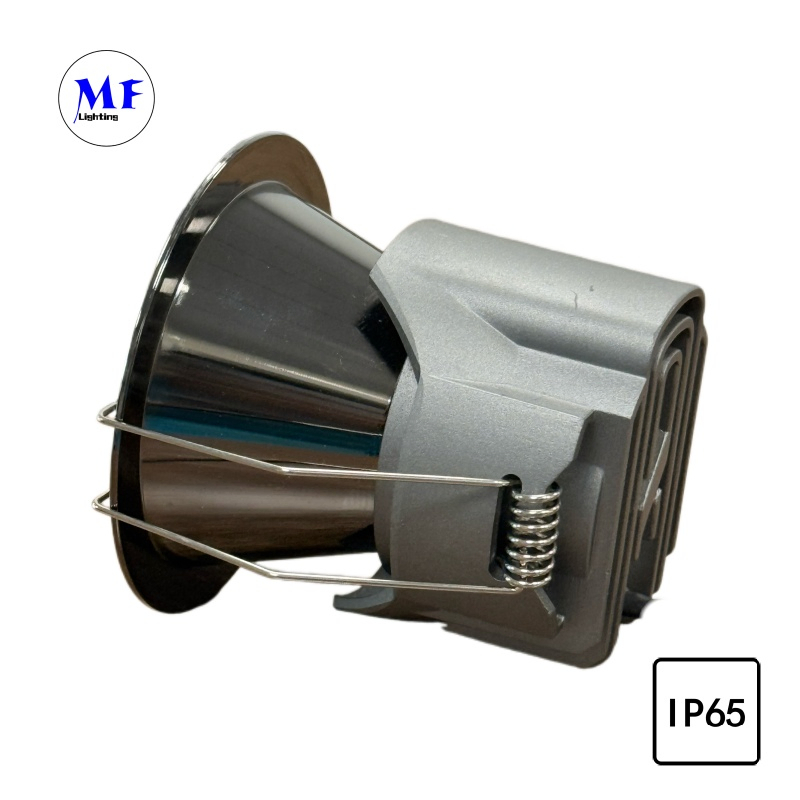

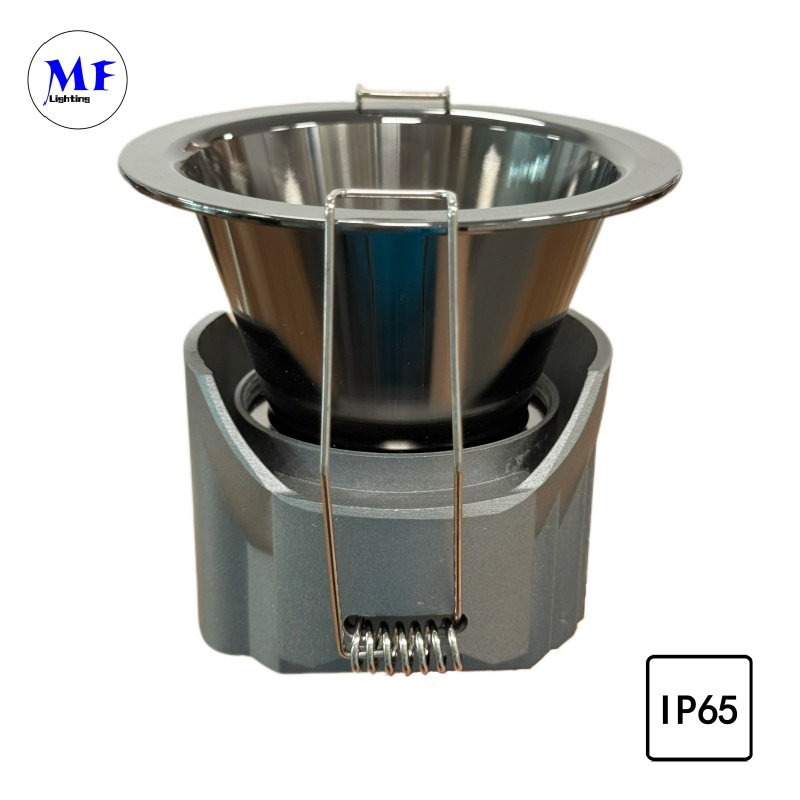

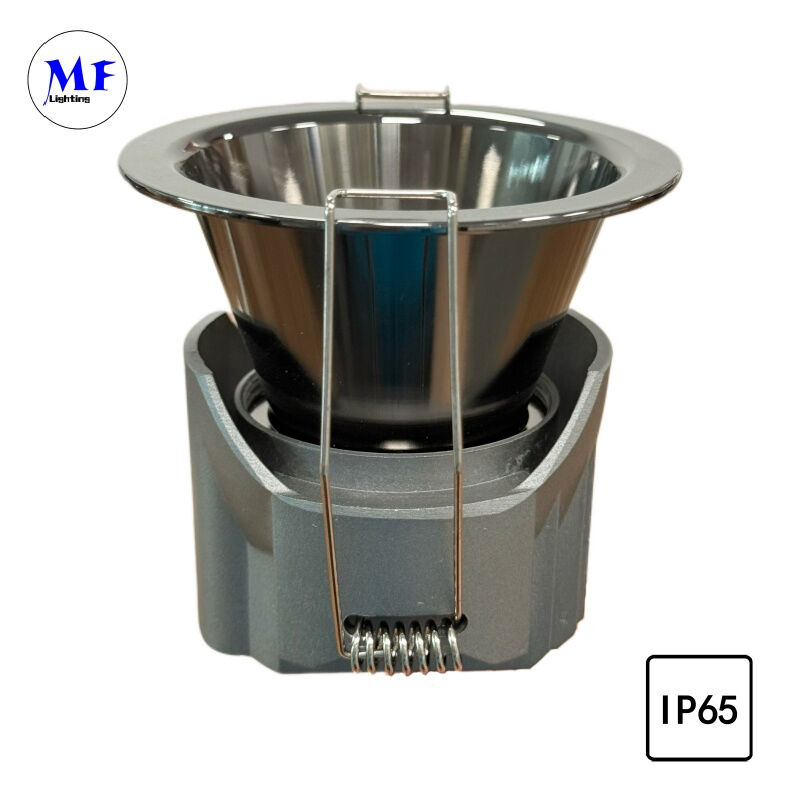

IP65 Waterproof Dimmable LED Downlight

Professional recessed downlight with full waterproof protection, multiple dimming options, and advanced anti-glare technology for demanding environments.

Product Features

IP65 full waterproof and dustproof integrated structure for damp and humid environments
Deep sunken anti-glare optical design with UGR<19 for comfortable, eye-friendly lighting
Multiple power options: 10W, 12W, 18W, 20W, 25W, 30W
Comprehensive dimming & CCT adjustment: Non-Dimmable, TRIAC, 0-10V, DALI, 2.4G Bluetooth & Tuya Zigbee smart control
Optional 2700K-6000K tunable white light and multiple beam angles (24°, 36°, 55°)
Multiple color options for outer shell and inner reflector cup to match interior designs
Easy spring clip installation with standardized cutting hole sizes
Universal wide input voltage: 100-277Vac / 200-240Vac for global compatibility
Premium LED chips (O-SRAM, Bridgelux) with matched branded drivers
Complete certifications: CE, RoHS, CB, SAA for lamp body and driver
Two structural versions: long deep lamp cup (H series) and short shallow lamp cup (S series)

Technical Characteristics

Die-cast aluminum integrated radiator with excellent heat dissipation and 50,000-hour service life
High luminous efficiency up to 100LM/W with Ra80+ / Ra90+ color rendering options
Multi-layer waterproof rubber ring and waterproof screw to block water vapor and dust
Extended light cup structure eliminates direct glare
Flicker-free light output with no visual stroboscopic effects
Stable power factor: PF≥0.50 for 10-12W models, PF≥0.95 for 20W+ models
Wide operating temperature range: -20°C to 50°C
Compact all-aluminum body with elastic metal spring clips for firm ceiling fixation
3-year factory warranty for complete luminaire
Anti-oxidation metal reflective cup for uniform light refraction without light loss

Product Specifications

Parameter	Specification
Product Type	IP65 Waterproof Anti-Glare LED Recessed Downlight
Series	H - High Reflector Cup / S - Short Cup
Protection Grade	IP65 (whole lamp); IP67 waterproof driver for non-dimmable 10-25W
LED Chip (COB)	Bridgelux / O-SRAM (optional)
Input Voltage	AC100-277V or AC200-240V
Dimming Options	Non-Dimmable / TRIAC / 0-10V / DALI / 2.4G Bluetooth & Tuya Zigbee (optional)
CCT Tunable	2700K-6000K (optional)
Beam Angle	24° / 36° / 55°
CRI	>90Ra (H series); >90Ra or >80Ra (S series)
CCT Options	2700K / 3000K / 3500K / 4000K / 5000K / 6000K
Anti-Glare	UGR < 19, deep recessed optical design
Housing Material	Die-cast aluminum
Shell Color Options	Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold / Bronze
Reflector Color Options	Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold / Bronze
Installation	Spring clip recessed ceiling mounting
Operating Temperature	-20°C to +50°C
Lifespan	50,000 hours
Warranty	3 years
Certifications	CE, RoHS, CB, SAA

Key difference between H and S series: H series has a deeper reflector cup (taller body) for stronger anti-glare performance; S series is shorter/lower profile for shallow ceiling cavities. Same cut-out sizes, power range, and optical options across both series.

Model Specifications

Series	Model	Power	LED Chip	Dimension (mm)	Cut Out (mm)	Lumens ±10%	Package (CTN)	Inner Box (mm)
H	MF-HGS20-H10W	10W	Bridgelux / O-SRAM	D65 × H72	ø55	1000LM	50 PCS / CTN 52×37×24.5	10×7×11.5
H	MF-HGS20-H12W	12W	Bridgelux / O-SRAM	D85 × H79	ø75	1200LM	30 PCS / CTN 52×21×20	10×10×9.5
H	MF-HGS20-H18W	18W	Bridgelux / O-SRAM	D105 × H94	ø95	1800LM	30 PCS / CTN 59.5×36.5×29	11.5×11×13.5
H	MF-HGS20-H20W	20W	Bridgelux / O-SRAM	D105 × H94	ø95	2000LM	30 PCS / CTN 59.5×36.5×29	11.5×11×13.5
H	MF-HGS20-H25W	25W	Bridgelux / O-SRAM	D135 × H107	ø115	2500LM	20 PCS / CTN 69.5×30.5×32	14.5×13.5×15
H	MF-HGS20-H30W	30W	Bridgelux / O-SRAM	D135 × H107	ø115	3000LM	20 PCS / CTN 69.5×30.5×32	14.5×13.5×15
S	MF-HGS20-S10W	10W	Bridgelux / O-SRAM	D65 × H52	ø55	1000LM	50 PCS / CTN 40.5×16.5×43	7.7×7.7×8.2
S	MF-HGS20-S12W	12W	Bridgelux / O-SRAM	D85 × H56	ø75	1200LM	50 PCS / CTN 47×38×20	9×9×6.8
S	MF-HGS20-S18W	18W	Bridgelux / O-SRAM	D105 × H68	ø95	1800LM	50 PCS / CTN 60×24×47	11.5×11.5×9
S	MF-HGS20-S20W	20W	Bridgelux / O-SRAM	D105 × H68	ø95	2000LM	50 PCS / CTN 60×24×47	11.5×11.5×9
S	MF-HGS20-S25W	25W	Bridgelux / O-SRAM	D135 × H80	ø115	2500LM	20 PCS / CTN 69.5×30.5×32	14.5×13.5×15
S	MF-HGS20-S30W	30W	Bridgelux / O-SRAM	D135 × H80	ø115	3000LM	20 PCS / CTN 69.5×30.5×32	14.5×13.5×15

Driver Configuration

Configuration	Driver Brand	Waterproof	Whole Lamp Grade
Non-Dimmable 10-25W	Done Brand	IP67 waterproof driver, 100-277Vac	IP65
Non-Dimmable 30W	Lifud or Eaglerise	Non-waterproof driver	IP54
TRIAC Dimmable 10-25W	Aohua	Non-waterproof driver	IP54
0-10V Dimmable	Lifud	Non-waterproof driver	IP54
DALI Dimmable	Lifud	Non-waterproof driver	IP54
US Standard TRIAC	Aohua	Non-waterproof driver	-

Function & Operation

Installation Instructions

Product Dimensions

Application Areas

Wet indoor residential spaces: Bathrooms, kitchens, spa & wellness areas with high humidity
Commercial lighting: Retail stores, restaurants, office spaces requiring anti-glare comfortable lighting
Outdoor semi-open areas: Building exterior ceilings, outdoor walkways, garden covered porches
Poolside and swimming pool supporting facilities, damp leisure venues
Industrial sites with dust, moisture and water splashes
Home interior decoration: Bedrooms, living rooms needing soft eye-protective ambient lighting
