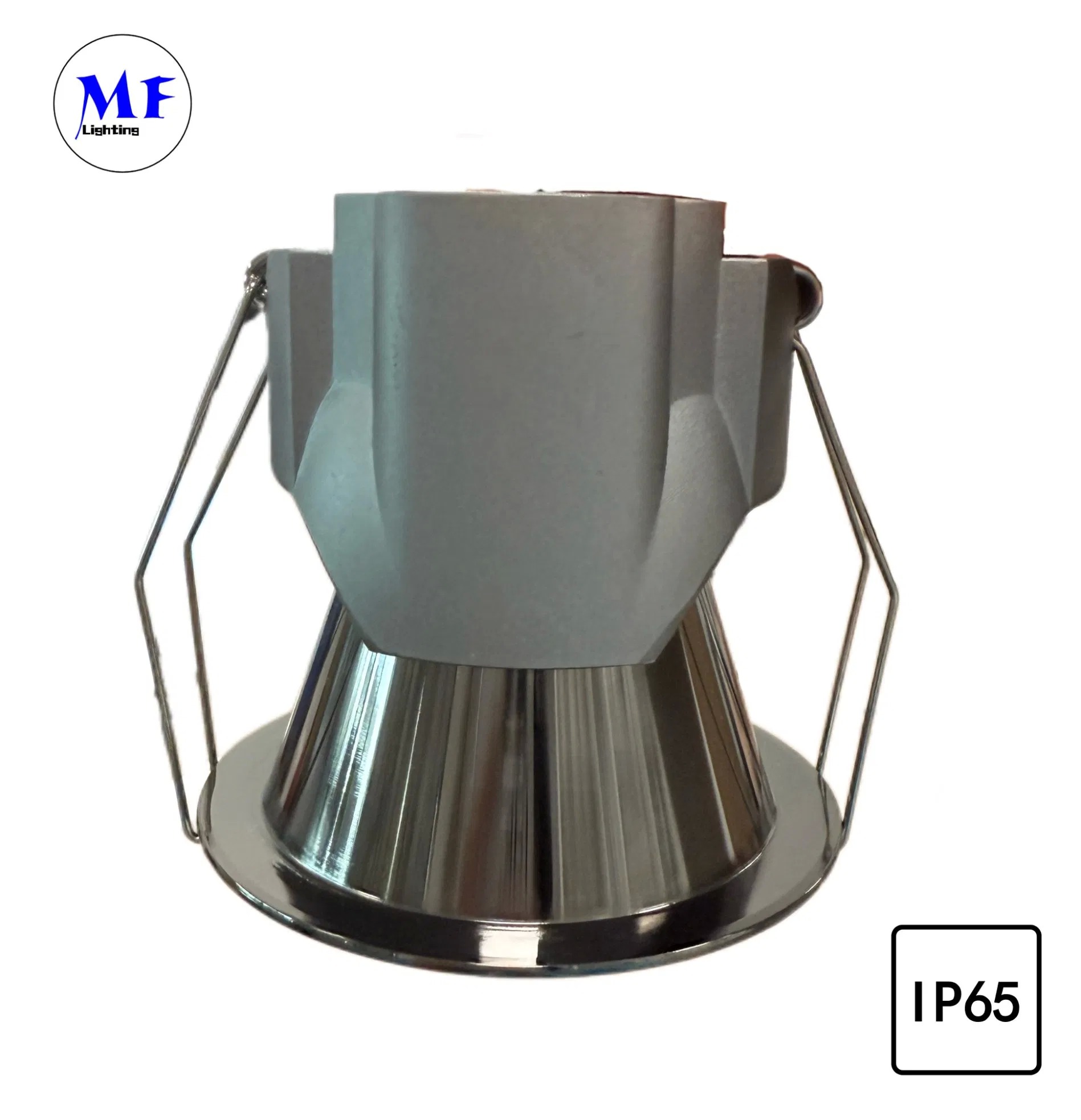

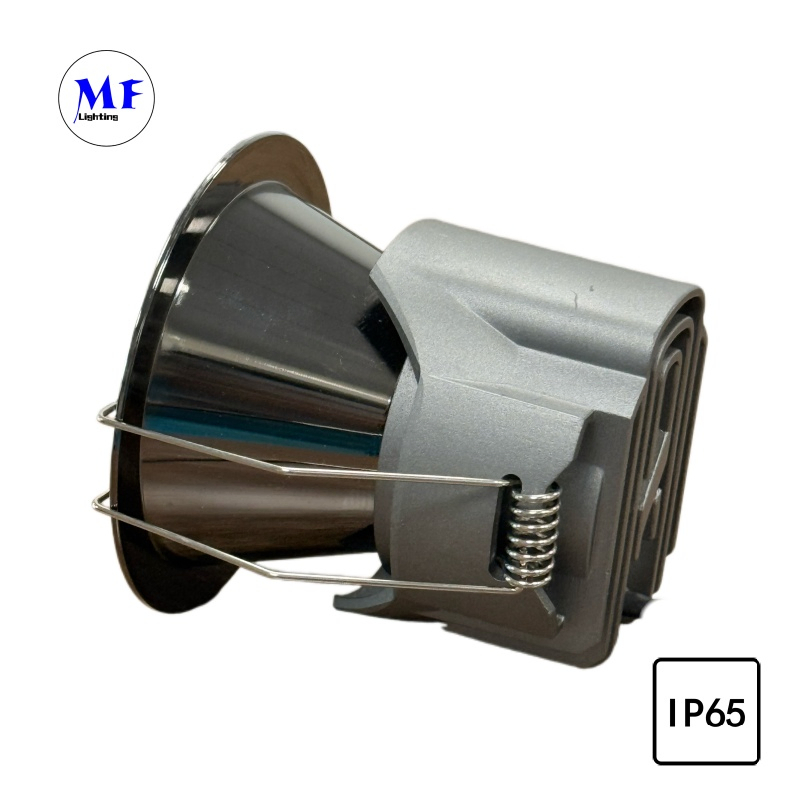

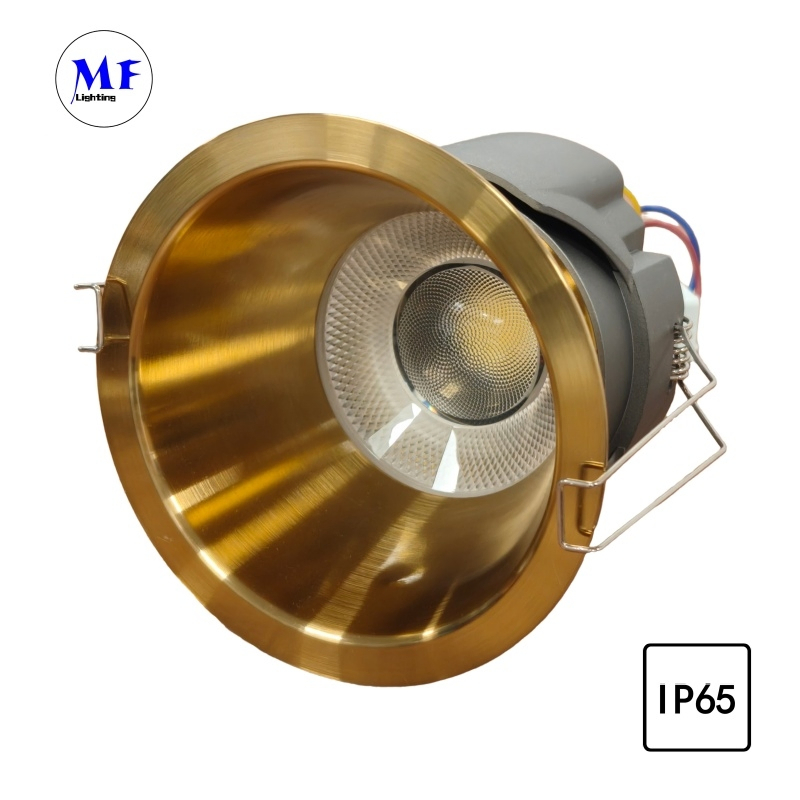

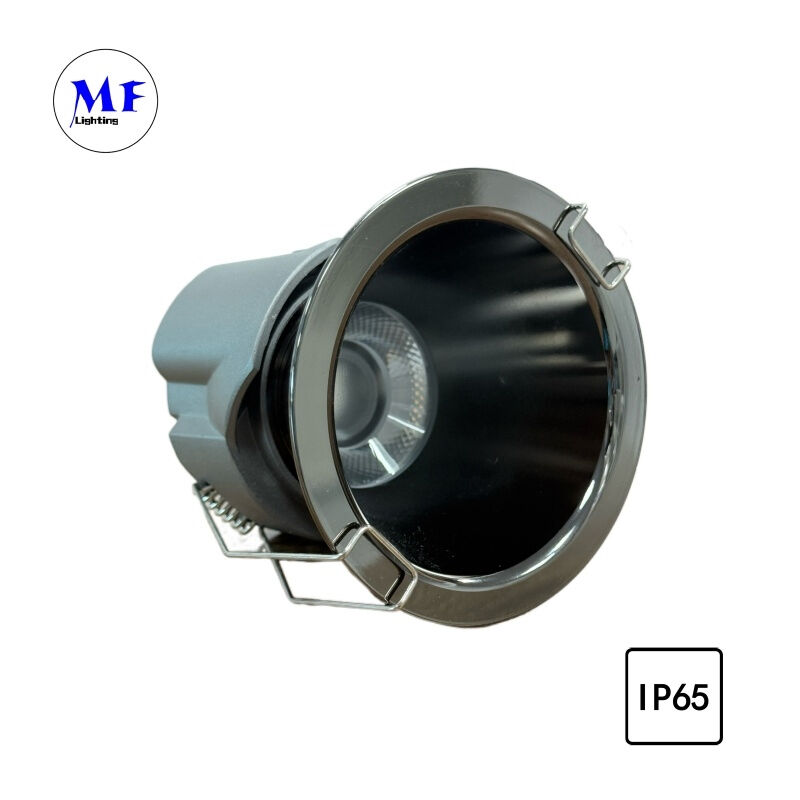

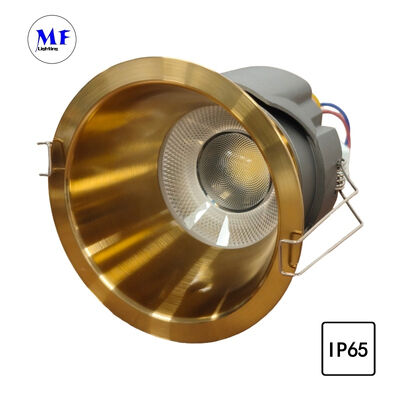

5years Warranty IP65 Waterproof Power CCT Dim Triac 0-10V Dali Zigbee Bluetooth Recessed White 10W/12W/15W/20W/25W/30W Downlight LED Down Light

Minimum Order Quantity :	1	Price :	8

Certification:	CE, RoHS

Detail Information
System Illumination:	1000-3000lm	Installation Type:	Recessed
Anti-Glare Rating:	Ugr<19	IP Rating:	IP65
Lamp Body Material:	Aluminum	Voltage (AC):	AC100-277V/AC200-240V
Color Temperature:	2700/3000K/3500K/4000/5000K/6000K	CRI(Ra):	>80ra / >90ra
LED Source:	COB LED	Lifespan:	50,000 Hours
Power:	10W/12W/18W/20W/25W/30W	Beam Angle:	24°, 36°, 55°
Operating Temperature:	-20°C To +50°C	Power Factor:	PF≥0.50 For 10-12W, PF≥0.95 For 20W+
Dimming Options:	Non-Dimmable / TRIAC / 0-10V / DALI / 2.4G Bluetooth & Tuya Zigbee
Highlight:	IP65 waterproof LED downlight , Triac dimmable recessed downlight , Zigbee Bluetooth LED downlight

Product Description

IP65 Waterproof LED Downlight with Multiple Dimming Options

High-performance recessed downlight featuring IP65 waterproof rating, multiple dimming protocols, and tunable white light for versatile commercial and residential applications.

Product Features

IP65 full waterproof and dustproof integrated structure for damp and humid environments
Deep sunken anti-glare optical design with UGR<19 for comfortable lighting
Multiple power options: 10W / 12W / 18W / 20W / 25W / 30W
Comprehensive dimming & CCT adjustment: TRIAC, 0-10V, DALI, Bluetooth & Zigbee smart control
Tunable white light from 2700K to 6000K
Multiple beam angles: 24°, 36°, 55°
Various color options for shell and reflector cup
Easy spring clip installation with standardized cut-out sizes
Universal voltage: 100-277Vac / 200-240Vac
Premium LED chips from OSRAM and Bridgelux
Complete certifications: CE, RoHS, CB, SAA

Technical Characteristics

Die-cast aluminum integrated radiator with 50,000-hour lifespan
High luminous efficiency up to 100LM/W
High color rendering options: Ra80+ / Ra90+
Multi-layer waterproof rubber ring and waterproof screw construction
Extended light cup structure eliminates direct glare
Flicker-free light output for eye comfort
Stable power factor: PF≥0.50 (10-12W), PF≥0.95 (20W+)
Wide operating temperature: -20°C to 50°C
Compact all-aluminum body with elastic spring clips
3-year factory warranty
Anti-oxidation metal reflective cup for uniform light distribution

Product Specifications

Parameter	Specification
Product Type	IP65 Waterproof Anti-Glare LED Recessed Downlight
Series	H - High Reflector Cup / S - Short Cup
Protection Grade	IP65 (whole lamp); IP67 waterproof driver for non-dimmable 10-25W
LED Chip (COB)	Bridgelux / O-SRAM (optional)
Input Voltage	AC100-277V or AC200-240V
Dimming Options	Non-Dimmable / TRIAC / 0-10V / DALI / 2.4G Bluetooth & Tuya Zigbee (optional)
CCT Tunable	2700K-6000K (optional)
Beam Angle	24° / 36° / 55°
CRI	>90Ra (H series); >90Ra or >80Ra (S series)
CCT Options	2700K / 3000K / 3500K / 4000K / 5000K / 6000K
Anti-Glare	UGR < 19, deep recessed optical design
Housing Material	Die-cast aluminum
Shell Color Options	Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold / Bronze
Reflector Color Options	Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold / Bronze
Installation	Spring clip recessed ceiling mounting
Operating Temperature	-20°C to +50°C
Lifespan	50,000 hours
Warranty	3 years
Certifications	CE, RoHS, CB, SAA

Key difference between H and S series: H series has a deeper reflector cup (taller body) for stronger anti-glare performance; S series is shorter/lower profile for shallow ceiling cavities. Same cut-out sizes, power range, and optical options across both series.

Product Models & Dimensions

Series	Model	Power	LED Chip	Dimension (mm)	Cut Out (mm)	Lumens ±10%	Package (CTN)	Inner Box (mm)
H	MF-HGS20-H10W	10W	Bridgelux / O-SRAM	D65 × H72	ø55	1000LM	50 PCS / CTN 52×37×24.5	10×7×11.5
H	MF-HGS20-H12W	12W	Bridgelux / O-SRAM	D85 × H79	ø75	1200LM	30 PCS / CTN 52×21×20	10×10×9.5
H	MF-HGS20-H18W	18W	Bridgelux / O-SRAM	D105 × H94	ø95	1800LM	30 PCS / CTN 59.5×36.5×29	11.5×11×13.5
H	MF-HGS20-H20W	20W	Bridgelux / O-SRAM	D105 × H94	ø95	2000LM	30 PCS / CTN 59.5×36.5×29	11.5×11×13.5
H	MF-HGS20-H25W	25W	Bridgelux / O-SRAM	D135 × H107	ø115	2500LM	20 PCS / CTN 69.5×30.5×32	14.5×13.5×15
H	MF-HGS20-H30W	30W	Bridgelux / O-SRAM	D135 × H107	ø115	3000LM	20 PCS / CTN 69.5×30.5×32	14.5×13.5×15
S	MF-HGS20-S10W	10W	Bridgelux / O-SRAM	D65 × H52	ø55	1000LM	50 PCS / CTN 40.5×16.5×43	7.7×7.7×8.2
S	MF-HGS20-S12W	12W	Bridgelux / O-SRAM	D85 × H56	ø75	1200LM	50 PCS / CTN 47×38×20	9×9×6.8
S	MF-HGS20-S18W	18W	Bridgelux / O-SRAM	D105 × H68	ø95	1800LM	50 PCS / CTN 60×24×47	11.5×11.5×9
S	MF-HGS20-S20W	20W	Bridgelux / O-SRAM	D105 × H68	ø95	2000LM	50 PCS / CTN 60×24×47	11.5×11.5×9
S	MF-HGS20-S25W	25W	Bridgelux / O-SRAM	D135 × H80	ø115	2500LM	20 PCS / CTN 69.5×30.5×32	14.5×13.5×15
S	MF-HGS20-S30W	30W	Bridgelux / O-SRAM	D135 × H80	ø115	3000LM	20 PCS / CTN 69.5×30.5×32	14.5×13.5×15

Driver Configuration

Configuration	Driver Brand	Waterproof	Whole Lamp Grade
Non-Dimmable 10-25W	Done Brand	IP67 waterproof driver, 100-277Vac	IP65
Non-Dimmable 30W	Lifud or Eaglerise	Non-waterproof driver	IP54
TRIAC Dimmable 10-25W	Aohua	Non-waterproof driver	IP54
0-10V Dimmable	Lifud	Non-waterproof driver	IP54
DALI Dimmable	Lifud	Non-waterproof driver	IP54
US Standard TRIAC	Aohua	Non-waterproof driver	-
