Anti Glare COB IP65 Waterproof Power & CCT Dimmable Triac 0-10V Dali Tuya Zigbee Recessed 10W/12W/15W/20W/25W/30W Downlight Smart LED DownLight

Minimum Order Quantity :	1	Price :	8

Certification:	CE, RoHS

Detail Information
Color Temperature:	2700/3000K/3500K/4000/5000K/6000K	IP Rating:	IP65
CRI(Ra):	>80ra / >90ra	Lifespan:	50,000 Hours
LED Source:	COB LED	Anti-Glare:	Ugr<19
Power:	10W/12W/18W/20W/25W/30W	Voltage (AC):	AC100-277V/AC200-240V
Lamp Body Material:	Aluminum	System Illumination:	1000-3000lm
Beam Angle:	24° / 36° / 55°	Operating Temperature:	-20°C To +50°C
Power Factor:	PF≥0.50 For 10-12W, PF≥0.95 For 20W+	Luminous Efficiency:	100LM/W
Dimming Options:	Non-Dimmable / TRIAC / 0-10V / DALI / 2.4G Bluetooth & Tuya Zigbee
Highlight:	IP65 waterproof smart LED downlight , CCT dimmable recessed LED downlight , Triac 0-10V Dali Zigbee downlight

Product Description

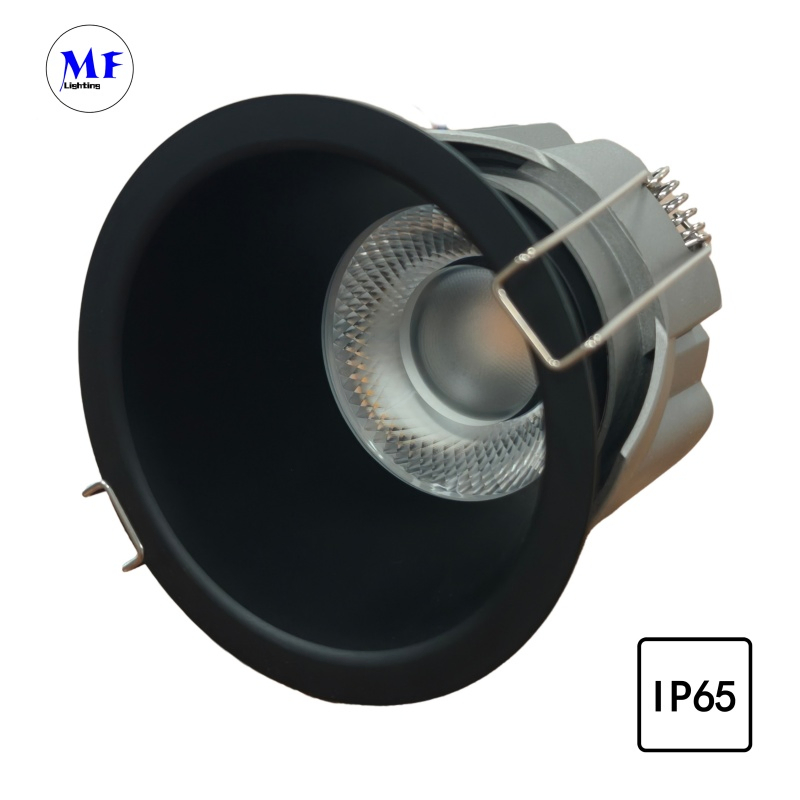

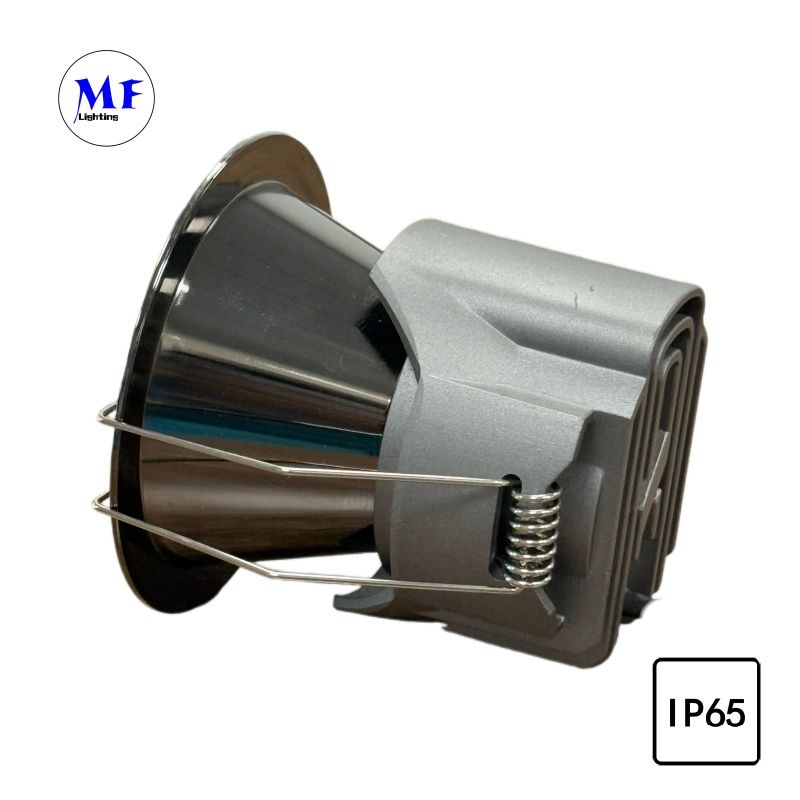

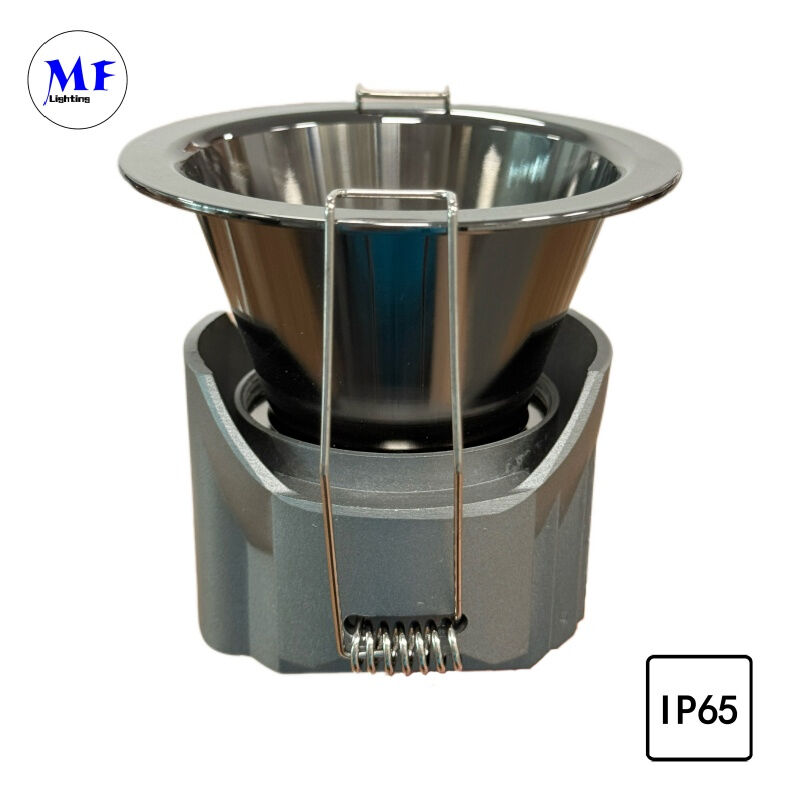

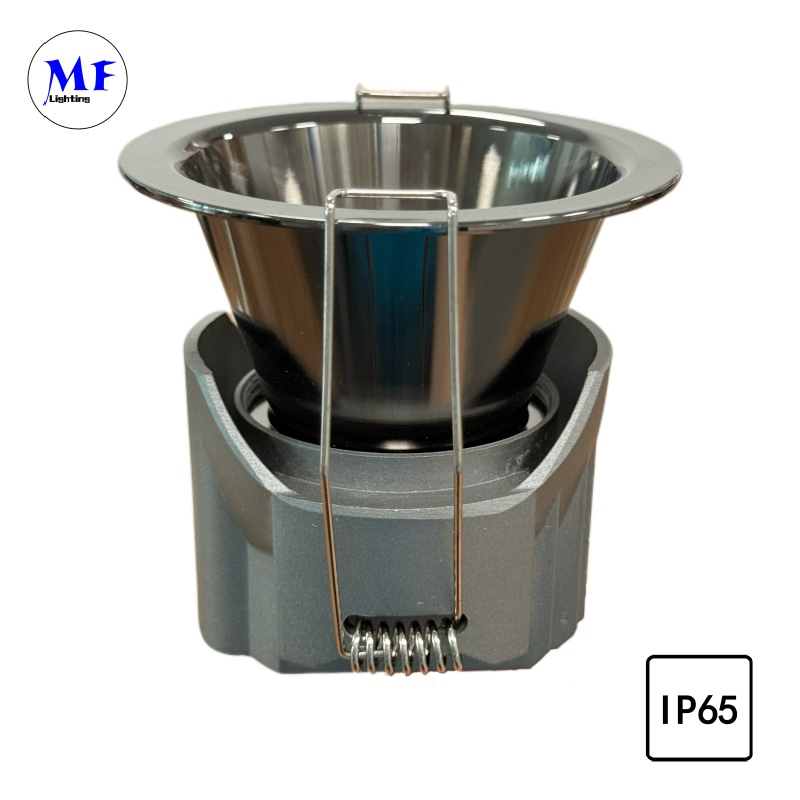

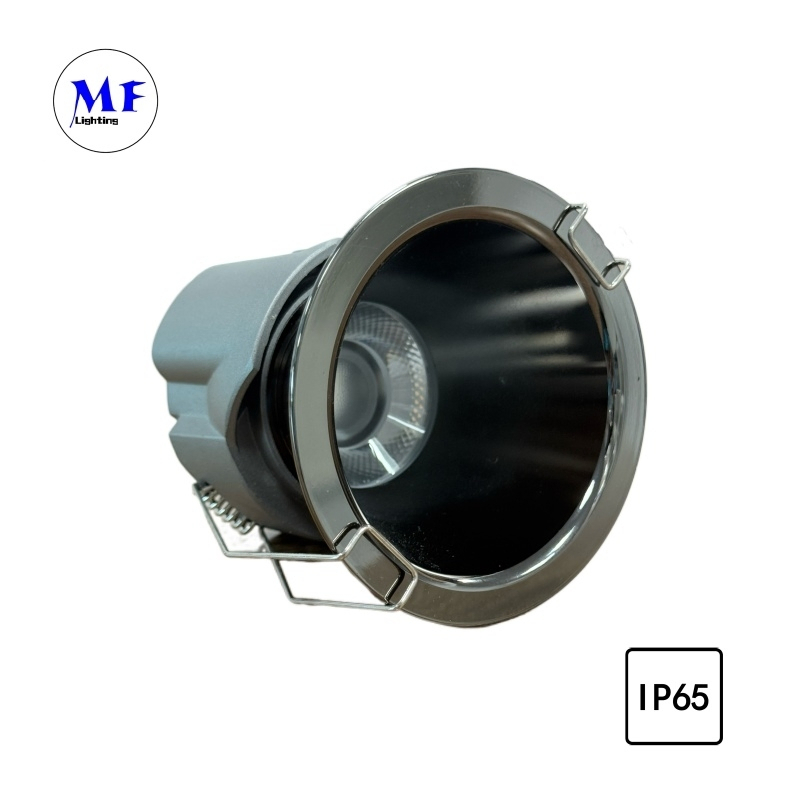

Smart LED Downlight with Advanced Anti-Glare Technology

Professional-grade IP65 waterproof recessed downlight featuring multiple dimming options, CCT tuning, and smart control capabilities for commercial and residential applications.

Product Features

IP65 full waterproof and dustproof integrated structure for damp and humid environments
Deep sunken anti-glare optical design with UGR<19 for comfortable, eye-friendly lighting
Multiple power options: 10W / 12W / 18W / 20W / 25W / 30W
Comprehensive dimming & CCT adjustment: Non-Dimmable, TRIAC, 0-10V, DALI, 2.4G Bluetooth & Tuya Zigbee smart control
Tunable white light: 2700K-6000K color temperature range
Multiple beam angles: 24°, 36°, 55°
Diverse appearance options with multiple shell and reflector cup colors
Easy spring clip installation with standardized cutting hole sizes
Universal wide input voltage: 100-277Vac / 200-240Vac
Premium LED chips: O-SRAM or Bridgelux with matched branded drivers
Complete certifications: CE, RoHS, CB, SAA

Technical Characteristics

Die-cast aluminum integrated radiator with excellent heat dissipation
50,000 hours service life with high reliability
High luminous efficiency up to 100LM/W
Superior color rendering: Ra80+ / Ra90+ options
Multi-layer waterproof rubber ring and waterproof screw construction
Extended light cup structure eliminates direct glare
Flicker-free light output for visual comfort
Stable power factor: PF≥0.50 (10-12W), PF≥0.95 (20W+)
Wide operating temperature: -20°C to 50°C
Compact all-aluminum body with elastic metal spring clips
3-year factory warranty
Anti-oxidation metal reflective cup for uniform light distribution

Technical Specifications

Parameter	Specification
Product Type	IP65 Waterproof Anti-Glare LED Recessed Downlight
Series	H - High Reflector Cup / S - Short Cup
Protection Grade	IP65 (whole lamp); IP67 waterproof driver for non-dimmable 10-25W
LED Chip (COB)	Bridgelux / O-SRAM (optional)
Input Voltage	AC100-277V or AC200-240V
Dimming Options	Non-Dimmable / TRIAC / 0-10V / DALI / 2.4G Bluetooth & Tuya Zigbee (optional)
CCT Tunable	2700K-6000K (optional)
Beam Angle	24° / 36° / 55°
CRI	>90Ra (H series); >90Ra or >80Ra (S series)
CCT Options	2700K / 3000K / 3500K / 4000K / 5000K / 6000K
Anti-Glare	UGR < 19, deep recessed optical design
Housing Material	Die-cast aluminum
Shell Color Options	Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold / Bronze
Reflector Color Options	Matte White / Matte Silver / Matte Black / Bright Silver / Gun Black / Rose Gold / Bronze
Installation	Spring clip recessed ceiling mounting
Operating Temperature	-20°C to +50°C
Lifespan	50,000 hours
Warranty	3 years
Certifications	CE, RoHS, CB, SAA

Series Comparison: H series features a deeper reflector cup (taller body) for enhanced anti-glare performance; S series offers a shorter/low-profile design for shallow ceiling cavities. Both series share identical cut-out sizes, power range, and optical options.

Product Models & Dimensions

H Series (High Reflector Cup)

Model	Power	LED Chip	Dimension (mm)	Cut Out (mm)	Lumens ±10%	Package (CTN)	Inner Box (mm)
MF-HGS20-H10W	10W	Bridgelux / O-SRAM	D65 × H72	ø55	1000LM	50 PCS / CTN	10×7×11.5
MF-HGS20-H12W	12W	Bridgelux / O-SRAM	D85 × H79	ø75	1200LM	30 PCS / CTN	10×10×9.5
MF-HGS20-H18W	18W	Bridgelux / O-SRAM	D105 × H94	ø95	1800LM	30 PCS / CTN	11.5×11×13.5
MF-HGS20-H20W	20W	Bridgelux / O-SRAM	D105 × H94	ø95	2000LM	30 PCS / CTN	11.5×11×13.5
MF-HGS20-H25W	25W	Bridgelux / O-SRAM	D135 × H107	ø115	2500LM	20 PCS / CTN	14.5×13.5×15
MF-HGS20-H30W	30W	Bridgelux / O-SRAM	D135 × H107	ø115	3000LM	20 PCS / CTN	14.5×13.5×15

S Series (Short Cup)

Model	Power	LED Chip	Dimension (mm)	Cut Out (mm)	Lumens ±10%	Package (CTN)	Inner Box (mm)
MF-HGS20-S10W	10W	Bridgelux / O-SRAM	D65 × H52	ø55	1000LM	50 PCS / CTN	7.7×7.7×8.2
MF-HGS20-S12W	12W	Bridgelux / O-SRAM	D85 × H56	ø75	1200LM	50 PCS / CTN	9×9×6.8
MF-HGS20-S18W	18W	Bridgelux / O-SRAM	D105 × H68	ø95	1800LM	50 PCS / CTN	11.5×11.5×9
MF-HGS20-S20W	20W	Bridgelux / O-SRAM	D105 × H68	ø95	2000LM	50 PCS / CTN	11.5×11.5×9
MF-HGS20-S25W	25W	Bridgelux / O-SRAM	D135 × H80	ø115	2500LM	20 PCS / CTN	14.5×13.5×15
MF-HGS20-S30W	30W	Bridgelux / O-SRAM	D135 × H80	ø115	3000LM	20 PCS / CTN	14.5×13.5×15

Driver Configuration

Configuration	Driver Brand	Waterproof	Whole Lamp Grade
Non-Dimmable 10-25W	Done Brand	IP67 waterproof driver, 100-277Vac	IP65
Non-Dimmable 30W	Lifud or Eaglerise	Non-waterproof driver	IP54
TRIAC Dimmable 10-25W	Aohua	Non-waterproof driver	IP54
0-10V Dimmable	Lifud	Non-waterproof driver	IP54
DALI Dimmable	Lifud	Non-waterproof driver	IP54
US Standard TRIAC	Aohua	Non-waterproof driver	-
