Factory Price 10W 12W 18W 20W 25W 30W Recessed LED Spot Light LED Down Light with High Reflector Cup Styple for Bathroom Kitchen Swimming Pool

Minimum Order Quantity : 1 Price : 8
Certification: CCC, CE, RoHS, SAA

Detail Information

Dimensions: 40.5*16.5*43CM Power Factor: 10-12W≥0.50, 20W≥0.95
Dimmable Options: Non-Dim/Triac/0-10V/Dali-2 Dimmable As Options Lamp Body Material: Die-Casting Aluminum
LED Driver: Done/Aohua/Lifud/Eaglerise Brand For Different Dim Luminous Flux: 100lm/W
UGR: <19 IP Rating: IP65
Power: 10W/12W/18W/20W/25W/30W CCT Adjustable: 2700-6000K Tunable As Optional If Need
CRI: Ra80+/Ra90+ Input Voltage: 100-277VAC Or 200-240VAC, 50Hz/60Hz
Lifespan: ≥50000hrs Beam Angle: 24° 36° 55°
Operating Temperature: -20 0c ~50 0c
Highlight:

10W recessed LED spot light

,

high reflector cup LED down light

,

bathroom LED spot light with warranty

Product Description

Recessed LED Spot Light with High Reflector Cup
Factory price recessed LED down lights available in 10W, 12W, 18W, 20W, 25W, and 30W configurations. Designed with high reflector cup style for optimal lighting performance in bathrooms, kitchens, and swimming pools.

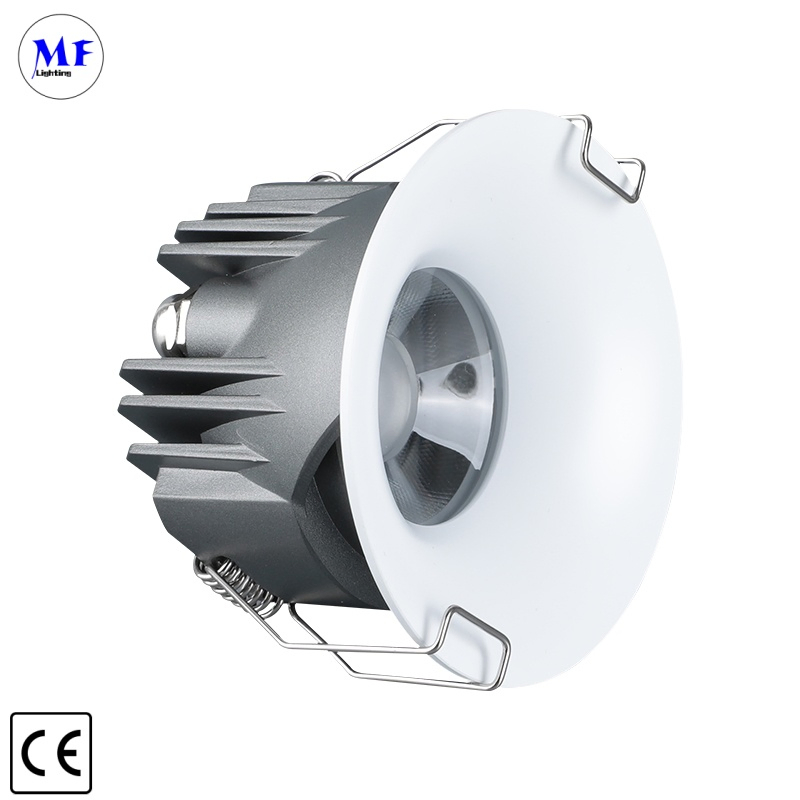

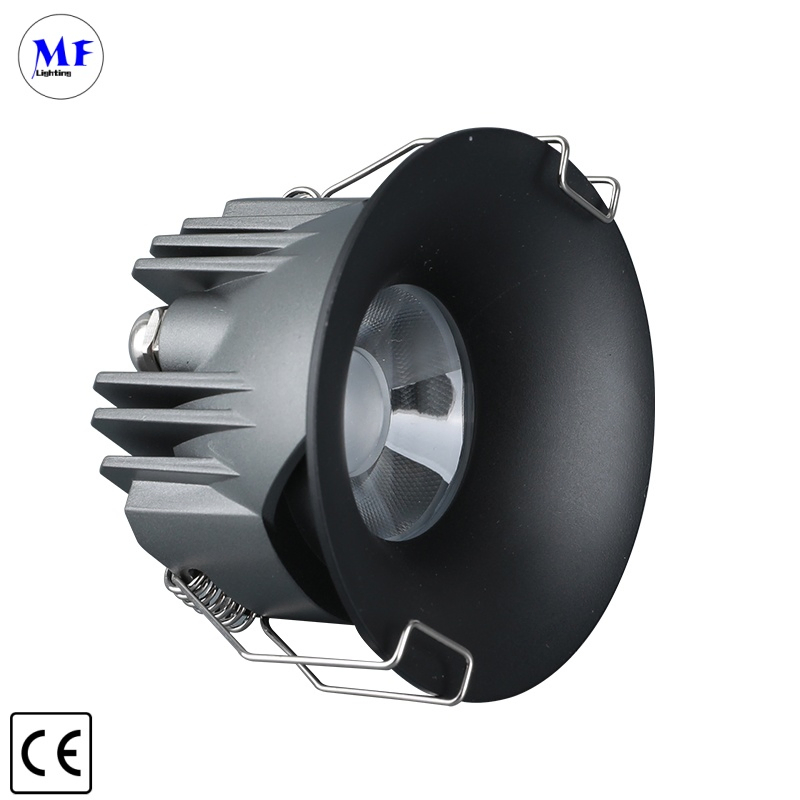

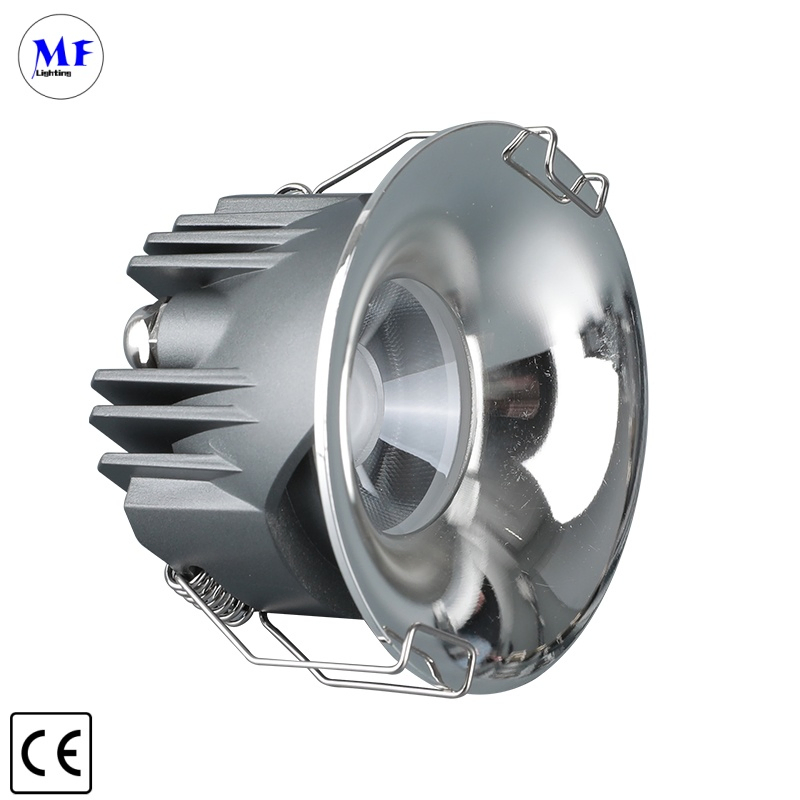

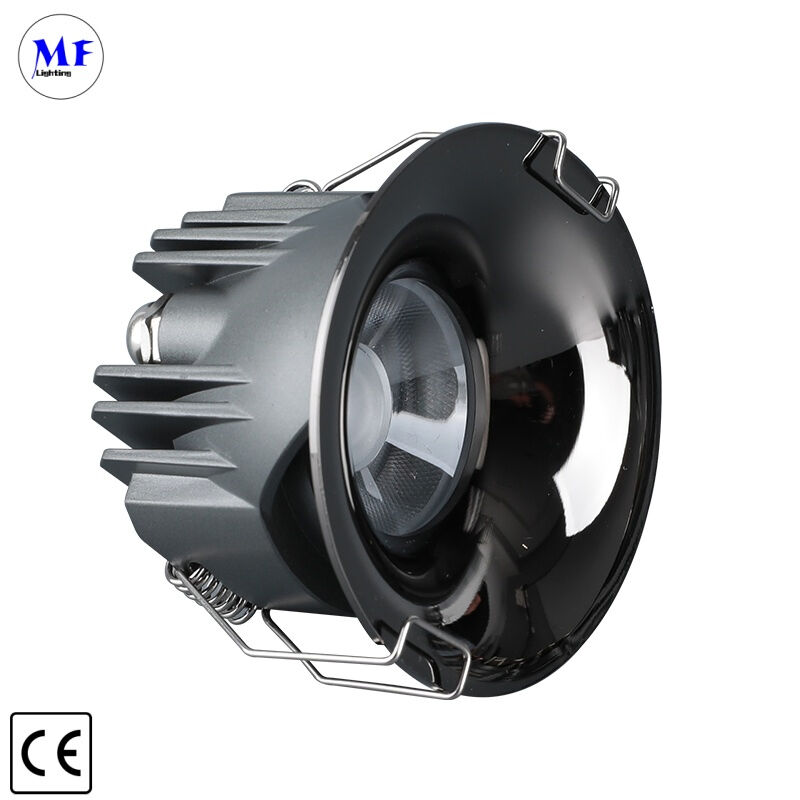

MF-HGS20-S LED Down Light product overview
Technical Specifications
ModelMF-HGS20-S10W/12W/18W/20W/25W/30W
Input Voltage100-277Vac or 200-240Vac, 50hz/60hz
Power10W/12W/18W/20W/25W/30W
Color Temperature2700K/3000K/3500K/4000K/5000K/6000K
LED ChipO-SRAM/Bridgelux
LED DriverDONE/Aohua/Lifud/Eaglerise Brand for different dim version
Power Factor10-12W ≥ 0.50, 20W ≥ 0.95
Housing ColorWhite/Black/Rose Gold/Bronze/Silver
Reflector ColorMatte White/Matte Silver/Matte Black/Bright Silver/Gun Black/Rose Gold/Bronze
Luminous Flux100LM/W
CRI (Ra)Ra80+/Ra90+
Lifespan≥ 50,000 hours
Beam Angle24°, 36°, 55°
MaterialDie-casting Aluminum
Operating Temperature-20°C ~ 50°C
DimmableNon-Dim/Triac/0-10V/DALI-2 dimmable as options
CCT Adjustable2700-6000K Tunable as optional
IP RatingIP65
UGR< 19
CertificateCE/RoHS (Whole Lamp); CE/ROHS/CB/SAA (Driver)
Warranty Period3 years
Product Details
LED down light detailed viewLED down light components and features
1.Waterproof Screw - Prevents moisture ingress for long-lasting durability
2.Upgraded Optical Lens - Enhanced light focusing effect with beautiful wide beam angle
3.Uniquely Shaped Radiator - Made of die-cast aluminum for powerful and reliable heat dissipation
LED down light anti-glare featuresLED down light multi-layer anti-glare design
Multi-layer Anti-Glare for Comfortable Eye Protection
We use an extended lamp cup to increase the distance between the light source and the light outlet, ensuring glare-free illumination right from the light exit.
Key Features
  • IP65 Waterproof Rating: Full waterproof and dustproof design suitable for wet areas like bathrooms and outdoor spaces.
  • Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
  • Anti-Glare Design: Deep recessed structure with UGR < 19 provides eye-friendly lighting for bedrooms and offices.
  • Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP.
  • Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes.
  • High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.
  • Multiple Housing Colors: Available in White, Black, Rose Gold, Bronze, and Silver to match various interior styles.
LED down light installation demonstrationLED down light in various settingsLED down light close-up viewLED down light beam pattern
Installation Instructions
Easy spring clip installation diagram
Easy Spring Clip Installation
1.Ceiling Hole Cutting: Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding luminaire.
2.Connect the Wires: Connect the wires to the luminaire terminals correctly according to the installation manual. It is best to be operated by a professional electrician.
3.Insert into the Ceiling: Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4.Lower the Spring Clips: After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use.
Product Dimensions
MF-HGS20-S LED down light dimensional diagram
Product Applications
MF-HGS20-S are designed for recessed installation and are suitable for various applications that require waterproof lighting solutions.
Outdoor Lighting
These waterproof downlights can be used for outdoor applications where exposure to the elements is a concern, such as in outdoor walkways, gardens, or building exteriors.
Bathroom Lighting
Due to their waterproof design, these downlights are suitable for use in bathrooms and other wet areas where moisture resistance is essential.
Kitchen Lighting
In kitchens where steam and cooking splashes are common, waterproof downlights can provide both functional and aesthetic lighting solutions.
Swimming Pool Areas
These lights can be used around swimming pools or in pool houses where water resistance is crucial.
Spa or Wellness Areas
Waterproof downlights are ideal for use in spa environments where high humidity and moisture are present.
Industrial Settings
In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces
These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.
LED down light application examplesLED down light in commercial setting
